Description

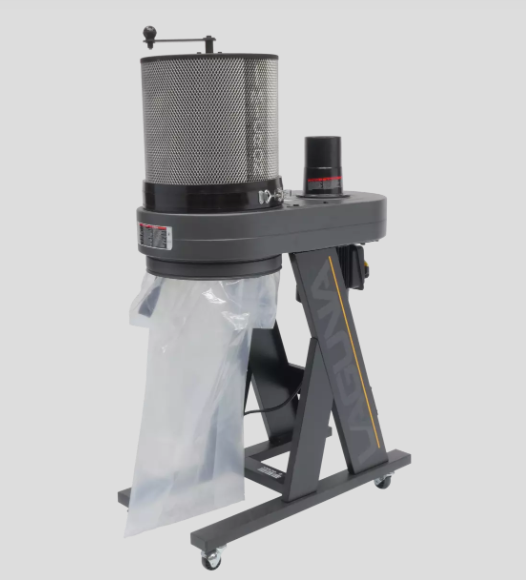

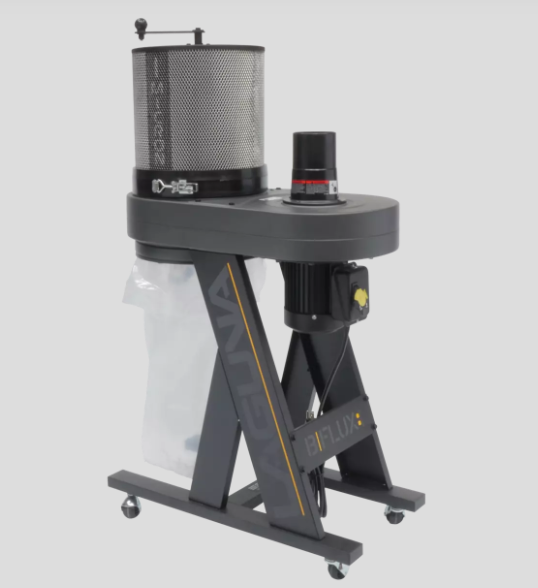

Laguna Dust Collector, B|Flux
Inventory # 9902
Model: B|Flux
Description:
The best-looking single-stage dust collector to hit the market in years. Sleek design and power to match. No more fumbling with a steel band to mount your lower bag, the B|Flux comes with a patented Snap-Band that makes changing the bag a breeze
Unlike most 1 HP units, the B|Flux feels solid and has a low dB rating. The horizontal dust chute provides optimum airflow and can swivel 180° to make the 4″ outlet face downwards. The B|Flux dust collector can be oriented with the inlet port pointed up or down
Specifications:
CFM:
Shop Setting: 550 CFM
Inlet: 650 CFM
Max. Static Pressure (Inches of Water): 4.86″
Impeller/Fan Size: 9″
Impeller Material: Steel
Impeller Type: Radial Fin

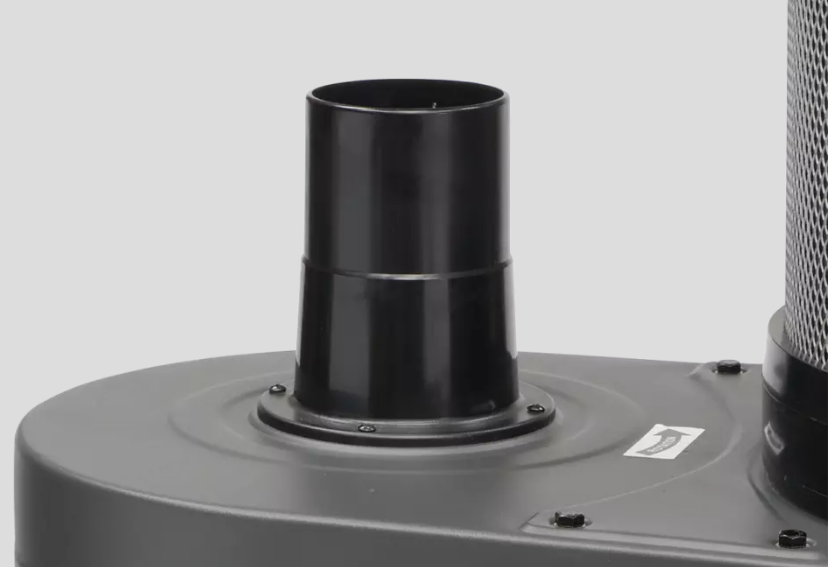

Inlet Diameters: 4″ x 1 Port
Drum Collection Bag: Plastic Bag, 350mm Diameter x 980mm Long
Canister Filter Type: 1 Micron
Filtration Efficiency: 0.2 – 2 Micron @ 99.97%
MERV Rating: 12
Canister Diameter: 14.2″ (360mm)
Canister Length: 11.8″ (300mm)
Filter Surface Area: 17.2′ Squared

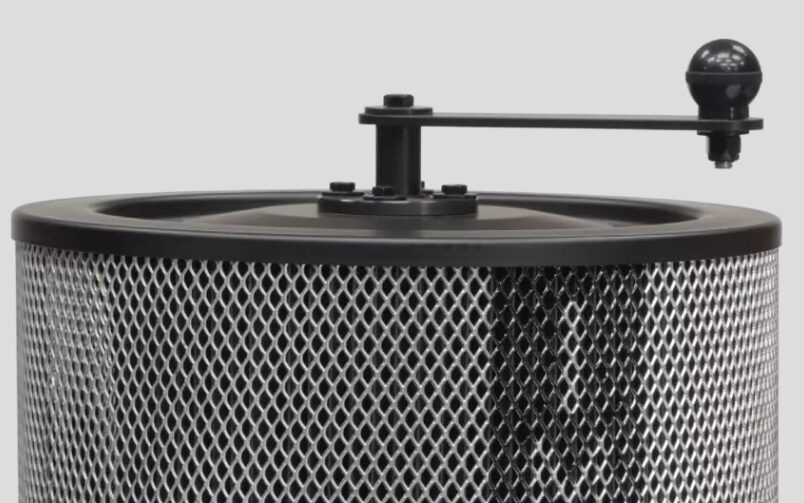

Canister Cleaning: Manual Handle Crank 360°

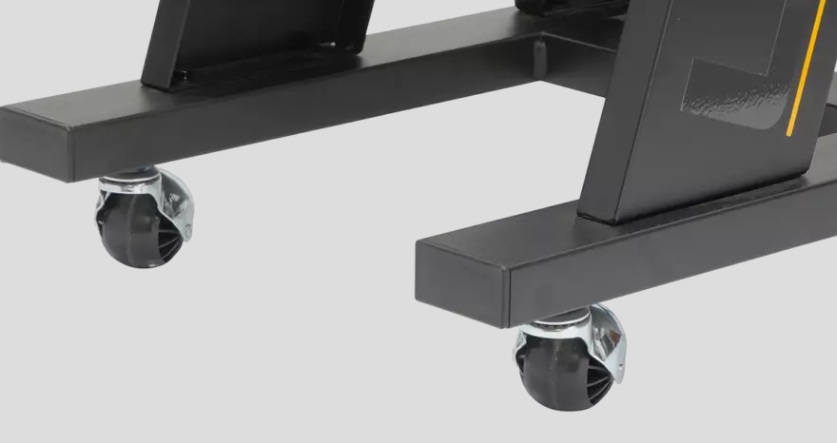

Wheels: 2″ Ball Caster
Decibel Rating: 76 dB (@ 9.8′)
Plug: Yes
RPM: 3,450
Switch Type: Motor Mounted Direct Switch
Cord Length: 6′
Motor: 1 HP / 110v / 1ph
Mechanical Specifications:
Dimensions: 29″ x 15″ x 50″ H
Weight: approx. 70 lbs.
FOB Factory – Contact us for special pricing and availability
