Laguna 3,093 CFM Auto-Cleaning Dust Collector, X|Flux: 5
Inventory # 9911
Model: X|Flux: 5
Description:

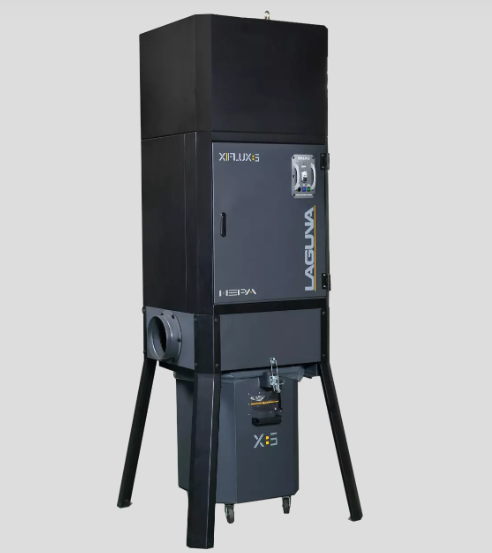

The all-new X|Flux 5 boasts a powerful 5HP motor and impressive 3,093 CFM. Auto-cleaning of the HEPA filter is accomplished by double-paddles that sweep the filter every 3 minutes of system use in a clockwise and counterclockwise action. Remote and LED drum light are standard. The X|Flux 5 is a full-size stationary, single-stage dust collection unit with a convenient 39-gallon drum on locking casters
Specifications:
Max. Air Flow: 3,093 CFM
Shop Setting Air Flow: 1,823 CFM
Max. Static Pressure: 12″
Fan Size: 14 1/2″
Inlet: 8″
Auto Clean: 3 Minute Interval 10 Seconds F+R

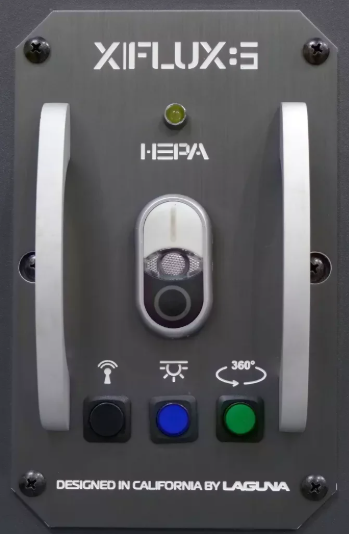

Remote Control: High Frequency
Collection Capacity: 39 Gallon Octagon Drum
Decibel Reading: 69 dB (@ 9.8′)
Filtering Area: 32.3 sq/ft

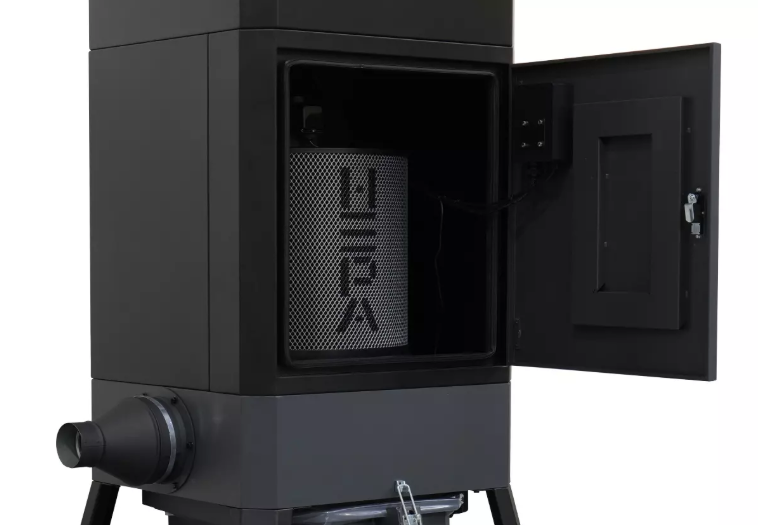

Cartridge Filter: HEPA, 19.7″ x 19.7″ x 1pc (0.3 – 0.4 Micron @ 99.7% Efficiency)

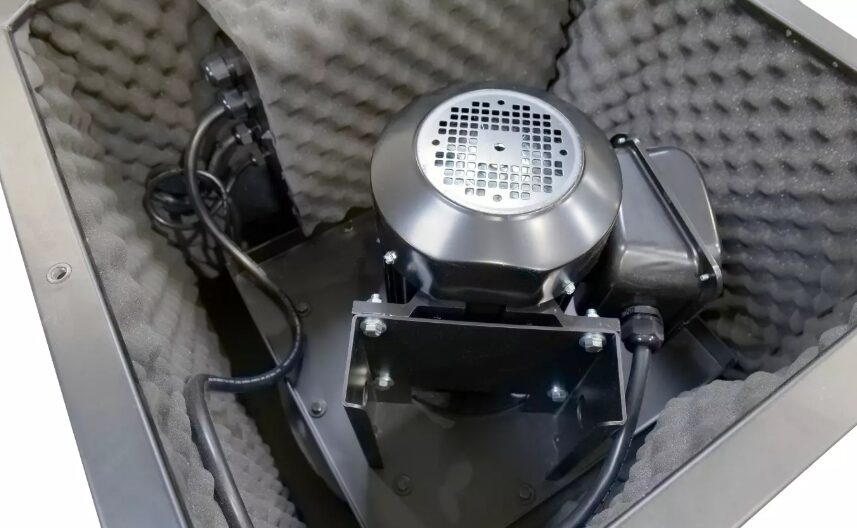

Motor: 5 HP / 220v / 1ph (Running Amp, 8″ Inlet – 18.5A @ 220v)
Mechanical Specifications:
Dimensions: 36″ x 38″ x 91″ H
Weight: approx. 460 lbs.
FOB Factory – Contact us for special pricing and availability
