Description
Laguna 2,718 CFM Cyclone Dust Collector, C|Flux: 3
Inventory # 9907
Model: C|Flux: 3
Description:

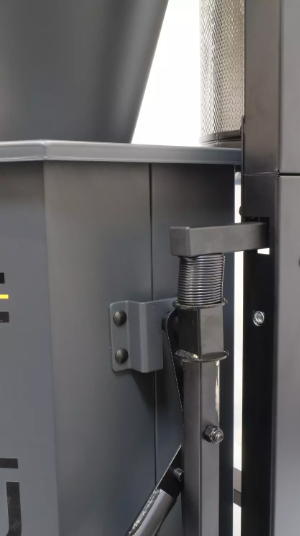

For the popular C|Flux cyclone dust collectors, Laguna has kept the user-friendly aspects of the previous generation while adding smart, new features to improve the user experience. Among the upgrades is a dual-paddle filter cleaning design, and a max level indicator to increase filter longevity
Specifications:
Max. Air Volume: 2,718 CFM
Shop Setting Air Flow: 1,624 CFM
Max. Static Pressure: 11.2″
Fan Size: 15 1/2″
Inlet: 8″ (8″ x 4″ x 3 Ports)

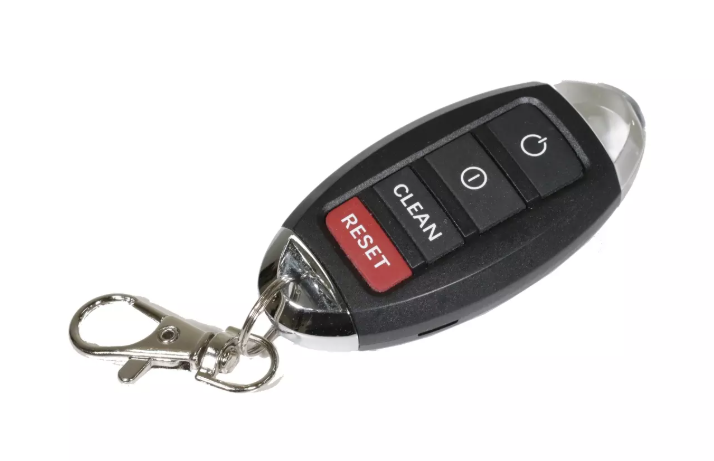

Remote Control: High Frequency

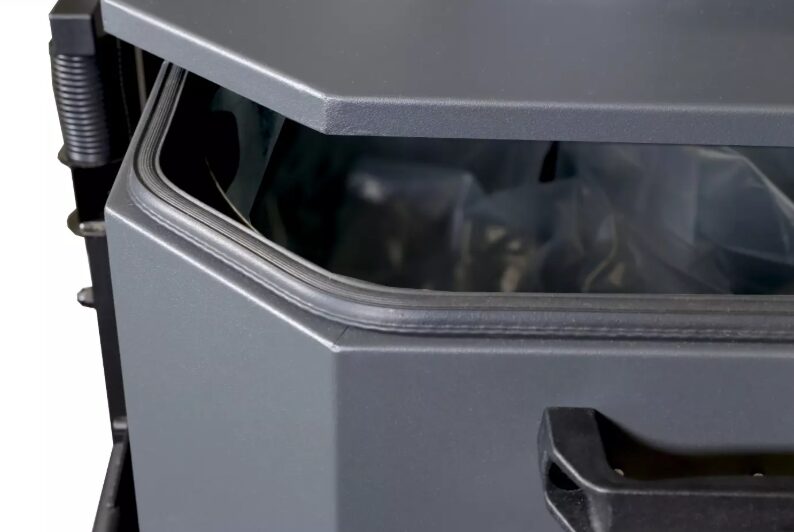

Collection Capacity: 46 Gallon Octagon Drum
Decibel Reading: 88 dB @ 9.8′
Filtering Area: 102 sq/ft
Cartridge Filter: 1 Micron, 15.74″ x 35.43″ x 1 pc

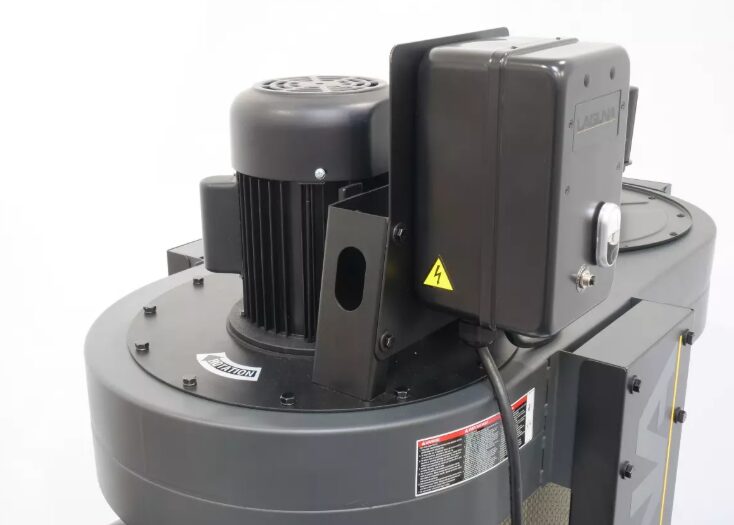

Motor: 3 HP / 220v / 1ph (Running Amp, 8″ Inlet – 22A @ 220v)
Mechanical Specifications:
Dimensions: 48″ x 28″ x 88″ H
Weight: approx. 375 lbs.
FOB Factory – Contact us for special pricing and availability
