Description
Laguna 1,314 CFM Cyclone Dust Collector, C|Flux: 1
Inventory # 9905
Model: C|Flux: 1
Description:
For the popular C|Flux cyclone dust collectors, Laguna has kept the user-friendly aspects of the previous generation while adding smart, new features to improve the user experience. Among the upgrades is a dual-paddle filter cleaning design, and a max level indicator to increase filter longevity
Specifications:
Max. Air Flow: 1,314 CFM
Shop Setting Air Flow: 900 CFM (Measured with Hoses Connected to Inlet)
Max. Static Pressure: 10.1″
Fan Size: 13 1/2″
Inlet: One 6″ or Two 4″ Ports

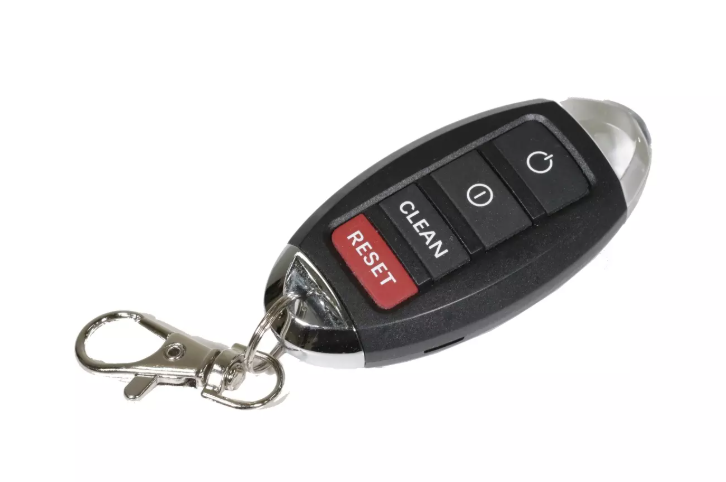

Remote Control: High Frequency

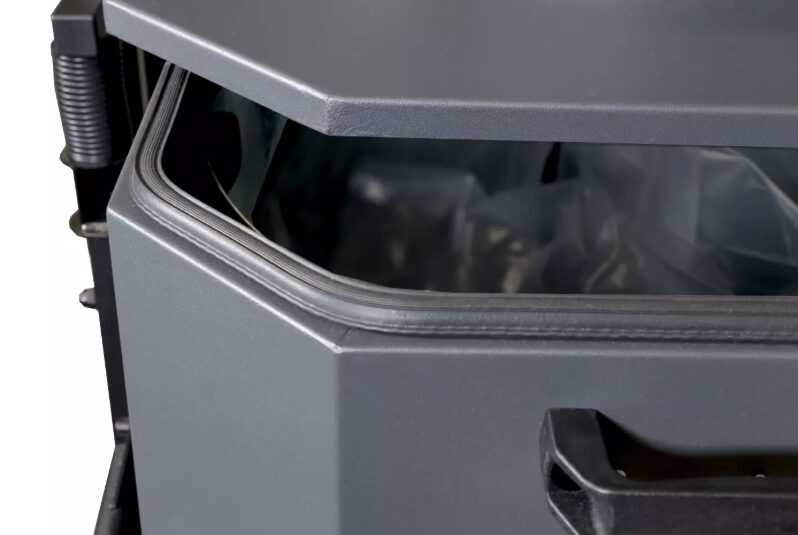

Collection Capacity: 25 Gallon Octagon Drum
Decibel Reading: 82 dB @ 9.8′
Filtering Area: 48.4 sq/ft
Cartridge Filter: 1 Micron, 15.74″ x 19.68″ x 1 pc
Motor: 1.5 HP / 110v, 220v / 1ph (Running Amp, 6″ Inlet – 18.8A @ 110v, 9.4A @ 220v)
Mechanical Specifications:
Dimensions: 42″ x 25″ x 68″ H
Weight: approx. 235 lbs.
FOB Factory – Contact us for special pricing and availability
