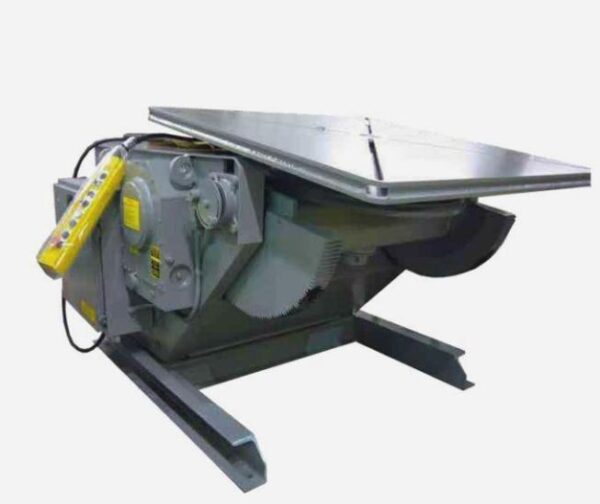

Koike Aronson Ransome 2,500 lbs. Gear Driven Welding Positioner, HD25

Shipping: Add to Cart to Calculate

SKU: Hd25

Inventory #: 5065

Categories: , ,

Condition:

Type:

Brand:

Description

Koike Aronson Ransome 2,500 lbs. Gear Driven Welding Postioner, HD25

Inventory # 5065

Model: HD25

Made in USA

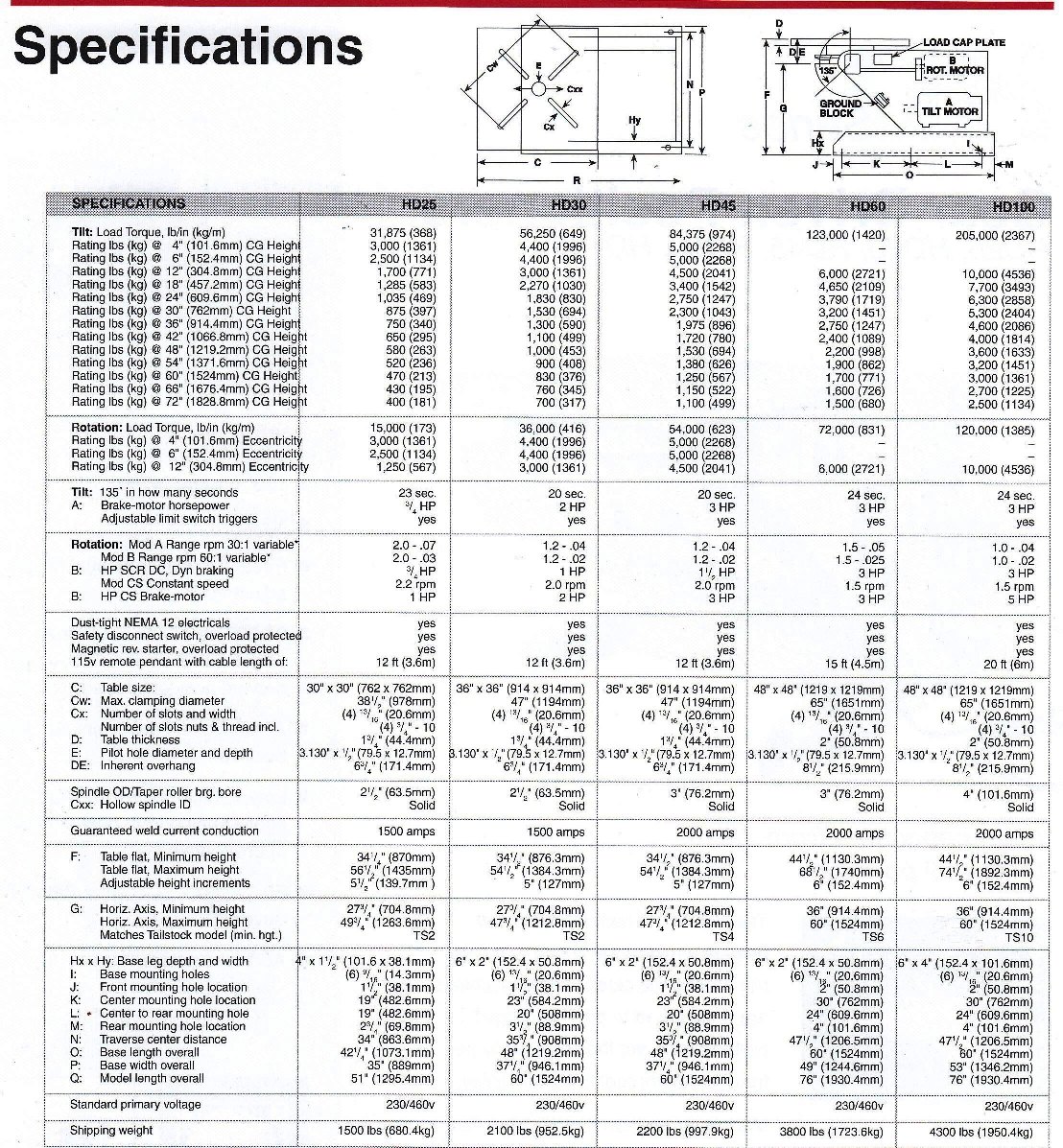

Specifications:

Rotation: 2,500 lbs. @ 6″

Load Torque: 15,000 lbs.

Tilt: 135° in 23 Sec.

Load Torque: 31,875 lbs.

Table Size: 30″ x 30″

Table Flat:

Min. Height: 34 1/4″

Max. Height: 56 1/2″

Adjustable Increments: 5 1/2″

Motor: 1 HP / 230v, 460v / 3ph

Standard Features:

2,500 Pound Capacity

30″ x 30″ Table; Swivels 60°

135° Powered Forward Tilt

Height Adjustment

50:1 Variable Speed Drive

Low Voltage Hand Control Pendant

AC Brake Motor

90,000 PSI Aluminum-Bronze Wormgear Drive is Self-Locking to Prevent Accidental Load Start-Up

Drive Reduces Back Driving

All Steel Welded Gearbox

NEMA 12 Electricals

Pin-Through Post Manual

Features Up-Right Motos Safely Mounted within the Chassis and Straddle Supported Tilt Pinions to Prevent Misalignment of the Rotational Drive Gearing

Adjustable Limit Switch Triggers

Safety Disconnect Switch with Overload Protection

115v Remote Pendant with 12′ Cable

Mechanical Specifications:

Shipping Weight: approx. 1,500 lbs.

FOB Factory – Contact us for Pricing and Availability

Please Note: Stock Photo Represents the Model Series and May Differ Slightly from the Specific Model Purchased
