Description

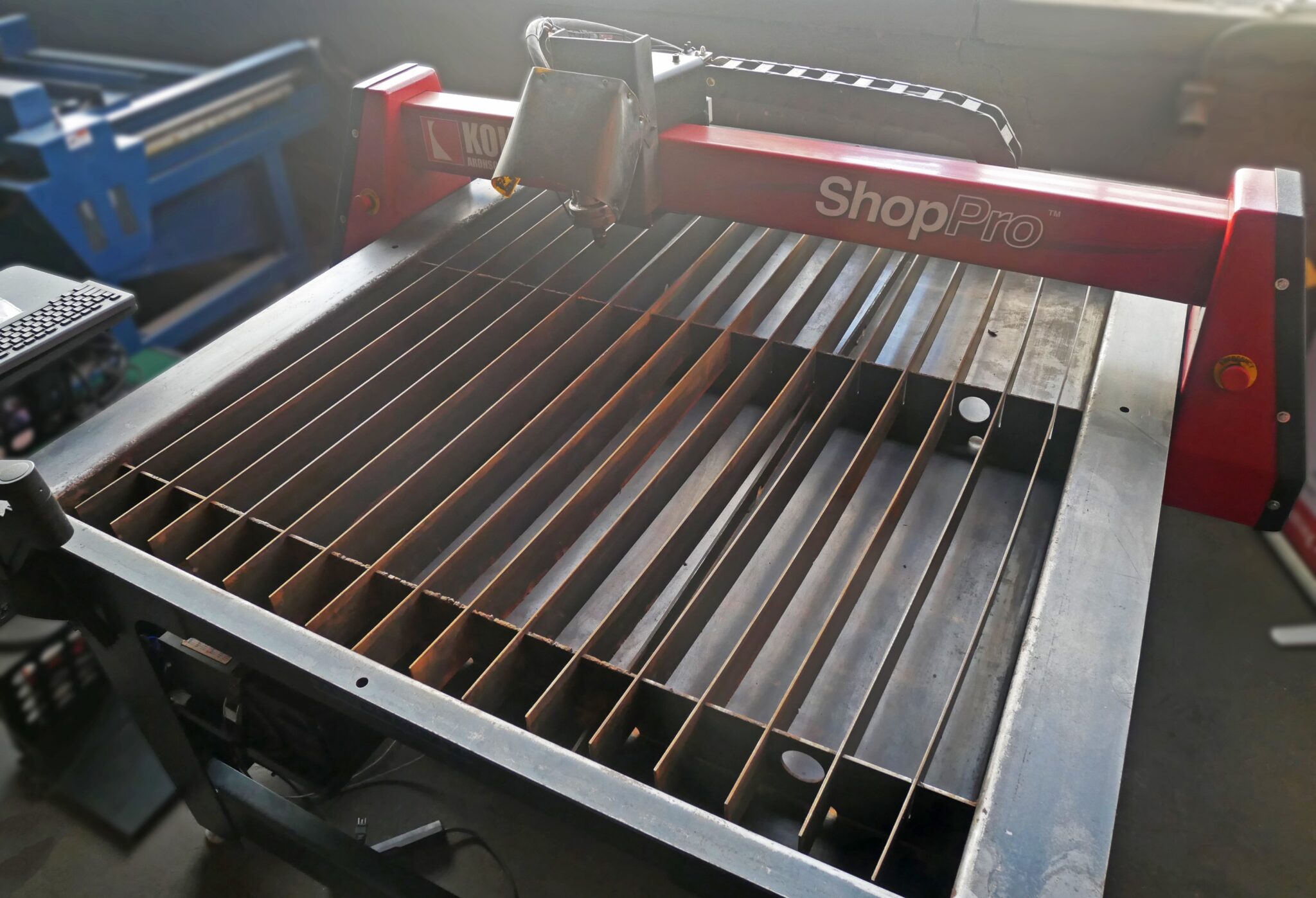

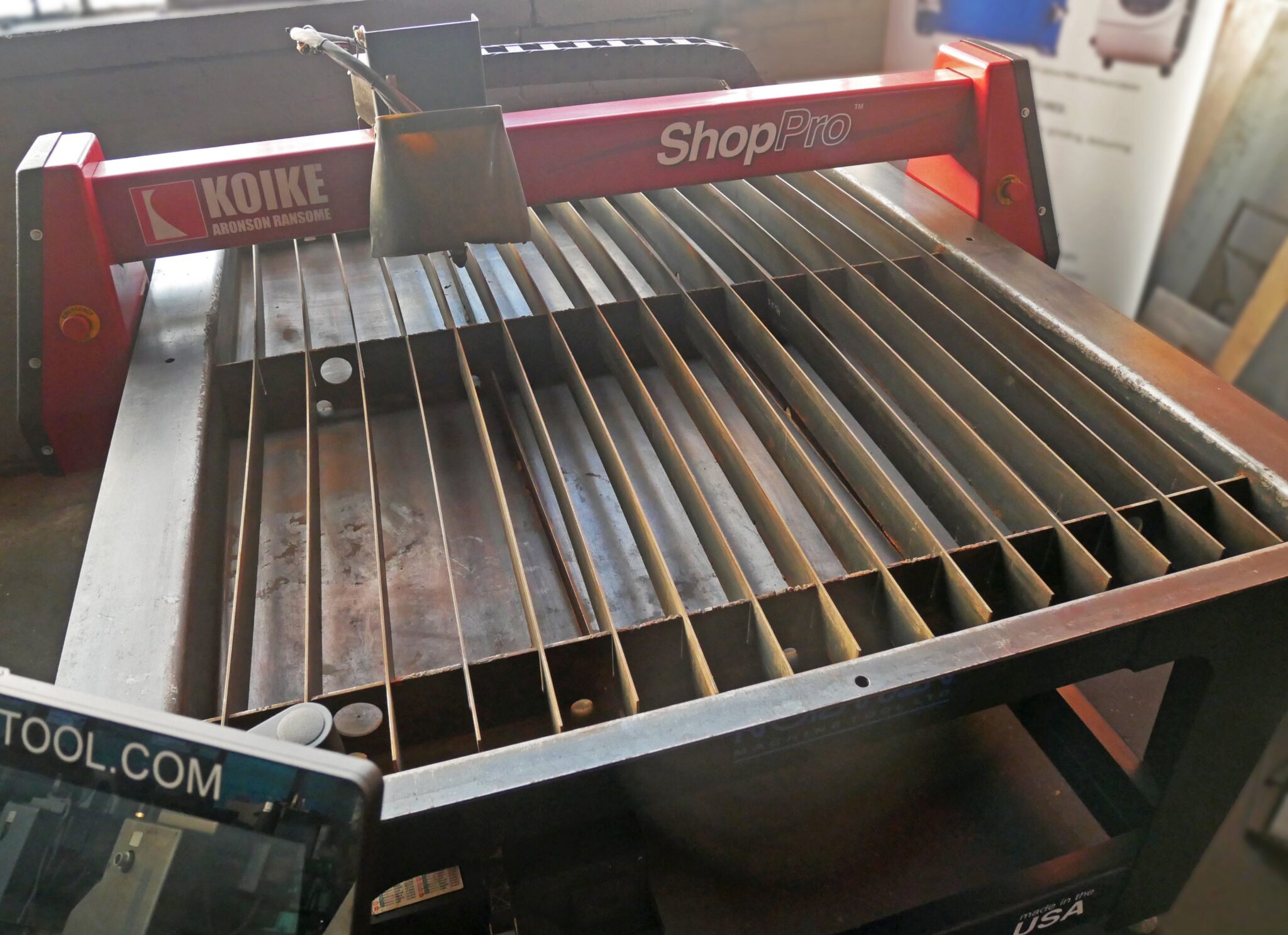

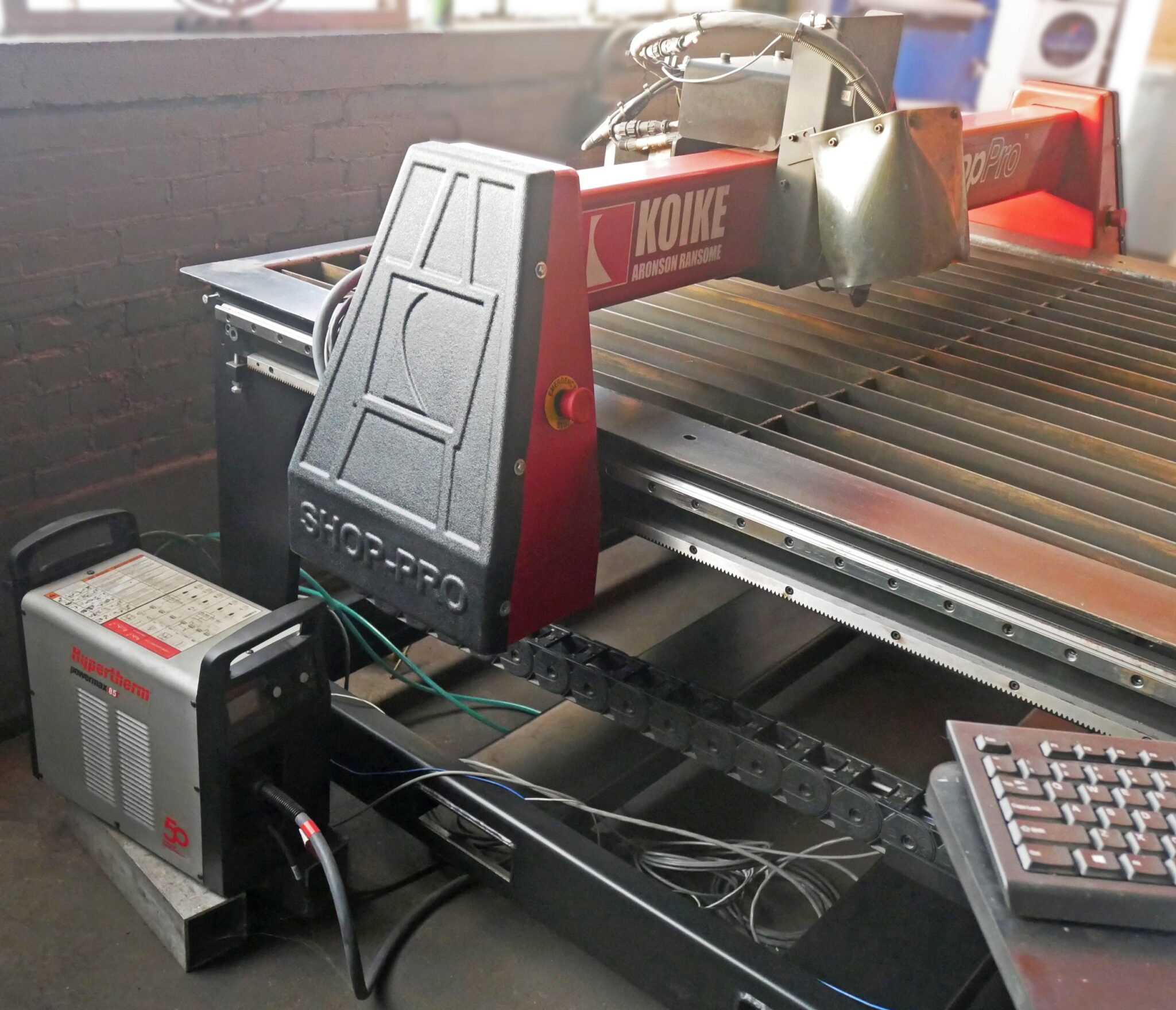

Koike Aronson 4′ x 4′ CNC ShopPro Plasma Table with Hypertherm Powermax 85
Inventory # 9625
Model: ShopPro 4′ x 4′
This machine has never been in a production environment. It is a demo machine owned by Norman Machine Tool
Specifications:
Effective Cutting Area: 4′ x 4′
Cutting Capacity: 3/4″ Mild Steel
Control Voltage: 115v / 1ph

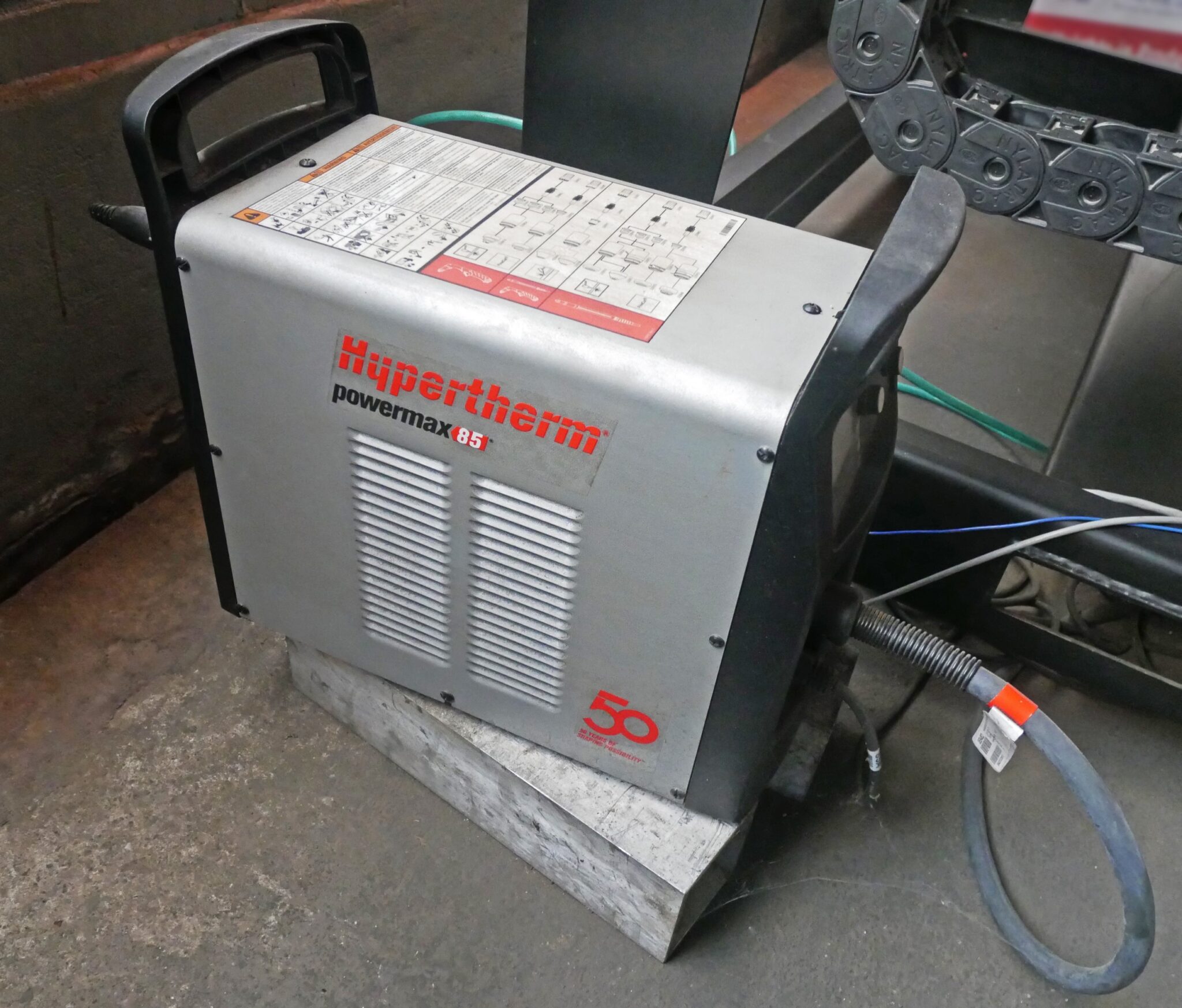

Plasma Source: Hypertherm Powermax 85 (1ph/3ph)
CNC Controller: FlashCut CNC Windows PC (115v/1ph)

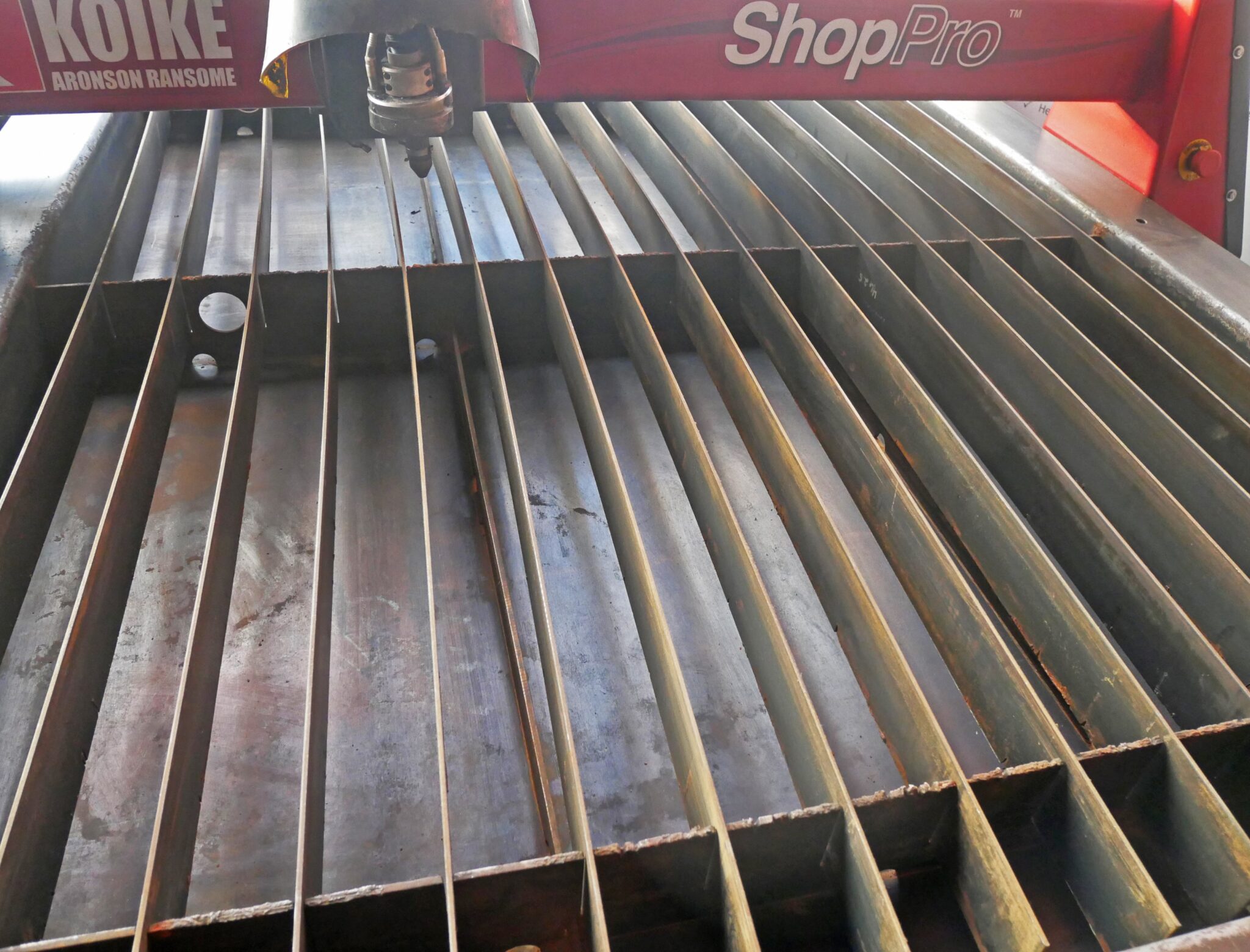

Table Type: Water Pan Insert
Traverse Speed: 1,000 IPM
Drive System: Stepper
Direct Drive: Helical Rack and Pinion
Gantry Carriage: Solid Steel Construction
Frame Construction: 7 Gauge (Mild Steel)

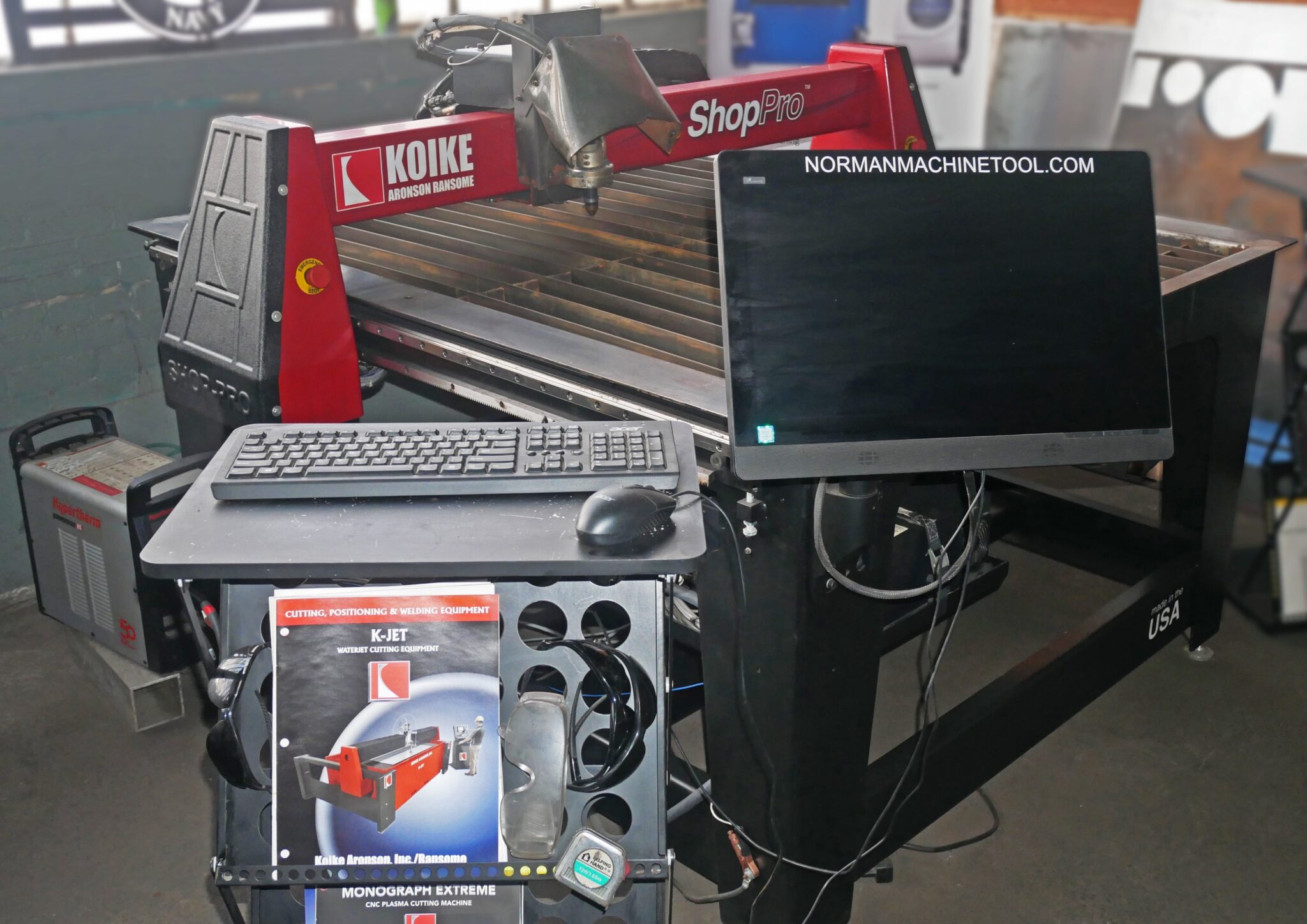

FlashCut CNC All-in-One Motion Controller and 21″ Panel PC:
Integrated plasma torch height control follows the sheet surface at the precise height
Real-time visualization of toolpath and torch voltage settings
Completely integrated FlashCut CAD/CAM/CNC enables you to easily draw a 2D part, create the toolpath with lead-ins and outs, nest, and cut
DXF import, image import, and shape library with a multitude of menu-driven shapes
Integrated cut charts for plasma
Automatic kerf crossing detection in the THC algorithm prevents unwanted diving
DXF/DWG import/Silhouette import
Standard grid nesting
On-board automatic true shape nesting
Customizable plasma cut charts for Hypertherm
Automatic cut settings based on material
Automatic kerf compensation
Fix tool finds and corrects CAD mistakes instantly
Requires clean, dry, oil-free air supply @ 450 scfh, minimum 85 PSI flow rate
New Replacement Cost: $33,965.00
FOB Our Baltimore, MD Warehouse
