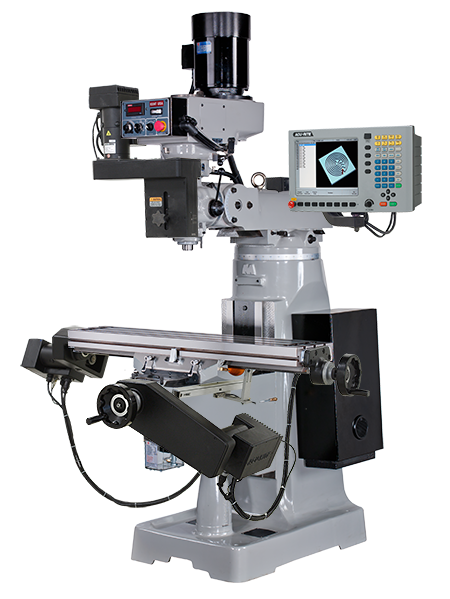

Kent 9″ x 49″ CNC Knee Mill with Acu-Rite MillPwr G2 Control, KTM-3VSF

Shipping: Add to Cart to Calculate

SKU: KTM-3VSF

Inventory #: 8134

Categories: ,

Condition:

Type:

Brand:

Description

KentĀ 9″ x 49″ CNC Knee Mill with Acu-Rite MillPwr G2 Control, KTM-3VSF

Inventory # 8134

Model: KTM-3VSF

Read the Kent Model KTM-3VSF PDF Here

Description:

Kent’s industry-leading CNC mill with the Acu-Rite MillPwr G2 control bring powerful CNC capabilities to the tool room with easy-to-learn conversational programming and advanced canned cycles to empower everyone on the shop floor with greater productivity

This versatile system can be operated manually like a full-function DRO with intelligent power feeds, or automatically with easy-to-use conversational shop floor programming for full CNC operations. Additionally, you can import and run G-code files from CAD/CAM programs. This enables you to machine full 3D contoured parts

These CNC mills are the new industry standard for ease of use, machining flexibility, and reliable performance. They are well-suited for tool rooms and job shops, from prototyping or one-offs to small and medium production runs

Specifications:

Table Size: 9″ x 49″ (Opt. 9″ x 42″)

Table Travel (X-Axis): 31″ (Opt. 24″ / 28″)

Saddle Travel (Y-Axis): 11″

Knee Travel (Z-Axis): 15″

Quill Travel: 4″ with MillPwr G2 CNC Control

Ram Travel: 14 1/2″

Spindle Speed: AC Frequency Drive Head, 60 – 550 – 4,500 RPM

Spindle Taper: R-8

Quill Diameter: 3.375″

Quill Feed Rate: 0.0015″ / 0.003″ / 0.006″ /rev.

Drilling Capacity (Manual / Power): 0.75″ / 0.37″ Diameter

Boring Capacity: 6″ Diameter

Milling Capacity: 2.0″ /Min.

Max. Work Load: 850 lbs.

Spindle Nose to Table Surface: 3 1/4″ – 18 1/4″

Spindle Center to Column: 5″ – 19 1/2″

Motor: 3 HP / 220v / 3ph (Opt. 440v power requires 5A, but can also accept 220v /1ph power without a phase converter)

Standard Features:

3 HP variable speed head

60 – 550 – 4,500 spindle RPM

AC-Freq inverter head (single phase or three phase capable, large digital spindle RPM display with real-time load meter)

Automatic centralized lubrication system with metered check-valves

Hardened and ground (HRC-52) table surafce and all slide ways

Easy conversational programming, DRO-mode allows for full manual operations with built-in 3-Axis absolute encoder glass scales

Engraving feature and DXF file import capability, USB drive and 12.1″ high resolution flat panel color LCD display

Mechanical Specifications:

Shipping Dimensions: 72″ x 72″ (Skid)

Shipping Weight: approx. 2,800 lbs.

Contact us for special pricing and availability

FOB Factory

Please Note: This Model is Available with a 2-Axis or 3-Axis CNC Control

Additional information

Weight 3000 lbs
