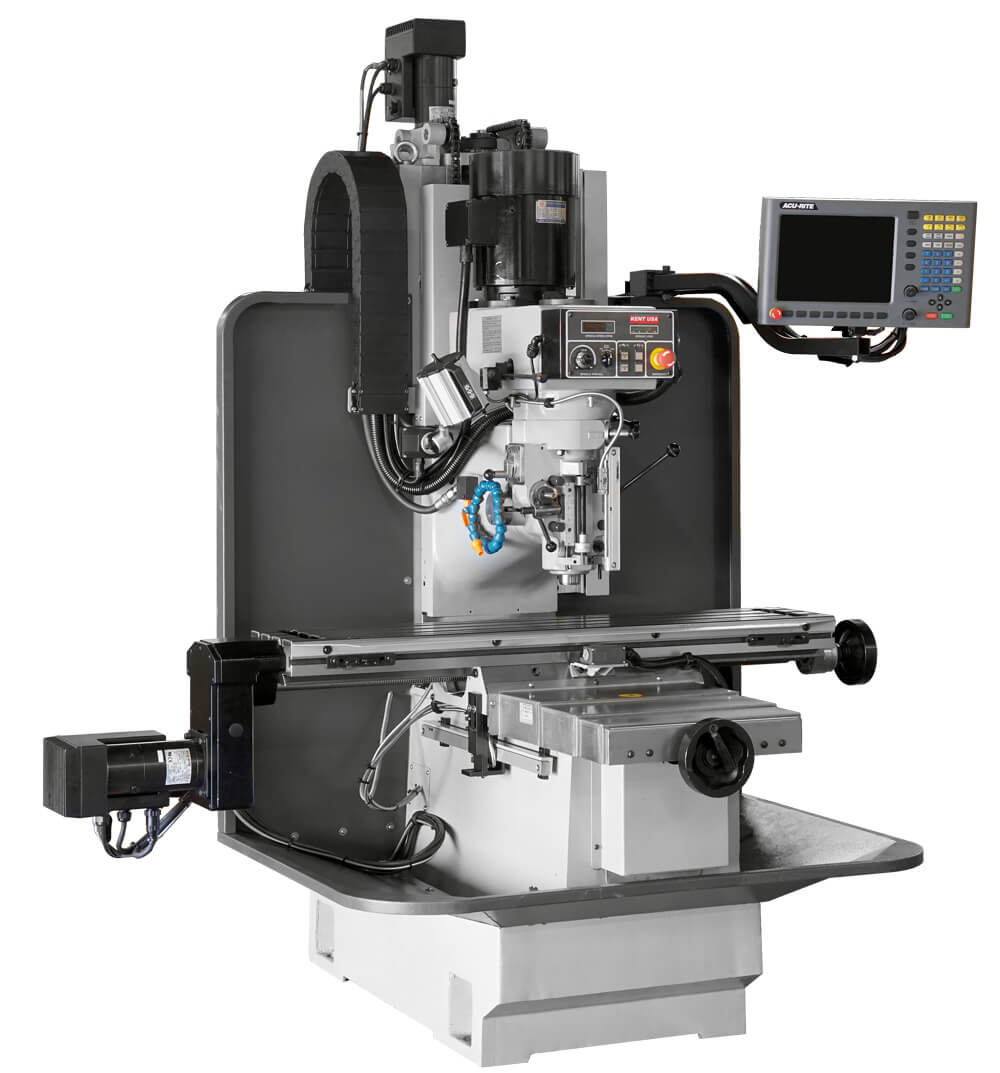

Kent 10″ x 50″ CNC Bed Mill with Acu-Rite MillPwr-G2 Control, BM-3

Shipping: Add to Cart to Calculate


Inventory #: 8176

Categories: ,





Kent 10″ x 50″ CNC Bed Mill with Acu-Rite MillPwr-G2 Control, BM-3

Inventory # 8176

Model: BM-3



Table Size: 10″ x 50″

Table Travel (X-Axis): 34″ (32″ with Control)

Saddle Travel (Y-Axis): 16″ (14″ with Control)

Knee Travel (Z-Axis): 24″ (22″ with Control)

Spindle Center to Column: 17.8″

Spindle to Table: 2″ – 26″

Quill Travel: 5″

Quill Diameter: 3 3/8″

T-Slots (Number x Width): 3 x 5/8″

Spindle Taper: R8 / NMTB 30

Speed Range: 80 – 4,500 RPM

Quill Power Feed: 0.0017″ / 0.0032″ / 0.0054″

Drilling Capacity (Manual): 1″

Drilling Capacity (Power): 0.37″

Boring Capacity: 6″ Diameter

Milling Capacity: 2 1/2″ /Min.

Max. Work Load: 1,480 lbs. (Distributed)

Motor: 3 HP / 220v / 3ph

Standard Features:

Rigid spindle/head housing with powerful 3 HP vector drive spindle motor

80 – 4,500 RPM programmable spindle provides greater range of machining capability

Metal telescopic way cover on front saddle ways for enhance durability

X-axis and Y-axis metal hand wheels for manual operation and set ups

Automatic lubrication system with metered check valves

Programmable flood coolant with splash guards and chip pan

Built-in coolant reservoir in machine base

Certified Meehanite machine casting for superior dampening and stability

Standard Accessories:

Acu-Rite MillPwr-G2 conversational control with 12.1″ color LCD

Manual/DRO, conversational, and G-code operational modes

Dual USB (front/back) ports, Ethernet port, and RS-232 port

Programmable spindle speed control and spindle speed override knob

Programmable flood coolant, splash guards and chip pan

Automatic lubrication system and work light

Standard tools and manual

2-year MillPwr-G2 system warranty

Mechanical Specifications:

Shipping Dimensions: 78″ x 51″ x 80″ H

Shipping Weight: approx. 4,100 lbs.

Contact us for special pricing and availability

FOB Factory

Additional information

Weight 4300 lbs
