Description

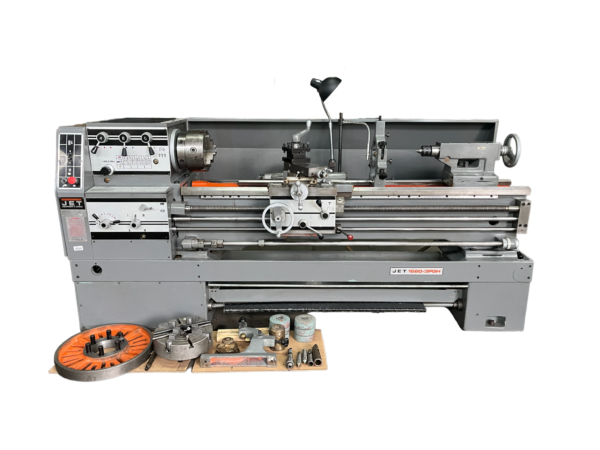

JET 16″ x 60″ Geared Head Engine Lathe, 1660-3PGH
Inventory # 9468
Model: 1660-3PGH
Stock No.: 321352
S/N: JY192
Specifications:
Swing Over Bed: 16″
Swing Over Cross Slide: 8 5/8″
Swing Thru Gap: 25 5/8″
Length of Gap: 10 5/8″
Distance Between Centers: 60″
Hole Thru Spindle: 3 1/8″
Spindle Nose: D1-8
Spindle Speeds: (12) 40 – 1,600 RPM
Tailstock Spindle Travel: 5″
Diameter of Tailstock Spindle: 2 3/4″
Taper in Tailstock Spindle: MT 4
Motor: 7.5 HP / 220v, 440v / 3ph (Pre-Wired 220v)
Equipment Included:
(1) 10″ 3-Jaw Chuck
(1) 12″ 4-Jaw Chuck
(1) 19″ Face Plate
Inch and Metric Threading
Removable Gap
Thread Dial
Collet Closer
Mechanical Specifications:
Dimensions: 113″ x 43″ x 50″ H
Weight: approx. 4,500 lbs.
FOB Our Baltimore, MD Warehouse
