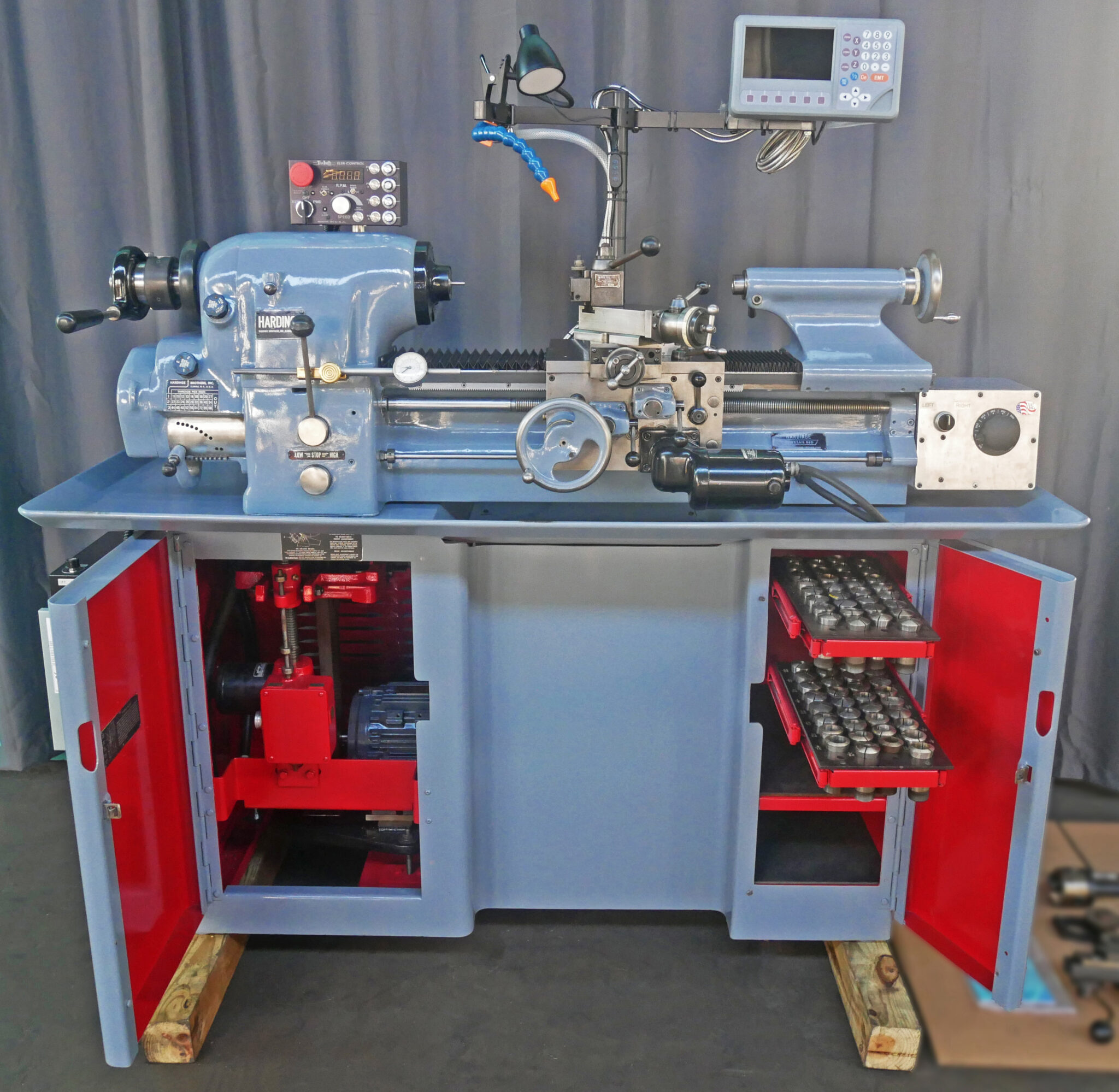

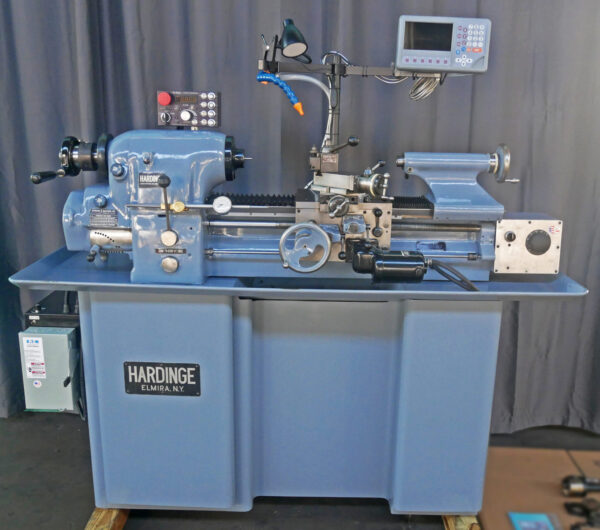

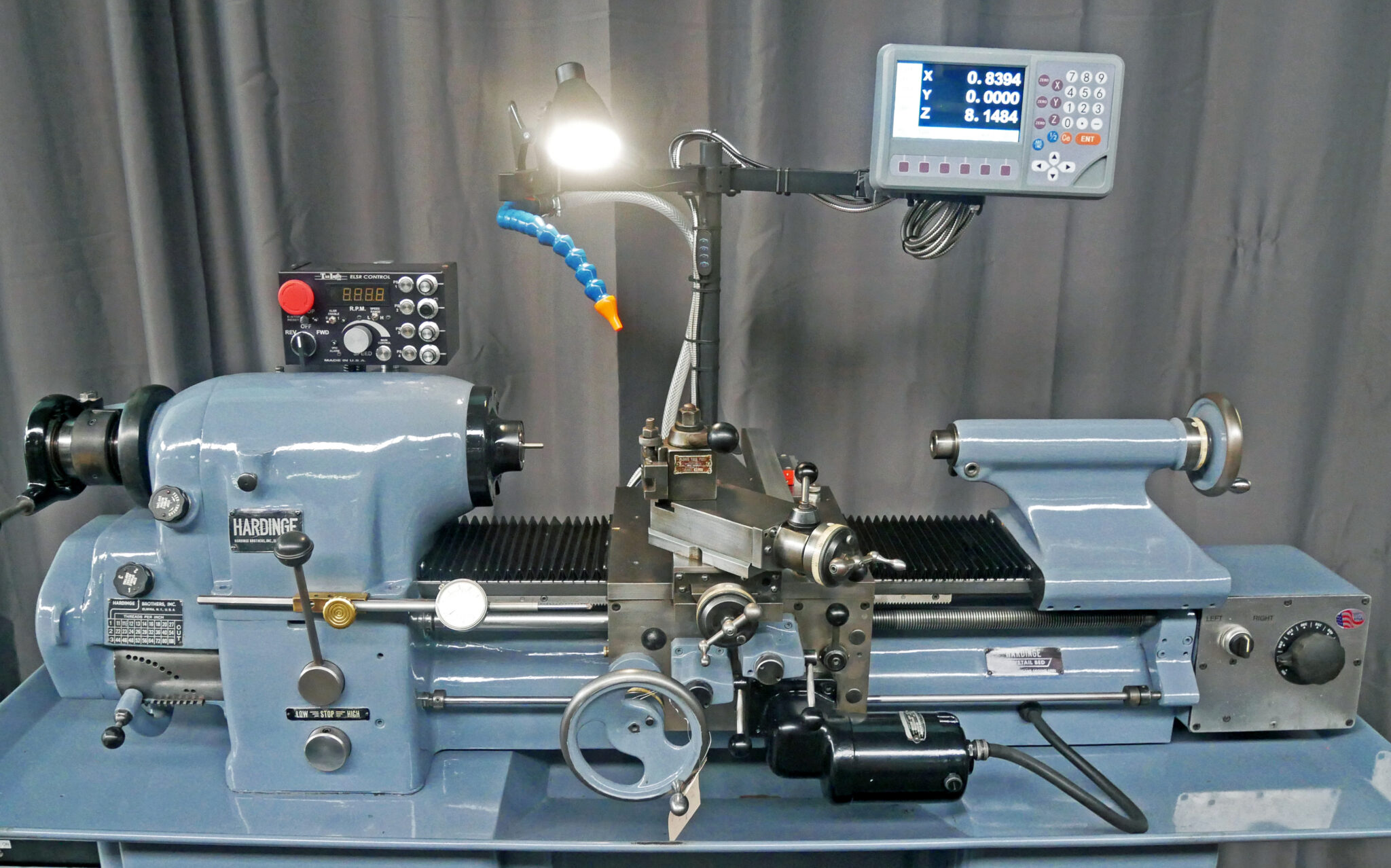

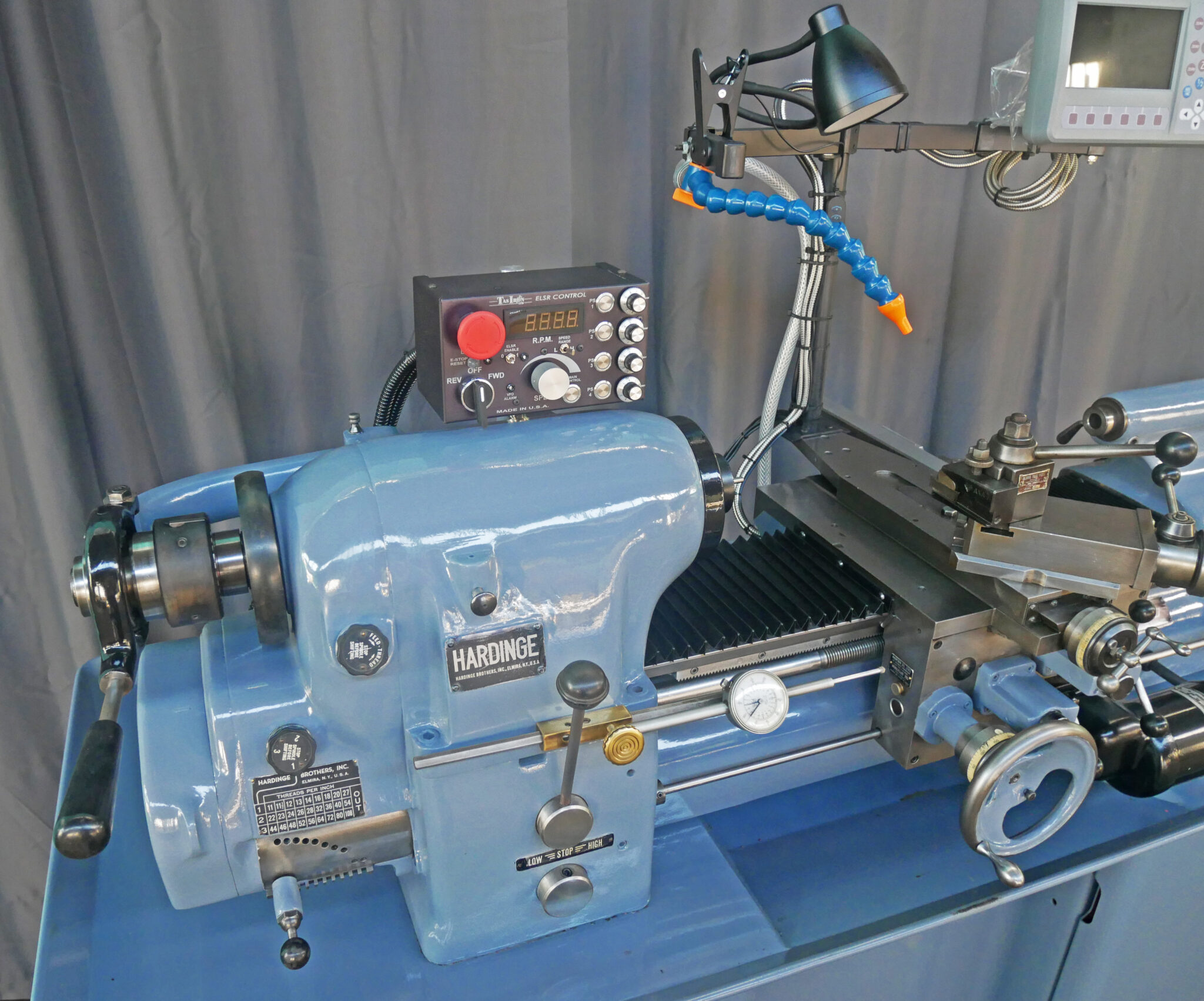

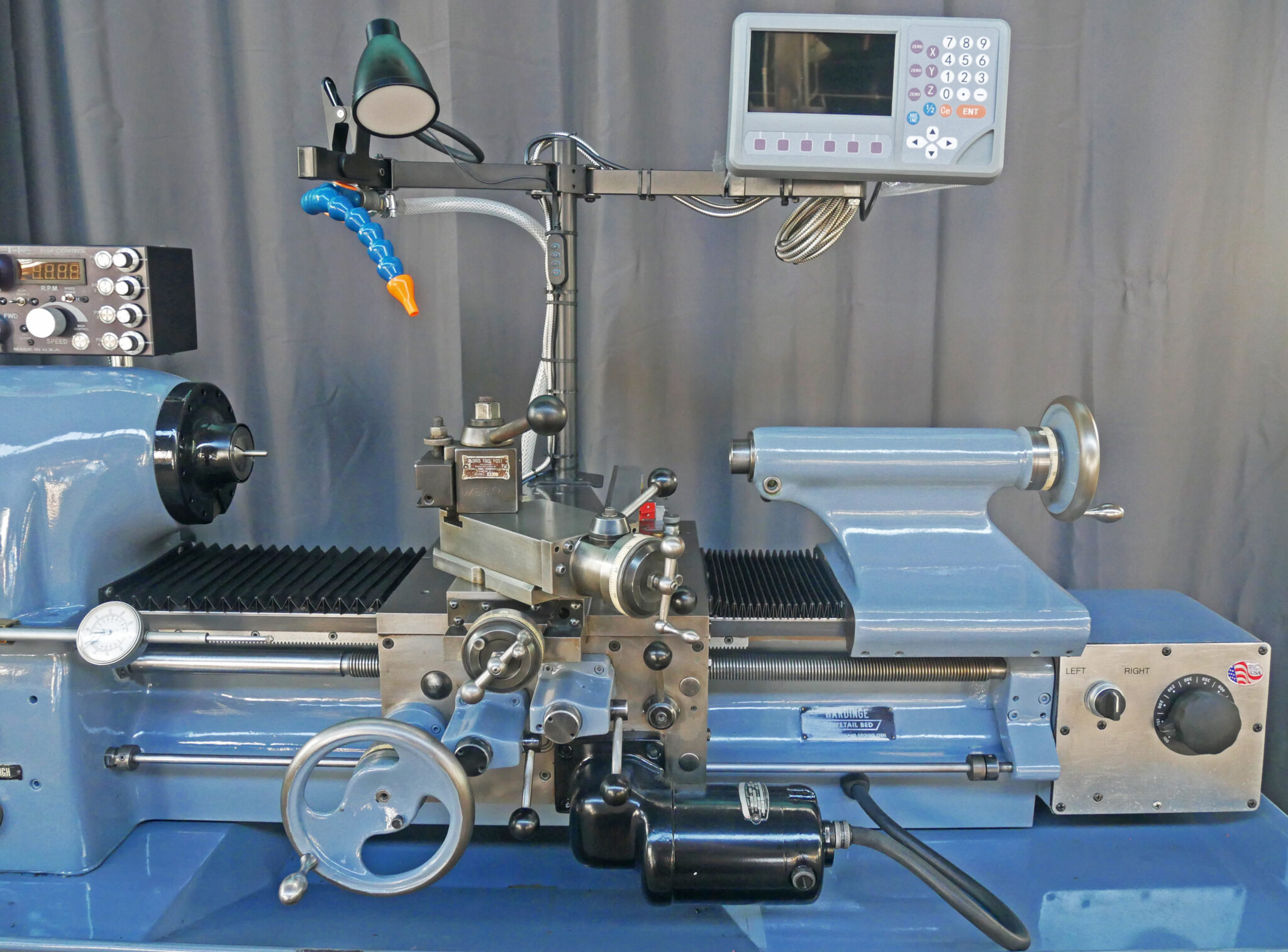

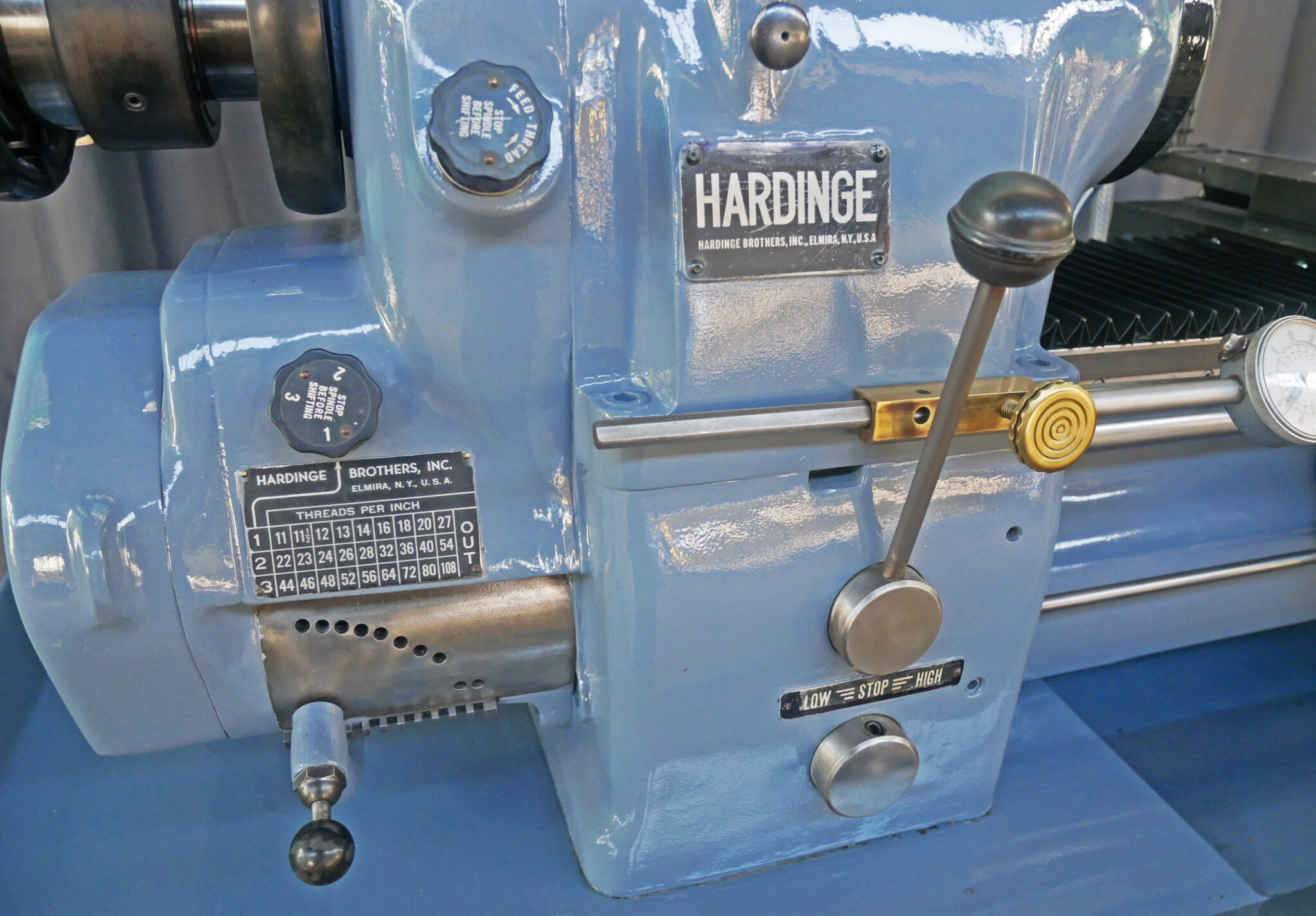

Hardinge 11″ x 18″ Super Precision Toolroom Lathe, HLV-H

$12,500.00


Shipping: Add to Cart to Calculate

In stock

SKU: Hardinge HLV-H Lathe

Inventory #: 9175

Categories: ,

Condition:

Type:

Brand:

Description

Hardinge 11″ x 18″ Super Precision Toolroom Lathe, HLV-H

Inventory # 9175

Model: HLV-H

S/N: HLV-H-1936

Specifications:

Swing Over Bed: 11″

Swing Over Carriage: 9″

Swing Over Cross Slide: 6″

Distance Between Centers: 18″

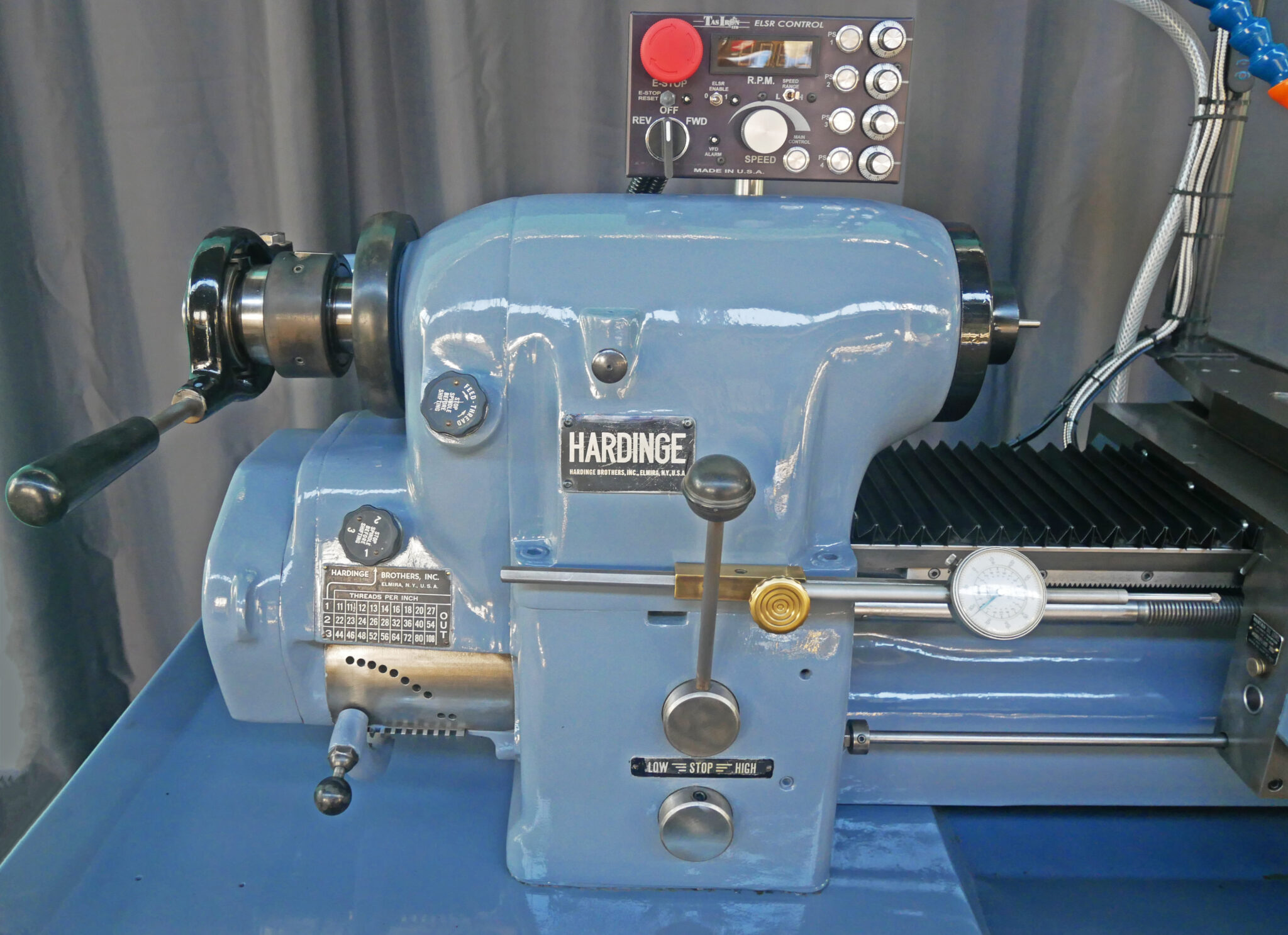

Spindle:

Hole Through Spindle: 1 1/4″

Spindle Nose: Hardinge Tapered

Spindle Speeds: 125 – 3,000 RPM, Variable

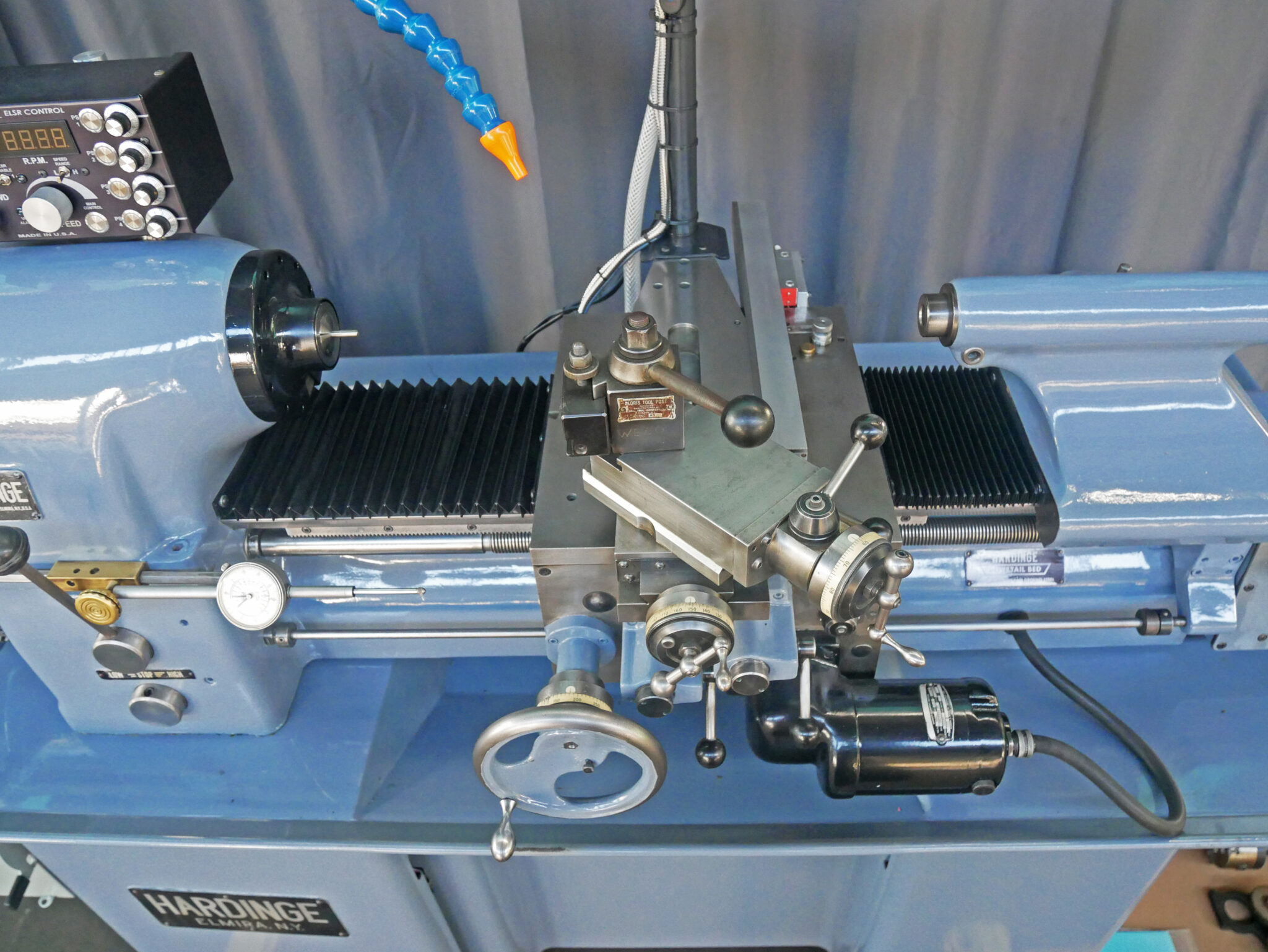

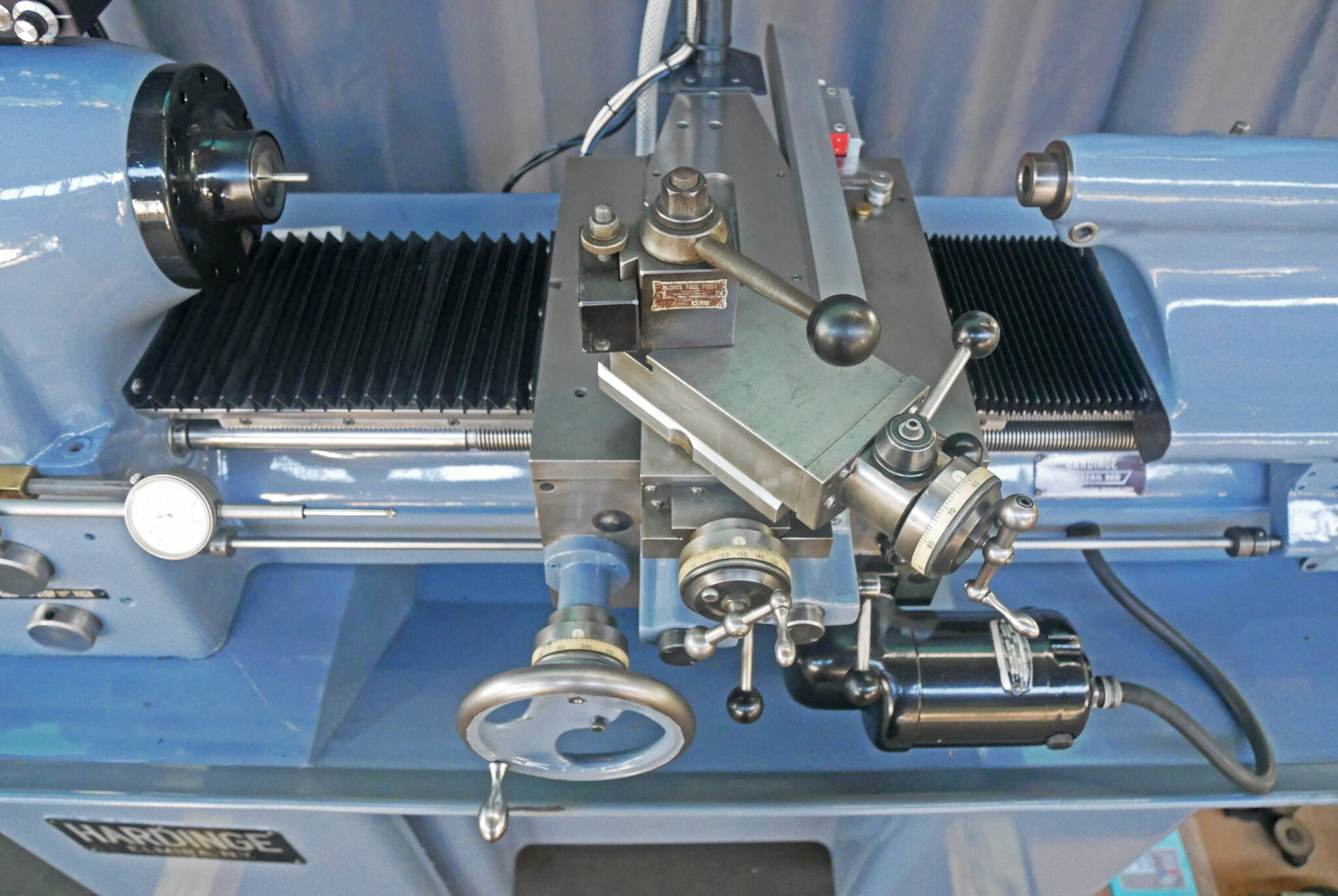

Compound Slide Travel: 3″

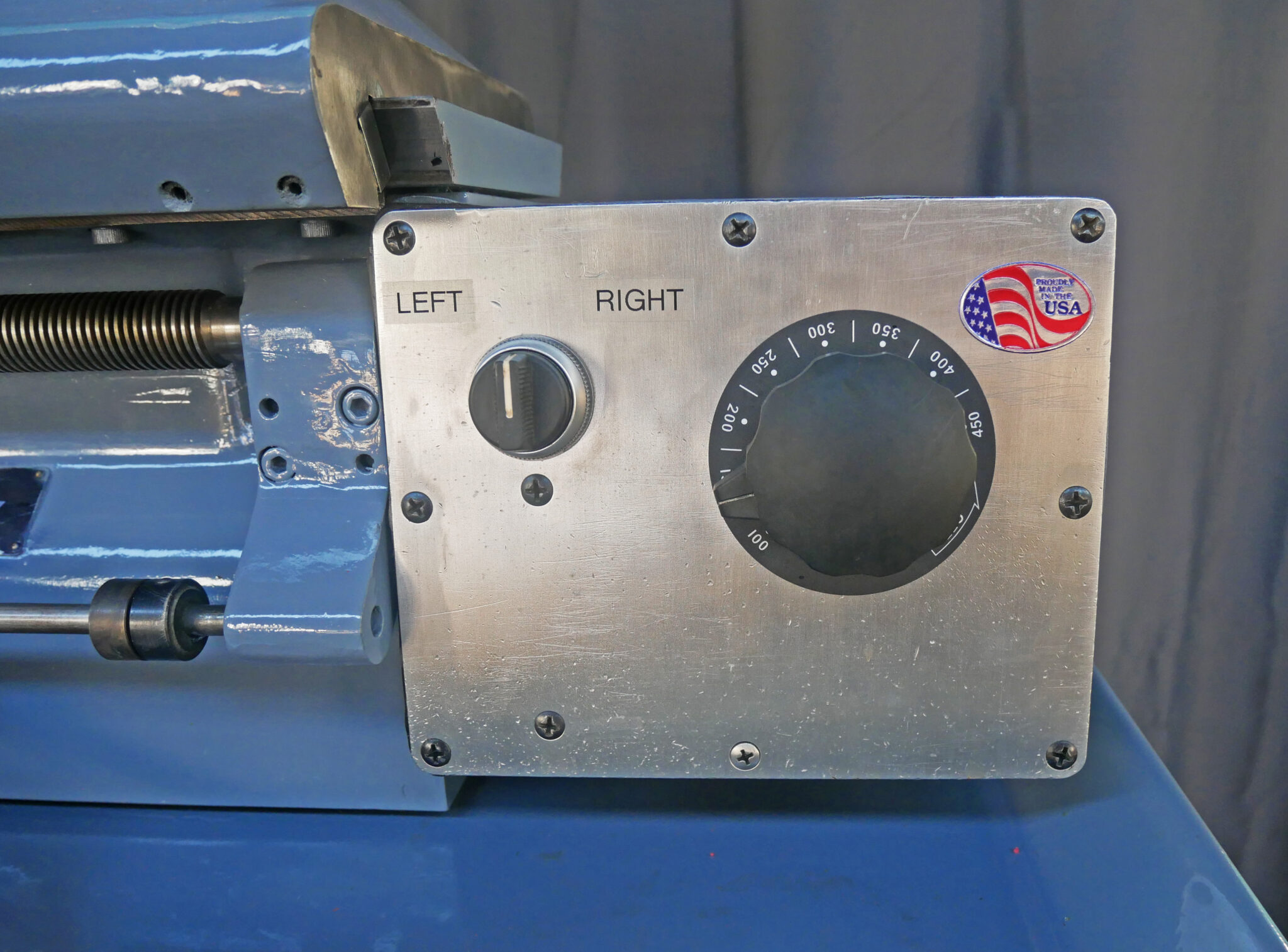

Powerfeed Range: 1/4″ – 7″ per min.

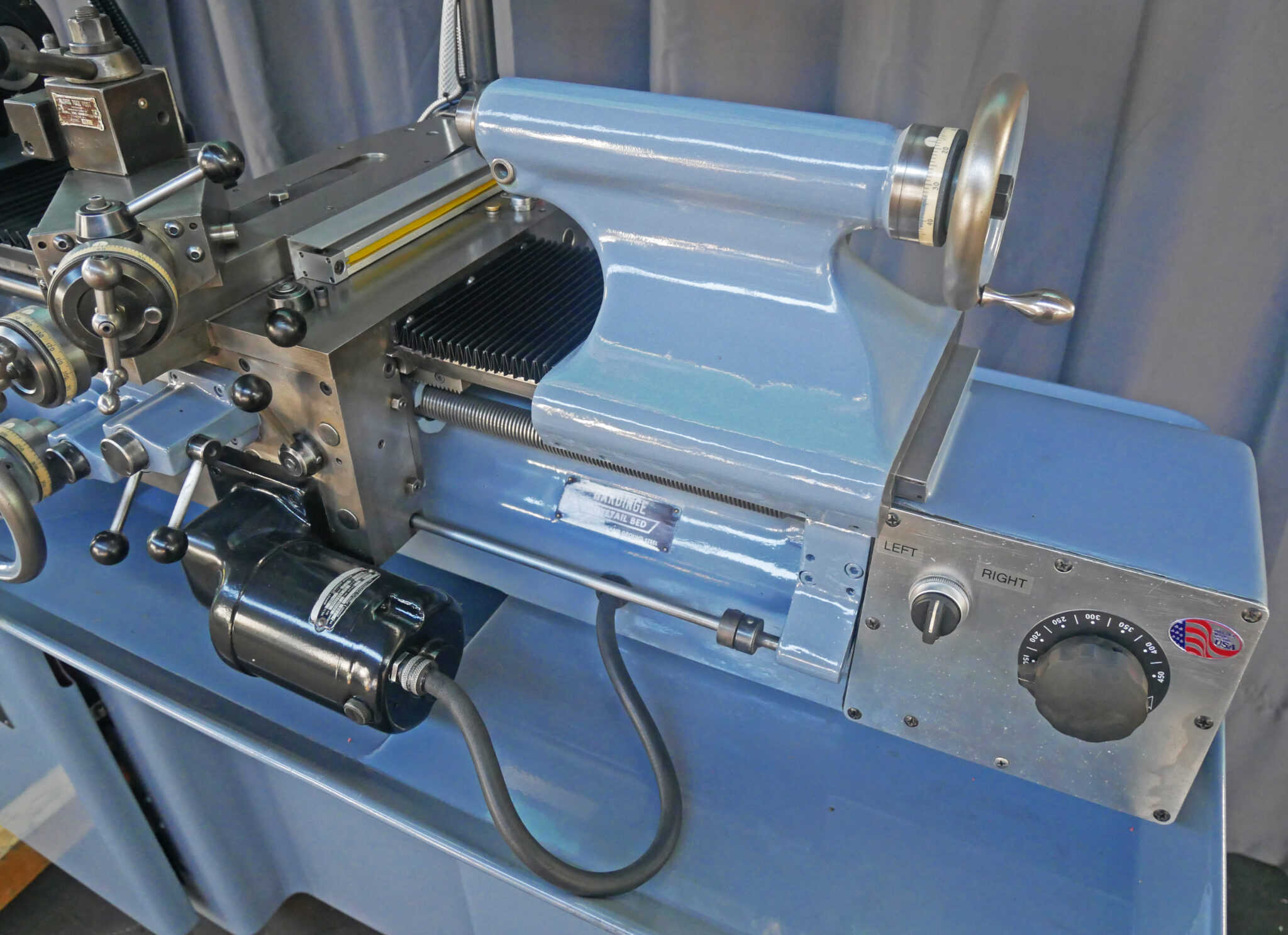

Tailstock:

Tailstock Diameter: 1 3/8″

Tailstock Travel: 3 3/4″

Lead Screw Diameter: 1″ – 8″ Thread

Motor: 1 HP / 230v / 3ph

Equipment Included:

Work Light

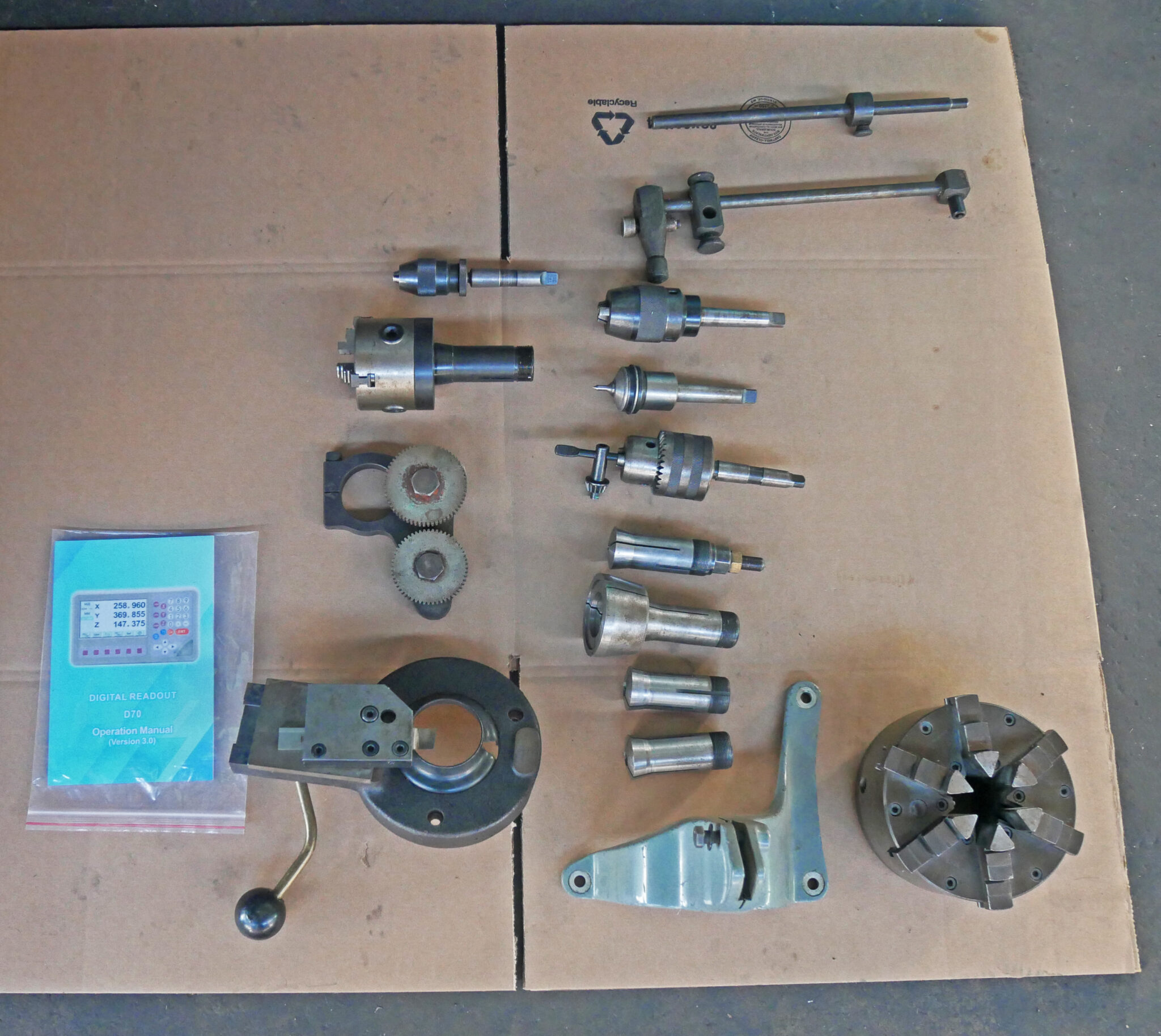

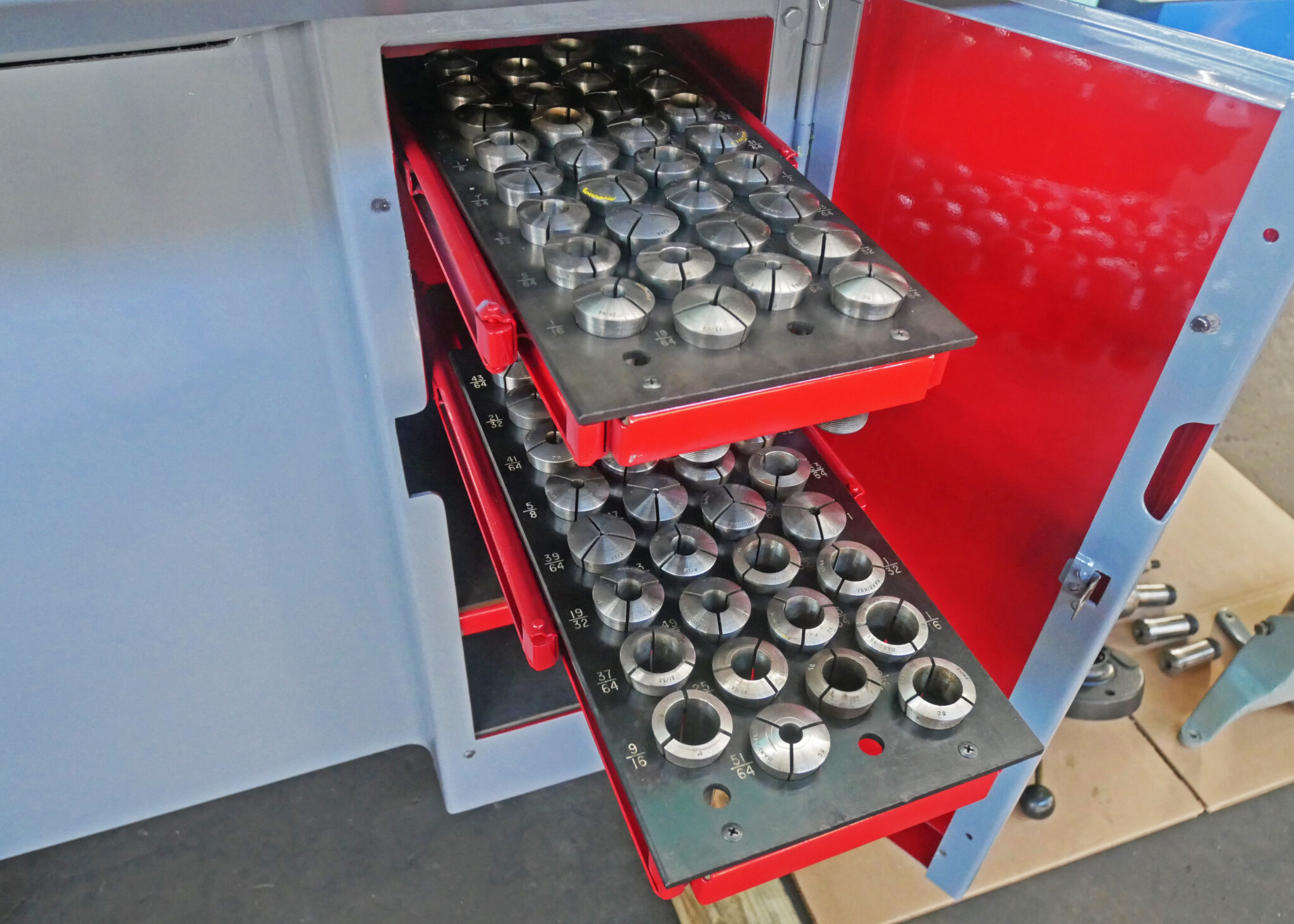

Nicely Complimented Tooling Package

Mechanical Specifications:

Dimensions: 72″ x 33″ x 60″ H

Weight: approx. 1,700 lbs.

FOB Our Baltimore, MD Warehouse

Additional information

Weight 1850 lbs
