Hydmech 40″ x 65″ Horizontal Band Saw, H-40/65
Inventory # 10039
Model: H-40/65
Description:

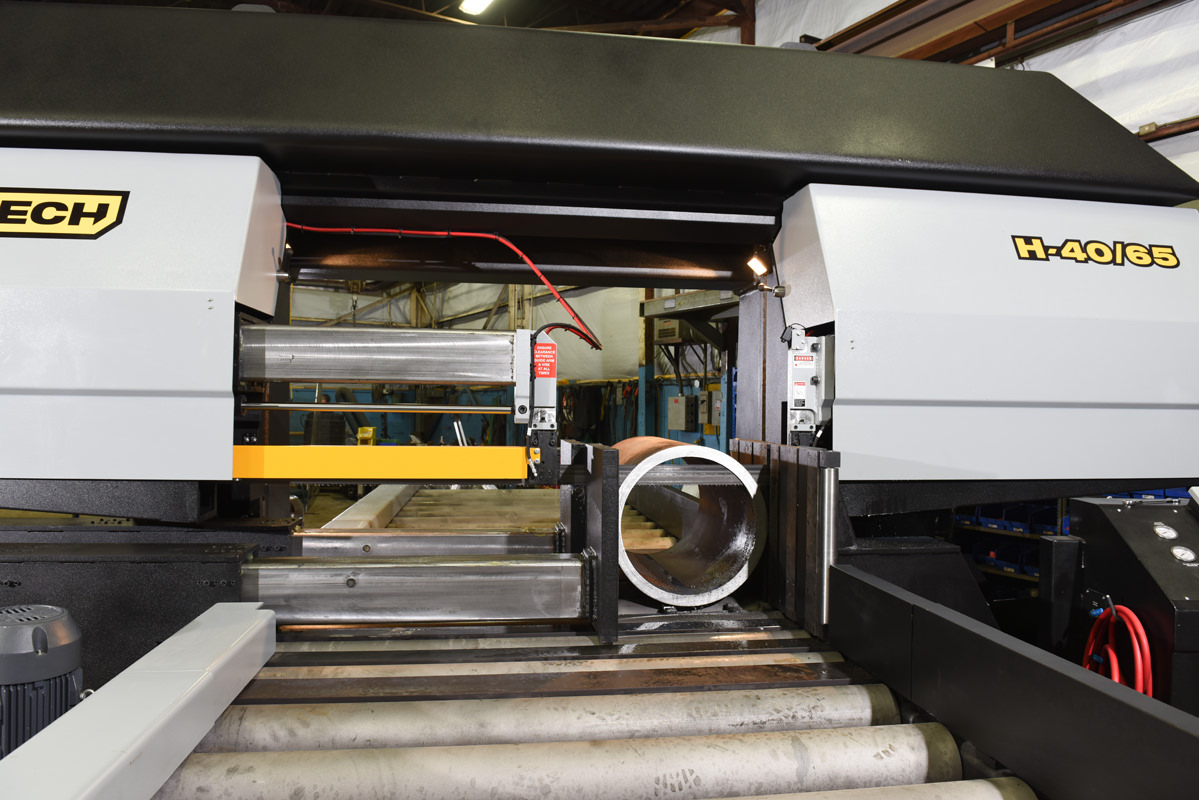

The H-40/65 is a horizontal band saw providing accurate 90° metal cutting for heavy-duty applications
The H-40/65 has a workload capacity of 50,000 lbs. A 5 HP driven hydraulic pump supplies system pressure through 3-position directional valves controlling all vising, head up/down, blade tension, guide arm, and shuttle movement
Its PLC control digitally displays blade speed, feed rate, head up limit position, and cut elapsed time, and time remaining. Featuring a 40″ x 65″ capacity, 20 HP motor, and 3″ blade, the H-40/65 is a reliable choice for all your heavy-duty horizontal metal cutting applications
Specifications:
Capacity:
@ 90°:
Rectangular: 40″ x 65″
Round: 40″
Blade Size: 40′ 4″ x 3″
Blade Speed: 45 – 225 SFM
Table Height: 27″
Motor: 20 HP / 480v / 3ph – All other voltages require a transformer
Standard Features:
Dual pots horizontal band saws
One piece design – no alignment necessary

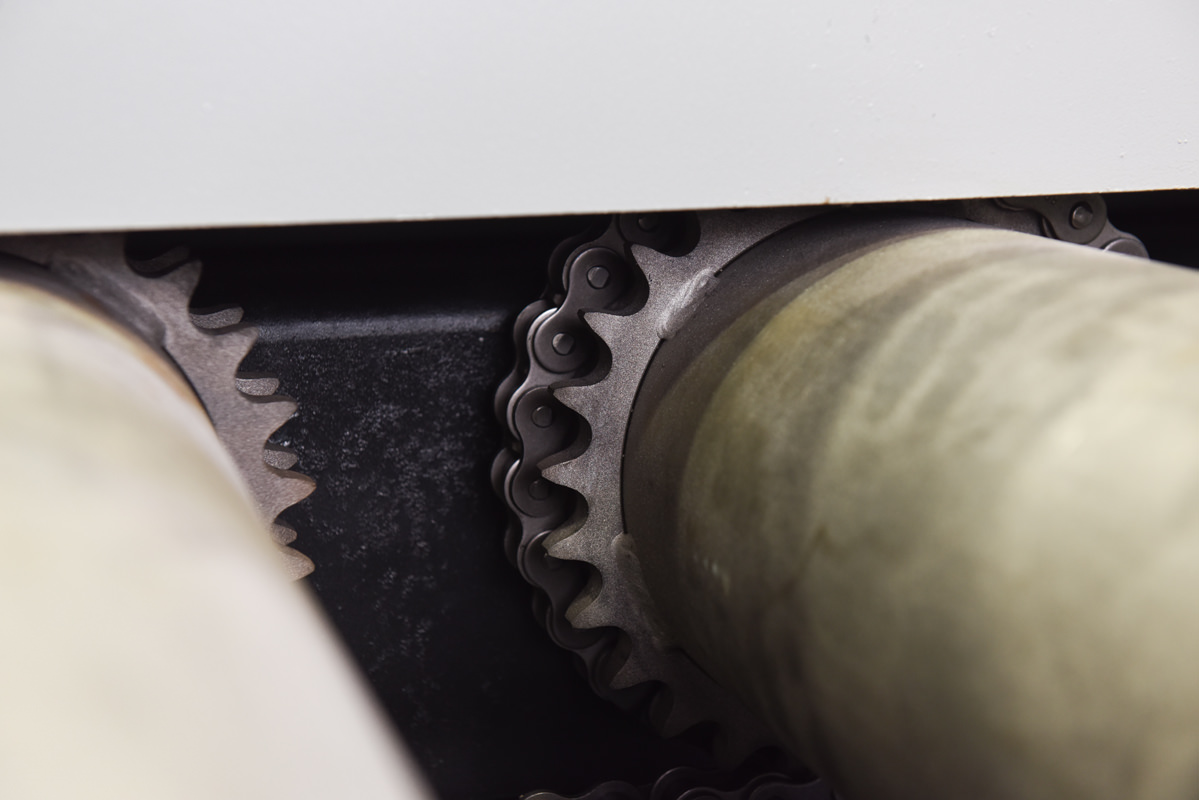

8′ of powered rollers built into the bed of the machine
Cast iron guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times
20 HP VFD – true direct blade drive – no belts/pulleys

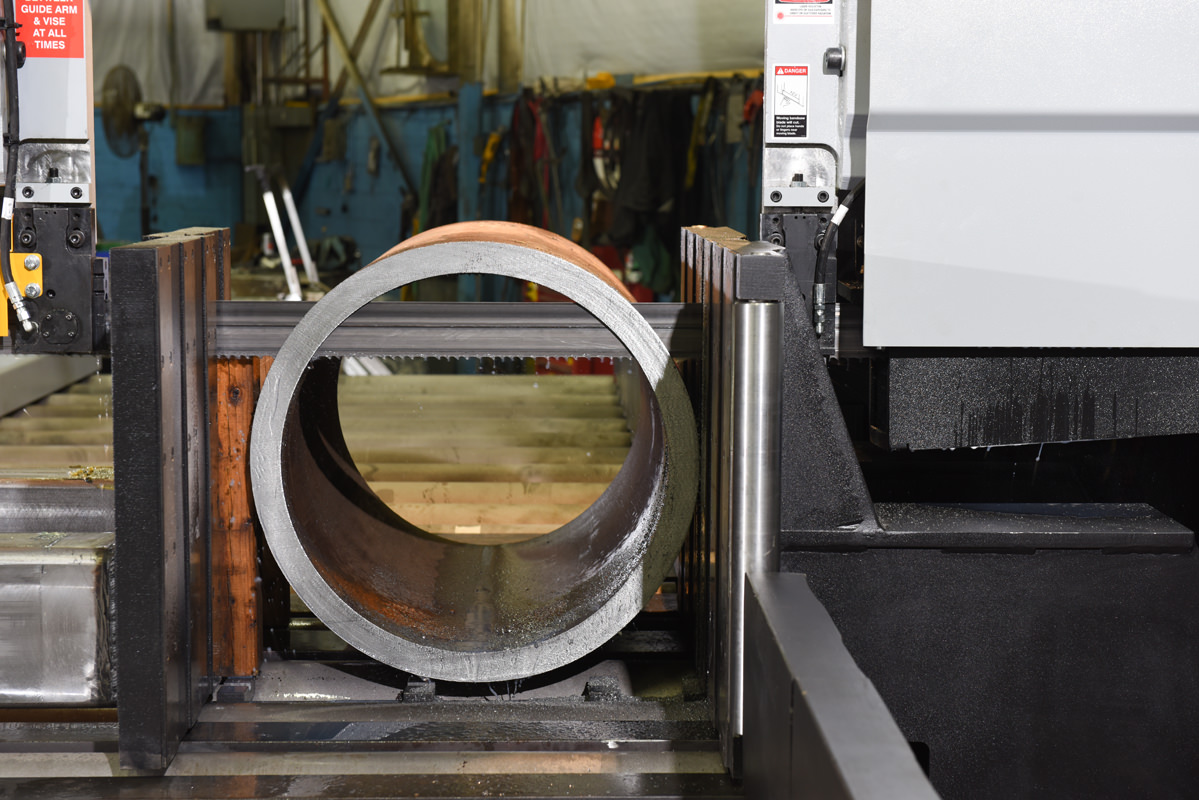

Full capacity hydraulic vises
Cast iron band wheels
User friendly operator control
Replaceable blade brush
Robust steel base
Automatic chip removal auger
Easy access electrical panel hydraulics
Blade breakage switch
Hydraulic band tensioning with digital readout
5 HP hydraulic pump provides system pressure

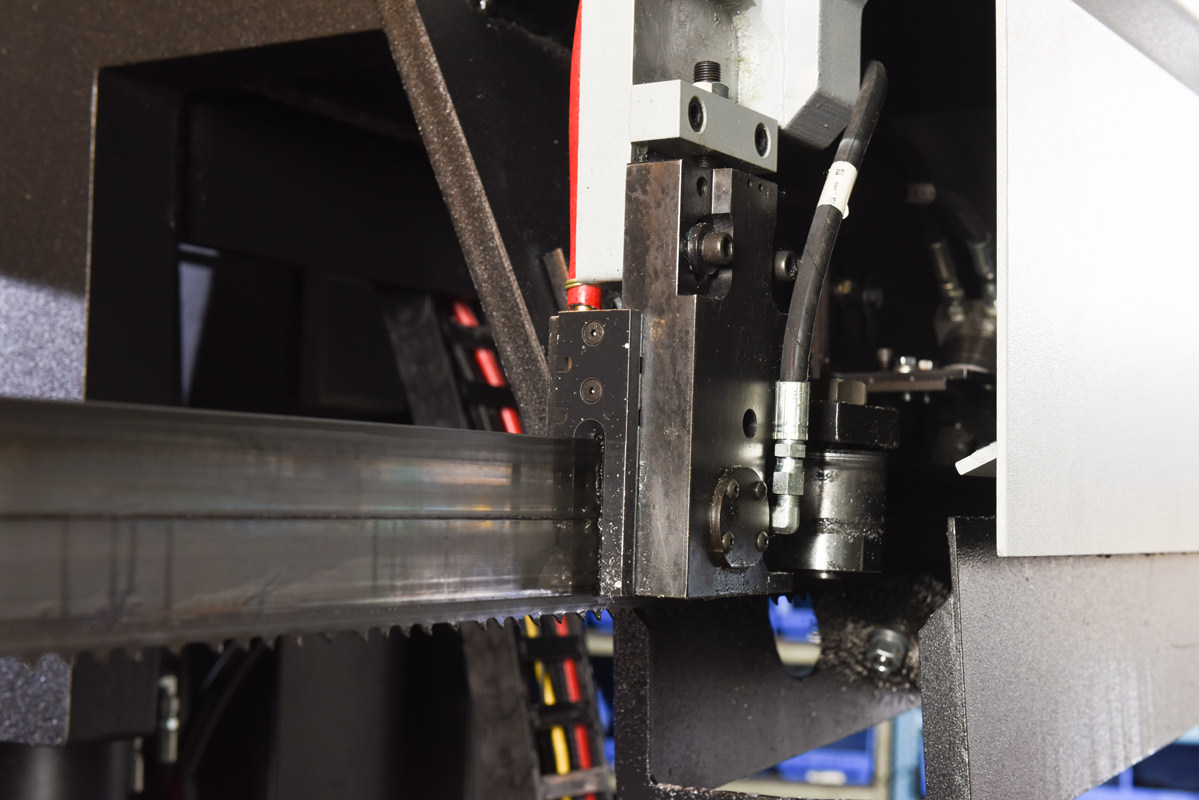

Replaceable carbide guide inserts
Hardened, replaceable wear plates
Safety door interlocks
Flood coolant with wash down hose
Work light
Laser light
Mechanical Specifications:
Dimensions: 102″ x 235″ x 145″ H
Weight: approx. 45,000 lbs.
FOB Factory
Optional Accessories:
Outboard Vise
Powered Conveyors
Power Transformers
