Hydmech 32″ x 32″ Automatic Horizontal Band Saw, H-32A
Inventory # 10036
Model: H-32A
Description:
The H-32A is an automatic horizontal band saw providing accurate 90° metal cutting for heavy-duty applications. The H-32A is fast, with its high speed shuttle feed indexing up to 32″ in a single movement. A 5 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vising, head up/down, blade tension, guide arm, and shuttle movement

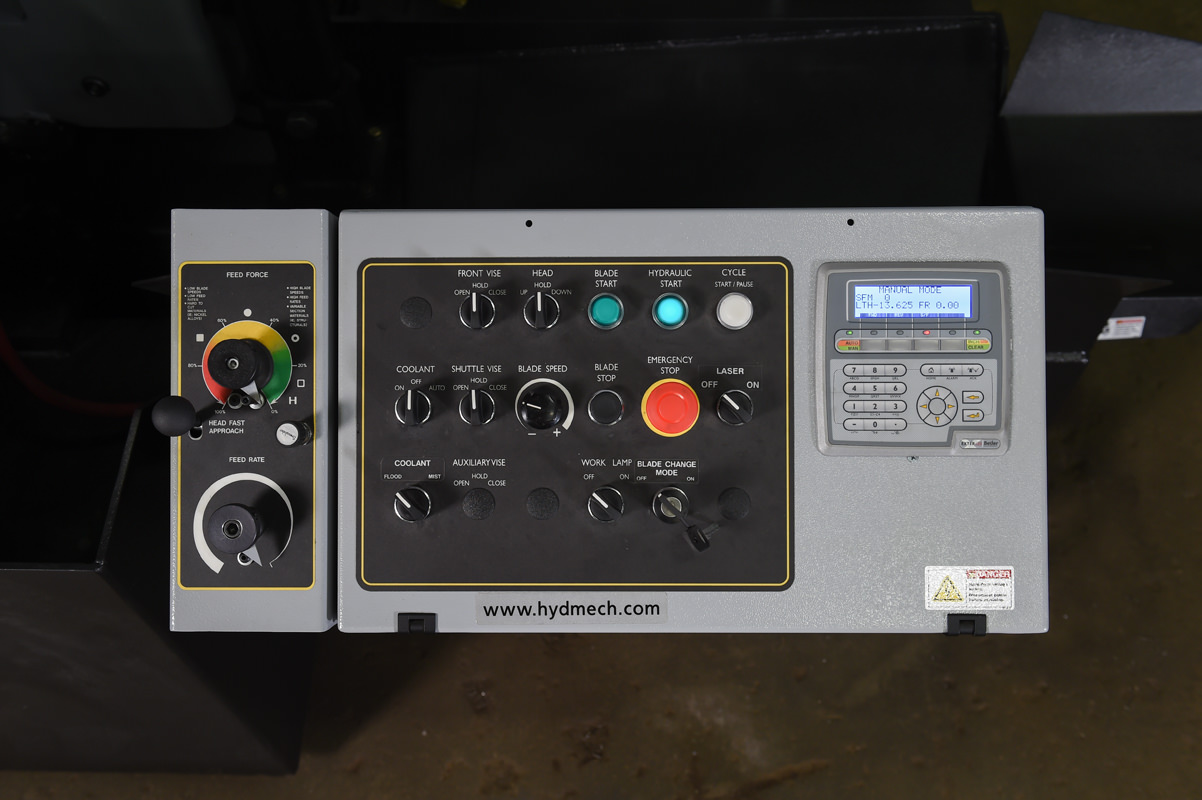

Hydmech’s direct down feed system provides easy adjustment of both head feed rate and cutting pressure. Featuring a 32″ x 32″ capacity, 20 HP motor, and 2 5/8″ blade, the H-32A is a reliable choice for all your heavy-duty horizontal metal cutting applications
Specifications:
Capacity:
@ 90°:
Rectangular: 32″ x 32″ – Canted: 28″ x 32″
Round: 32″ – Canted: 28″
Blade Size: 30′ 4″ x 2 5/8″
Blade Speed: 40 – 300 SFM
Automatic Multi-Indexing: 0 – 32″
Table Height: 31″ – Canted: 37″
Motor: 20 HP / 480v / 3ph – All Other Voltages Require a Transformer
Standard Features:
One piece design – no alignment necessary

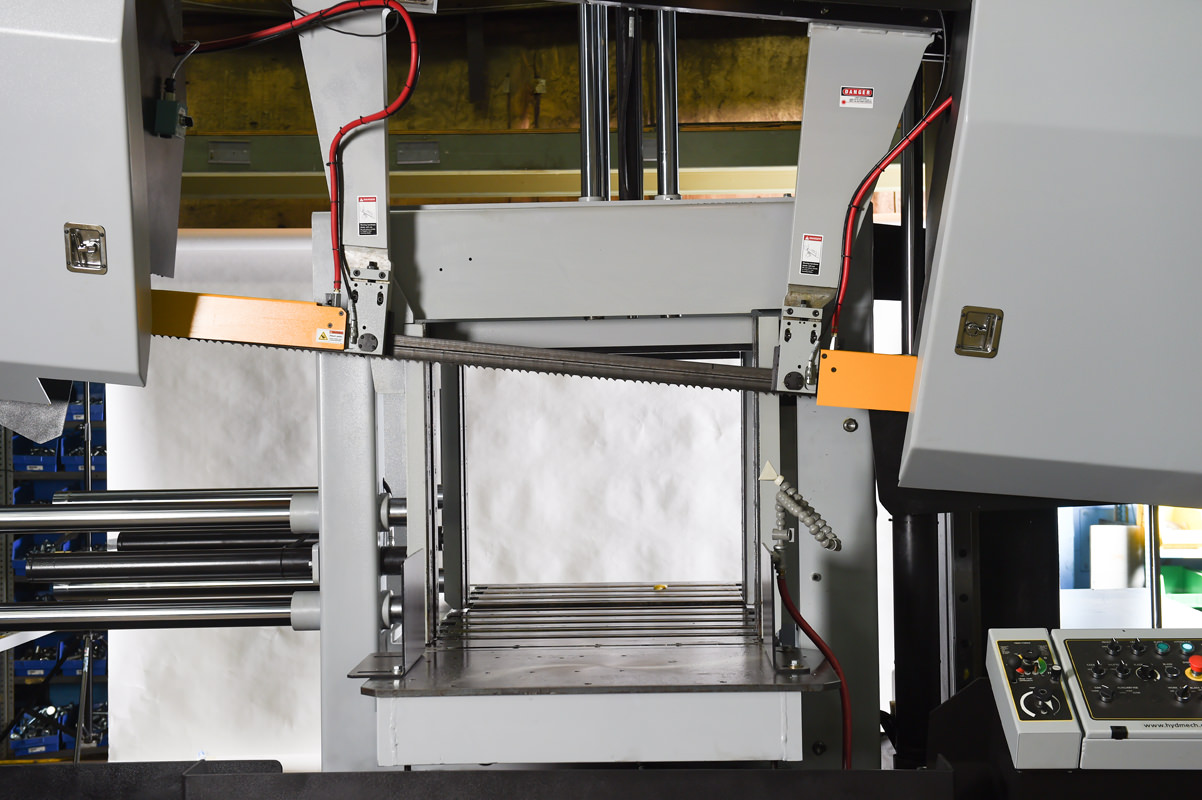

Split front vise allows for short remnant length
Cast iron shuttle features automatic multi-indexing up to 32″ in a single stroke with automatic kerf compensation
Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing
Hydraulic positive down feed
Cast iron band wheels
Automatic ship removal auger

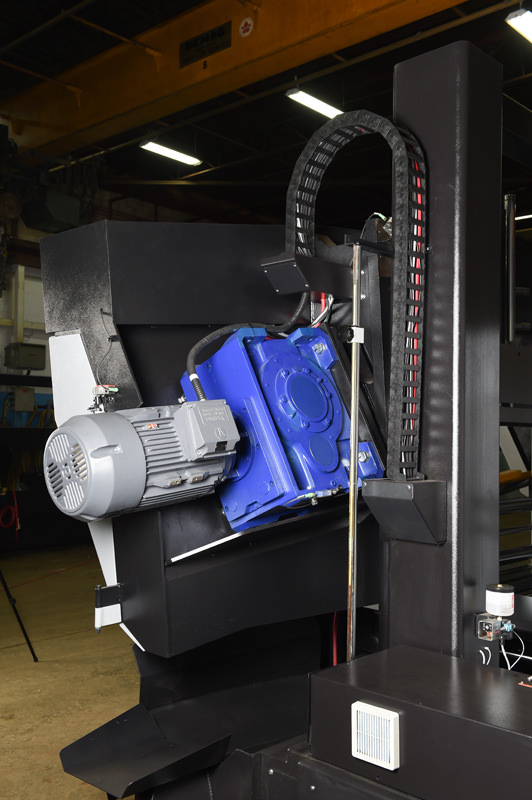

20 HP VFD – true direct blade drive
Full capacity, full stroking hydraulic vises
High resolution feed rate valve allows for constant feed rate when cutting special alloys
Blade chamber separates material from cut part
Automatic PLC control programmable up to 99 jobs with 5 in queue
Replaceable blade brush
Robust steel base
Blade breakage switch
Variable vise pressure
Out of stock switch
Easy access electrical panel and hydraulics
Hydraulic band tensioning with digital readout
5 HP hydraulic pump system pressure
Hydraulic carbide guide tensioning
Hardened, replaceable wear plates
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light
Mechanical Specifications:
Dimensions: 92″ x 182″ x 120″ H
Weight: approx. 19,500 lbs.
FOB Factory
Optional Accessories:
Full Capacity Hydraulic Overhead Bundling
6° Canted Head
Blade Deviation
Mist Lubrication
Out of Stock Switch
Outboard Vise
Outboard Vise with Bundling
Pedestal Control
Roller Discharge Table
Vertical Alignment Rollers
Idler Conveyors
Powered Conveyors
Power Transformers
