Hydmech 30″ x 25″ Heavy-Duty Vertical Band Saw, V-25
Inventory # 10049
Model: V-25
Description:
Its standard 6° fixed canted head, recommended when cutting larger beams, structural steel, and bundles of square tubing allows for more efficient cutting and improved blade life
A heavy duty vertical saw, the V-25 efficiently cuts both solid and structural material and is extremely versatile for many different types of sawing applications
Specifications:
Capacity:
@ 90°:
Rectangular: 30″ x 25″
Round: 25″
@ 45°:
Rectangular: 21″ x 25″
Round: 21″
@ 60° Right:
Rectangular: 14 1/2″ x 25″
Round: 14 1/2″
@ 60° Left:
Rectangular: 13 1/2″ x 25″
Round: 13 1/2″
Blade Size: 21′ 1/2″ x 1 1/2″
Blade Speed: 75 – 350 SFM
Table Height: 44″
Motor: 10 HP / 480v / 3ph – All other voltages require a transformer
Standard Features:
6° canted head allows for efficient cutting and improved blade life
Control provides hydraulic powered mitering from 60° left to 60° right
Digital angle display

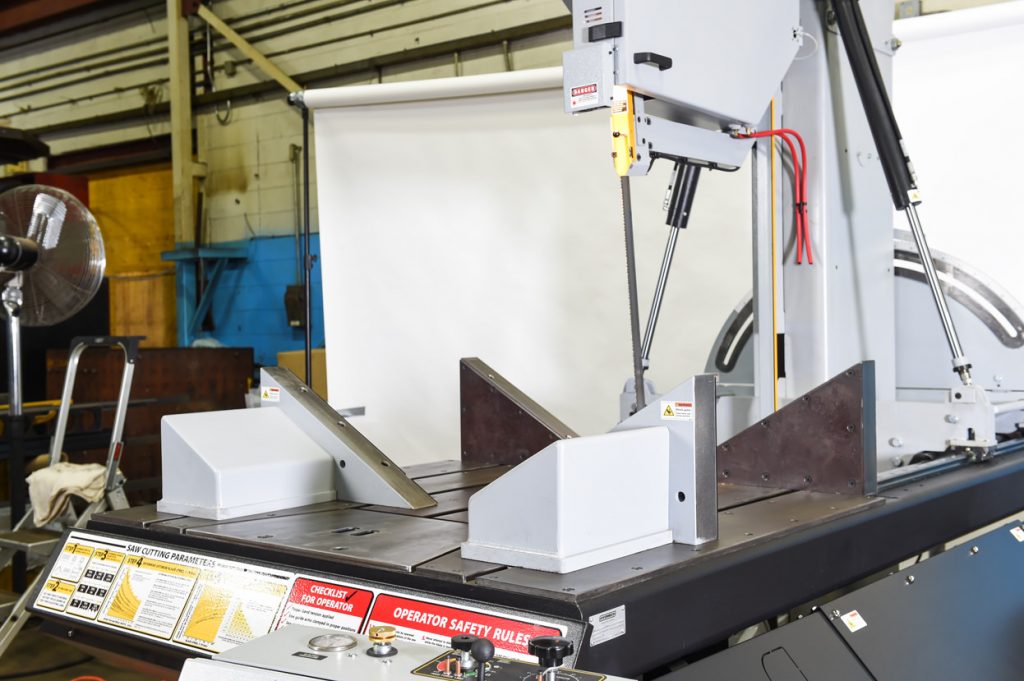

Two full stroking hydraulic vises

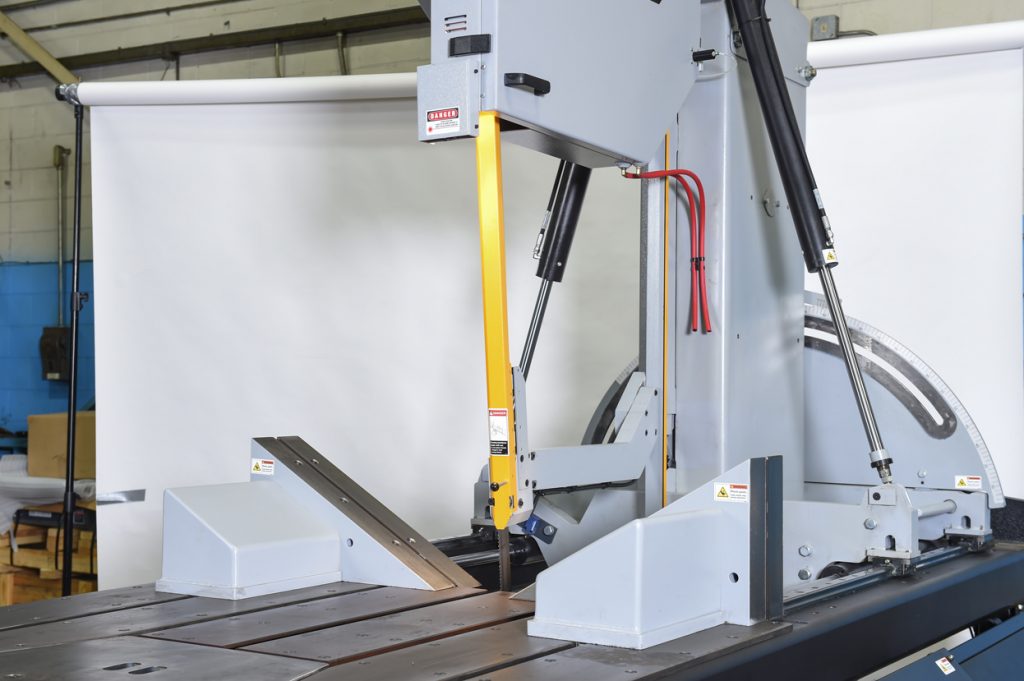

Powered moveable guide arm

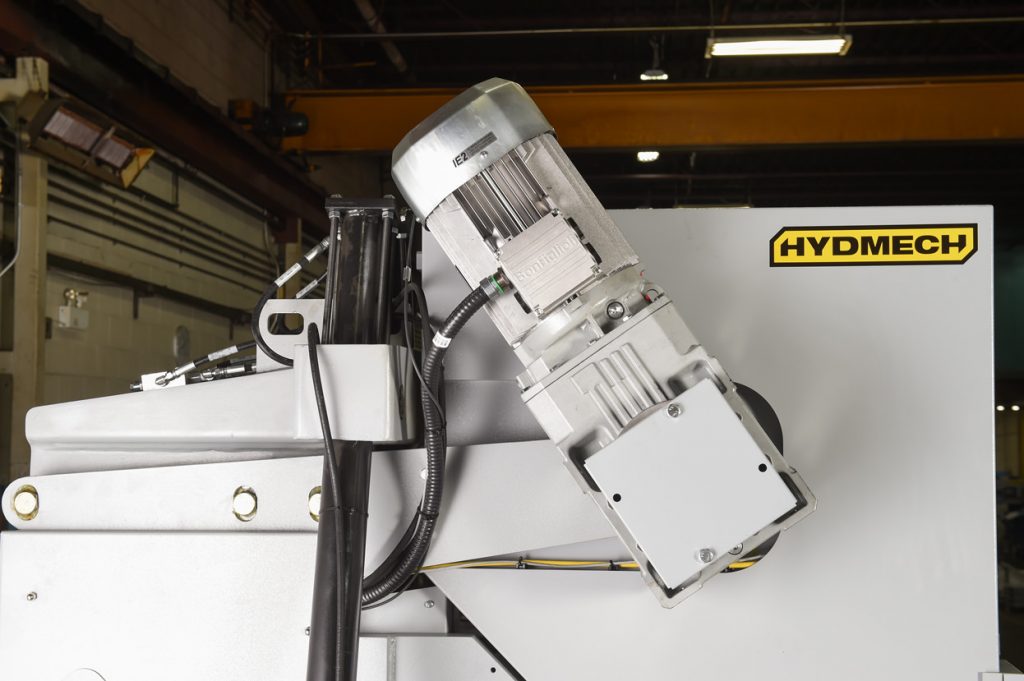

10 HP VFD – true direct blade drive – no belts/pulleys
Cast iron band wheels
Replaceable blade brush
Robust steel base
Easy access electrical panel and hydraulics
Blade breakage switch
Hydraulic band tensioning with digital readout
Replaceable carbide guide inserts
3 HP hydraulic pump provides system pressure
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light

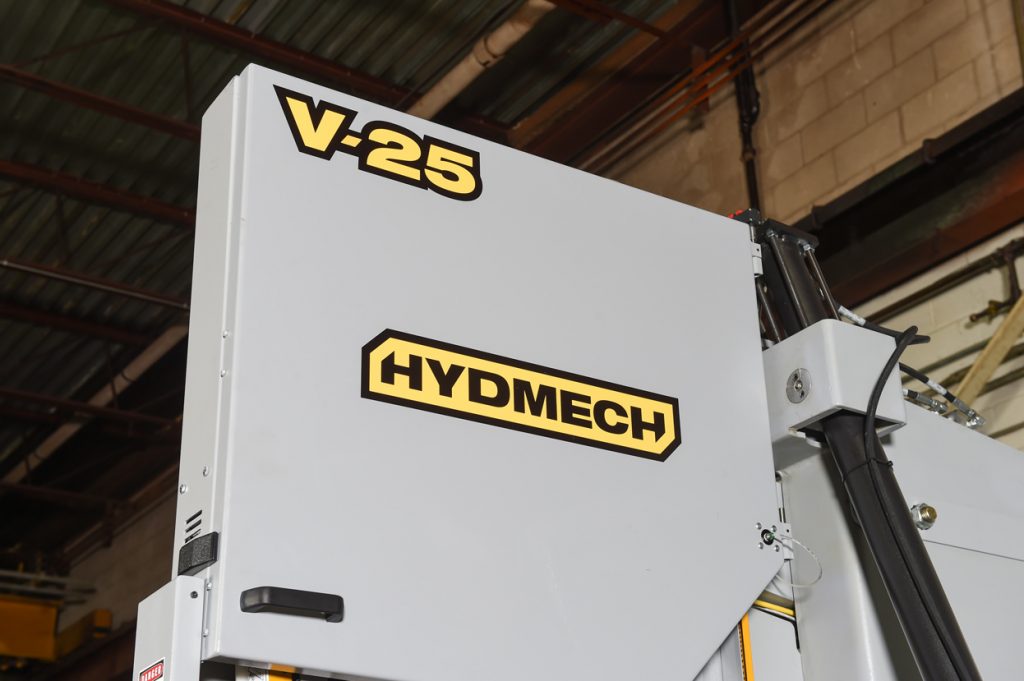

Variable vise pressure
Mechanical Specifications:
Dimensions: 160″ x 96″ x 123″ H
Weight: approx. 10,000 lbs.
FOB Factory
Optional Accessories:
Chip Bucket with Pump
Hydraulic Overhead Bundling
Mist Lubrication
Pop-Up Feed Roller
Tall Square Vise Inserts
Hydraulic Chip Conveyor
Hydraulically Positioned Datum Line Vertical Rollers
Bridge/Interface Bracket
Powered Bridge/Interface Bracket
Idler Conveyors
Powered Conveyors
Power Transformers
