Hydmech 30″ x 25″ Automatic Heavy-Duty Vertical Band Saw, V-25APC
Inventory # 10050
Model: V-25APC
Description:
A heavy-duty vertical saw, the V-25APC efficiently cuts both solid and structural material and is extremely versatile for many different types of sawing applications
Featuring a large 30″ H x 25″ W capacity, 10 HP motor, and 1 1/2″ blade, the V-25APC is a reliable choice for all your automated vertical metal cutting applications
Specifications:
Capacity:
@ 90°:
Rectangular: 30″ x 25″
Round: 25″
@ 45°:
Rectangular: 21″ x 25″
Round: 21″
@ 60° Right:
Rectangular: 14 1/2″ x 25″
Round: 14 1/2″
@ 60° Left:
Rectangular: 13 1/2″ x 25″
Round: 13 1/2″
Blade Size: 21′ 1/2″ x 1 1/2″
Blade Speed: 75 – 350 SFM
Automatic Multi-Indexing: 60″ (120″ Optional)
Table Height: 44″
Motor: 10 HP / 480v / 3ph – All other voltages require a transformer
Standard Features:

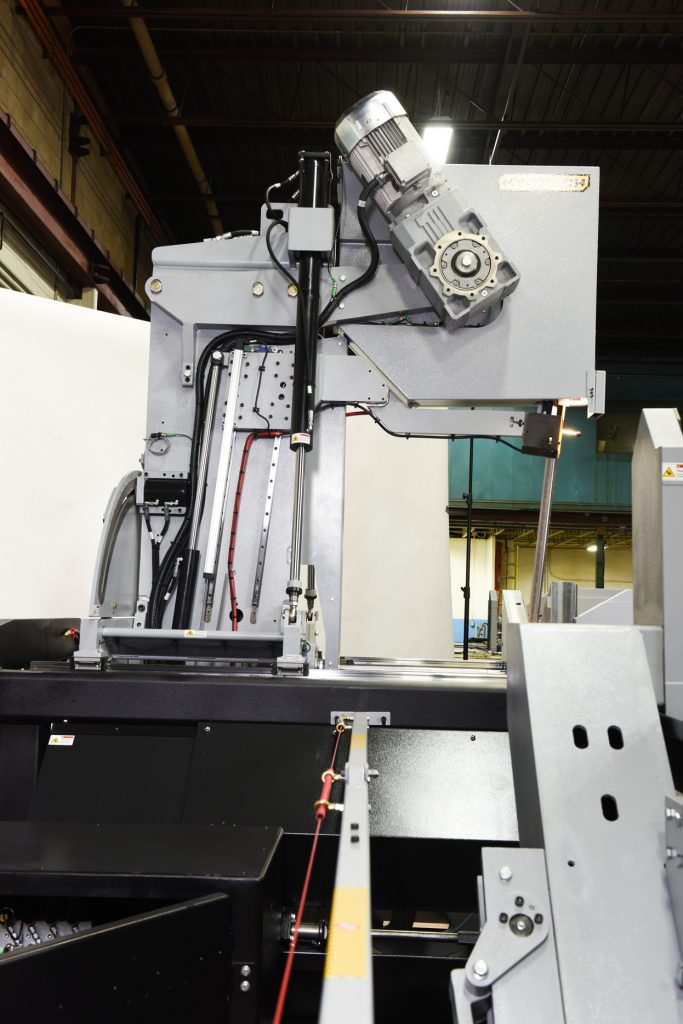

6° canted head allows for efficient cutting and improved blade life

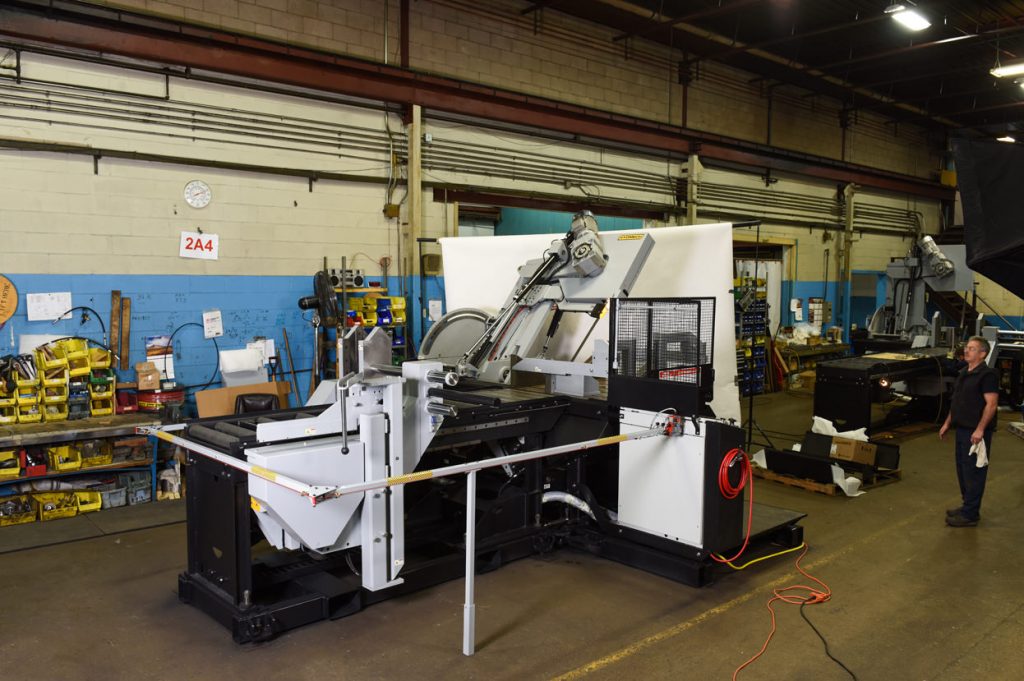

60″ bar feed, left side
Shuttle features automatic multi-indexing up to 60″ (120″ optional) in a single stroke with automatic kerf compensation. Powered by a rack and pinion servo drive
Automatic programmable mitering with “go-to” angle functionality from 60° left to 60° right
Hydraulic head tilt
Cast iron band wheels

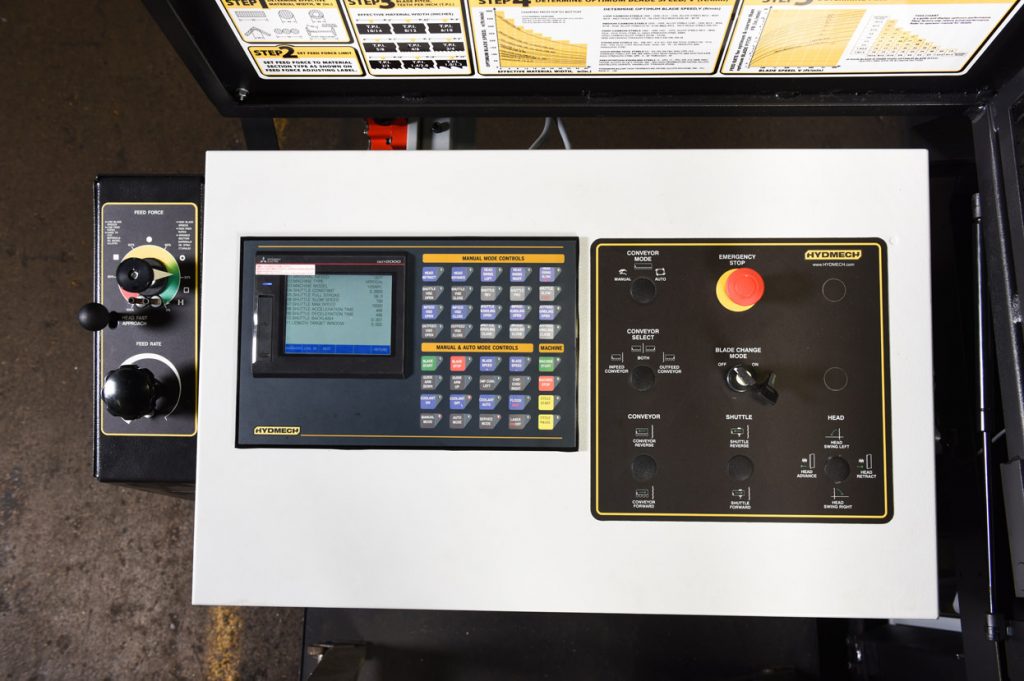

Automatic PLC, touch screen control programmable up to 1,000 jobs with 20 in queue
Two full stroking hydraulic vises
Hydraulically powered, programmable guide arm attached
10 HP VFD – true direct blade drive
Blade chamber separates material from cut part
Hydraulic chip conveyor efficiently removes chips from saw base
Replaceable blade brush
Robust steel base
Out of stock switch
Blade breakage switch
Easy access electrical and hydraulics
Pop-up feed roller – one opposite bar feed
Hydraulic band tensioning with digital readout
Replaceable carbide guide inserts
3 HP hydraulic pump provides system pressure
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light
Variable vise pressure
Mechanical Specifications:
Dimensions: 254″ x 158″ x 123″ H
Weight: approx. 15,000 lbs.
FOB Factory
Optional Accessories:
Chip Bucket with Pump
Hydraulic Overhead Bundling
Mist Lubrication
Tall Square Vise Inserts
Outfeed Vise
Right Side Infeed Shuttle
10′ Shuttle Infeed
Bridge/Interface Bracket
Powered Bridge/Interface Bracket
Idler Conveyors
Powered Conveyors
Power Transformers
