Hydmech 28″ Automatic Horizontal Band Saw, H-28A
Inventory # 10034
Model: H-28A
Description:
The H-28A is fast, with its high speed shuttle feed indexing up to 32″ in a single movement
The H-28A is an automatic horizontal band saw providing accurate 90° metal cutting for heavy-duty applications. A 5 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vising, head up/down, blade tension, guide arm, and shuttle movement
Hydmech’s direct down feed system provides easy adjustment of both head feed rate and cutting pressure. Featuring a 28″ x 28″ capacity, 10 HP motor, and 2″ blade, the H-28A is a reliable choice for all your heavy-duty horizontal metal cutting applications
Specifications:
Capacity:
@ 90°:
Rectangular: 28″ x 28″ – Canted: 24″ x 28″
Round: 28″ – Canted: 24″
Blade Size: 25′ x 2″
Blade Speed: 40 – 300 SFM
Automatic Multi-Indexing: 0 – 32″
Table Height: 31″ – Canted: 37″
Motor: 10 HP / 480v / 3ph – All Other Voltages Require a Transformer
Standard Features:
One piece design – no alignment necessary
Split front vise allows for short remnant length. Can be replaced, by request with retractable datum vise at no charge
Shuttle features automatic multi-indexing up to 32″ in a single stroke with automatic kerf compensation
Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times
Hydraulic positive down feed
Blade chamber separates material from cut part
10 HP VFD – true direct blade drive – no belts/pulleys

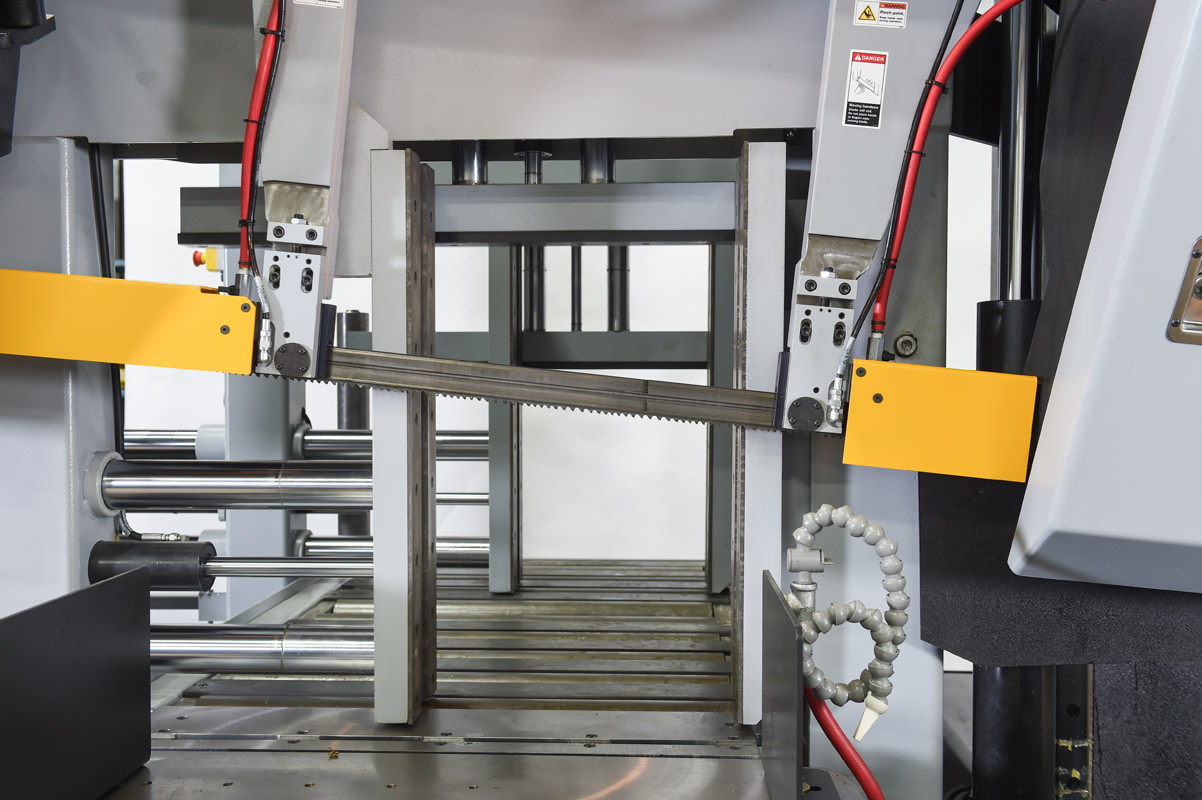

Full capacity, full stroking hydraulic vises
High resolution feed rate valve allows for constant feed rate when cutting special alloys
Cast iron band wheels

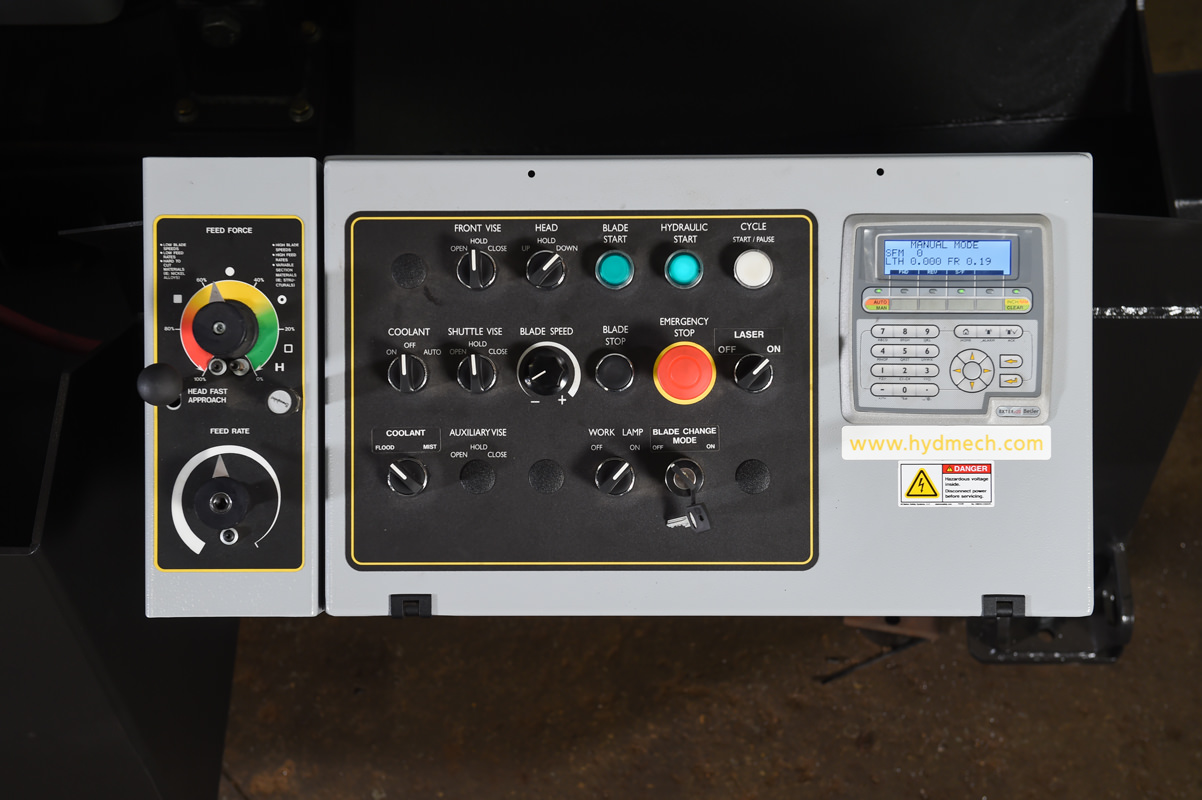

Automatic PLC control programmable up to 99 jobs with 5 in queue
Replaceable blade brush
Robust steel base

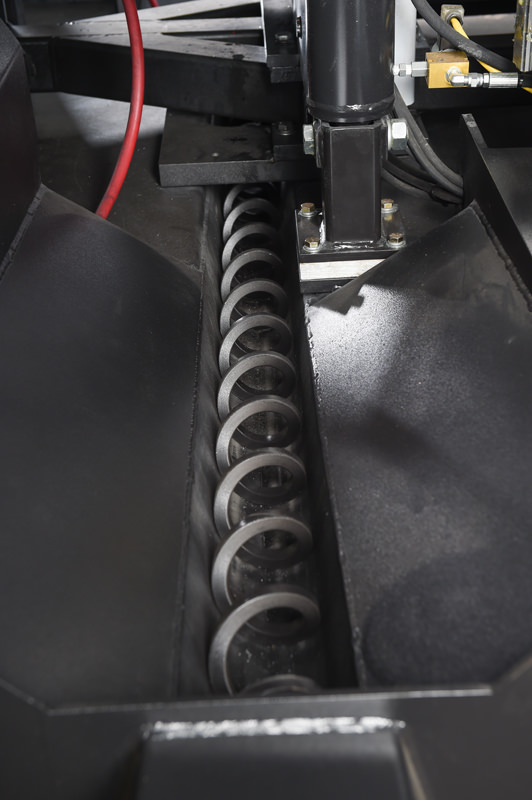

Automatic chip removal auger

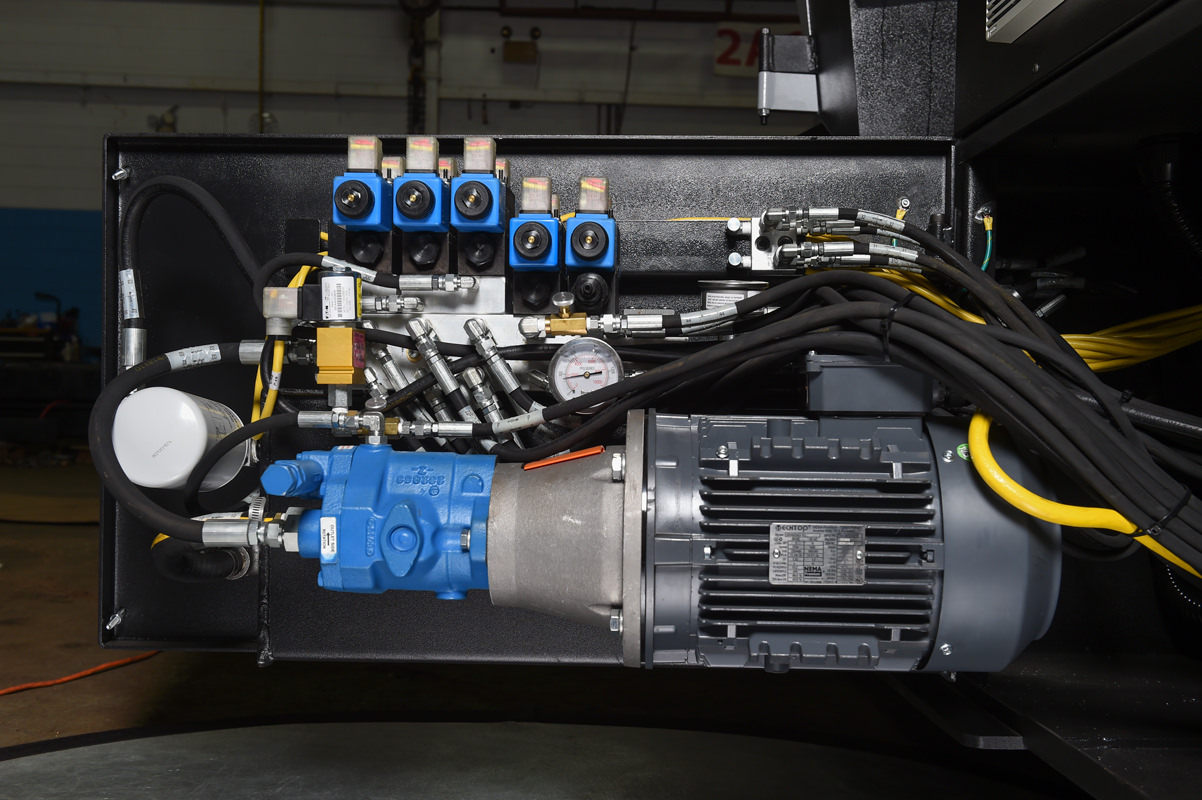

Easy access electrical panel and hydraulics
Blade breakage switch
Hydraulic band tensioning with digital readout
5 HP hydraulic pump provides system pressure
Hydraulic carbide guide tensioning
Hardened, replaceable wear plates
Safety door interlocks
Flood coolant with wash down hose
Work light
Out of Stock Switch
Variable Vise Pressure
Mechanical Specifications:
Dimensions: 92″ x 161″ x 120″ H
Weight: approx. 18,000 lbs.
FOB Factory
Optional Accessories:
Full Capacity Hydraulic Overhead Bundling
6° Canted Head
Blade Deviation
Mist Lubrication
Out of Stock Switch
Outboard Vise
Outboard Vise with Bundling
Pedestal Control
Roller Discharge Table
Vertical Alignment Rollers
Laser Light
Idler Conveyors
Powered Conveyors
Power Transformers
