Hydmech 26″ x 44″ Semi-Automatic Horizontal Band Saw, H-26/44
Inventory # 10037
Model: H-26/44
Description:
The H-26/44 is a semi-automatic horizontal band saw providing accurate 90° metal cutting for heavy-duty applications. Its 12° canted head allows for more efficient cutting and improved blade life. A 5 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vising, head up/down, blade tension, and guide arm

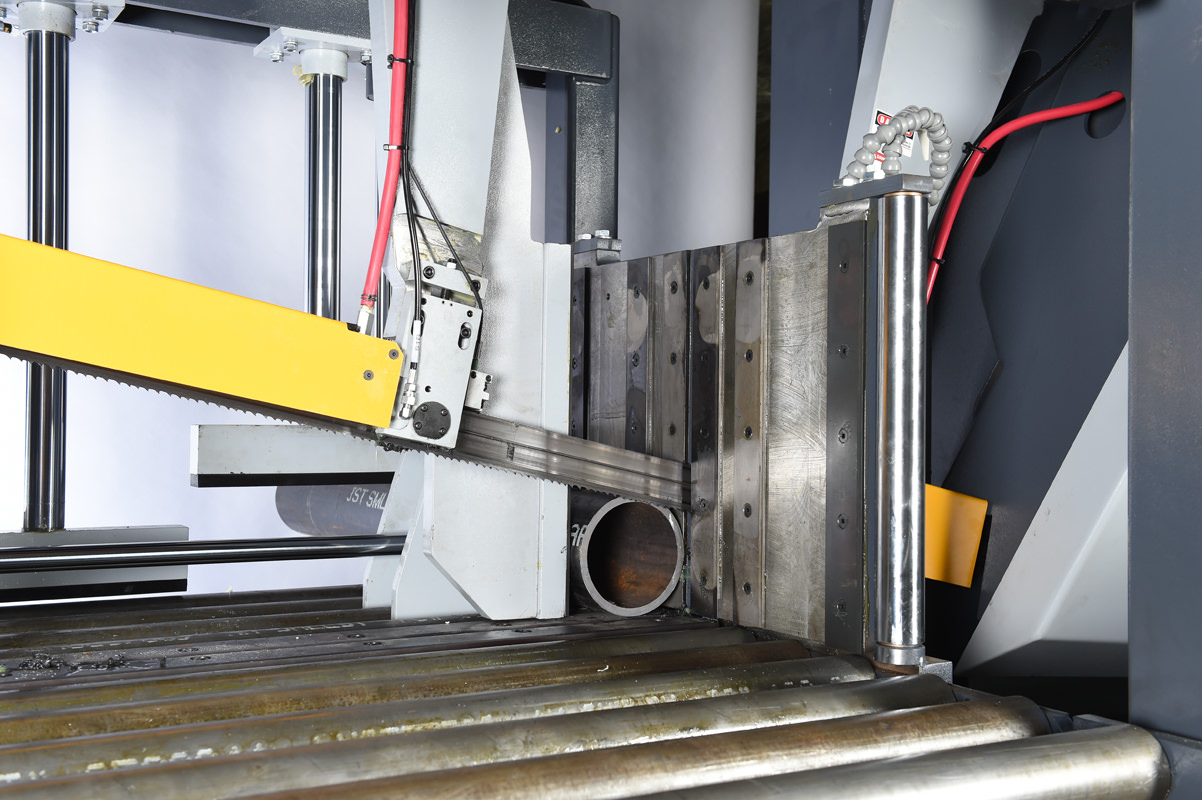

Hydmech’s direct downfeed system provides easy adjustment of both head feed rate and cutting pressure. Featuring a 26″ x 44″ capacity, 20 HP motor, and 2 5/8″ blade, the H-26/44 is a reliable choice for all your heavy-duty horizontal metal cutting applications
Specifications:
Capacity:
@ 90°:
Rectangular: 26″ x 44″
Round: 29″
Blade Size: 33′ x 2 5/8″
Blade Speed: 75 – 300 SFM
Table Height: 38″
Motor: 20 HP / 480v / 3ph – All other voltages require a transformer
Standard Features:

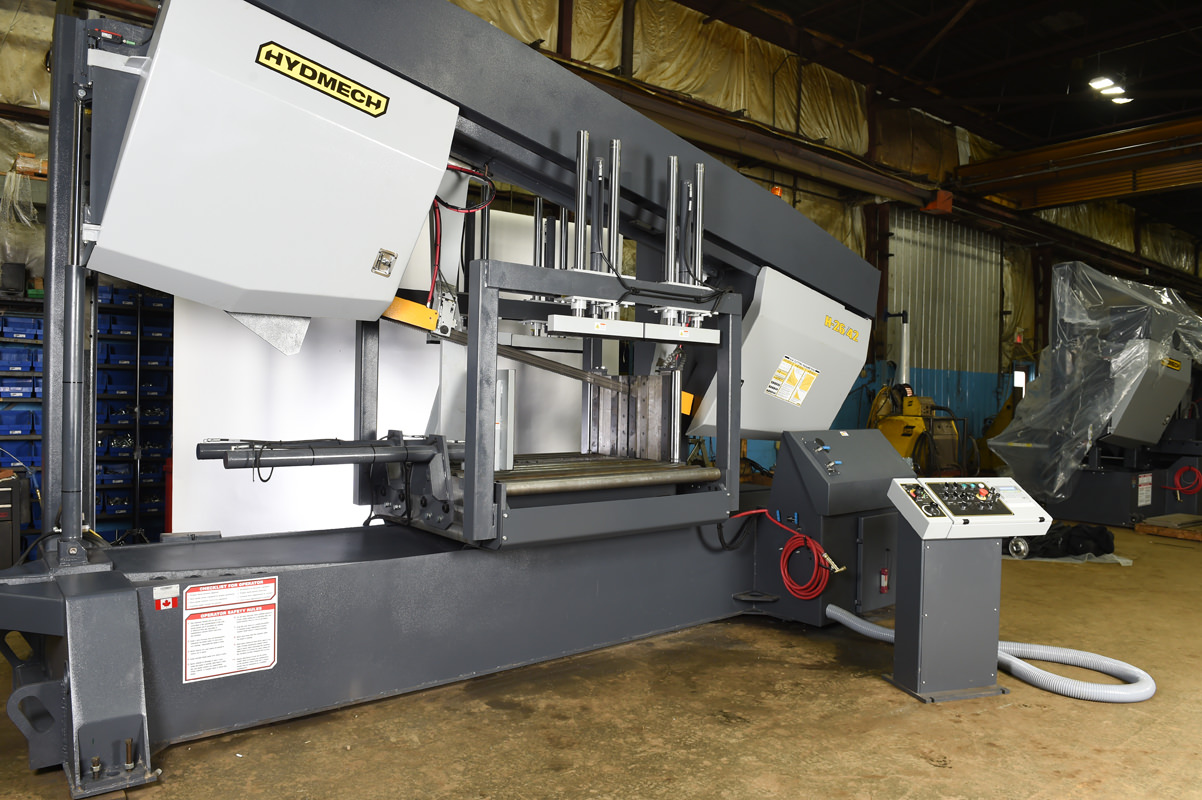

12° Canted Head

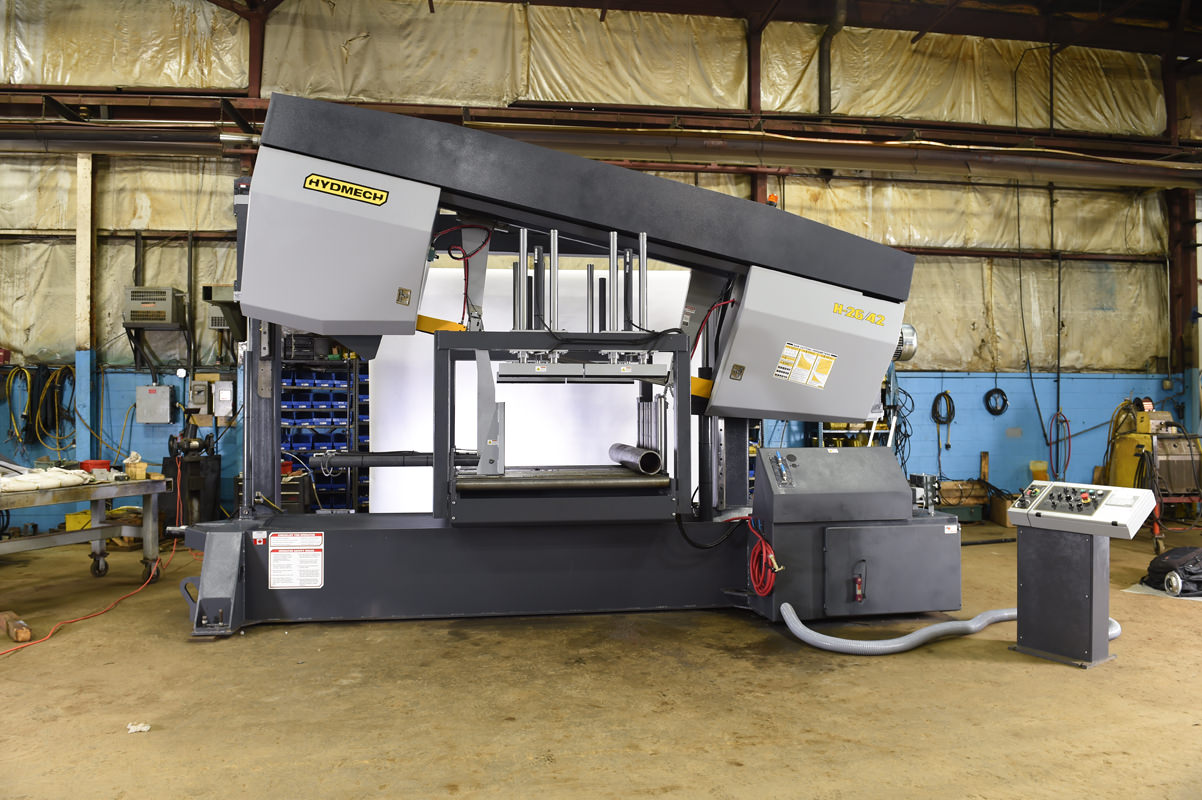

Built to withstand heavy fabricating environments
One piece design – no alignment necessary
Steel guide arms
Hydraulic positive down feed

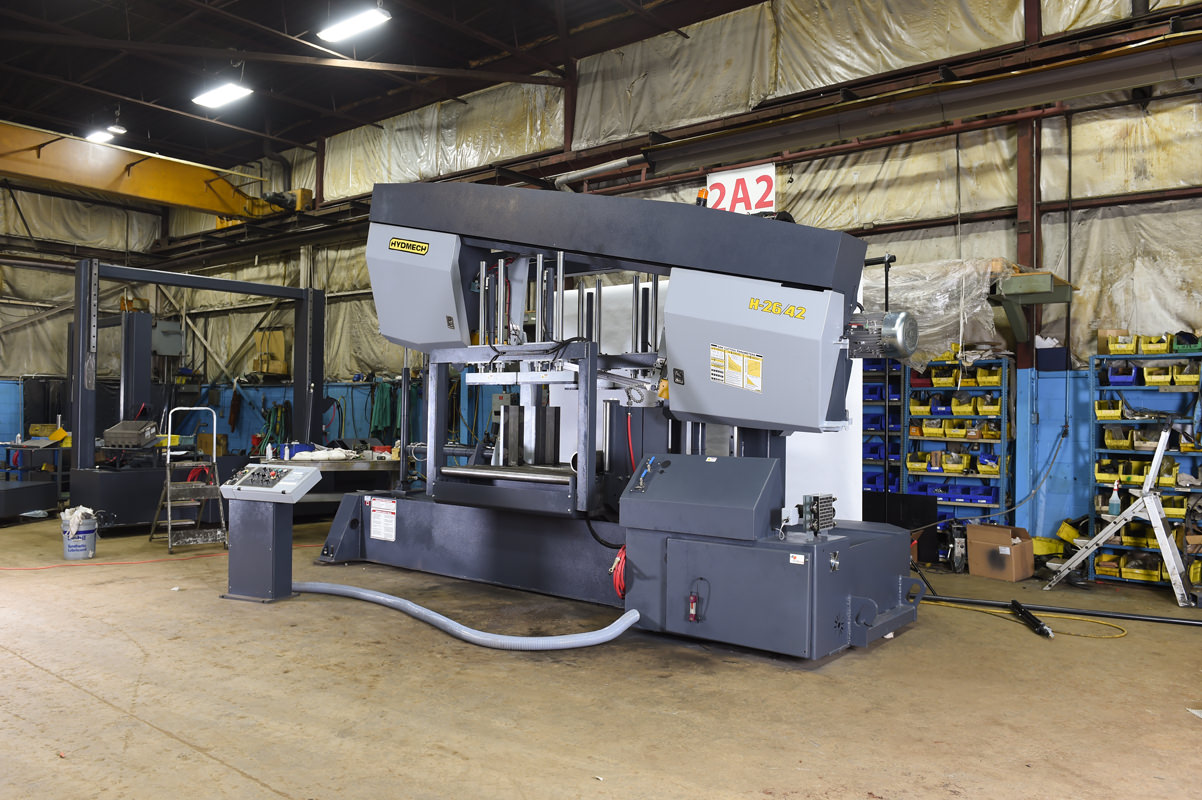

20 HP VFD – true direct blade drive – no belts/pulleys
Full capacity, full stroking hydraulic vises
Cast iron band wheels
Semi-automatic PLC control
High resolution feed rate valve allows for constant feed rate when cutting special alloys
Replaceable blade brush
Robust steel base
Automatic chip removal auger
Easy access electrical panel and hydraulics
Blade breakage switch
Hydraulic band tensioning with digital readout
Hydraulic carbide guide tensioning
Hardened, replaceable wear plates
Safety door interlocks
Flood coolant with wash down hose
Laser light
Mechanical Specifications:
Dimensions: 83″ x 217″ x 137″ H
Weight: approx. 21,000 lbs.
FOB Factory
Optional Accessories:
Hydraulic Overhead Clamp
Pedestal Control
Mist Lubrication
Outboard Vise
Idler and Powered Conveyors
Power Transformers
