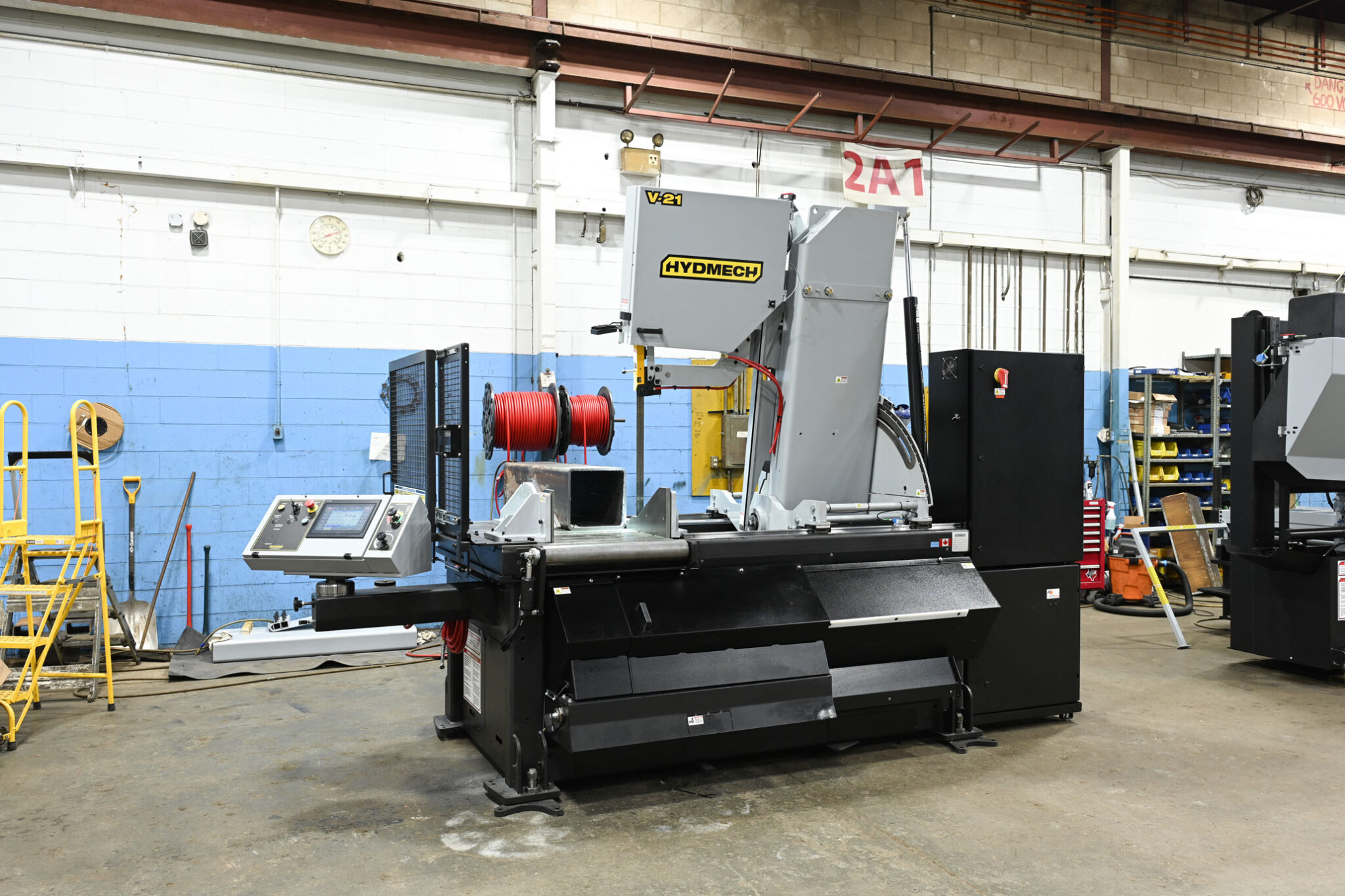

Hydmech 26″ x 21″ Semi-Automatic Vertical Band Saw, V-21
Inventory # 10047
Model: V-21
Description:
A heavy-duty vertical saw, the V-21 efficiently cuts both solid and structural material and is extremely versatile for many different types of sawing applications. This model features a 4° canted head for efficient cutting and improved blade life. This model features a 10″ color touch screen HMI with user-friendly, graphical icon programming for miter cutting
Featuring a large 26″ H x 21″ W capacity, 10 HP motor, and 1 1/2″ blade, the V-21 is a reliable choice for all your automated vertical metal cutting applications
Specifications:
Capacity:
@ 90°:
Rectangular: 26″ x 21″ (22″ x 21″ with Bundling)
Round: 21″
@ 45° Right:
Rectangular: 18 1/4″ x 21″ (15 1/2″ x 21″ with Bundling)
Round: 17″
@ 45° Left:
Rectangular: 18 1/4″ x 21″ (15 1/2″ x 16 1/2″ with Bundling)
Round: 17″
@ 60° Right:
Rectangular: 12 1/2″ x 21″ (7″ x 21″ with Bundling)
Round: 12 1/2″
@ 60° Left:
Rectangular: 11″ x 21″ (7″ x 21″ with Bundling)
Round: 11″
Blade Size: 19′ 4″ x 1 1/2″
Blade Speed: 65 – 385 SFM
Table Height: 44″
Motor: 10 HP / 480v / 3ph – All other voltages require a transformer
Standard Features:
4° canted head allows for efficient cutting and improved blade life
“Go to” angle functionality from 60° left to 60° right
Hydraulic head tilt
Cast iron band wheels
Hydraulic DDF system
Two full stroking hydraulic vises
Hydraulically powered, programmable guide arm attached to saw column
Variable vise pressure

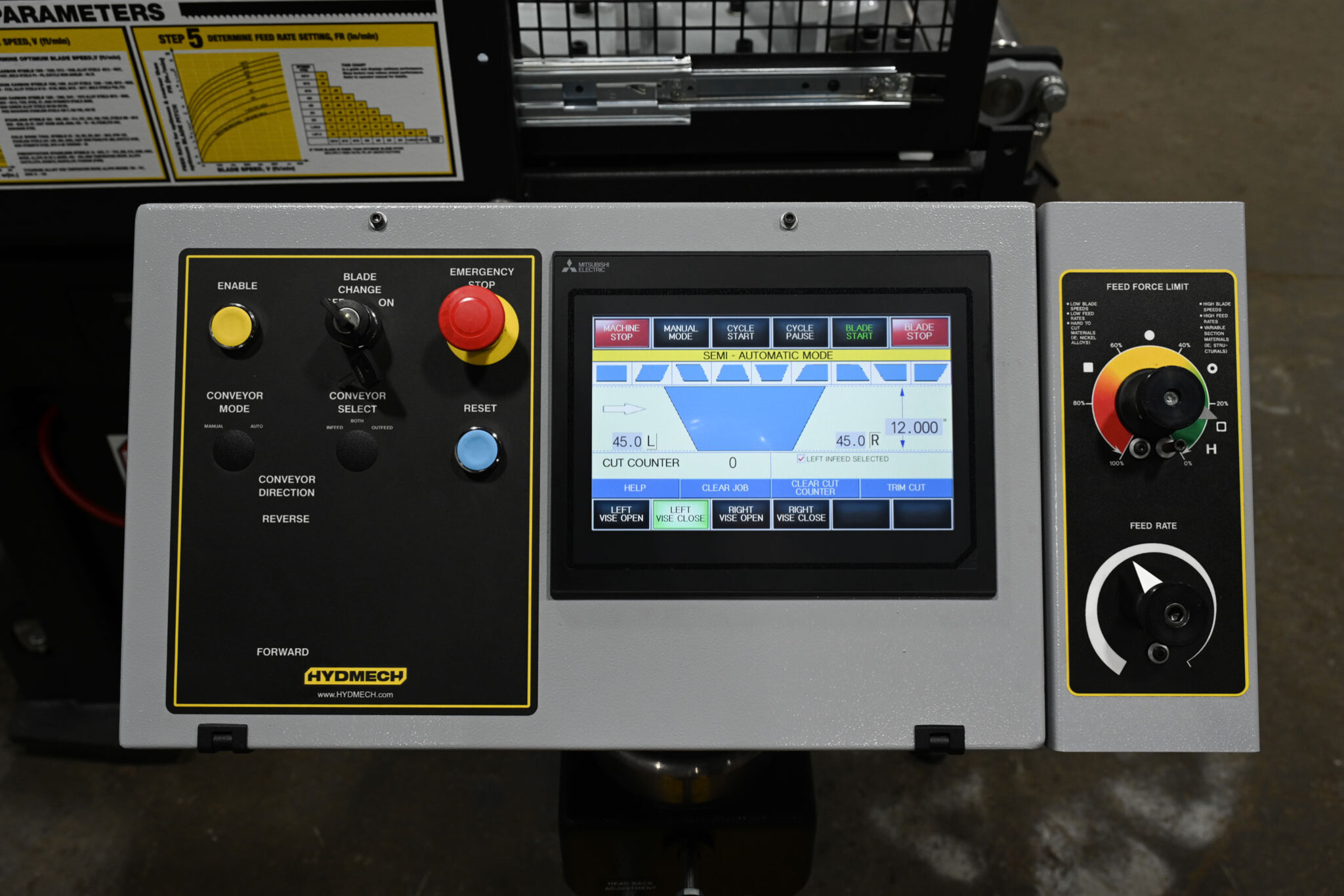

10″ color touch screen HMI. No flipping from screen to screen, the control is interactive with messages for the operator, reducing the learning curve. User-friendly graphical icon programming for miter cutting
10 HP VFD – true direct blade drive – no belts/pulleys
Replaceable blade brush
Robust steel base
Digital feed rate display
Blade breakage switch
Easy access electrical panel and hydraulics
Hydraulic band tensioning with digital readout
Replaceable carbide guide inserts
3 HP hydraulic pump provides system pressure
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light
Mechanical Specifications:
Dimensions: 181″ x 76″ x 112″ H
Weight: approx. 8,700 lbs.
FOB Factory
Optional Accessories:
Chip Bucket with Pump
Hydraulic Chip Paddle Conveyor
Hydraulic Overhead Bundling (Bundling Height is Limited to 22″ @ 90°, 15 1/2″ @ 45°, 7″ @ 60°)
Mist Lubrication
Tall Square Vise Inserts
Pop-Up Feed Roller
Outfeed Vise Bundling
Idler Conveyors
Powered Conveyors
Power Transformers
