Hydmech 26″ x 21″ Automatic Mitering Vertical Band Saw, V-21/26APC
Inventory # 10048
Model: V-21/26APC
Description:

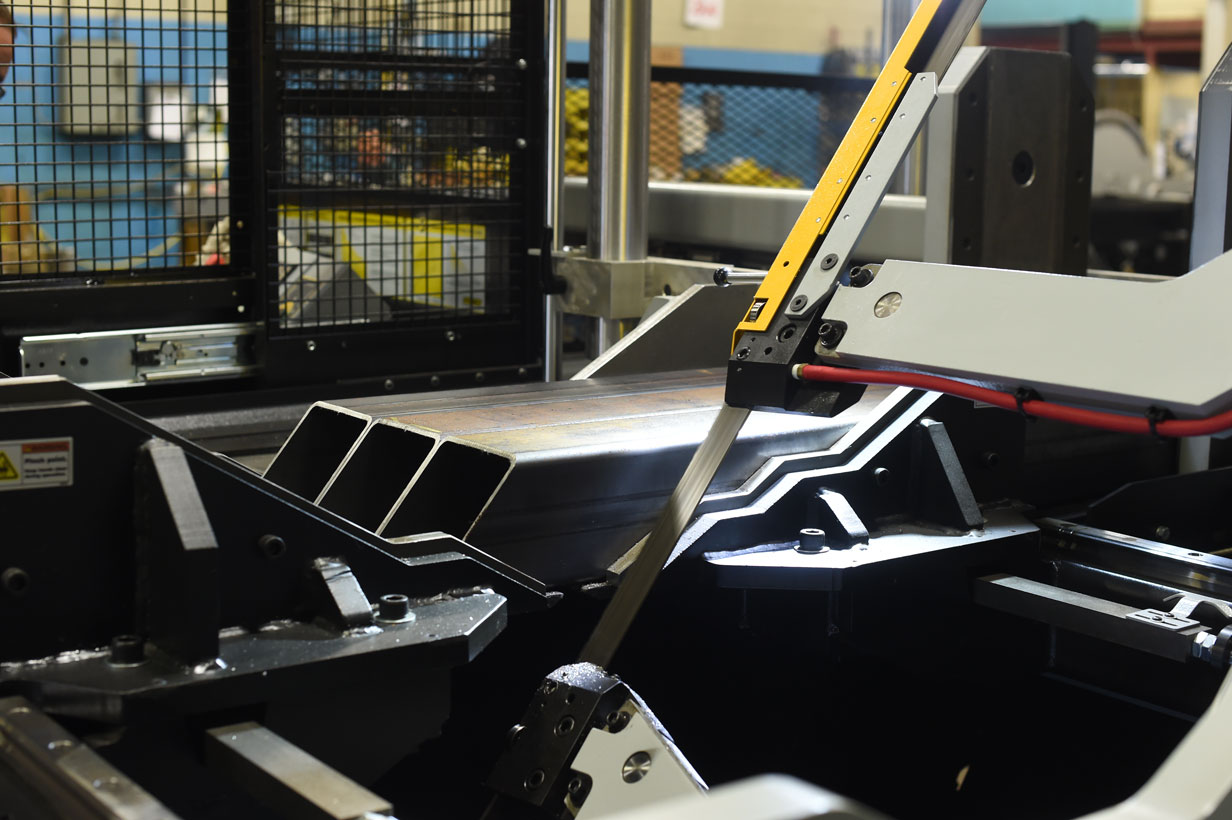

A heavy-duty vertical saw, the V-21/26APC efficiently cuts both solid and structural material and is extremely versatile for many different types of sawing applications. This model features user-friendly graphical icon programming for miter cutting
Featuring a large 26″ H x 21″ W capacity, 10 HP motor, and a 1 1/2″ blade, the V-21/26APC is a reliable choice for all your automated vertical metal cutting applications
Specifications:
Capacity:
@ 90°:
Rectangular: 26″ x 21″ (22″ x 21″ with Bundling)
Round: 21″
@ 45° Right:
Rectangular: 18″ x 21″ (15 1/2″ x 21″ with Bundling)
Round: 17″
@ 45° Left:
Rectangular: 18″ x 21″ (15 1/2″ x 16 1/2″ with Bundling)
Round: 17″
60° Right:
Rectangular: 12 1/2″ x 21″ (7″ x 21″ with Bundling)
Round: 12″
@ 60° Left:
Rectangular: 11″ x 21″ (7″ x 16 1/2″ with Bundling)
Round: 11″
Blade Size: 19′ 4″ x 1 1/2″
Blade Speed: 65 – 385 SFM
Automatic Multi-Indexing: 60″ (120″ Optional)
Table Height: 44″
Motor: 10 HP / 480v / 3ph – All other voltages require a transformer
Standard Features:
4° canted head allows for efficient cutting and improved blade life
60″ bar feed, left side
Shuttle features automatic multi-indexing up to 60″ (120″ optional) in a single stroke with automatic kerf compensation. Powered by a rack and pinion servo drive
Automatic programmable mitering with “go to” angle functionality from 60° left to 60° right
Hydraulic head tilt
Cast iron band wheels
Hydraulic DDF system
Two full stroking vises

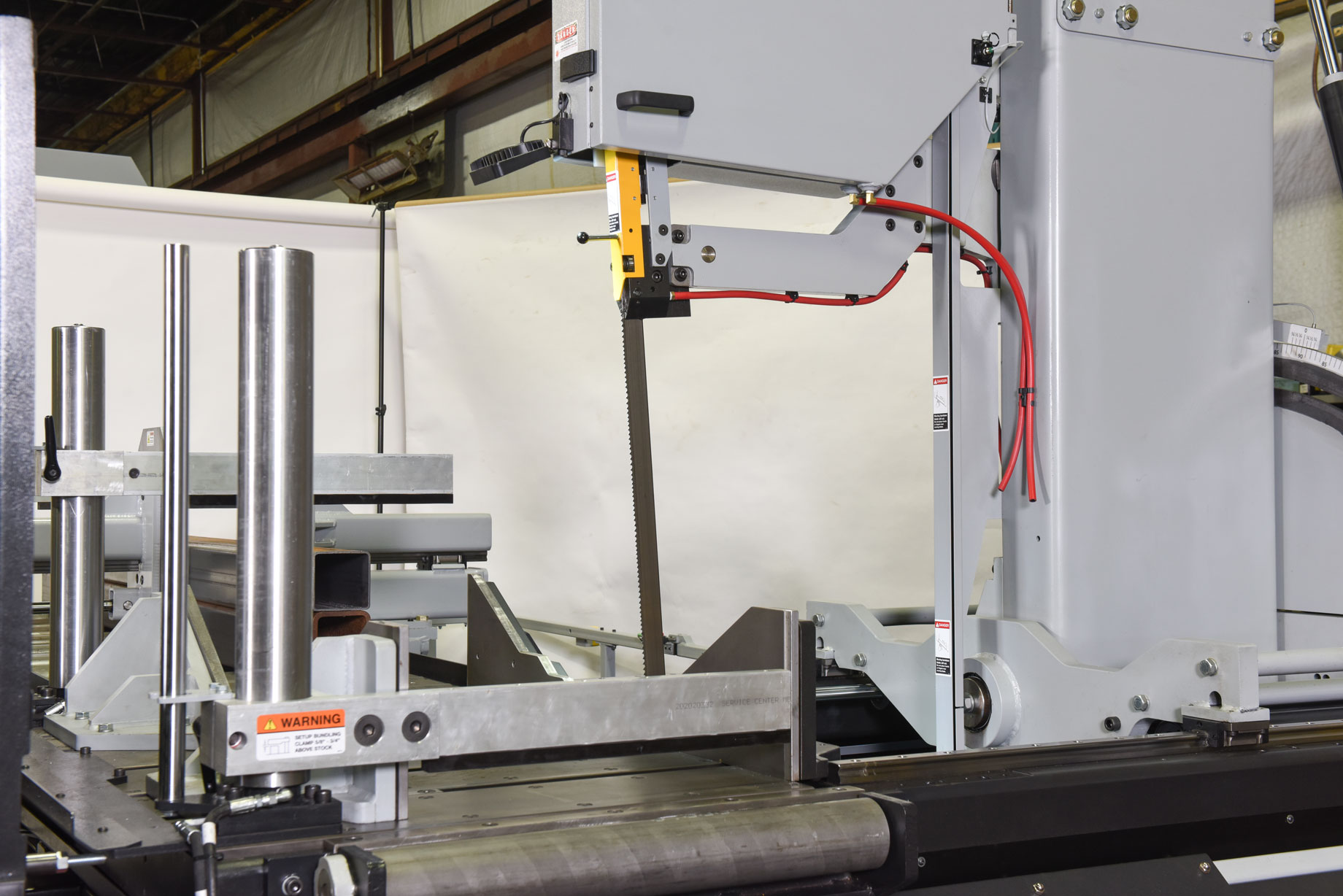

Hydraulically powered, programmable guide arm attached to saw column

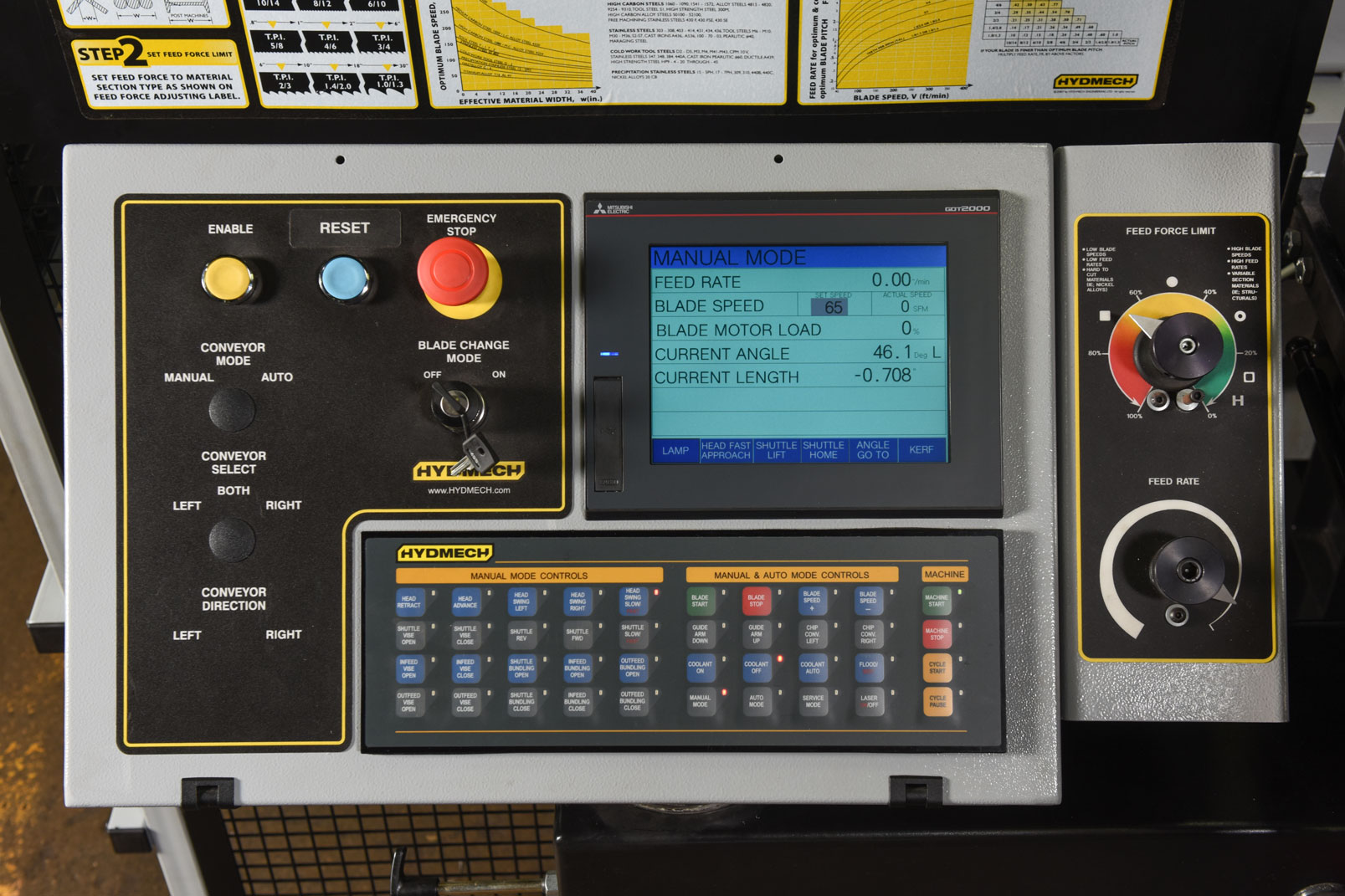

8.5″ Mitsubishi FX5U PLC color touch screen controller. No flipping from screen to screen, the control is interactive with messages for the operator, reducing the learning curve. User-friendly graphical icon programming for miter cutting, up to 1,000 jobs, 20 jobs in queue

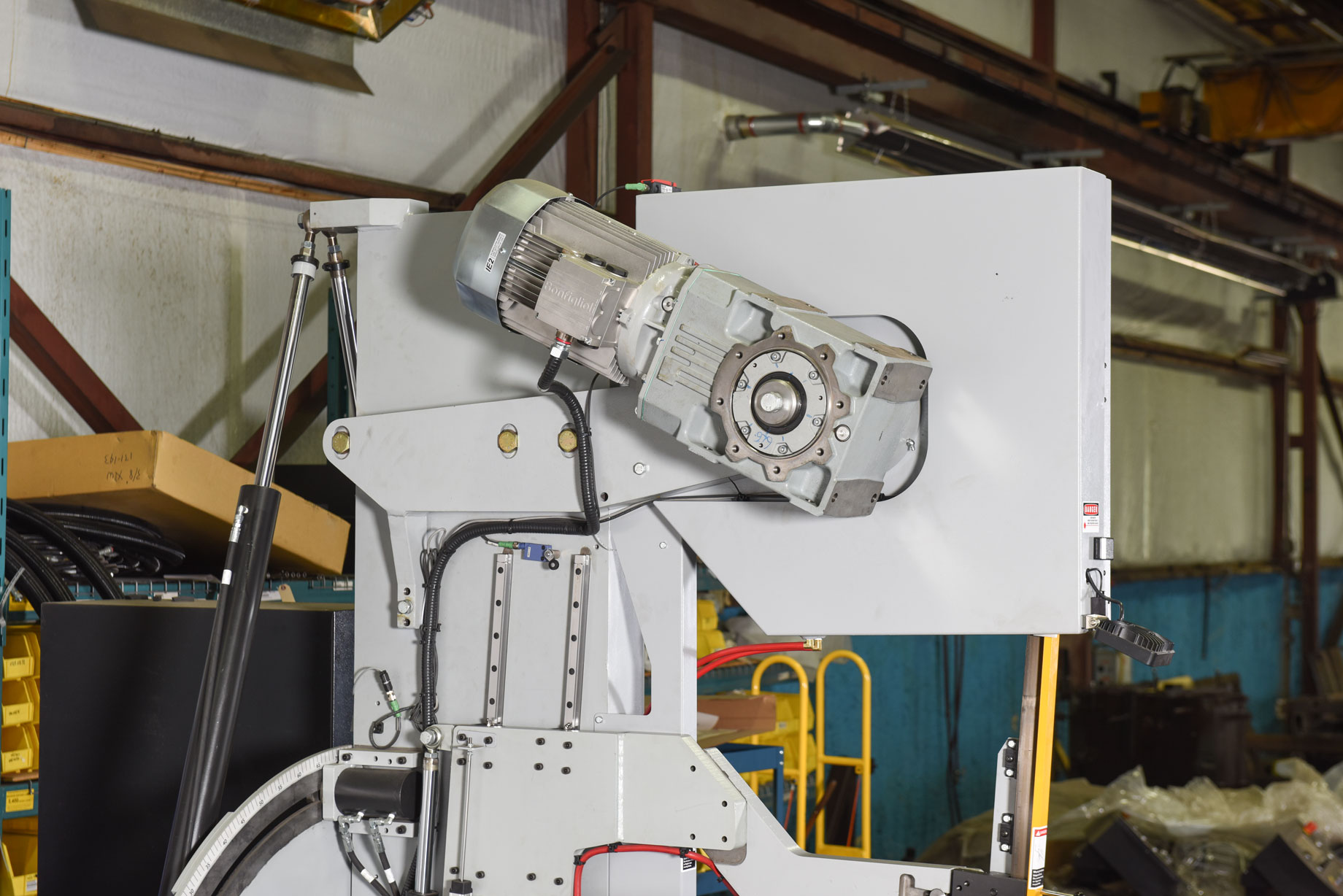

10 HP VFD – true direct blade drive – no belts/pulleys
Blade chamber separates material from cut part
Hydraulic chip conveyor
Replaceable blade brush
Robust steel base
Out of stock switch
Blade breakage switch
Easy access electrical panel and hydraulics
Pop-up feed roller – one, opposite bar feed
Hydraulic band tensioning with digital readout
Replaceable carbide guide inserts
3 HP hydraulic pump provides system pressure
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light
Variable vise pressure
Mechanical Specifications:
Dimensions: 184″ x 181″ x 112″ H
Weight: approx. 14,700 lbs.
FOB Factory
Optional Accessories:
Chip Bucket with Pump
Full Capacity Hydraulic Overhead Bundling
Mist Lubrication
Tall Square Vise Inserts
Outfeed Vise
Outfeed Vise with Bundling
Right Side Infeed Shuttle
10′ Shuttle Infeed
Bridge/Interface Bracket
Powered Bridge/Interface Bracket
Idler Conveyors
Powered Conveyors
Power Transformers
