Hydmech 24″ x 28″ Automatic Horizontal Long Bar Feed Band Saw, H-28A-120
Inventory # 10035
Model: H-28A-120
Description:
The H-28A-120 is an automatic horizontal long bar feed band saw providing accurate 90° metal cutting for heavy-duty applications
The H-28A-120 is fast, with its high-speed shuttle feed indexing up to 120″ in a single movement with weight capacities up to 15,000 lbs. A 5 HP driven hydraulic pump supplies system pressure through three-position directional valves controlling all vising, head up/down, blade tension, guide arm, and shuttle movement
Hydmech’s direct down-feed system provides easy adjustment of both head feed rate and cutting pressure. Featuring a 120″ bar feed, 24″ x 28″ capacity, 10 HP motor, and 2″ blade, the H-28A-120 is a reliable choice for all your heavy-duty horizontal metal cutting applications
Specifications:
Capacity:
@ 90°:
Rectangular: 24″ x 28″
Round: 24″
Blade Size: 25′ x 2″
Blade Speed: 40 – 300 SFM
Automatic Multi-Indexing: 0 – 120″
Table Height: 37″
Motor: 10 HP / 480v / 3ph – All Other Voltages Require a Transformer
Standard Features:
6° canted head
Split front vise. Can be replaced by request with retractable datum vise at no charge

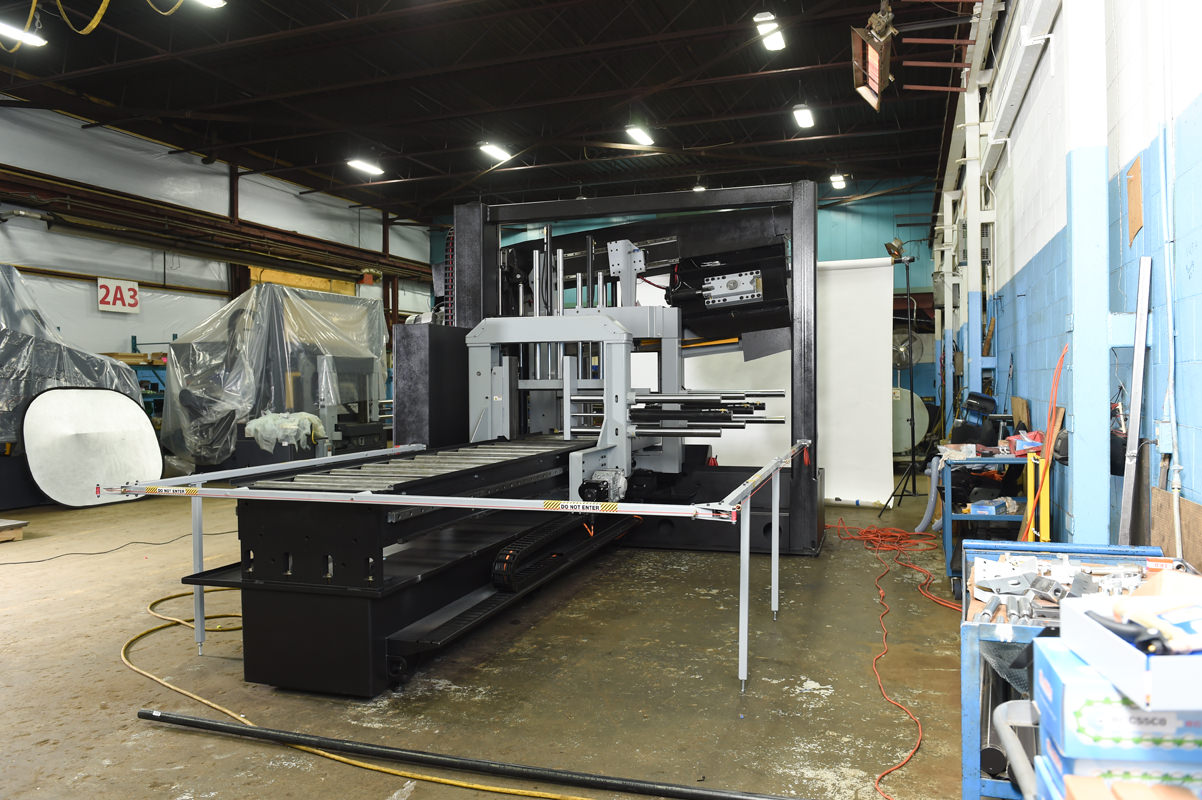

Shuttle features automatic multi-indexing up to 120″ in a single stroke with automatic kerf compensation. Powered by rack and pinion servo drive
Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times
Hydraulic positive down feed
Full capacity hydraulic overhead bundling
10 HP VFD – true direct blade drive – no belts/pulleys
Full capacity, full stroking hydraulic vises
High resolution feed rate valve allows for constant feed rate when cutting special alloys
Blade chamber separates material from cut part
Cast iron band wheels

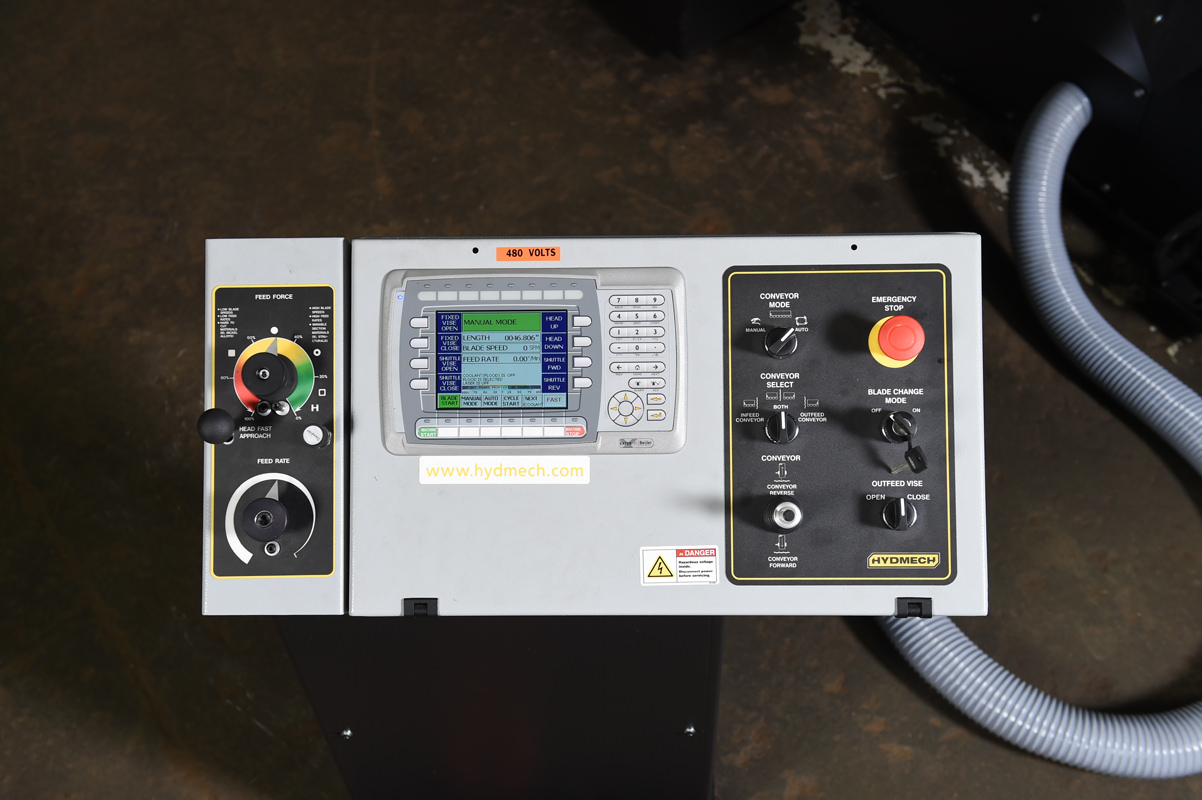

Automatic PLC control programmable up to 999 jobs with 10 in queue
Replaceable blade brush
Robust steel base
Automatic chip removal auger
Out of stock switch
Easy access electrical panel and hydraulics
Blade breakage switch
Hydraulic band tensioning with digital readout
5 HP hydraulic pump provides system pressure
Hydraulic carbide guide tensioning
Hardened, replaceable wear plates
Safety door interlocks
Flood coolant with wash down hose
Work light
Laser light
Mechanical Specifications:
Dimensions: 230″ x 161″ x 120″ H
Weight: approx. 25,700 lbs.
FOB Factory
Optional Accessories:
Blade Deviation
Squaring Vise
Mist Lubrication
Outboard Vise
Outboard Vise with Bundling
Pedestal Control
Roller Discharge Table
Vertical Alignment Rollers
Idler Conveyors
Powered Conveyors
Power Transformers
