Hydmech 23″ x 18″ Semi-Automatic Vertical Band Saw, V-18-60
Inventory # 10043
Model: V-18-60
Description:
A semi-automatic vertical band saw with the ability to miter from 60° left to 60° right
A 2 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vising, head advance/retract, blade tension, and guide arm movement
Its optional 3° fixed canted head, recommended when cutting larger beams, structural steel, and bundles of square tubing allows for more efficient cutting and improved blade life
Specifications:
Capacity:
@ 90°:
Rectangular: 23″ x 18″
Round: 18″ with Tall Vise
@ 45°:
Rectangular: 16″ x 18″
Round: 13″
@ 30°:
Rectangular: 10″ x 18″
Round: 10″
@ 90° with Overhead Bundling:
Rectangular: 12″ x 18″
Round: 12″
@ 45° with Overhead Bundling:
Rectangular: 12″ x 18″
Round: 12″
@ 30° with Overhead Bundling:
Rectangular: 6″ x 18″
Round: 6″
Blade Size: 16′ 11″ x 1 1/4″
Blade Speed: 65 – 385 SFM
Table Height: 44″
Coolant Tank Capacity: 55 Gallons
Motor: 7.5 HP / 480v / 3ph – All other voltages require a transformer
Standard Features:

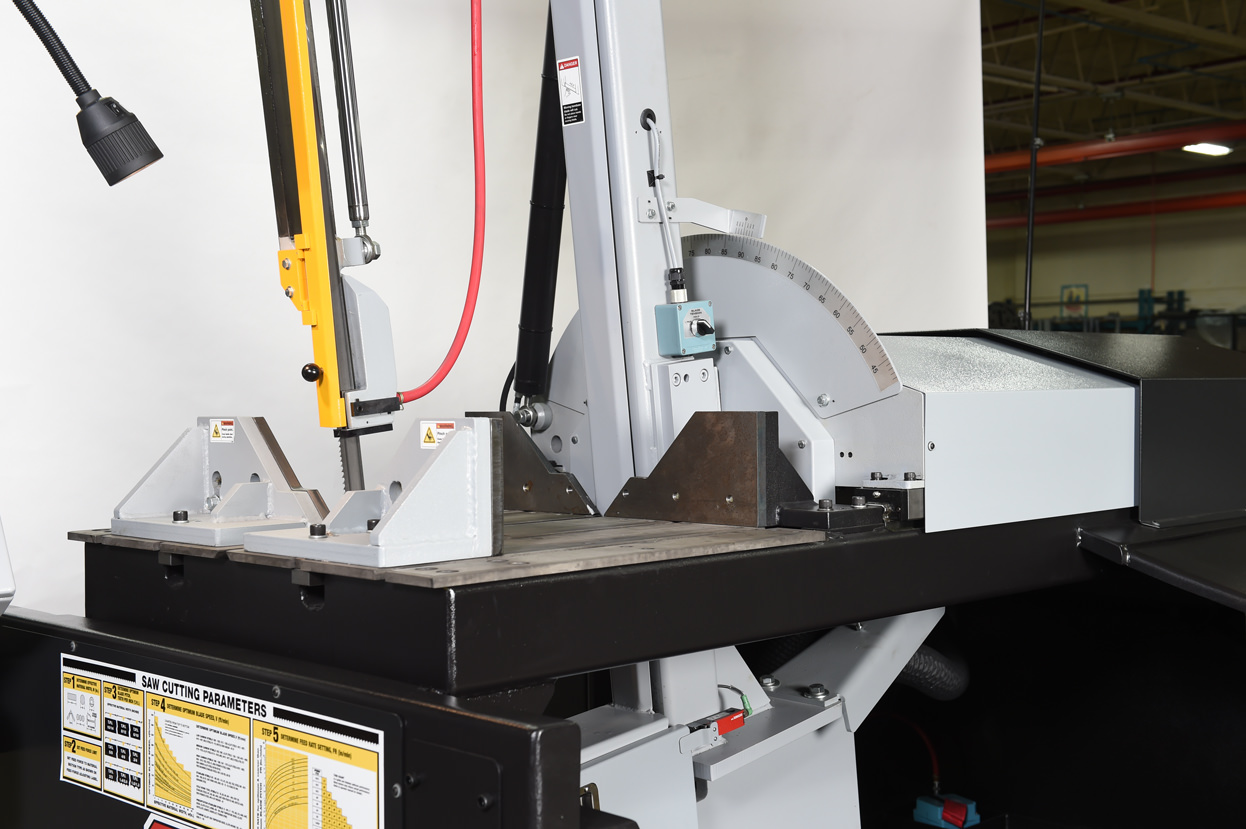

Two full stroking hydraulic vises
Select left or right side control panel

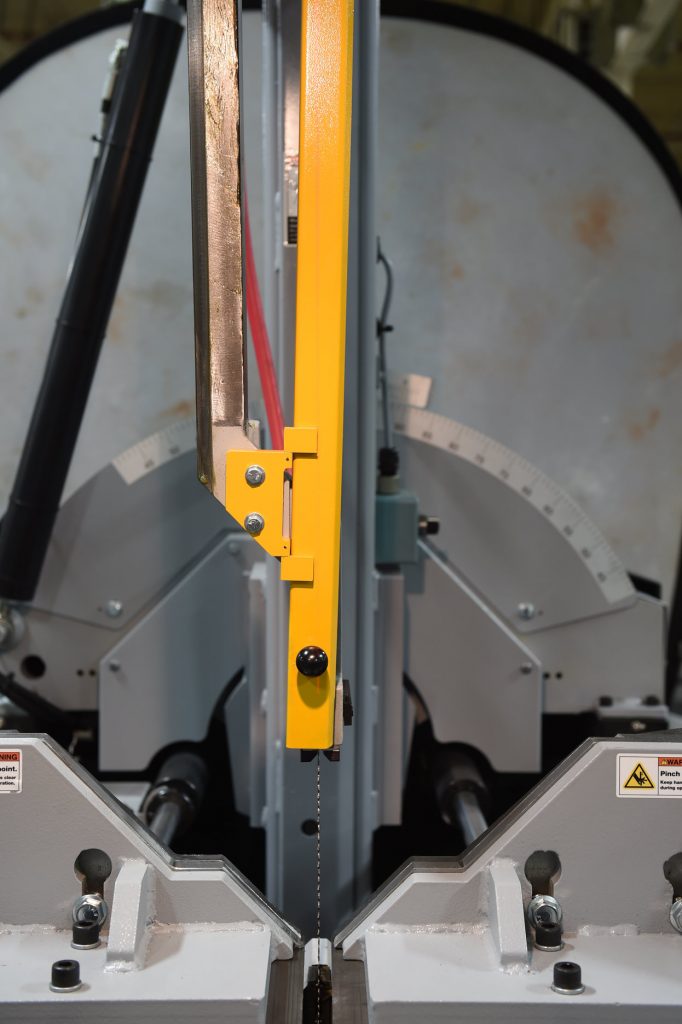

Powered moveable guide arm

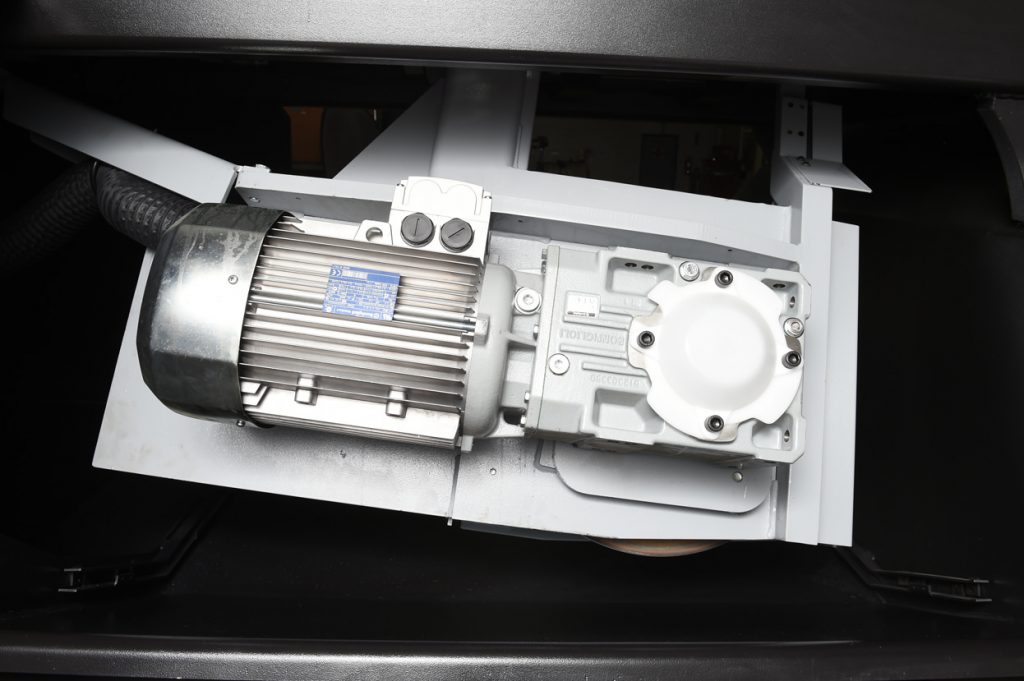

7.5 HP VFD – true direct blade drive – no belts/pulleys
Hydraulic positive down feed
Cast iron band wheels
Automatic programmable mitering with “go to” angle functionality from 60° left to 60° right
Replaceable blade brush
Robust steel base
Easy access electrical panel and hydraulics
Blade breakage switch
Hydraulic blade tensioning with digital readout
Replaceable carbide guide inserts
90° straight head
2 HP hydraulic pump provides system pressure
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light
Variable vise pressure
Mechanical Specifications:
Dimensions: 120″ x 98″ x 112″ H
Weight: approx. 4,800 lbs.
FOB Factory
Optional Accessories:
Fixed 3° Canted Head
Chip Bucket
Hydraulic Overhead Bundling
Mist Lubrication
Non-Driven Pop-Up Lift Rollers
Drag Chain Chip Conveyor
Tall Square Vise Inserts
Hydraulic Chip Conveyor
Idler & Power Conveyors
Power Transformers
