Hydmech 22″ x 22″ Automatic Horizontal Band Saw, H-22A
Inventory # 10032
Model: H-22A
Description:
The H-22A is an automatic horizontal band saw providing accurate 90° metal cutting for heavy-duty applications
The H-22A is fast, with its high-speed shuttle feed indexing up to 34″ in a single movement. Its optional 6° canted head, recommended when cutting larger beams, structural steel, and bundles of square tubing allows for more efficient cutting and improved blade life
Featuring a 22″ x 22″ capacity, 10 HP motor, and 2″ blade, the H-22A is a reliable choice for all your heavy-duty horizontal metal cutting applications
Specifications:
Capacity:
@ 90°:
Rectangular: 22″ x 22″ – Canted: 20″ x 22″
Round: 22″ – Canted: 20″
Blade Size: 22′ 6″ x 2″
Blade Speed: 40 – 300 SFM
Automatic Multi-Indexing: 0 – 34″
Table Height: 31″ – Canted: 35″
Motor: 10 HP / 480v / 3ph – All Other Voltages Require a Transformer
Standard Features:
One piece design – no alignment necessary

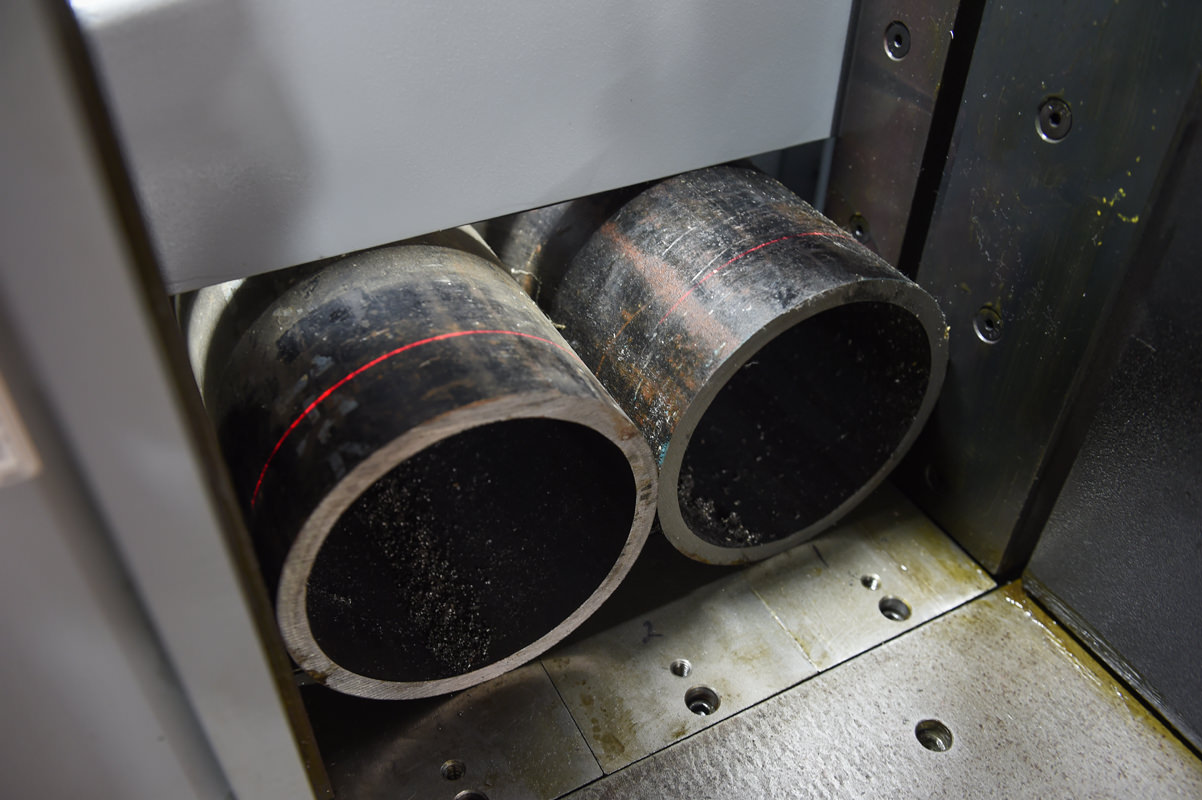

Split front vise allows for short remnant length
Shuttle features automatic multi-indexing up to 34″ in a single stroke with automatic kerf compensation
Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times
Hydraulic positive down feed
Blade chamber separates material from cut part
10 HP VFD – true direct blade drive – no belts/pulleys

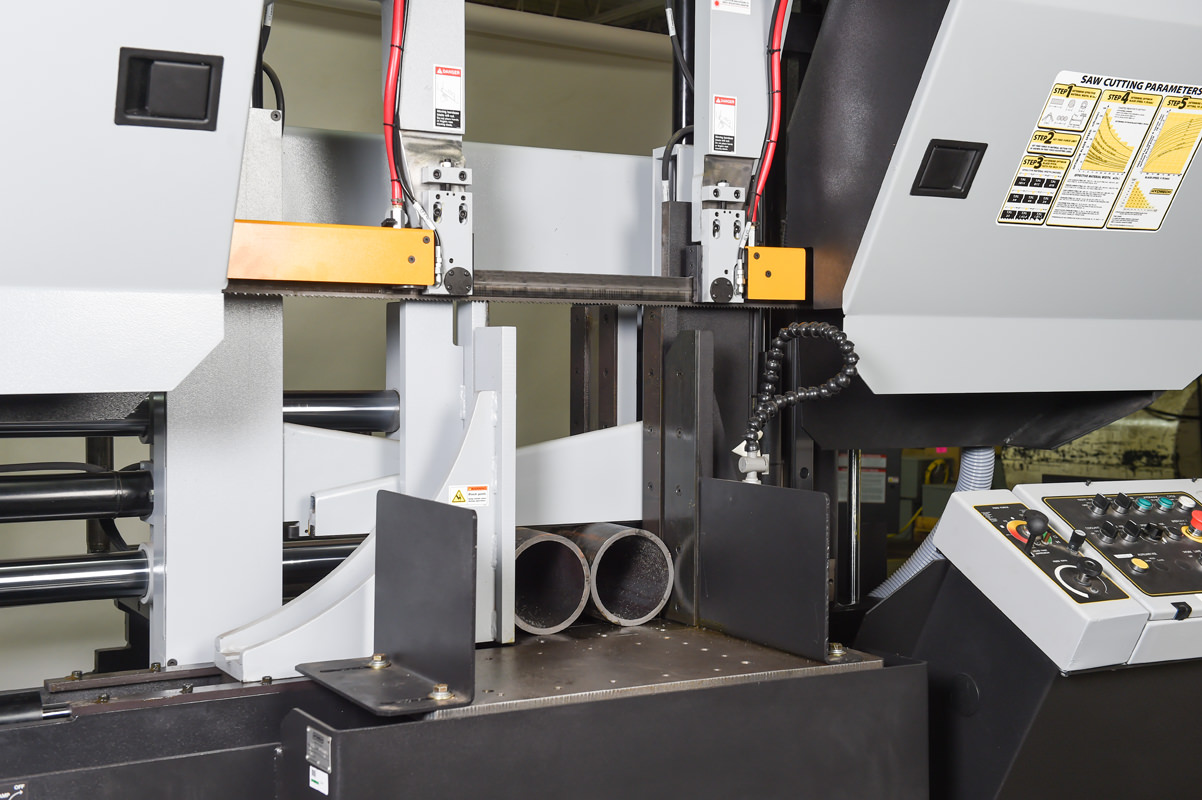

Full capacity, full stroking hydraulic vises
High resolution feed rate valve allows for constant feed rate when cutting special alloys
Cast iron hand wheels

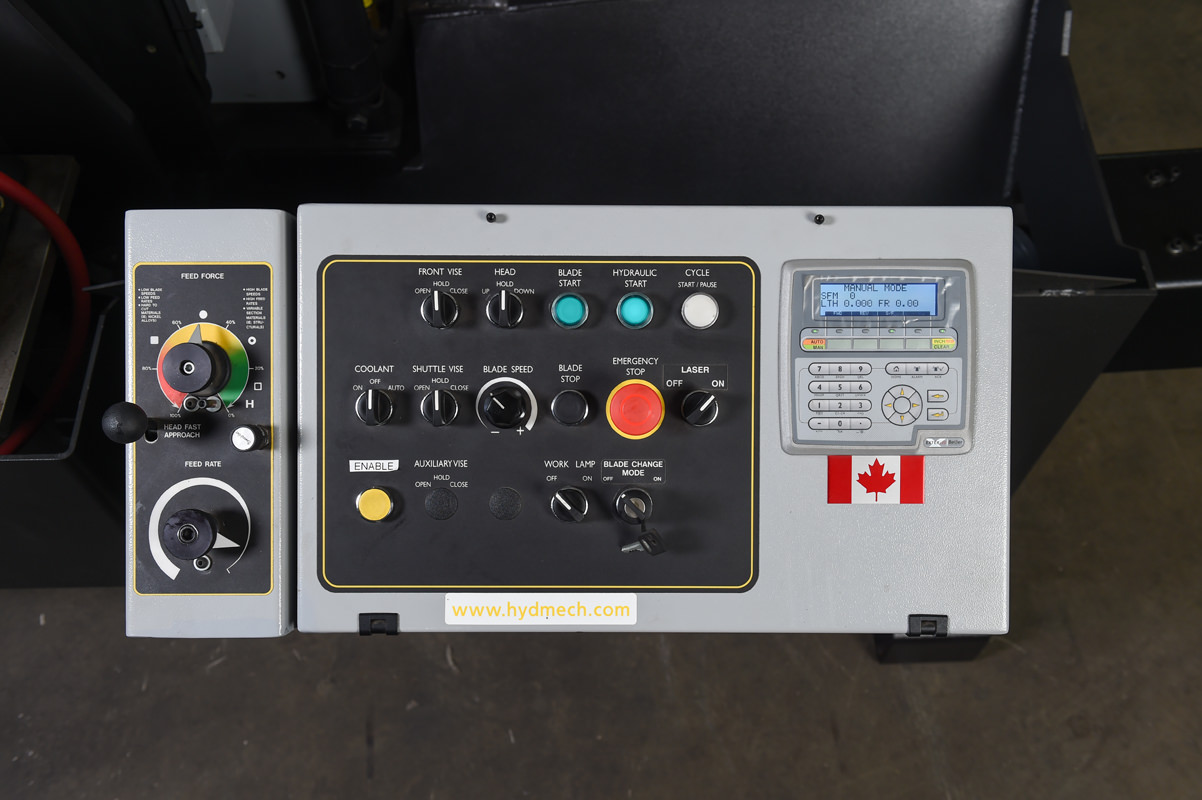

Automatic PLC control programmable up to 99 jobs with 5 in queue
Replaceable blade brush
Robust steel base

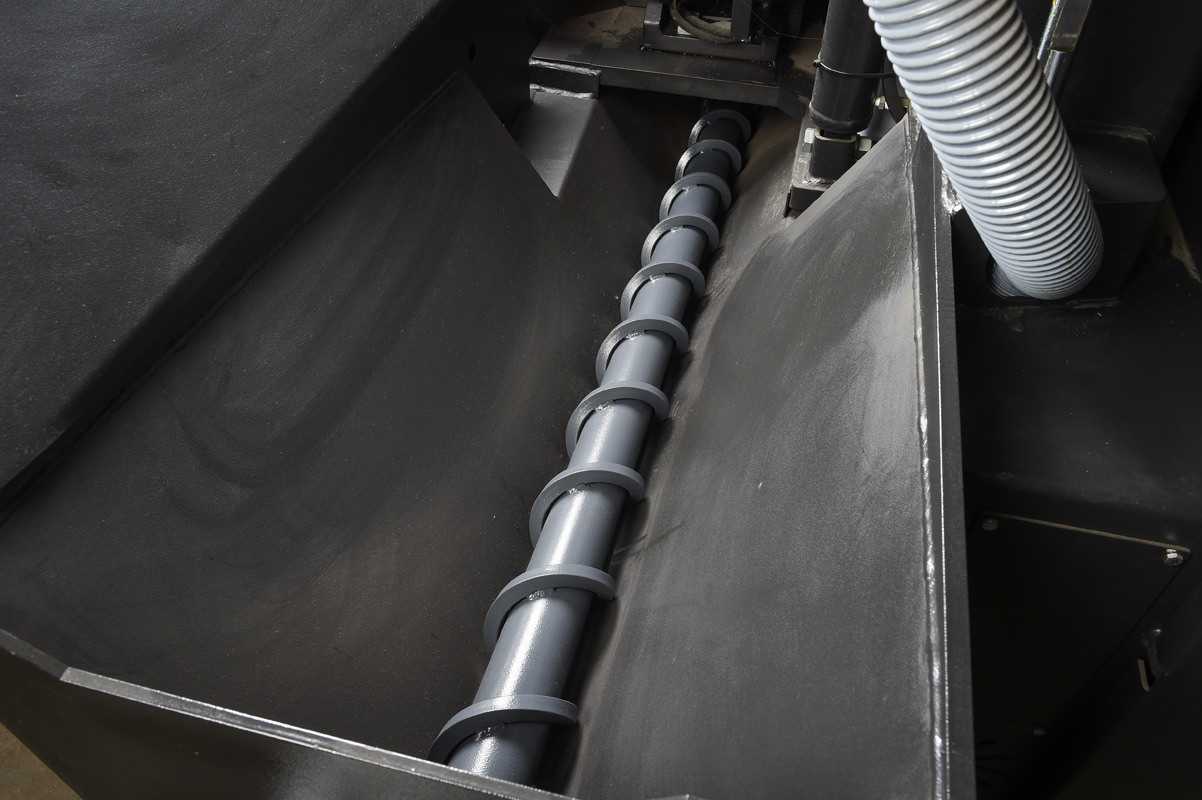

Automatic chip removal auger
Out of stock switch
Easy access electrical panel and hydraulics
Blade breakage switch
Hydraulic band tensioning with digital readout
Hydraulic carbide guide tensioning
Hardened, replaceable wear plates
Safety door interlocks
Flood coolant with wash down hose
Work light
Variable vise pressure
Mechanical Specifications:
Dimensions: 88″ x 141″ x 92″ H
Weight: approx. 12,500 lbs.
FOB Factory
Optional Accessories:
Full Capacity Hydraulic Overhead Bundling
6° Canted Head
Blade Deviation
Mist Lubrication
Outboard Vise
Outboard Vise with Bundling
Pedestal Control
Roller Discharge Table
Vertical Alignment Rollers
Laser Light
Idler and Powered Conveyors
Powered Conveyors
Power Transformers
