Hydmech 22″ x 18″ Semi-Automatic Vertical Band Saw, VW-18-2
Inventory # 10041
Model: VW-18-2
Description:
Introducing the upgraded VW-18-2, an evolution from the VW-18 machine with notable enhancements:
Repositioned Datum: Following the successful design of the V18, Hydmech has relocated the datum to the back for improved efficiency
Enhanced Head Rigidity: The head is reinforced to ensure increased rigidity, providing enhanced stability during cutting operations for superior performance
Upgraded Vise Rigidity: Hydmech’s commitment to excellence extends to the vises, where they’ve implemented improvements to boost rigidity. This enhancement contributes to a more robust and reliable overall system
Powered Hydraulic Guide Arm: The VW-18-2 now features a powered hydraulic guide arm, adding a new dimension to precision and control during cutting processes. This innovative addition elevates the machine’s capabilities, offering a seamless and efficient operation
The VW-18-2 stands out as a semi-automatic, vertical band saw, setting new standards with its mitering capability ranging from 60° left to 60° right. Boasting a generous 22″ H x 18″ W cutting capacity, a robust 5 HP motor, and a 1 1/4″ blade, this machine is your trusted companion for a wide range of light to medium-duty, vertical metal cutting applications
Featuring a semi-automatic control that can be conveniently positioned on either side of the saw, the VW-18-2 combines precision with ease of operation for enhanced performance in your metalworking tasks
Specifications:
Capacity:
@ 90°:
Rectangular: 22″ x 18″ – Canted: 20 3/4″ x 18″
Round: 17 1/2″
@ 45°:
Rectangular: 15″ x 18″ – Canted: 14″ x 18″
Round: 12 1/2″
@ 60° Right:
Rectangular: 10 1/4″ x 18″ – Canted: 9 1/2″ x 18″
Round: 10 1/4″ – Canted: 9 1/2″
Blade Size: 16′ 3″ x 1 1/4″
Blade Speed: 65 – 385 SFM
Table Height: 36 1/2″
Coolant Tank Capacity: 12 Gallons
Motor: 5 HP / 480v / 3ph – All other voltages require a transformer
Standard Features:
Adjustabled 3° canted head
Double articulating, semi-automatic control
Two full stroking hydraulic vises
Manual precise head positioning from 60° left to 60° right
Digital angle display with protractor
Powered hydraulic guide arm
On-demand hydraulics save energy
5 HP VFD – true direct blade drive – no belts/pulleys

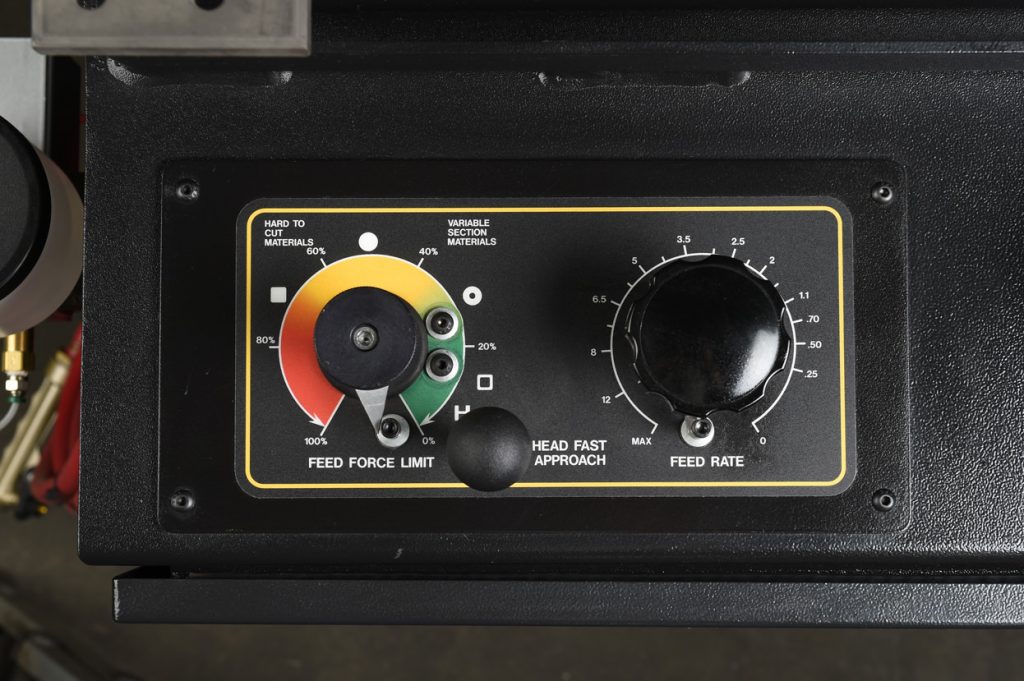

Hydraulic positive down feed
Cast iron band wheels
Replaceable blade brush
Robust steel base
Easy access electrical panel and hydraulics
Blade breakage switch
Mechanical band tensioning with digital readout
Replaceable carbide guide inserts
0.5 HP hydraulic pump provides system pressure
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light
Variable vise pressure
Mechanical Specifications:
Dimensions: 123″ x 65″ x 97″ H
Weight: approx. 2,700 lbs.
FOB Factory
Optional Accessories:
Power Tilt with Programmable Go-To Angle
Hydraulic Overhead Bundling
Mist Lubrications
Chip Bucket
Tall Square Vise Inserts
Idler Conveyors
Power Transformers
