Hydmech 22″ x 18″ Automatic Vertical Band Saw, V-18APC-60-60
Inventory # 10045
Model: V-18APC-60-60
Description:
The V-18APC-60-60 is an automatic vertical band saw with the ability to miter from 60° left to 60° right. You can choose a left or right side infeed. A 3° fixed canted head allows for more efficient cutting and improved blade life when cutting larger beams, structural steel, and bundles of square tubing
Specifications:
Capacity:
@ 90°:
Rectangular: 22″ x 18″
Round: 18″
@ 45°:
Rectangular: 14 3/4″ x 18″
Round: 13″
@ 30°:
Rectangular: 9″ x 18″
Round: 9″
@ 90° with Overhead Bundling:
Rectangular: 12″ x 18″
Round: 12″
@ 45° with Overhead Bundling:
Rectangular: 12″ x 18″
Round: 12″
@ 30° with Overhead Bundling:
Rectangular: 6″ x 18″
Round: 6″
Blade Size: 16′ 11″ x 1 1/4″
Blade Speed: 65 – 385 SFM
Automatic Multi-Indexing: 60″
Table Height: 44″
Coolant Tank Capacity: 30 Gallons
Motor: 7.5 HP / 480v / 3ph – All other voltages require a transformer
Standard Features:
Automatic programmable mitering with “go-to” angle functionality from 60° left to 60° right

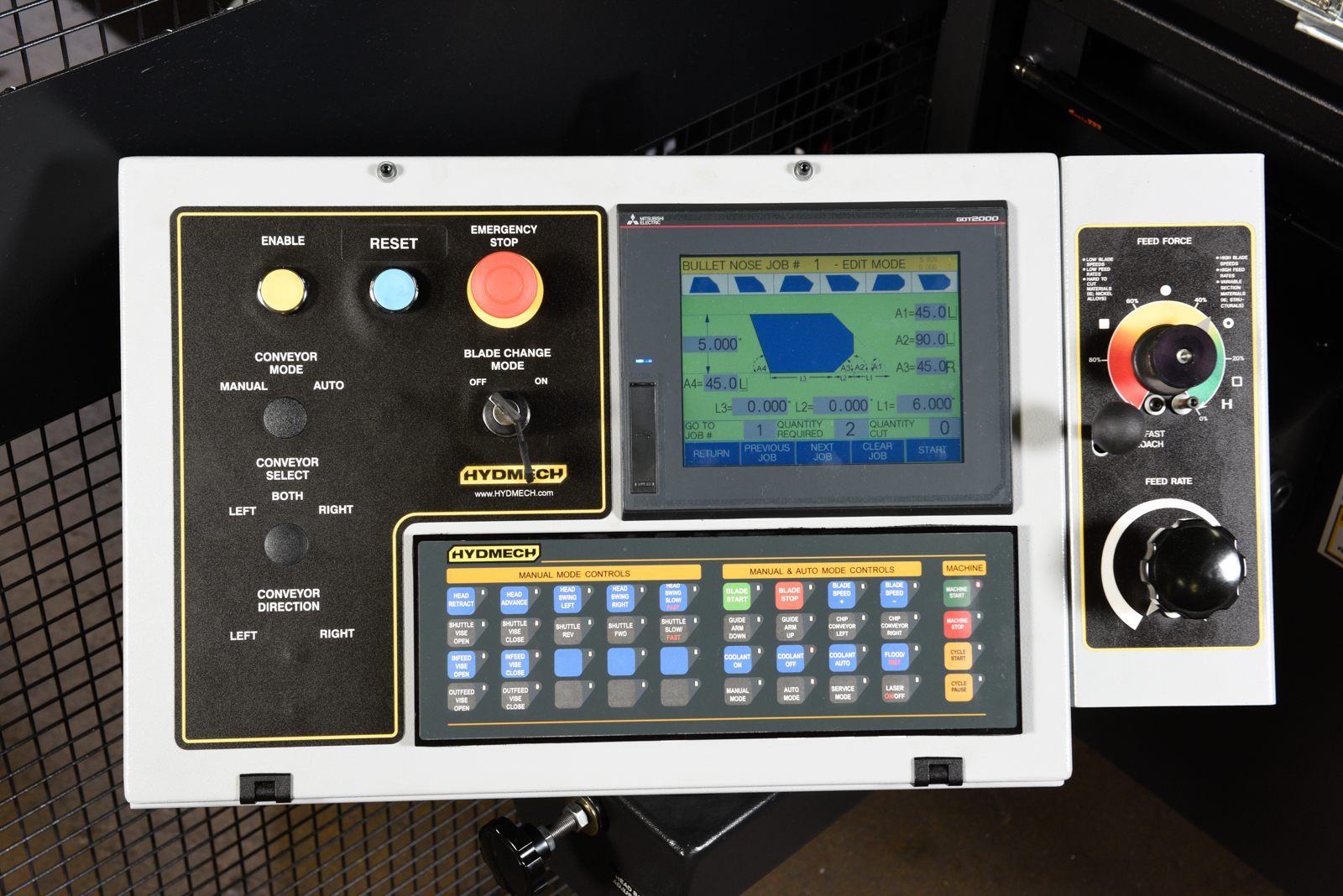

8.5″ Mitsubishi FX5U PLC color touch screen controller. No flipping from screen to screen, the control is interactive with messages for the operator, reducing the learning curve. User-friendly graphical icon programming from miter cutting, up to 1,000 jobs, 20 jobs in queue
Automatic multi-indexing up to 40″ in a single stroke. Powered by a rack and pinion servo drive
Powered moveable guide arm
Hydraulic overhead bundling
7.5 HP VFD – true direct blade drive – no belts/pulleys
Hydraulic DDF system
Blade chamber separates material from cut part
Out of stock switch
Cast iron band wheels
Replaceable blade brush
Robust steel base
Easy access electrical panel and hydraulics
Blade breakage switch
Drag chain chip conveyor
You choose left or right side infeed
Hydraulic band tensioning with digital readout
Replaceable carbide guide inserts
2 HP hydraulic pump provides system pressure
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light
Variable vise pressure
3° canted head
Mechanical Specifications:
Dimensions: 188″ x 120″ x 112″ H
Weight: approx. 9,000 lbs.
FOB Factory
Optional Accessories:
10′ Bar Feed
Chip Bucket
Mist Lubrication
Non-Driven Pop-Up Lift Roller
Tall Square Vise Inserts
Hydraulic Chip Conveyor
Idler & Powered Conveyors
Power Transformers
