Hydmech 20″ x 30″ Heavy-Duty Automatic Horizontal Pivot Band Saw, M-20A-120
Inventory # 10028
Model: M-20A-120
Description:
The M-20A-120 is a heavy-duty automatic horizontal pivot band saw, its ability to miter cut from 90° to 60° makes it an excellent machine for large fabrication jobs
The machines PLC controller can be easily programmed, storing up to 99 different cutting jobs and includes a job queue function. The simple programming and user-friendly controls switches minimize set up time and provides cost-effective production
Equipped with a 120″ bar feed, its shuttle vise assembly capable or indexing up to 120″ in a single stroke. Featuring a 20″ H x 30″ W capacity at 90°, 10 HP motor, and 1 1/2″ blade, the M-20A-120 is a reliable choice for your heavy-duty metal cutting applications
Specifications:
Capacity:
@ 90°:
Rectangular: 20″ x 30″
Round: 20″
@ 45°:
Rectangular: 20″ x 19″
Round: 20″
@ 30°:
Rectangular: 20″ x 12″
Round: 14″
Blade Size: 20′ 6″ x 1 1/2″
Blade Speed: 50 – 350 SFM
Work Load: 8,000 lbs.
Table Height: 35″
Coolant Tank Capacity: 9 Gallons
Motor: 10 HP / 480v / 3ph – All Other Voltages Require a Transformer
Standard Features:
Automatic programmable mitering with “go to” angle from 90° to 30°

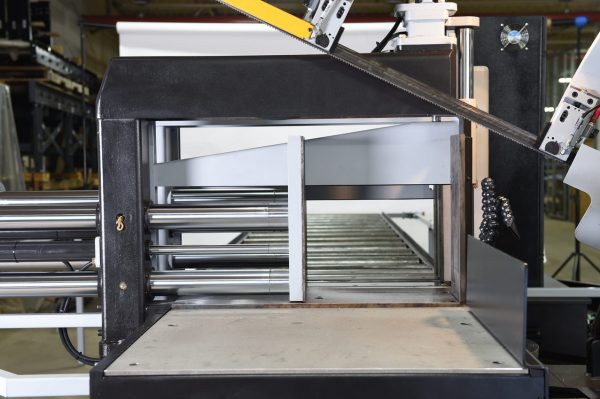

Full capacity hydraulic overhead bundling
10′ bar feed

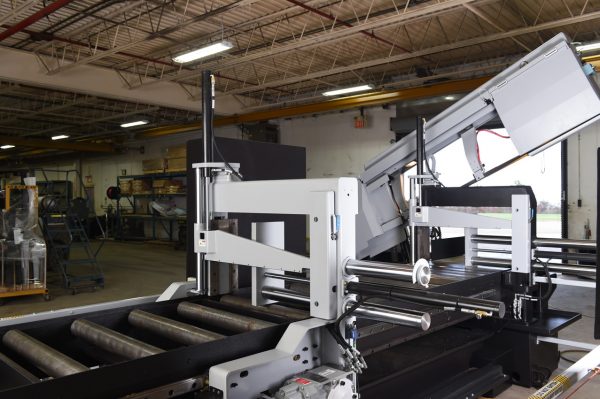

Automatic multi-indexing up to 120″ in a single stroke
Guide arms are mounted on linear rails. Hydraulically powered idler side guide arm is adjustable for proper spacing
10 HP VFD – true direct blade drive – no belts/pulleys
Full capacity, full stroking hydraulic material vises
Hydraulic positive down feed
Blade chamber separates material from cut part
Cast iron band wheels

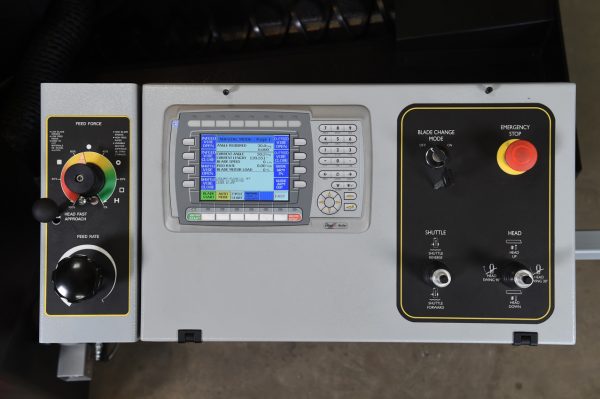

Automatic PLC, touch screen control programmable up to 1,000 jobs with 20 in queue
Replaceable blade brush
Automatic chip removal auger
Easy access electrical panel and hydraulics
Blade breakage switch
Hardened replaceable wear plates on material vises

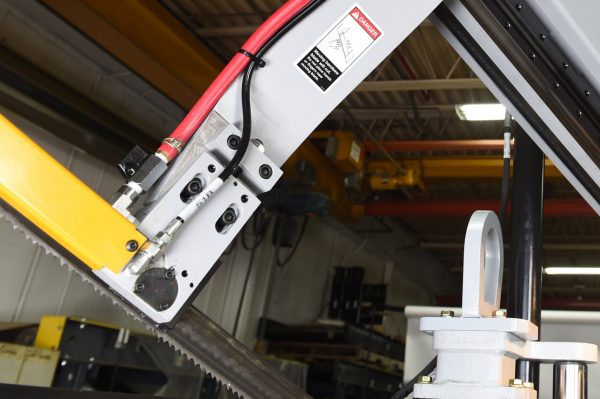

Hydraulic band and carbide blade tensioning
Safety door interlocks
Flood coolant with the wash-down hose
Laser light
Work light
Out of stock switch
Variable vise pressure
Mechanical Specifications:
Dimensions: 210″ x 129″ x 110″ H
Weight: approx. 12,700 lbs.
FOB Factory
Optional Accessories:
Blade Deviation Monitor
Chip Bucket
Remote Console
Mist Lubrication
Outboard Vise
Outboard Vise with Bundling
Vertical Rollers
Idler Conveyors and Accessories
Powered Conveyors and Accessories
Power Transformer
