Hydmech 20″ x 22″ Heavy-Duty Automatic Horizontal Long Bar Feed Band Saw, H-22A-120
Inventory # 10033
Model: H-22A-120
Description:
The H-22A-120 is a heavy-duty, automatic, horizontal long bar feed band saw designed to provide exceptional cutting performance in multi-shift, high production environments
The H-22A-120 is fast, with its high speed shuttle feed indexing up to 120″ in a single movement. Its standard 6° canted head allows for more efficient cutting and improved blade life
Featuring a 20″ x 22″ capacity, 10 HP motor, and 2″ blade, the H-22A-120 is a reliable choice for all your heavy-duty horizontal metal cutting applications
Specifications:
Capacity:
@ 90°:
Rectangular: 20″ x 22″
Round: 20″
Blade Size: 22′ 6″ x 2″
Blade Speed: 40 – 300 SFM
Automatic Multi-Indexing: 0 – 120″
Table Height: 35″
Motor: 10 HP / 480v / 3ph – All Other Voltages Require a Transformer
Standard Features:

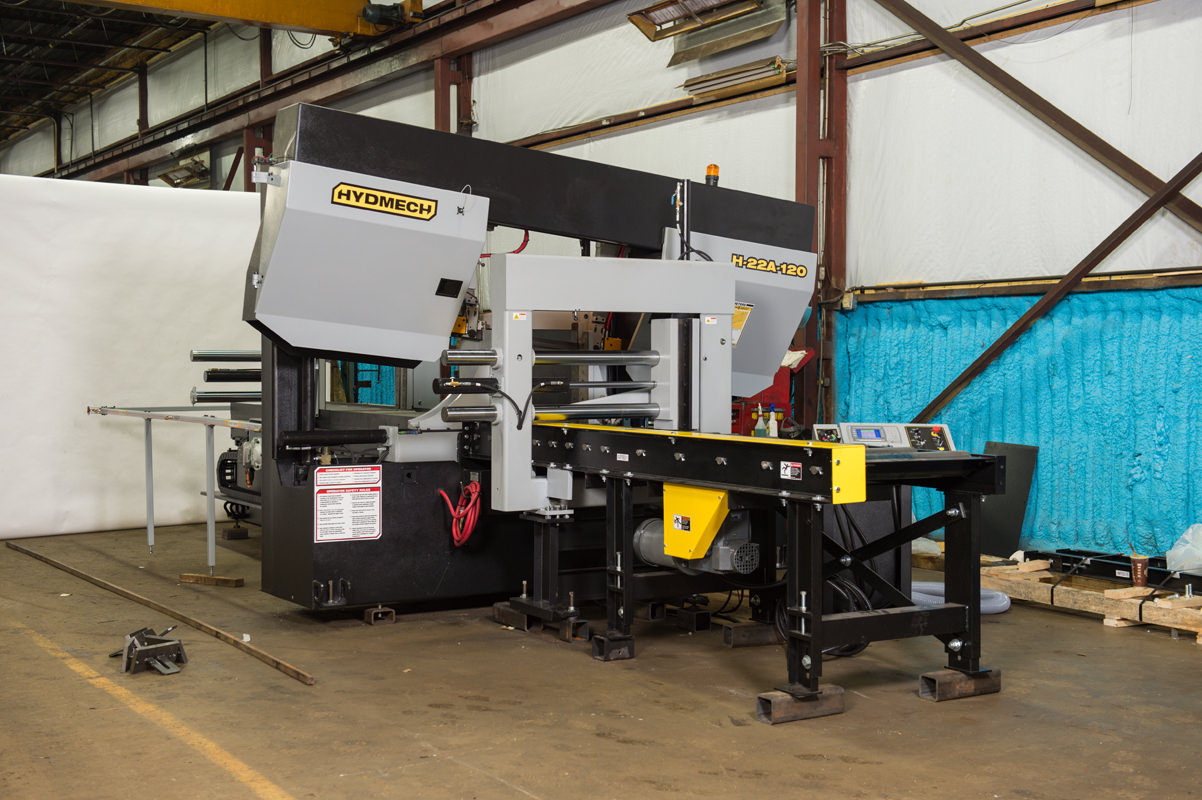

6° canted head
Split front vise
Full capacity hydraulic overhead bundling

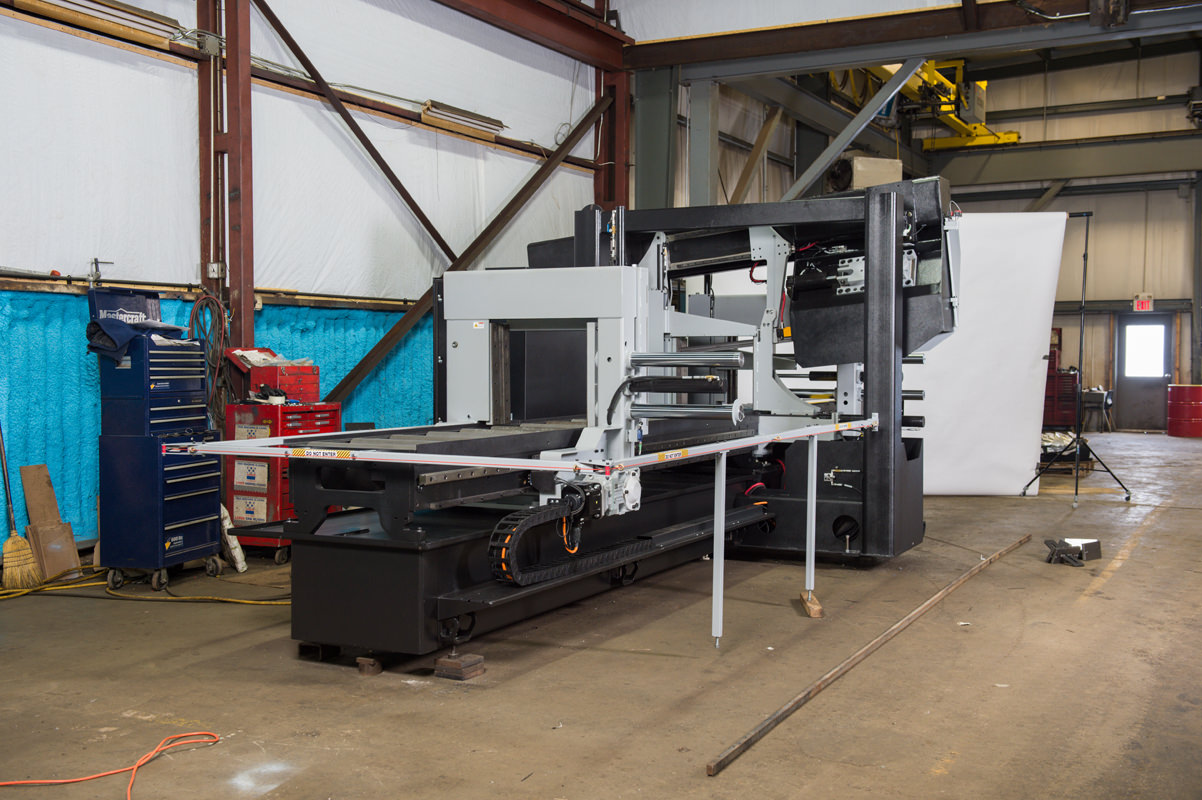

10′ bar feed
Shuttle features automatic multi-indexing up to 120″ in a single stroke with automatic kerf compensation. Powered by a rack and pinion servo drive
Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times
Hydraulic positive down feed
10 HP VFD – true direct blade drive – no belts/pulleys
Full capacity, full stroking hydraulic vise
High resolution feed rate valve allows for constant feed rate when cutting special alloys
Blade chamber separates material from cut part
Cast iron band wheels
Automatic PLC control programmable up to 999 jobs with 10 in queue
Replaceable blade brush
Robust steel base
Automatic chip removal auger
Easy access electrical panel and hydraulics
Blade breakage switch
Hydraulic band tensioning with digital readout
Hydraulic carbide guide tensioning

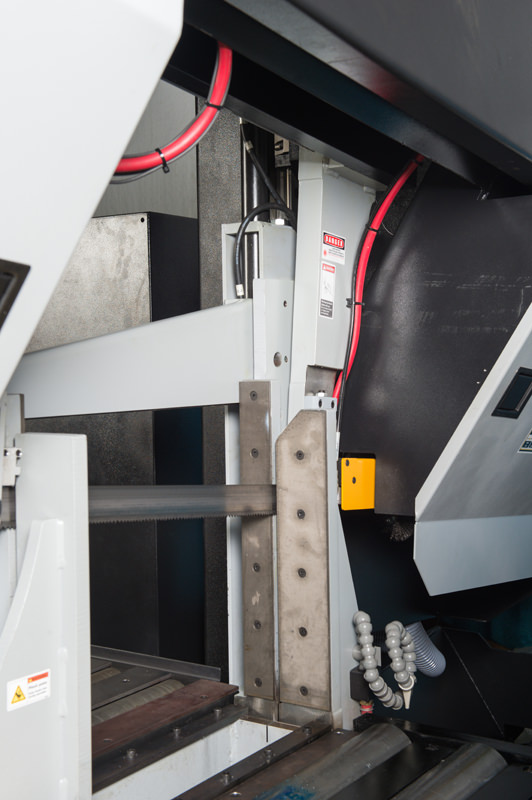

Hardened, replaceable wear plates
Safety door interlocks
Flood coolant with wash down hose
Work light
Laser light
Variable vise pressure
Out of stock switch
Mechanical Specifications:
Dimensions: 192″ x 146″ x 92″ H
Weight: approx. 20,000 lbs.
FOB Factory
Optional Accessories:
Blade Deviation
Vertical Alignment Rollers
Pedestal Control
Mist Lubrication
Outboard Vise
Outboard Vise with Bundling
Roller Discharge Table
Idler Conveyors
Powered Conveyors
Power Transformers
