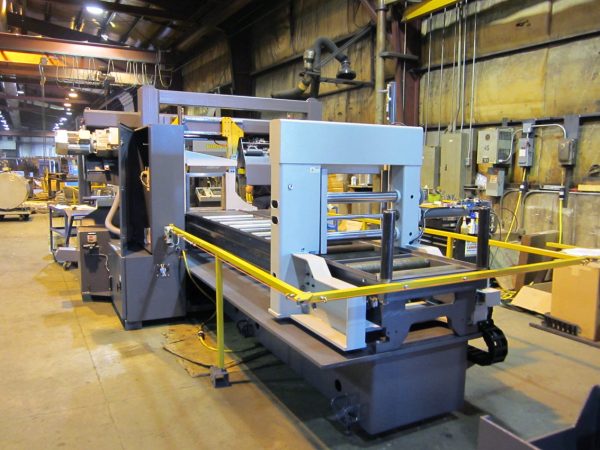

Hydmech 18″ x 18″ Automatic Horizontal Long Bar Feed Band Saw, H-18A-120
Inventory # 10031
Model: H-18A-120
Description:
The H-18A-120 is an automatic horizontal long bar feed band saw providing accurate 90° metal cutting for medium to heavy-duty applications
The H-18A-120 cuts fast, with its high-speed shuttle feed indexing up to 120″ in a single movement. Its standard split front vise delivers a short material remnant length, reducing material waste
Featuring a 120″ bar feed, 18″ x 18″ capacity, 10 HP motor, and a 1 1/2″ blade, the H-18A-120 is a reliable choice for all your horizontal metal cutting applications
Specifications:
Capacity:
@ 90°:
Rectangular: 18″ x 18″
Square: 18″
Round: 18″
Blade Size: 19′ 2″ x 1 1/2″
Blade Speed: 50 – 350 SFM
Automatic Multi-Indexing: 0 – 118″
Table Height: 35″
Coolant Tank Capacity: 30 Gallons
Motor: 10 HP / 480v / 3ph – All Other Voltages Require a Transformer
Standard Features:
Split front vise
120″ bar feed
Full capacity hydraulic overhead bundling
Shuttle features automatic multi-indexing up to 120″ in a single stroke with automatic kerf compensation
Powered by a rack and pinion servo drive
Steel guide arms
The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times
10 HP VFD – true direct blade drive – no belts/pulleys

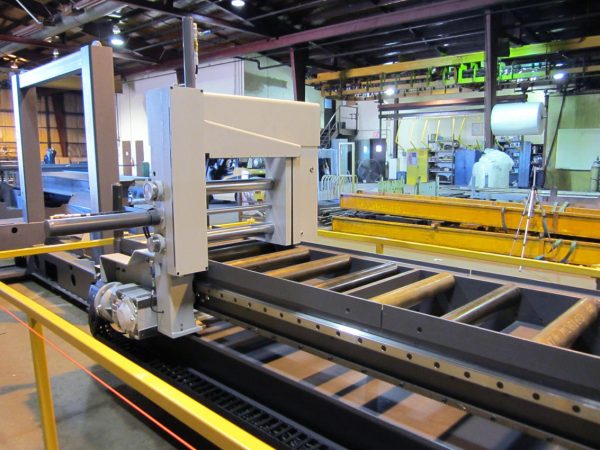

Full capacity, full stroking hydraulic vises
Hydraulic positive down feed
High resolution feed rate valve allows for constant feed rate when cutting special alloys
Blade chamber separates material from cut part
Cast iron band wheels
Automatic PLC control programmable up to 999 jobs with 10 in queue
Replaceable blade brush
Robust steel base
Automatic chip removal auger
Easy access electrical panel and hydraulics
Blade breakage switch
Hydraulic band tensioning with digital readout

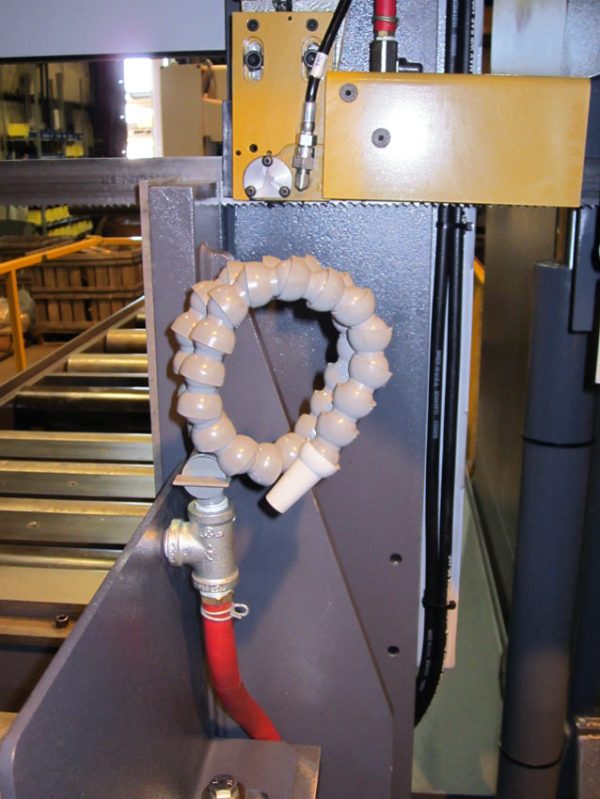

Hydraulic carbide guide tensioning
Hardened, replaceable wear plates
Safety door interlocks
Flood coolant with wash down hose
Work light
Variable vise pressure
Out of stock switch
Mechanical Specifications:
Dimensions: 192″ x 127″ x 92″ H
Weight: approx. 16,050 lbs.
FOB Factory
Optional Accessories:
Blade Deviation Monitor
Mist Lubrication
Vertical Alignment Rollers
Pedestal Control
Roller Discharge Table
Idler Conveyors and Accessories
Powered Conveyors and Accessories
Power Transformers
