Hydmech 18″ x 18″ Automatic Horizontal Band Saw, H-18A
Inventory # 10030
Model: H-18A
Description:
The H-18A is an automatic horizontal band saw providing accurate 90° metal cutting for medium to heavy-duty applications
The H-18A cuts fast, with its high-speed shuttle feed indexing up to 34″ in a single movement. Its standard split front vise delivers a short material remnant length, reducing material waste
Featuring an 18″ x 18″ capacity, 10 HP motor, and 1 1/2″ blade, the H-18A is a reliable choice for all your horizontal metal cutting applications
Specifications:
Capacity:
@ 90°:
Rectangular: 18″ x 18″
Round: 18″
Blade Size: 19′ 2″ x 1 1/2″
Blade Speed: 50 – 350 SFM
Automatic Multi-Indexing: 0 – 34″
Table Height: 31″
Coolant Tank Capacity: 30 Gallons
Motor: 10 HP / 480v / 3ph – All Other Voltages Require a Transformer
Standard Features:
The best cost per cut performance in its class
One piece design – no alignment necessary

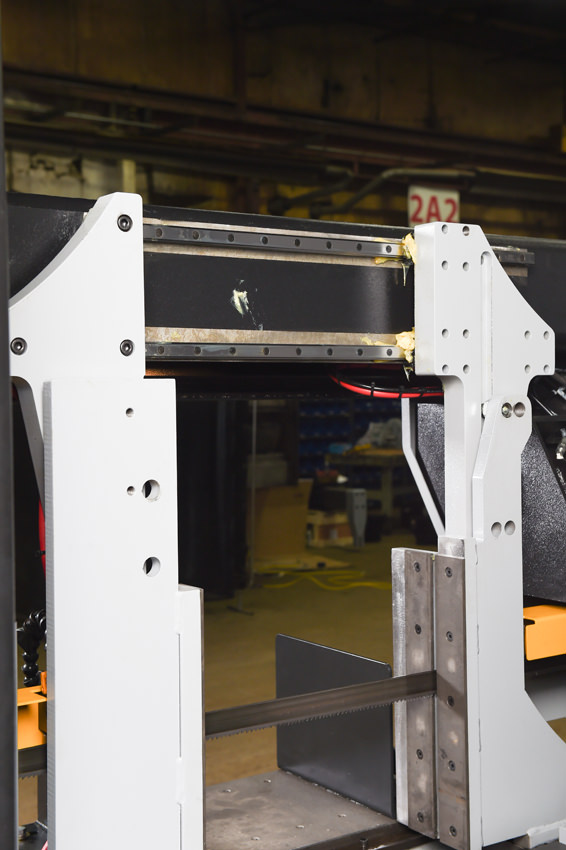

Split front vise
Cast iron shuttle features automatic multi-indexing up to 34″ in a single stroke with automatic kerf compensation
Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times
10 HP VFD – true direct blade drive – no belts/pulleys
Full capacity, full stroking hydraulic vises
Hydraulic positive down feed
High resolution feed rate valve allows for constant feed rate when cutting special alloys
Blade chamber separates material from cut part
Cast iron band wheels

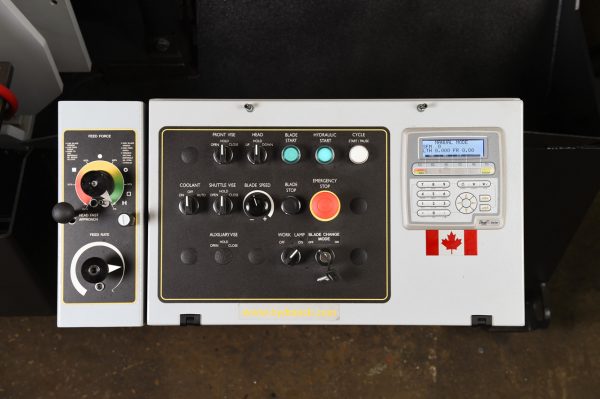

Automatic PLC control programmable up to 99 jobs with 5 in queue
Replaceable blade brush
Robust steel base
Automatic chip removal auger
Easy access electrical panel and hydraulics
Blade breakage switch
Hydraulic band tensioning with digital readout
Hydraulic carbide guide tensioning
Hardened, replaceable wear plates

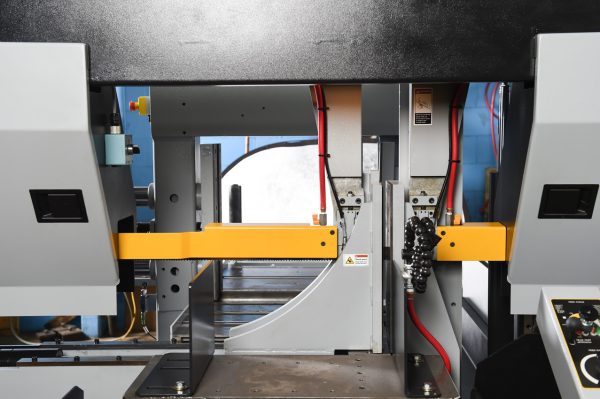

Safety door interlocks
Flood coolant with wash down hose
Work light
Variable vise pressure
Out of stock switch
Mechanical Specifications:
Dimensions: 88″ x 127″ x 92″ H
Weight: approx. 8,500 lbs.
FOB Factory
Optional Accessories:
Full Capacity Hydraulic Overhead Bundling
Blade Deviation Monitor
Mist Lubrication
Out-of-Stock Switch
Vertical Alignment Rollers
Pedestal Control
Laser Light
Roller Discharge Table
Idler Conveyors and Accessories
Powered Conveyors and Accessories
Power Transformers
