Hydmech 16″ x 20″ Horizontal Pivot Band Saw, S-23P
Inventory # 10026
Model: S-23P
Description:
The S-23P is a semi-automatic horizontal pivot band saw providing exceptional miter cutting capability for light to medium duty applications

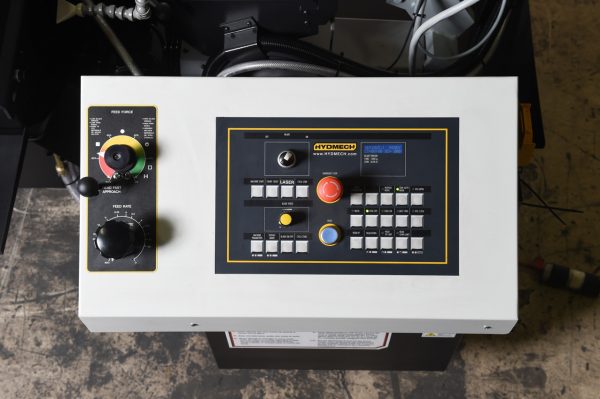

Featuring a semi-automatic mode control with an LED readout for blade speed, blade tension, parts counter, head height adjustment, laser light, amperage draw of blade motor, cut duration, head position, and overall machine run time. All offered in several language choices
An attractive option offered on this machine is the direct down-feed option, which provides easy adjustment of both head feed rate and cutting pressure
The S-23P miters from 90° to 60°. Featuring a 16″ H x 20″ W capacity at 90°, an 8.8 HP motor, and a 1 1/4″ blade, the S-23P semi-automatic horizontal pivot band saw is built solidly to give you maximum productivity
Specifications:
Capacity:
@ 90°:
Rectangular: 16″ x 20″
Round: 16″
@ 45°:
Rectangular: 16″ x 14″
Round: 14″
@ 30°:
Rectangular: 16″ x 9 1/2″
Round: 9 1/2″
Blade Size: 16′ 10″ x 1 1/4″
Blade Speed: 75 – 350 SFM
Work Load: 5,000 lbs.
Table Height: 33″
Coolant Tank Capacity: 9 Gallons
Motor: 8.8 HP / 480v / 3ph – All Other Voltages Require a Transformer
Standard Features:
Semi-automatic operator PLC control

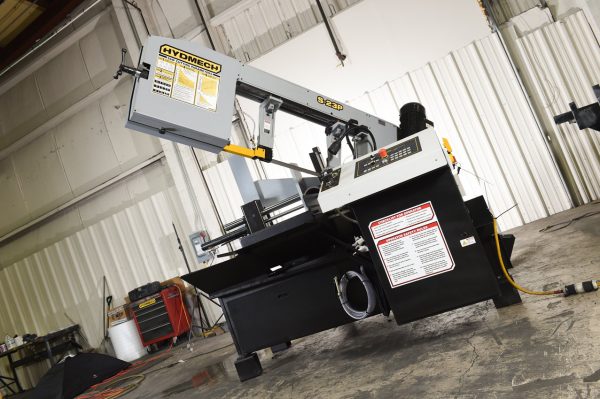

Easy swing, heavy-duty, cast-iron saw head that can swing up to 60° in one direction
Full capacity, full stroking hydraulic material vise

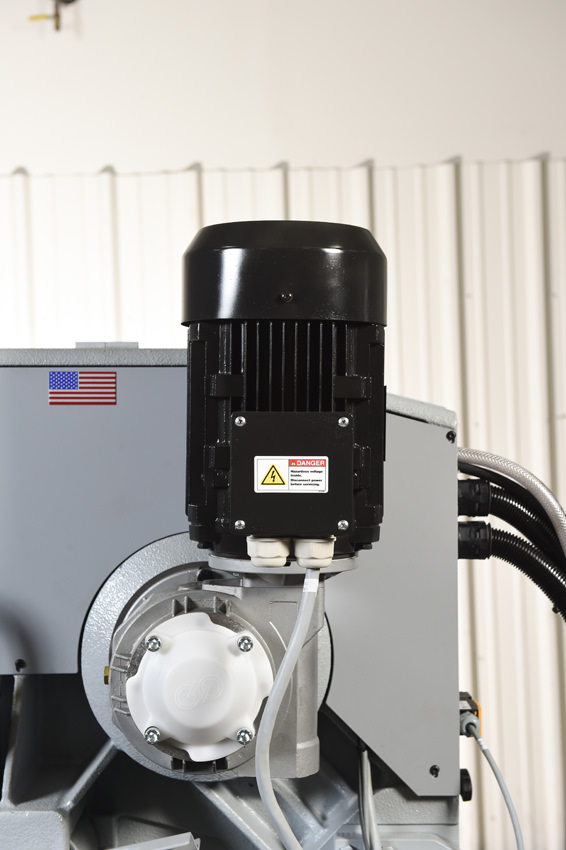

8.8 HP VFD true direct blade drive – no belts/pulleys
Infinitely variable blade speed and LED readout on the control panel
On-demand hydraulics save energy
19 1/4″ outfeed table and 43″ infeed table
Blade breakage switch
Cast iron band wheels
Replaceable blade brush
Robust steel base
Easy-to-read angle scale with angle locking mechanism
Cast iron blade guide arms. Idler side guide arm is adjustable and supported by linear rail
Easy access electrical panel
Hydraulic positive down feed sawing head with infinite down feed adjustments
Mechanical band tensioning with digital read out
Pre-set, replaceable carbide guide inserts
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light
Variable vise pressure
Mechanical Specifications:
Dimensions: 80″ x 101″ x 61″ H
Weight: approx. 2,900 lbs.
FOB Factory
Optional Accessories:
Full capacity hydraulic overhead bundling moves down on the material from above. Timed with the opening and closing of the side vise, it is very effective for bundle cutting various material shapes & sizes
Mist Lubrication (Shop Air Required)
Work Stop – 34″
Remote Console (10′ Cord)
Idler Conveyors and Accessories
Power Transformer
