Hydmech 16″ x 20″ Automatic Scissor-Style Horizontal Pivot Band Saw, S-23A
Inventory # 10027
Model: S-23A
Description:
The S-23A is an automatic scissor-style band saw providing exceptional miter cutting capability for medium-duty applications
Featuring an automatic mode control with an LED readout for blade tension, blade speed, blade height position, run time of the cut, blade drive motor amperage draw, part length, quantity required, piece count, job run time, and total blade run time. All offered in several language choices
The S-23A miters from 90° to 60°. Featuring a 16″ H x 20″ W capacity at 90°, 8.8 HP motor, and a 1 1/4″ blade, the S-23A automatic scissor-style band saw is built solidly to give you maximum productivity
Specifications:
Capacity:
@ 90°:
Rectangular: 16″ x 20″
Round: 16″
@ 45°:
Rectangular: 16″ x 14″
Round: 14″
@ 30°:
Rectangular: 16″ x 8 1/2″
Round: 8 1/2″
Blade Size: 16′ 10″ x 1 1/4″
Blade Speed: 75 – 350 SFM
Work Load: 5,000 lbs.
Table Height: 33″
Coolant Tank Capacity: 12 Gallons
Motor: 8.8 HP / 480v / 3ph – All Other Voltages Require a Transformer
Standard Features:
Easy swing, heavy-duty, cast iron saw head that can swing up to 60° one direction
Cast iron shuttle features automatic multi-indexing up to 28 1/2″ in a single stroke. Powered by ball screw and stepper motor

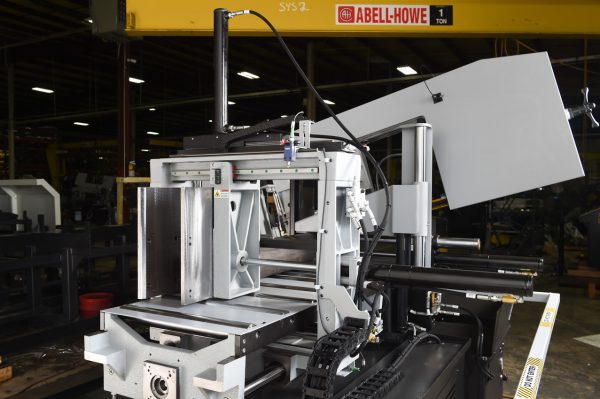

19 1/4″ outfeed table and 45 1/4″ infeed table
8.8 HP VFD – true direct blade drive – no belts/pulleys

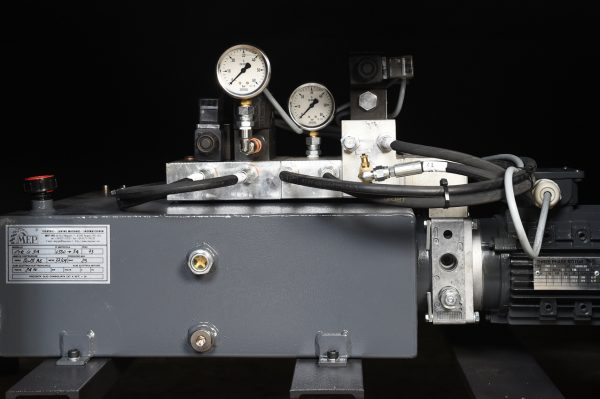

On-demand hydraulics save energy

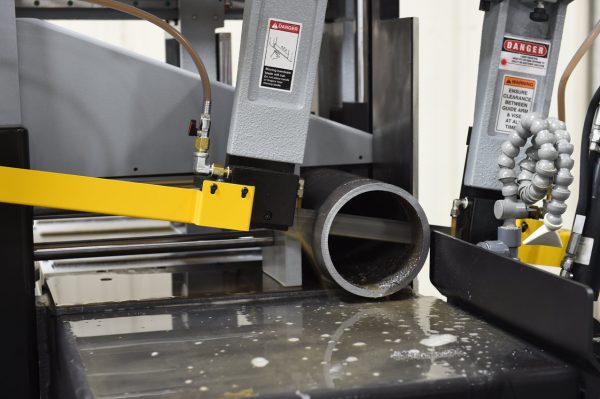

Full capacity, full stroking hydraulic vises
Blade chamber pulls back material from cut part to extend blade life
Cast iron band wheels
Automatic PLC, touch screen control programmable up to 100 jobs with 20 in queue
Replaceable blade brush
Robust steel base
Easy-to-read angle scale with locking mechanism
Cast iron blade guide arms mounted on linear rail is adjustable for proper spacing
Easy access electrical panel
Out of stock switch
Mechanical blade tensioning with digital read out
Hydraulic positive down feed has the capability of controlling both feed rate and feed force parameters to achieve optimum cutting results and blade life
Pre-set, replaceable carbide guide inserts
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light
Variable vise pressure
Mechanical Specifications:
Dimensions: 95″ x 101″ x 61″ H
Weight: approx. 4,200 lbs.
FOB Factory
Optional Accessories:
Full Capacity Hydraulic Overhead Bundling
Remote Console (10′ Cord)
Mist Lubrication (Shop Air Required)
Idler Conveyors
Powered Conveyors
Power Transformer
