Hydmech 14″ Fully Enclosed Horizontal Band Saw, H-14A
Inventory # 10029
Model: H-14A
Description:
Designed for high production cutting with a carbide tipped blade, the H-14A is unlike anything on the market
With an enclosed design for superior safety, this machine uses 66% less energy than competing models due to on-demand hydraulics which only operates when need. Its 25 mm remnant length option reduce material waste saving you money
Featuring a powerful 8.8 HP variable frequency drive motor, the H-14A has a heavy-duty shuttle vise powered by a ball screw and vector motor. This provides material indexing up to 24″ in a single stroke with multi-indexing capability
Specifications:
Capacity:
@90°:
Rectangular: 14″ x 14″
Round: 14″
Blade Size: 15′ 2″ x 1 1/4″
Blade Speed: 49 – 380 SFM
Automatic Multi-Indexing: 0 – 24″
Remnant Length: 4.7″, 11″ with Overhead Bundling
Table Height: 34″
Motor: 8.8 HP / 480v / 3ph – All Other Voltages Require a Transformer
Standard Features:
Heavy-duty cast iron saw head

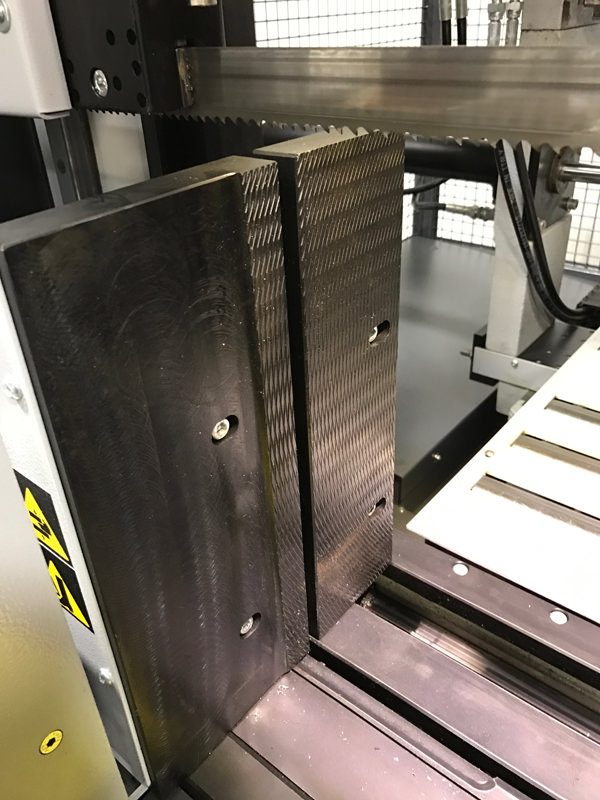

Split front vise allows for short 4.7″ remnant length
Cast iron shuttle features automatic multi-indexing up to 19″ in a single stroke with automatic kerf compensation. Powered by ball screw and stepper motor
On-demand hydraulics save energy
Steel guide arms mounted on linear rails. Hydraulically powered idler side guide arm is adjustable for proper spacing
8.8 HP VFD – true direct blade drive – no belts/pulleys
Full capacity, full stroking hydraulic vises
Hydraulic positive down feed

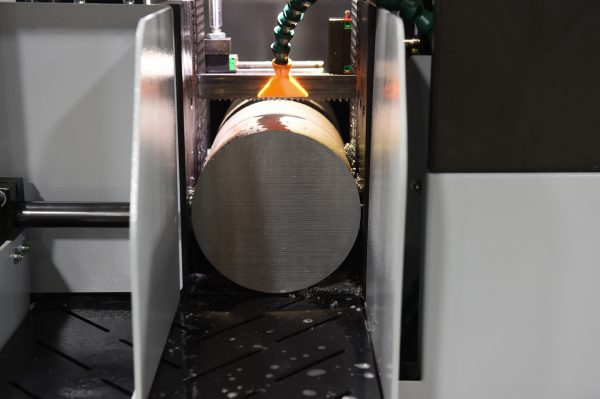

Blade chamber separates material from cut part
Cast iron band wheels
Automatic PLC, touch screen control programmable up to 100 jobs with 20 in queue
Replaceable blade brush
Robust steel base
Automatic chip removal conveyor
Easy access electrical panel and hydraulics
Blade breakage switch
Blade deviation motor
Variable vise pressure
Out of stock switch
Designed for safety with saw-in-the-box style

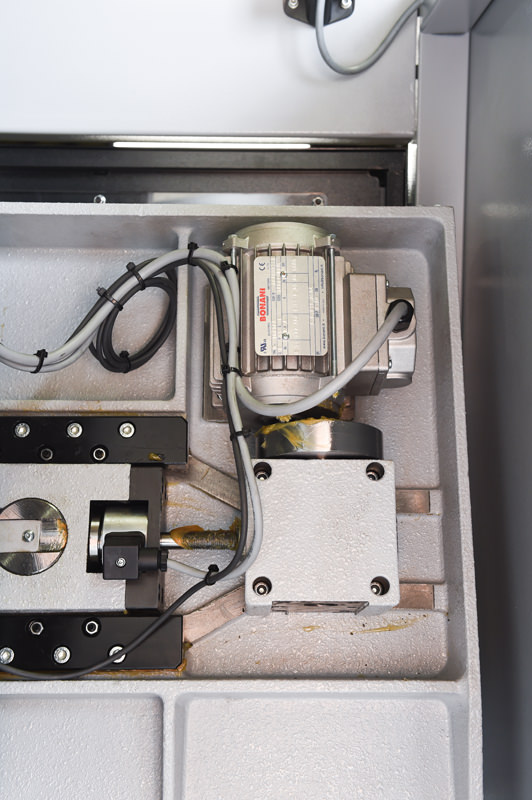

Electronic band tensioning with digital readout
Replaceable carbide guide inserts
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light
Mechanical Specifications:
Dimensions: 63″ x 88″ x 78″ H
Weight: approx. 6,175 lbs.
FOB Factory
Optional Accessories:
Full Capacity Hydraulic Overhead Bundling
Mist Lubrication
Vertical Rollers
High Blade Speed
Short Remnant of 0.98″
Power Transformers
Idler Conveyors and Accessories
Power Conveyors and Accessories
Power Transformers
