Hydmech 13″ x 18″ Semi-Automatic Horizontal Pivot Mitering Band Saw, S-20PNG
Inventory # 10074
Model: S-20PNG
Description:
Precision. Versatility. Value. The Hydmech’s S-20PNG is a semi-automatic, mitering band saw engineered for production shops that demand faster cycle times and consistent, hands-free operation. The hydraulic vise clamp material automatically, the powered head lift reduces operator fatigue, and variable vise pressure safely handles everything from solid bar stock to thin-well tubing

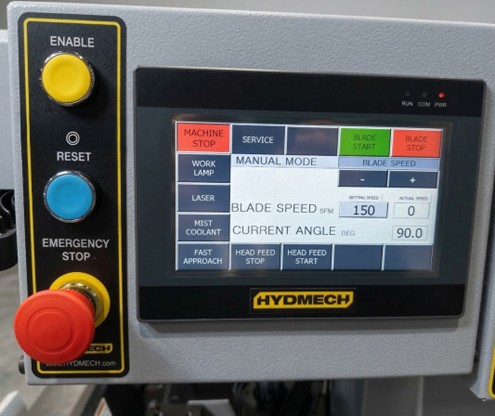

The S-20PNG features Hydmech’s exclusive 7″ HMI touchscreen with digital angle display and a standard mist lubrication system offering unique advantages found on no competitor’s saw in this class
Performance Highlights:
Hydraulic Powered Vise with Variable Pressure for Hands-Free Automatic Clamping and Safe Handling of All Material Types
Industry-Exclusive 7″ Touch-Screen with Digital Angle Display
Compact Footprint at Only 91″ W x 33″ L Taking Up Less Floor Space
Mist Lubrication System Uses up to 99% Less Lubrication than Flood Systems Resulting in a Cleaner Shop, Lower Cost, and Greener Operation
VFD Variable Blade Speed for Cutting Steel, Aluminum, Stainless, and More
Specifications:
Capacity:
@ 90°:
Rectangular: 13″ x 18″
Round: 13″
@ 45°:
Rectangular: 13″ x 10.9″
Round: 12″
@ 30°:
Rectangular: 13″ x 7.3″
Round: 8″
Blade Size: 14′ 10″ x 1″
Blade Speed: 45 – 375 SFM VFD
Blade Wheel Diameter: 17 3/4″
Vises: Hydraulic Full Stroke
Variable Vise Pressure: 50 – 400 PSI
Head Lift: Hydraulic Powered
Hydraulic Motor: 0.5 HP
Hydraulic Systems Pressure: 400 PSI
Hydraulic Tank Capacity: 0.66 US Gallons
Feed System: Variable Rate – Gravity Driven
Guide Arm: Manual Positioned
Table Height: 33″
Motor: 3 HP / 480v / 3ph – All other voltages require a transformer
Standard Features:
Easy swing, heavy-duty cast iron saw head (swings 90° – 30°)
Hydraulic-powered head lift
Hydraulic full-stroke vise
Variable vise pressure, 50 – 400 PSI
3 HP true direct blade drive – no belts or pulleys
VFD variable blade speed, 45 – 375 SFM
Gravity-fed variable rate down-feed
Carbide blade guide inserts
Manually positioned guide arm
Manual blade tensioning
Cast iron band wheels
Mist lubrication system (solenoid activation, 64 oz. reservoir with low level detection – shop air required 60 – 100 PSI)
7″ HMI touchscreen with digital angle display
Laser light
Work light
Replaceable blade brush
Robust steel base
Safety door interlocks
Blade breakage switch
Built-in material in-feed rollers and out-feed table
Mechanical Specifications:
Dimensions: 91″ x 33″ x 61″ H
Weight: approx. 1,830 lbs.
FOB Factory – Contact us for special pricing and availability
Optional Accessories:
Full Capacity Overhead Bundling
Material Work Stop
Power Transformers (208v, 240v, 575v)
Idler Conveyors
