Hydmech 10″ Double Miter Band Saw, DM-10P
Inventory # 10025
Model: DM-10P
Description:
Efficient, Compact, and Built for Precision – The DM-10P double miter band saw combines exceptional cutting performance with the added convenience of semi-automatic functionality–automatically raising the saw head after each cut to reduce operator fatigue and boost productivity

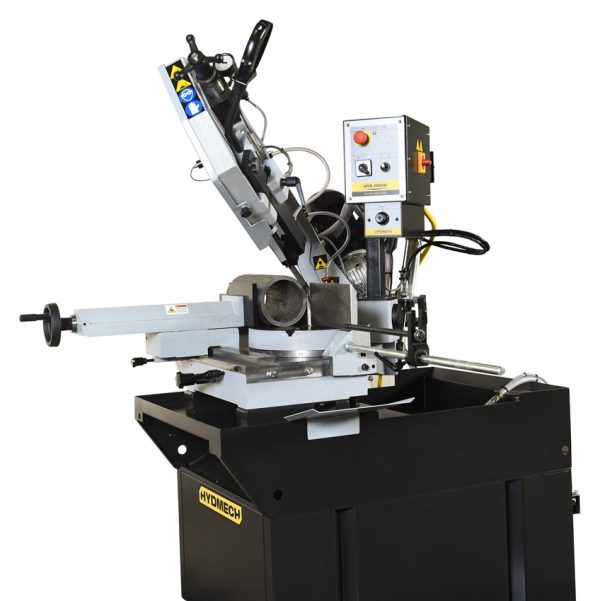

Its cast iron head and vises deliver superior rigidity to minimize vibration and enhance cutting accuracy. A rotating table with a single cut line ensures the head and blade groove move in unison for smooth, precise mitering
Compact and user-friendly, the DM-10P is ideal for tight workspaces, with intuitive operator controls and easily accessible electrical components–all designed to keep your workflow moving
Specifications:
Capacity:
@ 90°:
Rectangular: 9 1/2″ x 11″
Round: 10″
@ 45° Left:
Rectangular: 6 1/4″ x 4 1/2″
Round: 5 3/4″
@ 45° Right:
Rectangular: 8 1/4″ x 7″
Round: 7 1/4″
@ 30° Right:
Rectangular: 5″ x 4 1/2″
Round: 4″
Blade Size: 9′ 8″ x 1″
Blade Speed: (2) 118 – 236 SFM
Table Height: 34″
Coolant Tank Capacity: 3.5 Gallons
Motor: 2/2.4 HP / 480v / 3ph – All Other Voltages Require a Transformer
Standard Features:
Semi-automatic, double miter, electro-hydraulic, easy swing, cast saw head
Quick-release cast-iron material vise with dovetail ways
Rotating table with a cut slot that moves in tandem with the sawing head
Band tension indicator
Saw head movement via control handle with safety spring-loaded trigger switch
Remote foot pedal starts semi-automatic cutting cycle

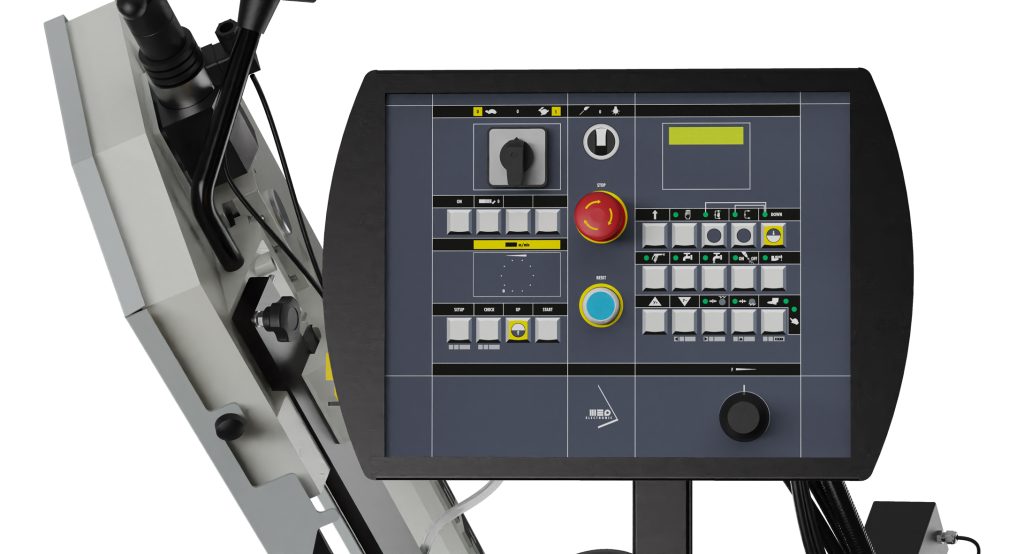

Operator control box with head feed mode selector (manual, powered, semi-automatic)
Push-button controls for head positioning and blade start/stop
Blade speed selection switch
Coolant on/off switch with wash hose
Emergency stop button

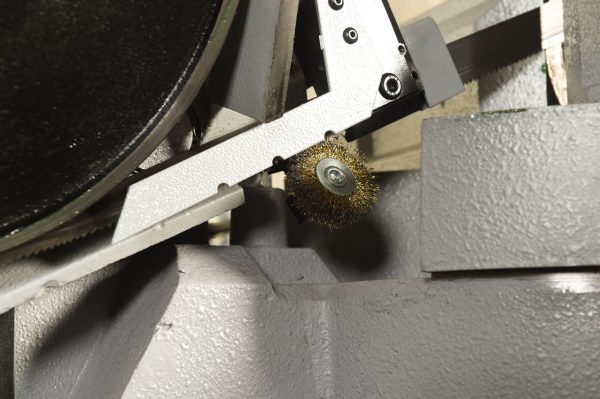

Replaceable blade brush
Small footprint
Robust steel base
Easy-to-read angle scale
Adjustable guide arm
Pre-set, replaceable carbide guide inserts
True direct-drive – no belts or pulleys
Mechanical blade tensioning
Safety door interlocks
Flood coolant system
Adjustable work stop
Mechanical Specifications:
Dimensions: 68″ x 39″ x 73″ H
Weight: approx. 970 lbs.
FOB Factory
Optional Accessories:
Mist Lubrication System (Shop Air Required)
Pneumatic Material Vise with Foot Pedal
Single Phase Conversion (Limits User to High Blade Speed Only)
5′ Infeed/Outfeed Roller Table, K110
59″ R2 Work Stop for K110 Roller Table
Adapter Plate for K110 Roller Table (Required for Outfeed Side Mounting)
Power Transformer for 208v, 240v, or 575v Operation
