Haco Atlantic 10′ x 1/4″ Hydraulic Guillotine Shear, GSX 3006
Inventory # 9995
Model: GSX 3006
Description:
The hydraulic guillotine shear of the GSX range are driven by top-mounted cylinders. Haco’s long experience in the production of hydraulic guillotine shears guarantees a product of exceptional design and great efficiency. The fully open rear side provides the operator the possibility of easy removal or adapting different conveying systems to the machine. The all-welded interlocked construction makes the machine virtually indestructible. The GSX shears are well equipped and have as standard the SC200 controller
Specifications:
Capacity: 1/4″ Mild Steel
Cutting Length: 120″ (10′)
Cutting Angle: 0.5 – 2.5°
Number of Plate Clamps: 18
Number of Strokes at Min. Angle to Max. Angle:
with Sheet Support Off: 20-10
with Sheet Support On: 5-5
Stroke of Back Gauge MOT Version: 39.4″
Stroke of Back Gauge SAB Version: 37.2″
Working Height: 30.3″
Motor: 14.75 HP (11 kW)
Standard Features:
Two upper-driven push-down cylinders
All operator controls are conveniently located at the left-hand side of the machine in the immediate reach of the operator
Squaring arm of 1000mm (39.37″) with scale, T-slot and tilling stop, attached to the left hand side of the machine
Moveable foot pedal control
Instructions and maintenance manual
Non-filled oil tank (because of environmental regulations)
Service tools
Iron square plate support blocks with ball transfers

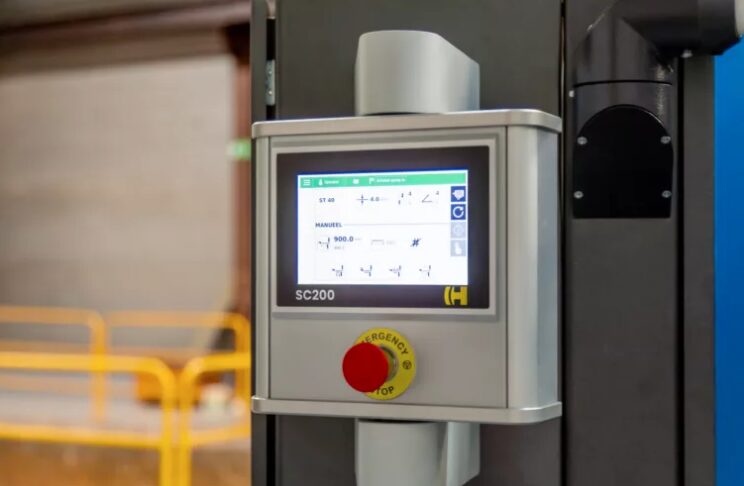

SC200 Control:
Simplified icon-based programming with clear display architecture
Personalized access codes with different access rights
Pre-equipped for remote support
Ethercat bus communication
Integrated safety
Based on new, reliable German hardware
Programming Modes:
Automatic – By entering the sheet thickness, the control automatically sets the blade gap and the cutting angle as a function of the sheet thickness. All parameters can be manually modified according to the actual data
Manual – All cutting parameters, such as material type, sheet thickness, cutting angle, and blade gap, can be programmed manually
Optional Features of SC200 Control:
Integrated optical finger protection control
Integrated oil temperature control
Integrated control of the evacuation belt and the scrap container
Integrated swing-away control
Mechanical Specifications:
Dimensions: 171″ x 100″ x 75″ without CE Safety Fences
Dimensions: 171″ x 154″ x 75″ H with CE Safety Fences
Weight: approx. 14,330 lbs.
FOB Factory – Contact us for Pricing and Availability
