Description

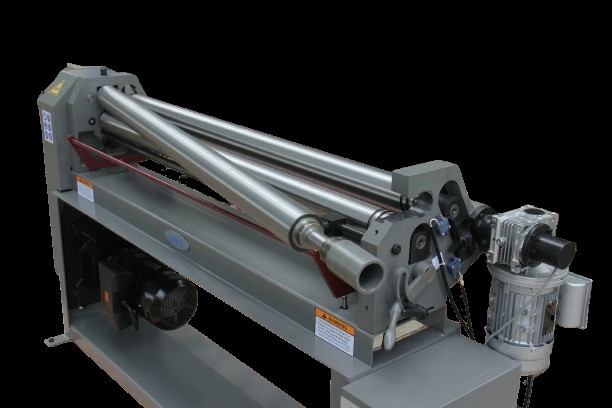

GMC 50″ x 14 Gauge Powered Slip Roll, PSR-5014E
Inventory # 10012
Model: PSR-5014E
Specifications:
Capacity:
Mild Steel: 50″ x 14 Gauge
Stainless Steel: 50″ x 20 Gauge
Soft Aluminum: 50″ x 10 Gauge
Min. Thickness: 26 Gauge
Rolls Size, Length x Diameter: 50″ x 3″
Min. Roll Bending Diameter: 3 1/2″
Rolls Speed: 201″ /Min.
Rolls Opening: 1/4″
(3) Grooves Sizes: 5/16″, 3/8″, 1/2″
Up/Down Motor: 1/2 HP / 220v / 1ph
Main Motor: 2 HP / 220v / 1ph
Standard Features:

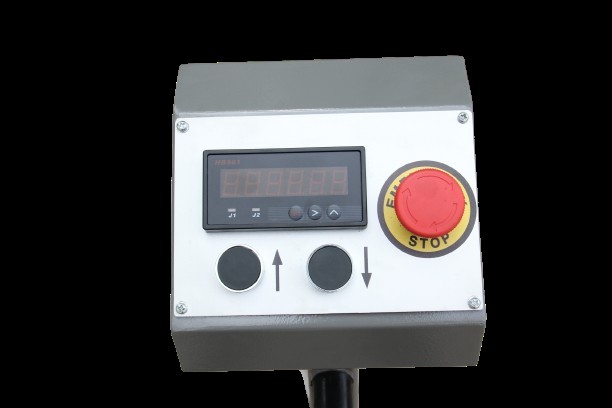

Bending roll is powered up/down with push button and LED display for repeat jobs and can make cone parts
One handle to control pinch roll up/down, more convenient and efficient
Heavy-welded all-steel construction for maximum rigidity
Silence electrical motor
Quick release top roller
Two rolls are driven
Precision ground rollers
1/4″ roll opening
All three rolls are made of high grade alloy steel, hardened up to 50 HRC
All rolls run forward and reverse
Overload protection and disconnect switch
Not intended for rolling rods in high production
One year parts warranty
Standard Equipment:
Cone Attachment
Electrical Cabinet
Removable Safety Foot Pedal
Mechanical Specifications:
Dimensions: 68″ x 32″ x 49″ H
Weight: approx. 985 lbs.
FOB Factory – Contact us for special pricing and availability
