Description

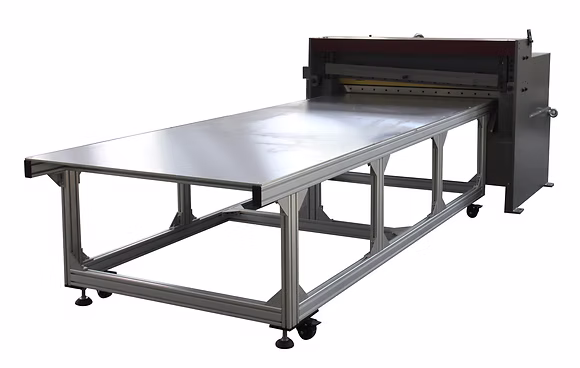

GMC 48″ x 16 Gauge Gang Type Metal Powered Slitter with Programmable Cut to Length, PS-4816GT
Inventory # 10149
Model: PS-4816GT
Specifications:
Slitting and Shearing Capacity:
Mild Steel: 48″ x 16 Gauge
Stainless Steel: 48″ x 20 Gauge
Soft Aluminum: 48″ x 12 Gauge
Min. Thickness: 30 Gauge
Max. Slitting Length: 20′, NC Programmable
Min. Slitting Width: 3″
Shearing Blade Length: 50″
Shearing Blade Rake Angle: 2°
Infeed/Outfeed Table Height: 32″
Slitting Blades: 6 Pairs
Slitting Feed Speed: 57 FPM
Shearing Stroke: 35
Slitting Capacity (Mild Steel) – Number of Cuts/Strips:
16 Gauge: 1 Cut / 2 Strips
18 Gauge: 2 Cuts / 3 Strips
20 Gauge: 3 Cuts / 4 Strips
22 – 24 Gauge: 4 Cuts / 5 Strips
26 – 30 Gauge: 6 Cuts / 7 Strips
Slitting and Shearing Motors: 3 HP / 220v / 1ph
Standard Features:
ISO 9001 Certified
Slit and Cut to Length in One Unit
NC Programmable Cutting Length, 100 Job Memory
Single Cycle Mode – Manual Shearing with Foot Pedal when Programmed Length is Reached for Each Cut
Auto Cycle Mode – Shearing will Auto-Cycle the Programmed Cut Lengths
Easy Removal of Slitting Blades for Cut to Length Operations without Slitting
Feed the Sheet Metal from the Manual Decoiler to Cut to Length without Slitting Blades
5″ Omron Touchscreen
3 1/8″ Diameter Shafts Mounted in Precision Ball-Sealed Bearings
Slitting Blades are Dual Edged
Safety Type Foot Pedal Control
One Year Warranty for Parts
Equipment Included:
6 Sets of Slitting Blades
Full Length Finger Guard
Removable Safety Foot Pedal Control
One Set of Upper and Lower Shearing Blades
Mechanical Specifications:
Shipping Dimensions: 68″ x 63″ x 48″ H
Shipping Weight: approx. 2,950 lbs.
FOB Factory
Optional Equipment:

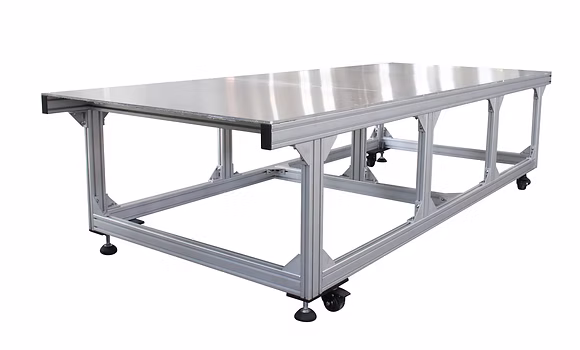

10′ Outfeed/Infeed Table, 121″ x 49″ x 32″ H

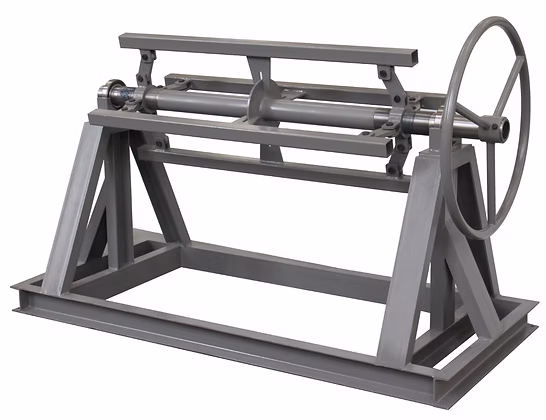

Decoiler, 48″ x 20″ Coil ID, 2 Tons = 4,500 lbs. Max. Coil Weight
Extra Set of Slitter Blades
Extra Set of Shear Blades
