Description

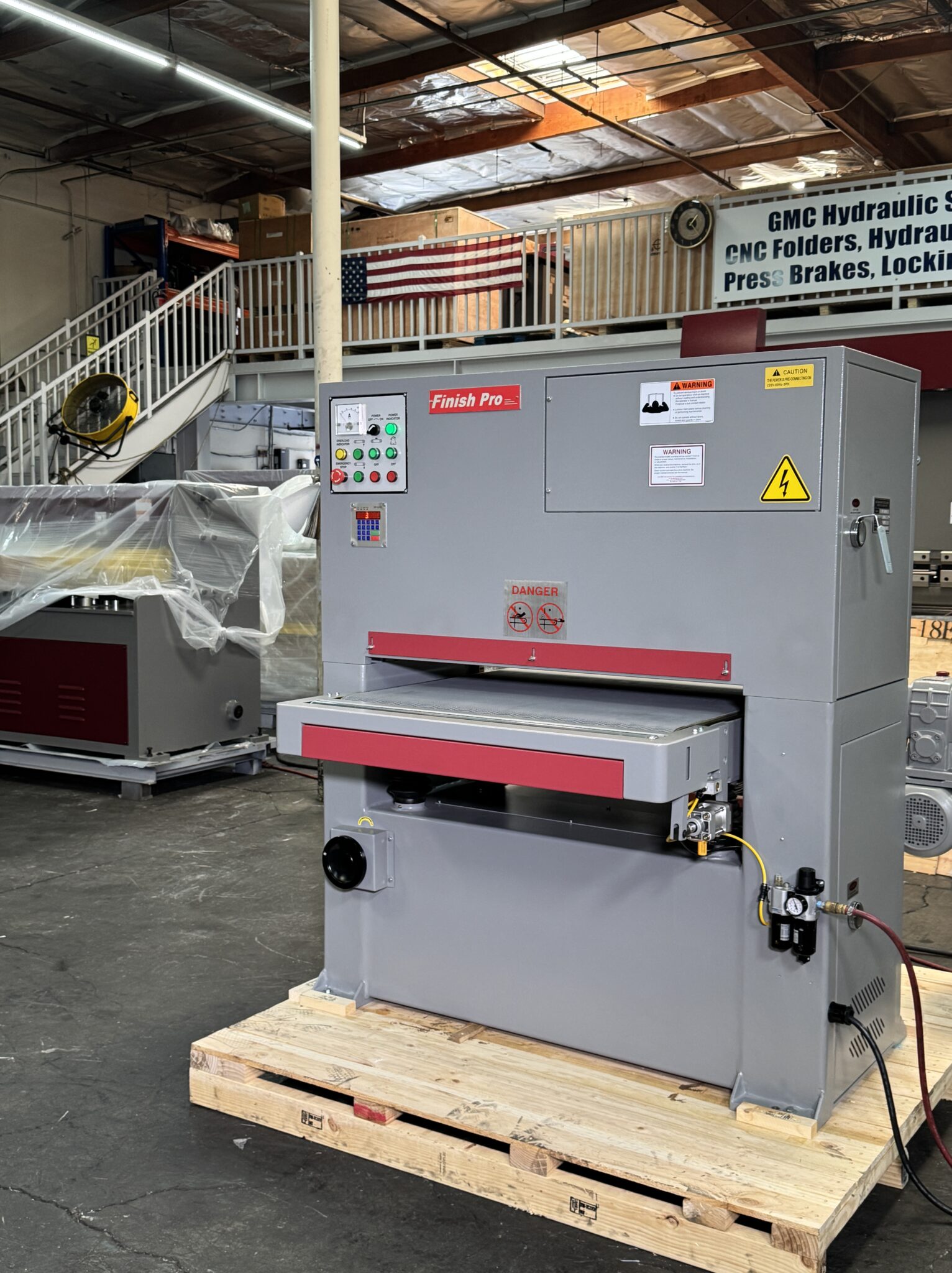

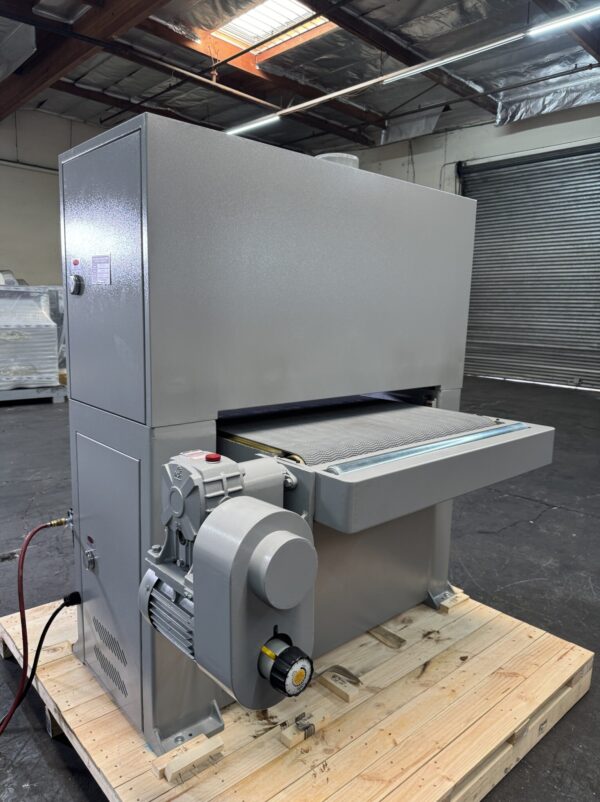

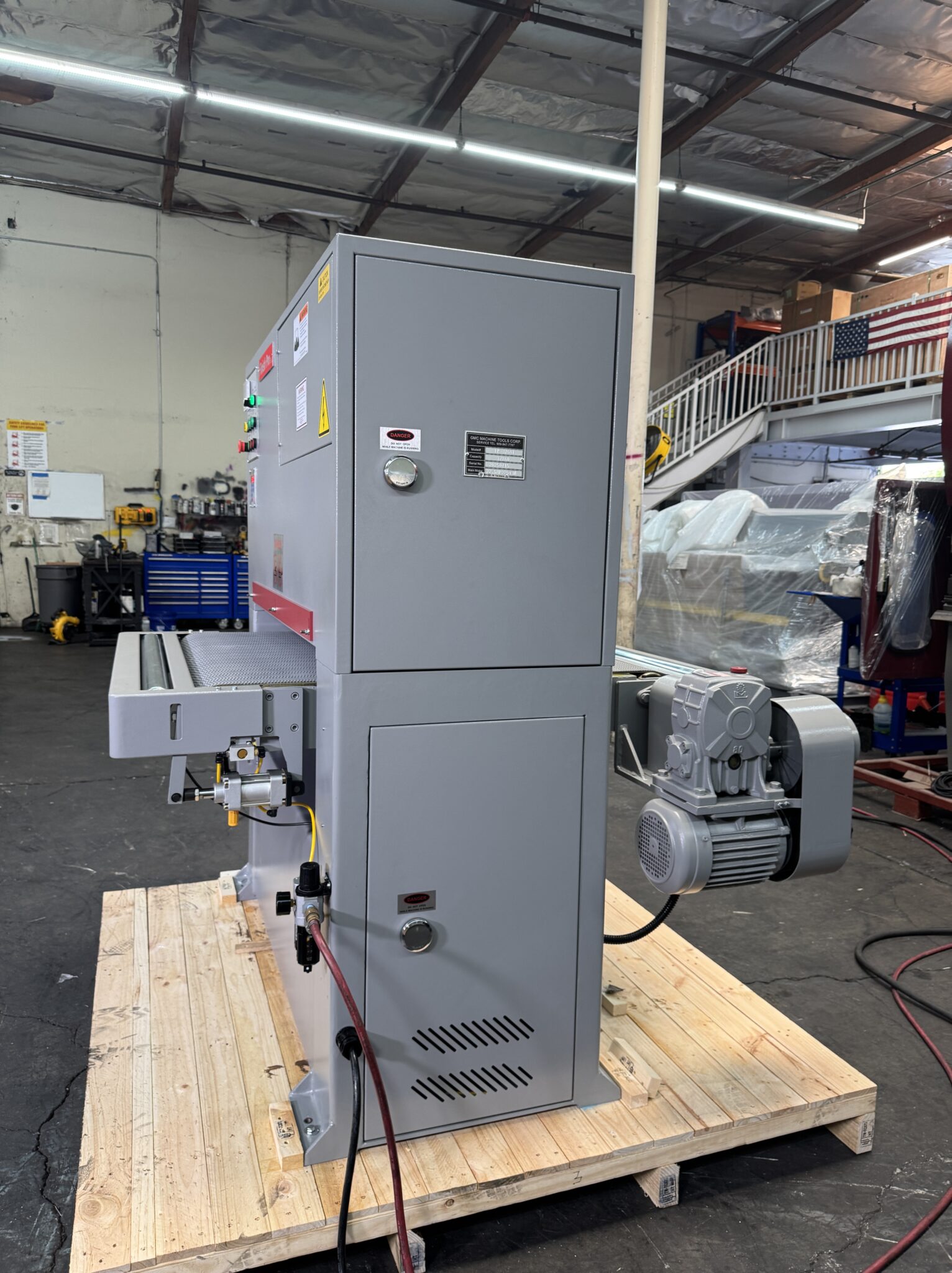

GMC 37″ x 60″ Finish Pro Wide Belt Sander, FP-3760T
Inventory # 9915
Model: FP-3760T
Specifications:
Max. Part Width: 37″
Abrasive Belt Size: 37″ x 60″

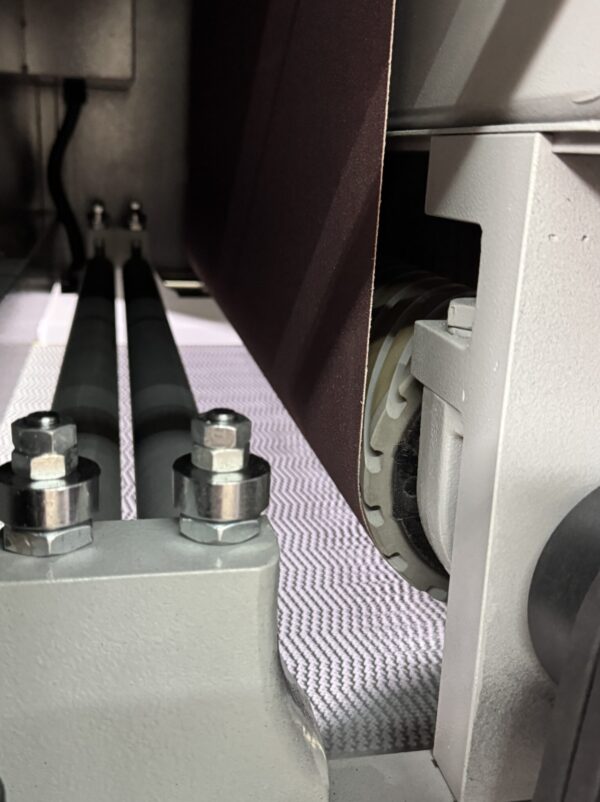

Contact Roller Size: 8″ Ø
Passline Height: 31″ – 37″
Thickness Capacity: 5 1/8″ Max.
Workpiece Length: Min. 12″ (Fixture Needed for Smaller Parts)
Workpiece Weight: Max. 275 lbs.
Conveyor Drive Speeds: 16 – 66 FPM
Infeed Conveyor Length: 20″
Dust Collector Capacity: 1,800 CFM
Outlet of Dust Hood: 6″
Compressed Air Required: 2 CFM @ 90 PSI
Table Lifting Motor: 1/4 HP / 230v / 3ph

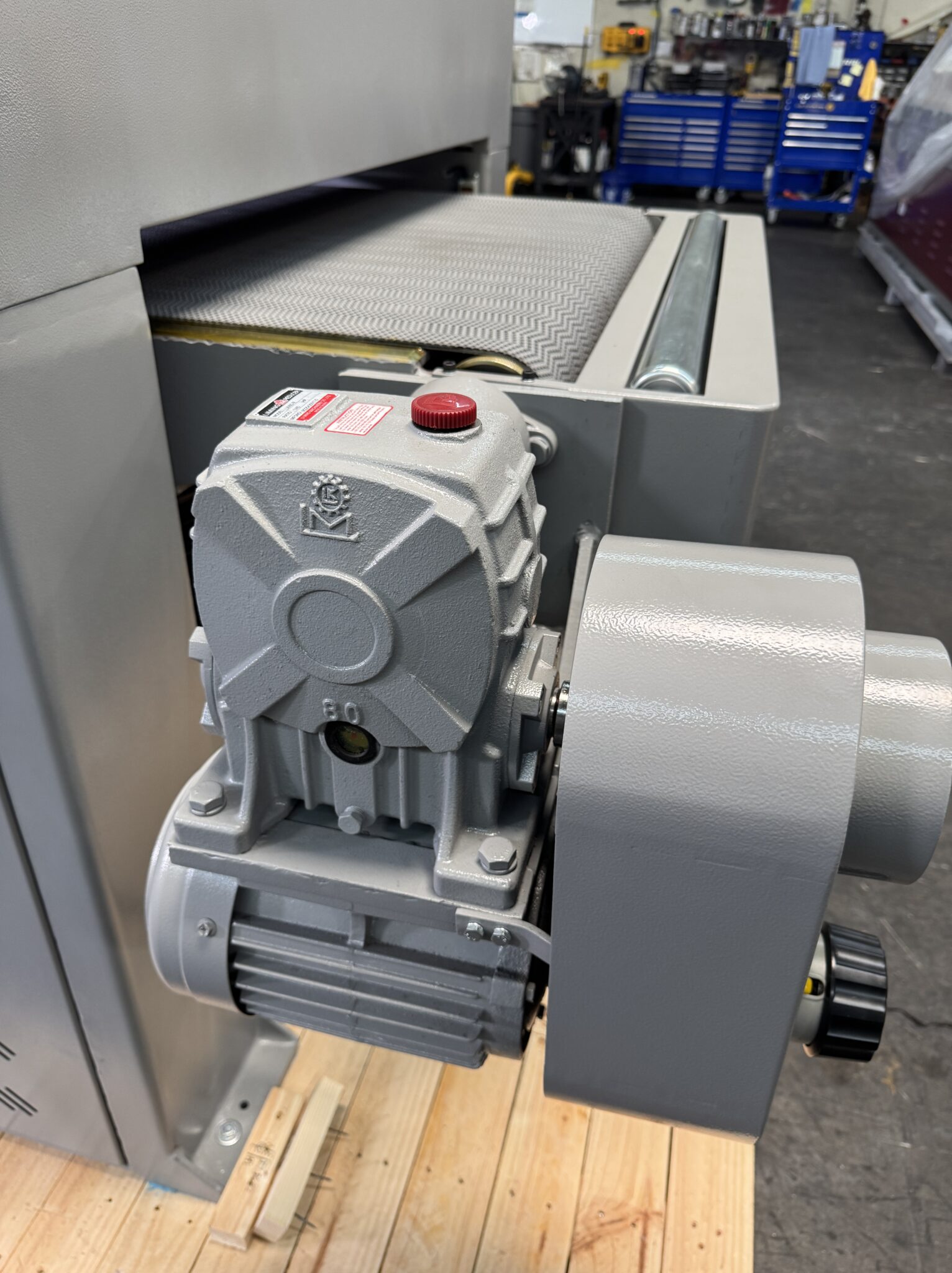

Conveyor Motor: 2 HP / 230v / 3ph
Main Motor: 20 HP / 230v / 3ph
Standard Features:

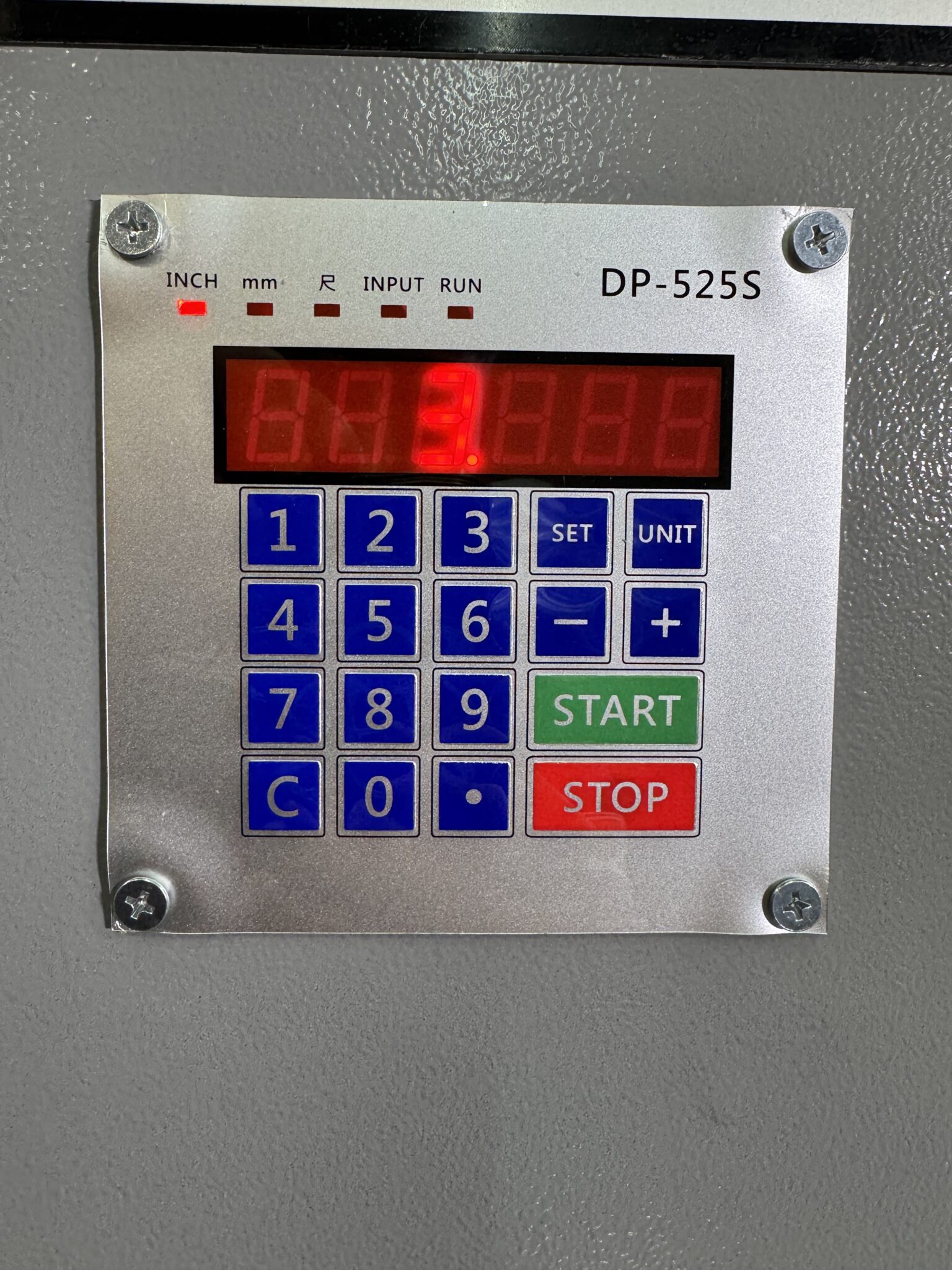

Computerized programmable material thickness control
Motorized table lift with digital readout

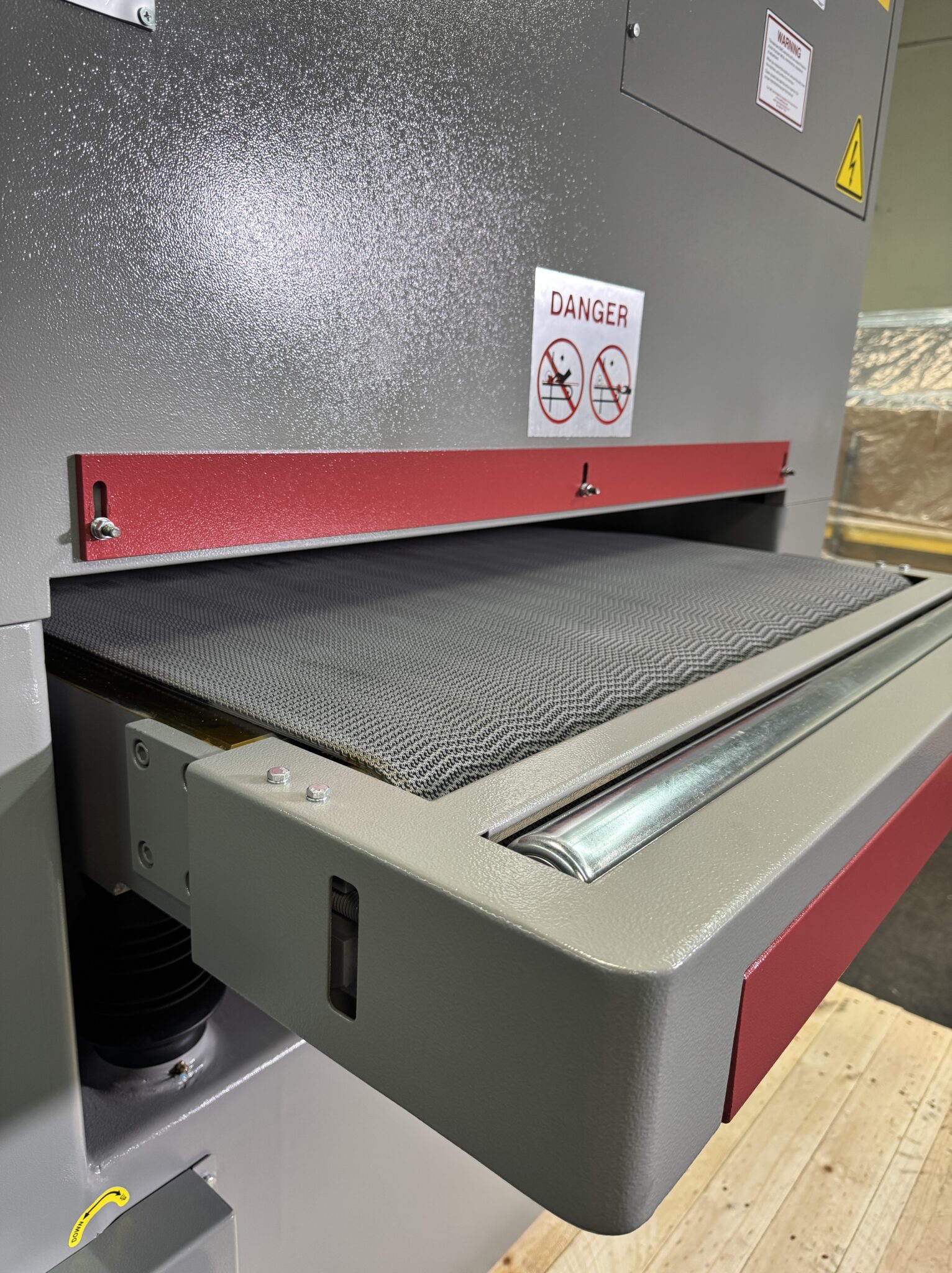

Variable speed conveyor
Conveyor forward and reverse
Belt safety overtravel switches

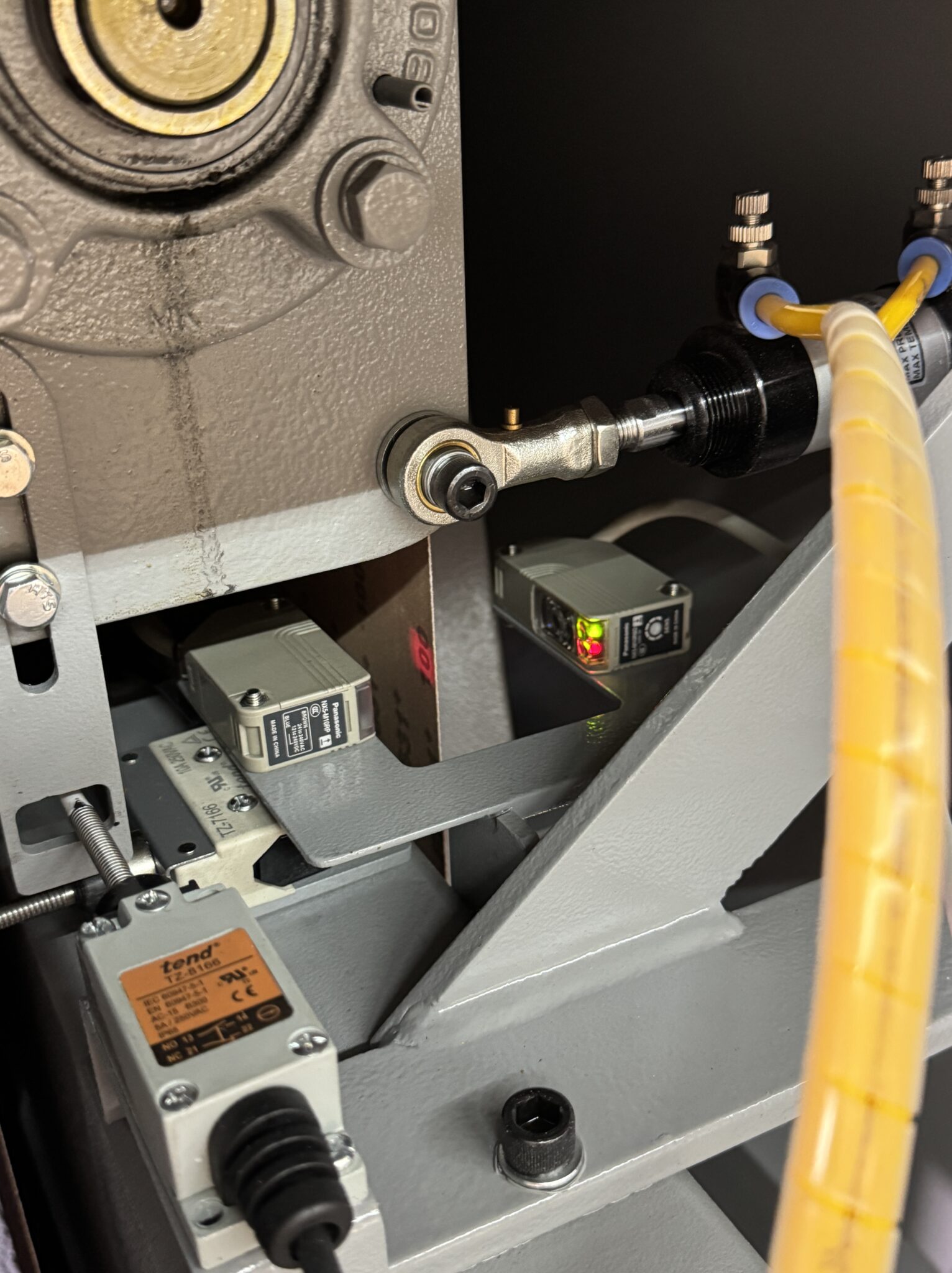

Electronic eye belt tracking
Belt tracking adjusting lever (belt trimmer)
4-Jackscrew table support

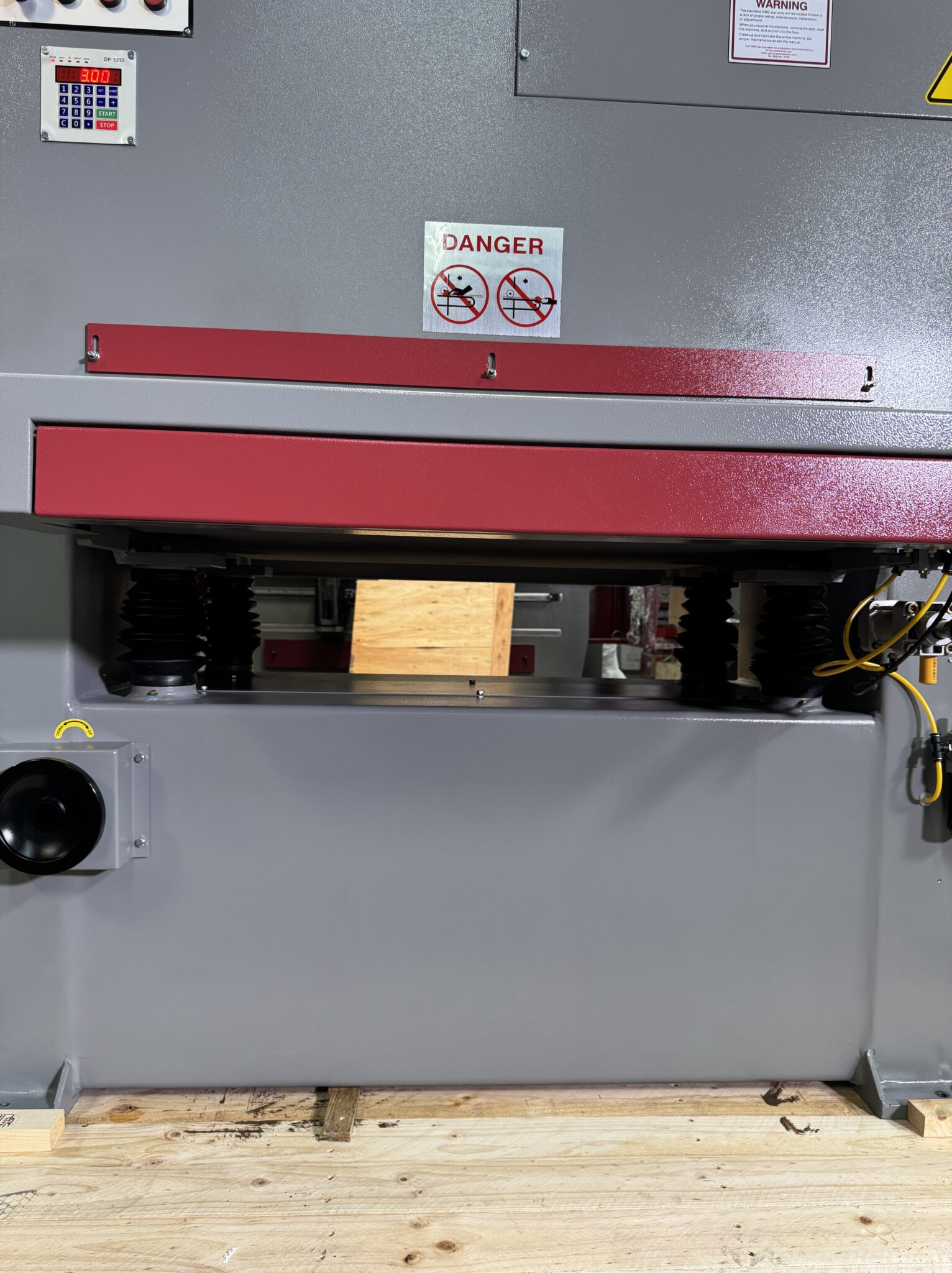

Double infeed and outfeed pinch rolls with protective guards
Conveyor belt tracking system
Safety system with disc brake. Air operated disc brakes to stop sanding head in 3-5 seconds in the event of loss of air pressure or activation of any emergency stop device

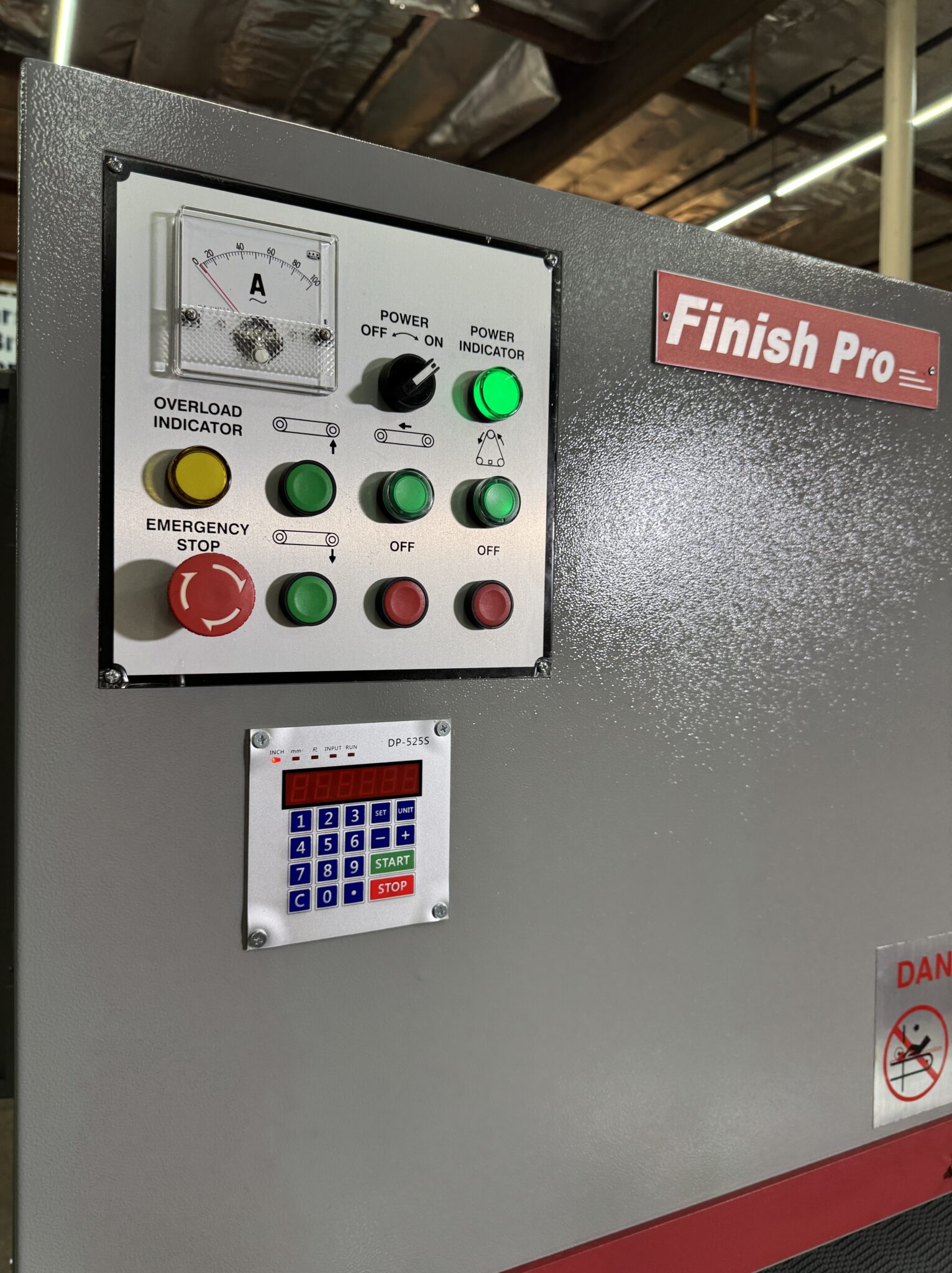

Load meter indicates percentage of full motor loads

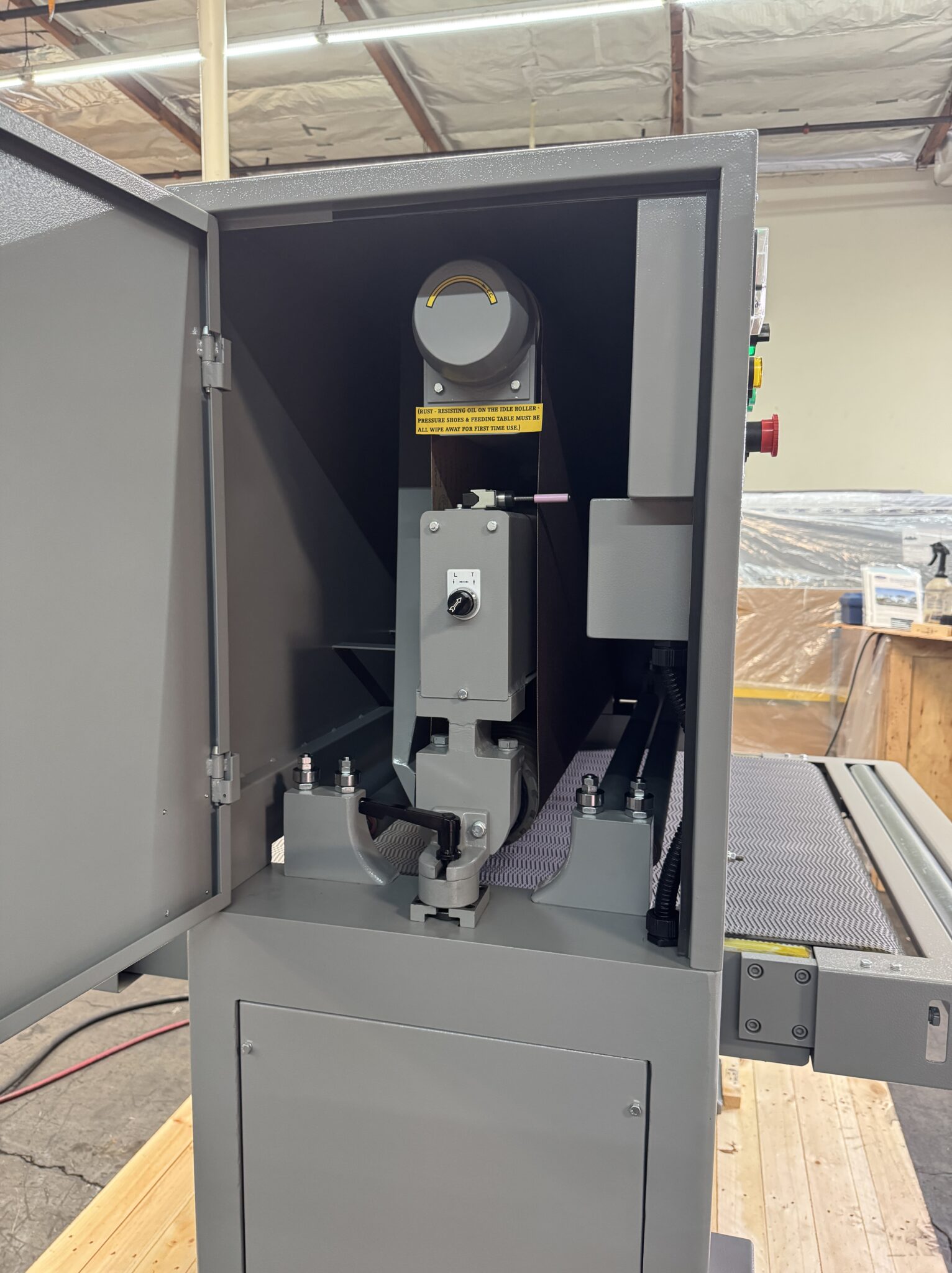

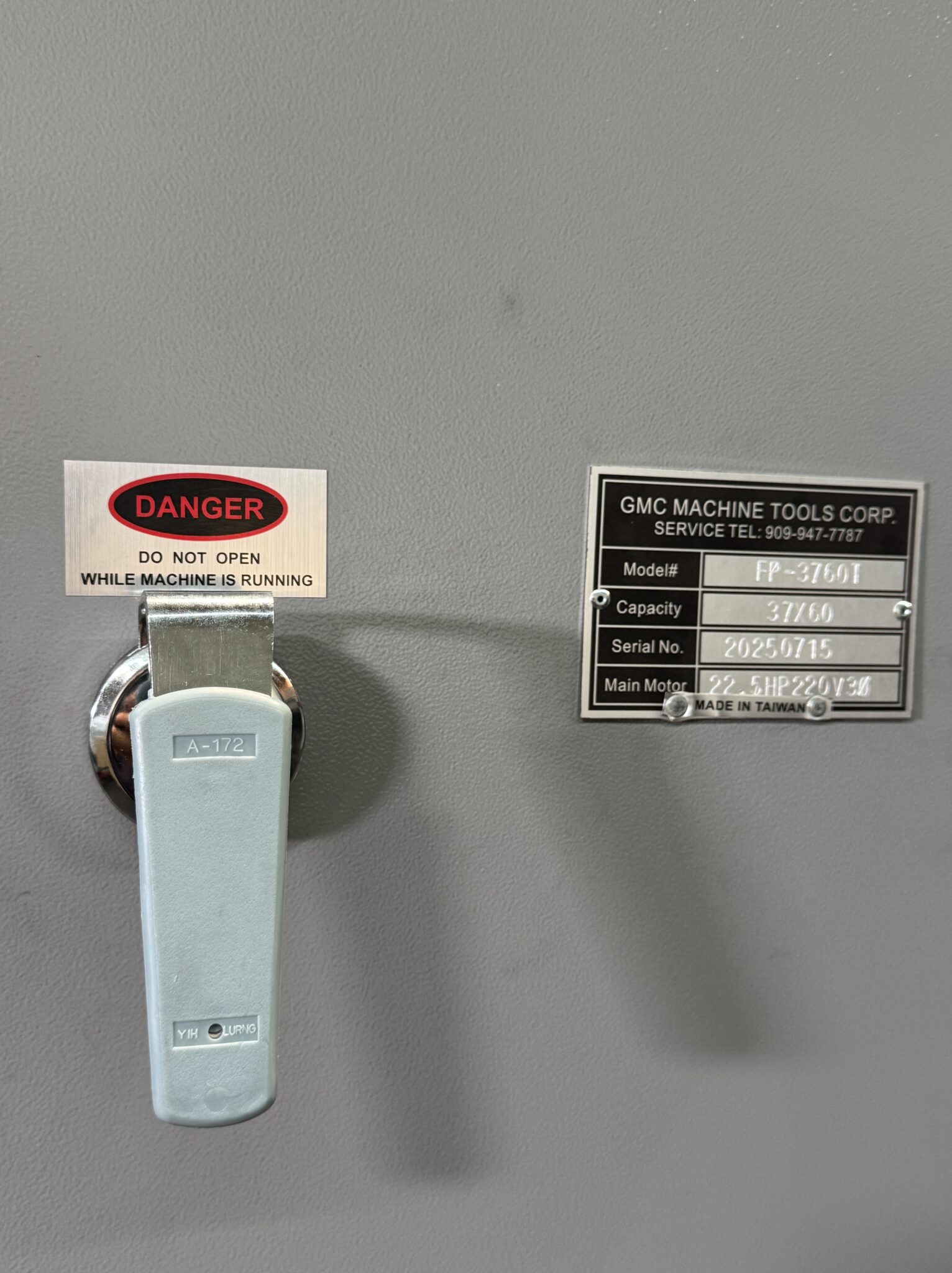

Belt change door electrically interlocked for safety purpose
Air tensioning of belt for accurate tensioning and compensation of belt stretch

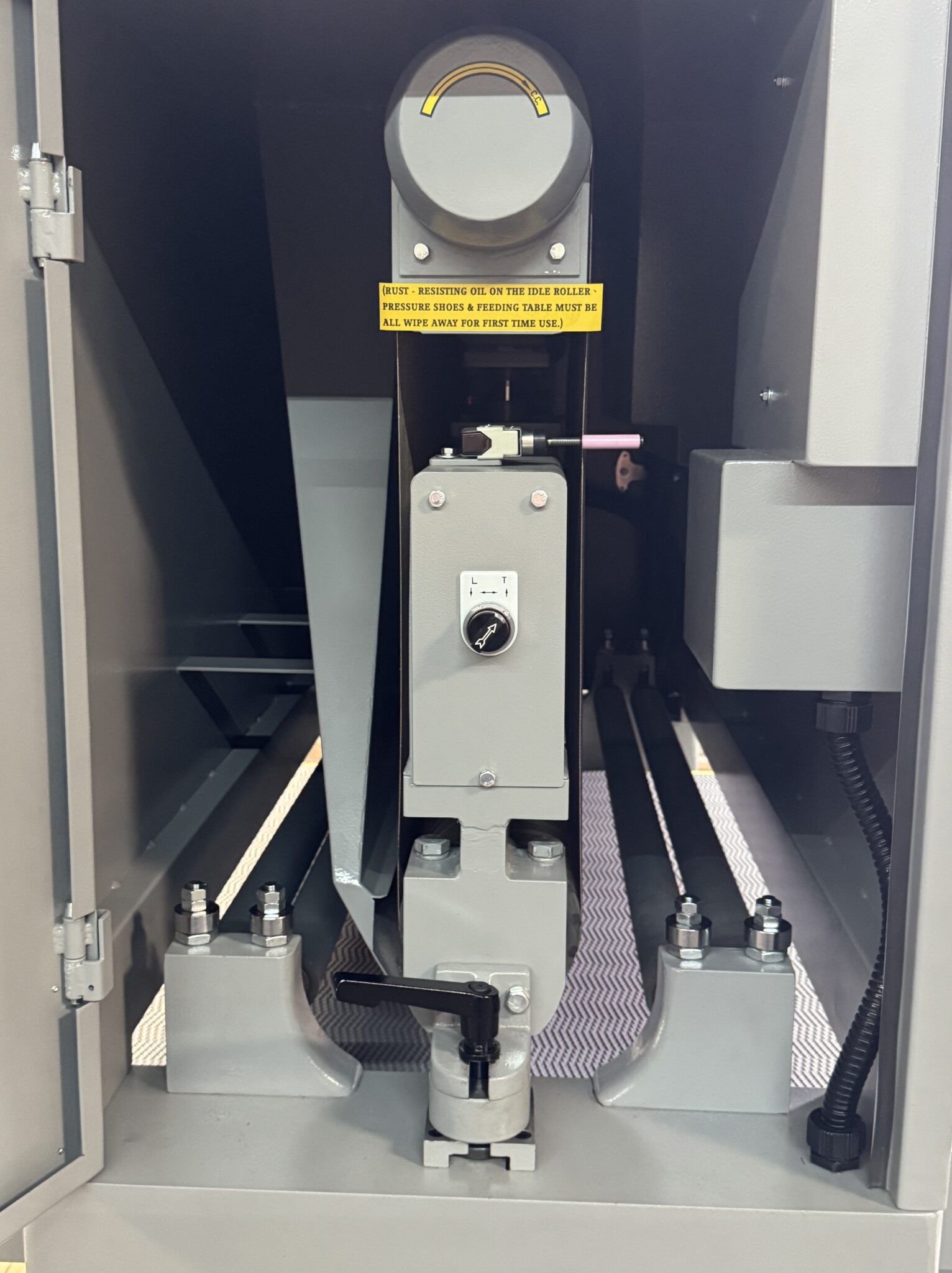

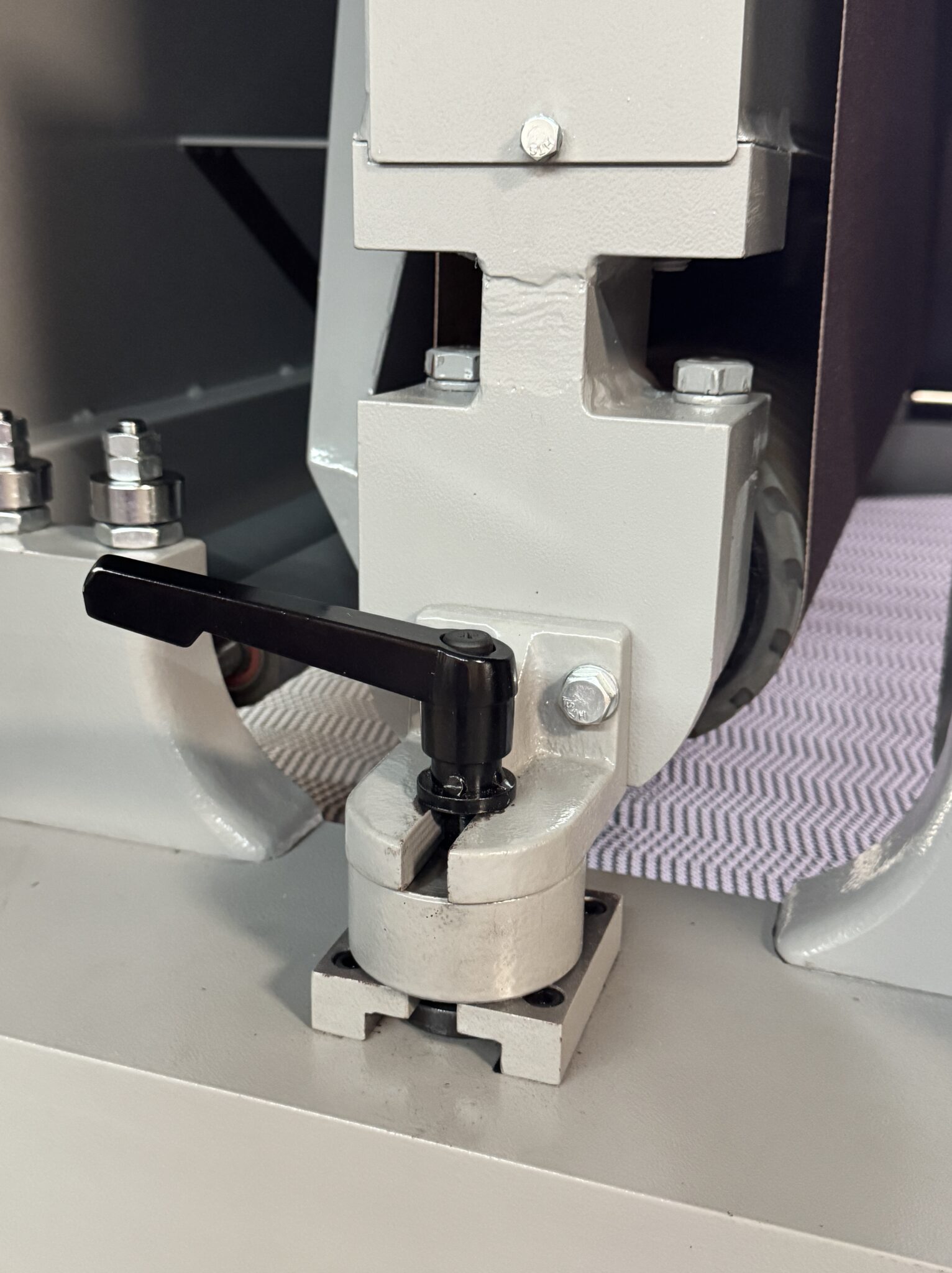

Quick-release sanding head support for fast belt change

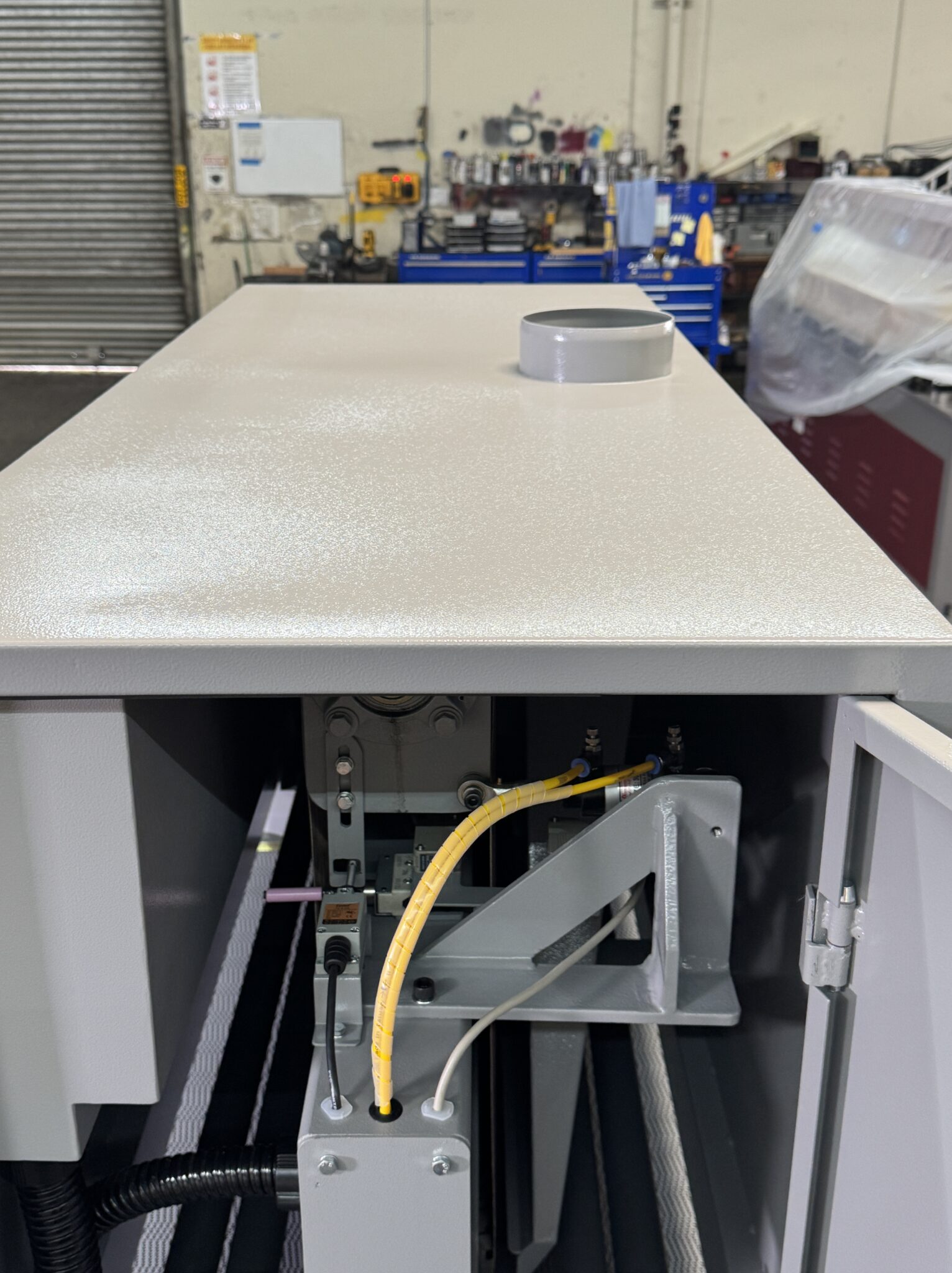

Dust collection hood with 4″ outlet is located adjacent to abrasive head in sanding area
Emergency stops from almost any point
Noise level bellows 80 dBA
Operation manual, control tags, danger signs, and warning labels in English on machine
One-year industrial warranty for parts
Mechanical Specifications:
Dimensions: 63″ x 63″ x 70″ H
Weight: approx. 2,650 lbs.
FOB Factory – Contact us for special pricing and availability
