GMC 10′ x 14 Gauge CNC Programmable Hydraulic Straight Bending Brake, EFM-1014 CNC



In stock


Inventory #: 7479

Categories: ,

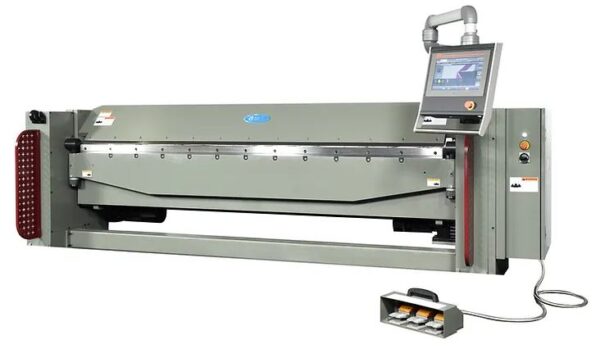

GMC 10′ x 14 Gauge CNC Programmable Hydraulic Straight Bending Brake, EFM-1014 CNC

Inventory # 7479

Model: EFM-1014 CNC



Mild Steel: 14 Gauge

Stainless Steel: 18 Gauge

Close Hemming: 26 Gauge

Open Hemming: 24 Gauge

Bending Length: 10′ 1″

Bend Angle, Programmable: 0 – 135°

Large Beam/Clamp Opening: 4 7/8″

Min. Reverse Bend: 1/2″

Table Back Gauge Distance: 1/2″ – 48 3/8″

Back Gauge Repeatability: 0.0039″

Back Gauge Table Height: 35 3/4″

Bending Motor: 4 HP / 220v / 3ph

Back Gauge Motor: 2 HP / 220v / 3ph

Clamping Motor: 1.5 HP / 220v / 3ph

Standard Features:

ISO 9001 Certified

ESA CNC Control Made in Italy

16″ Digital Glass Touch Screen

Max. 99 Bends per Program

Up to 2,000 Programs Storage

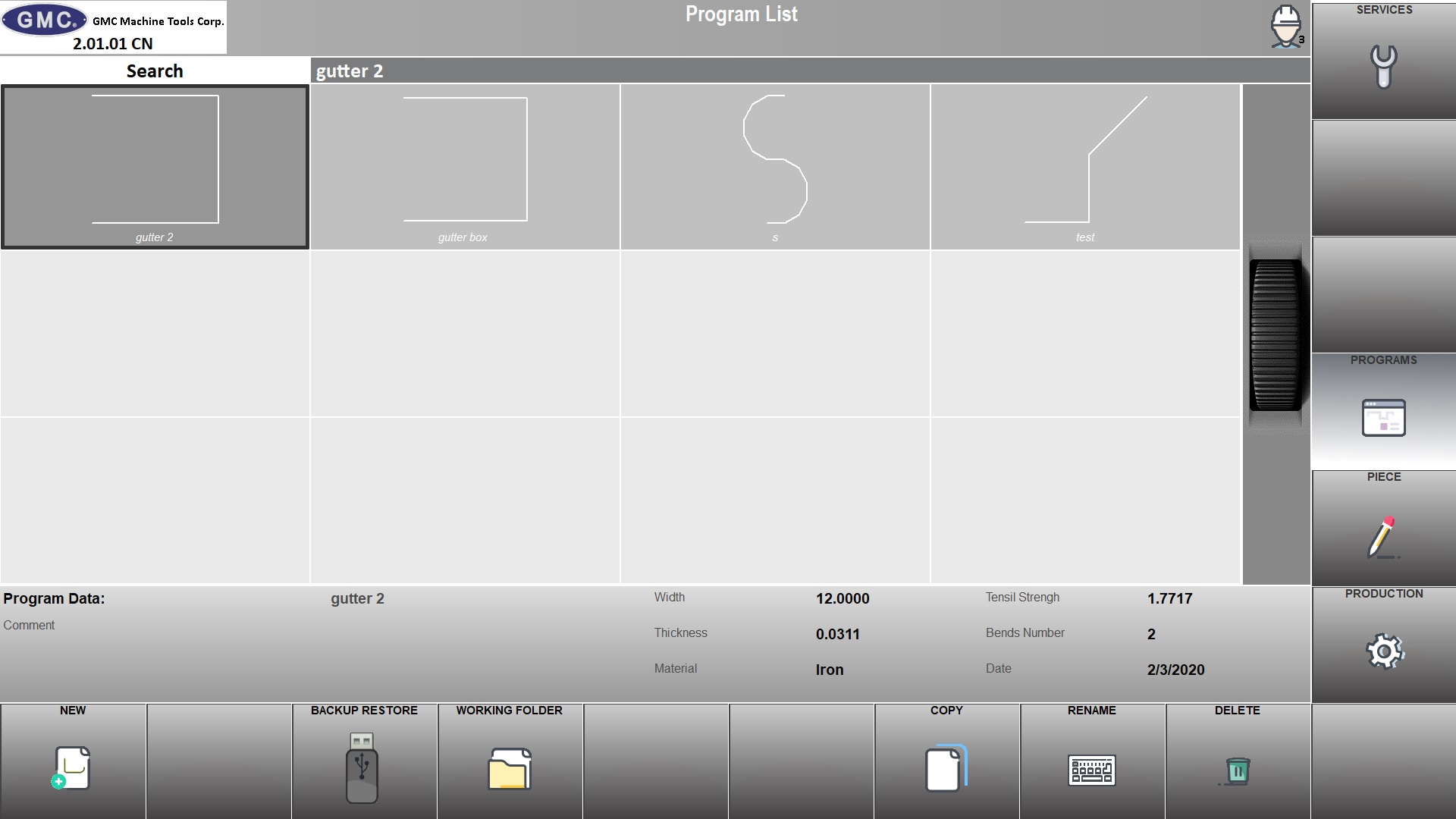

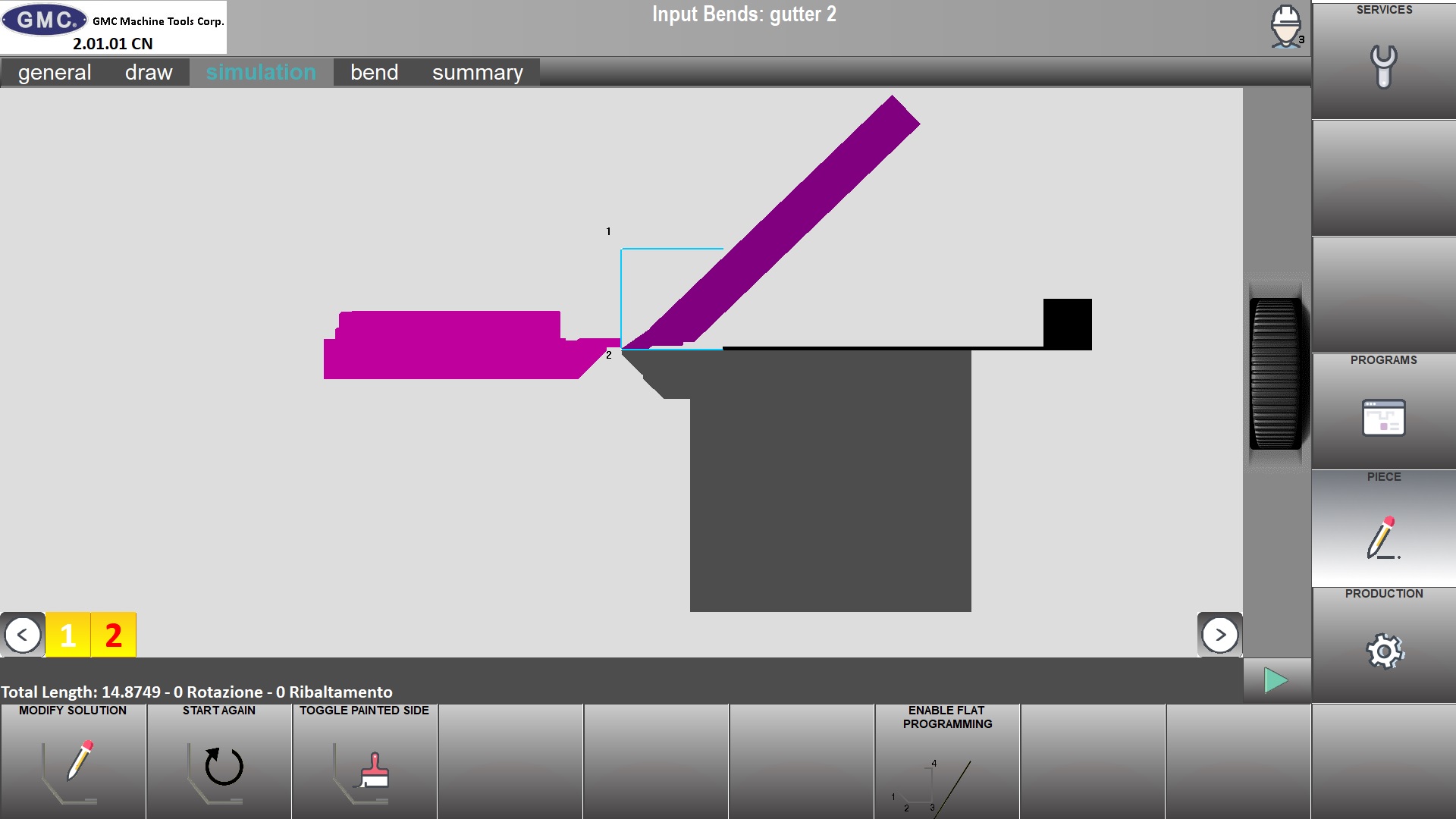

Profiles Library with Graphics

Programmable Radius Bend

Programmable Angle/Angle Correct

48″ CNC Back Gauge with Table and Fingers

Hardened Nose Bar and Table, up to 48 HRC

One 1″ Insert Bar and One 1/2″ Insert Bar Included

Yaskawa Servo Motors and Drives

Schneider Electrical Components

All Steel Construction for Maximum Rigidity

Safety Type Foot Pedal with Handle and E-Stop Switch

Safety 24V Low Voltage and Overload Protection

Power Supply is 220v, Three Phase or 208v, Three Phase

One Year Industrial Parts Warranty

Mechanical Specifications:

Dimensions: 168″ x 79″ x 67″ H

Shipping Weight: approx. 10,150 lbs.

FOB Factory – Contact us for Availability

Optional Equipment:

1/2″ Thick Insert Bar for 1/2″ Min. Reverse Bend, Capacity 28-22 Gauge Mild Steel

One Day On-Site Training Provided by GMC

Digital Phase Converter PTE010 for 220v, Single Phase to 220v, Three Phase (Must be Purchased and Installed by GMC or Warranty will be Voided)

Additional information

Weight 10150 lbs
Dimensions 174 × 80 × 71 in
