Description

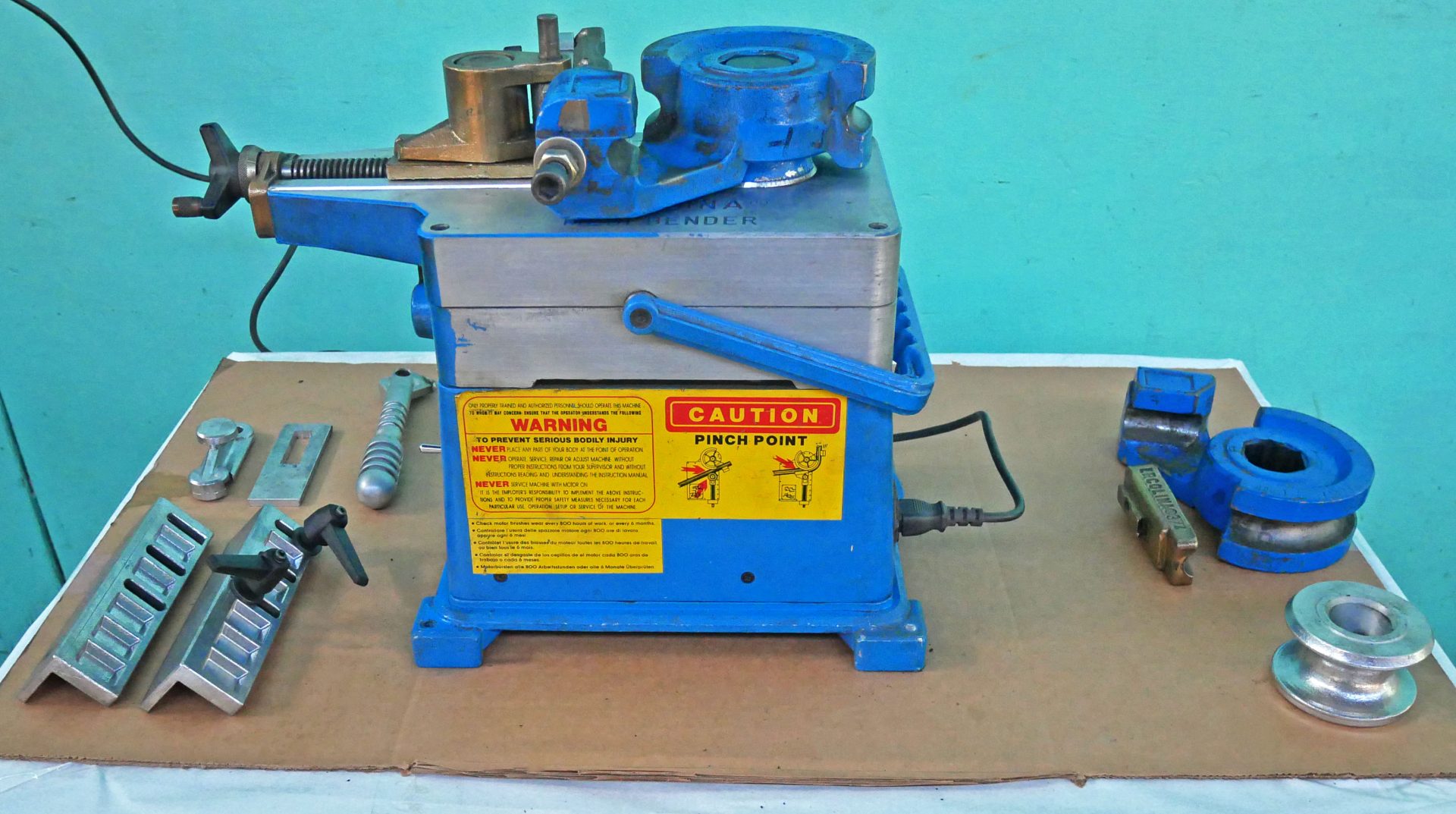

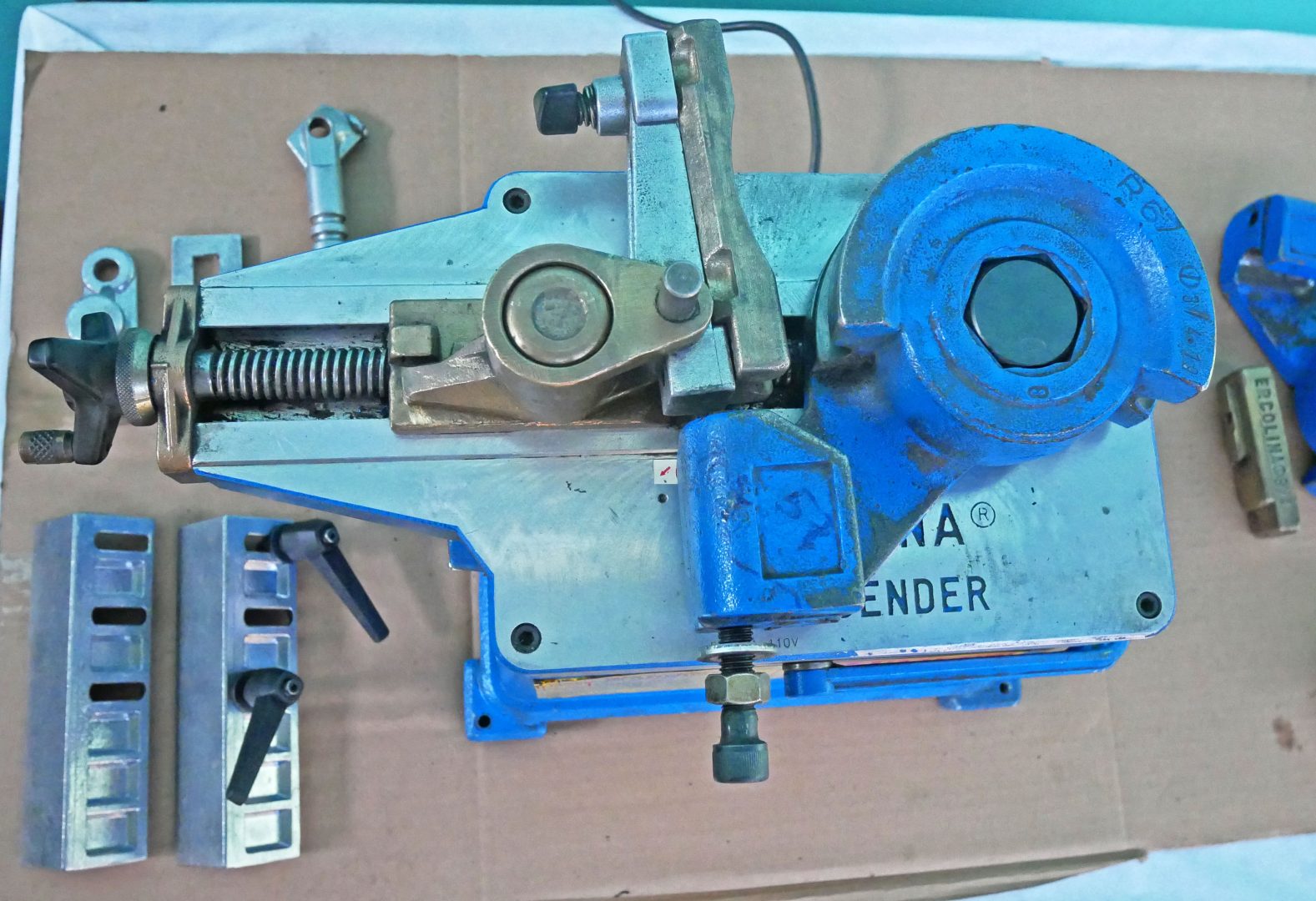

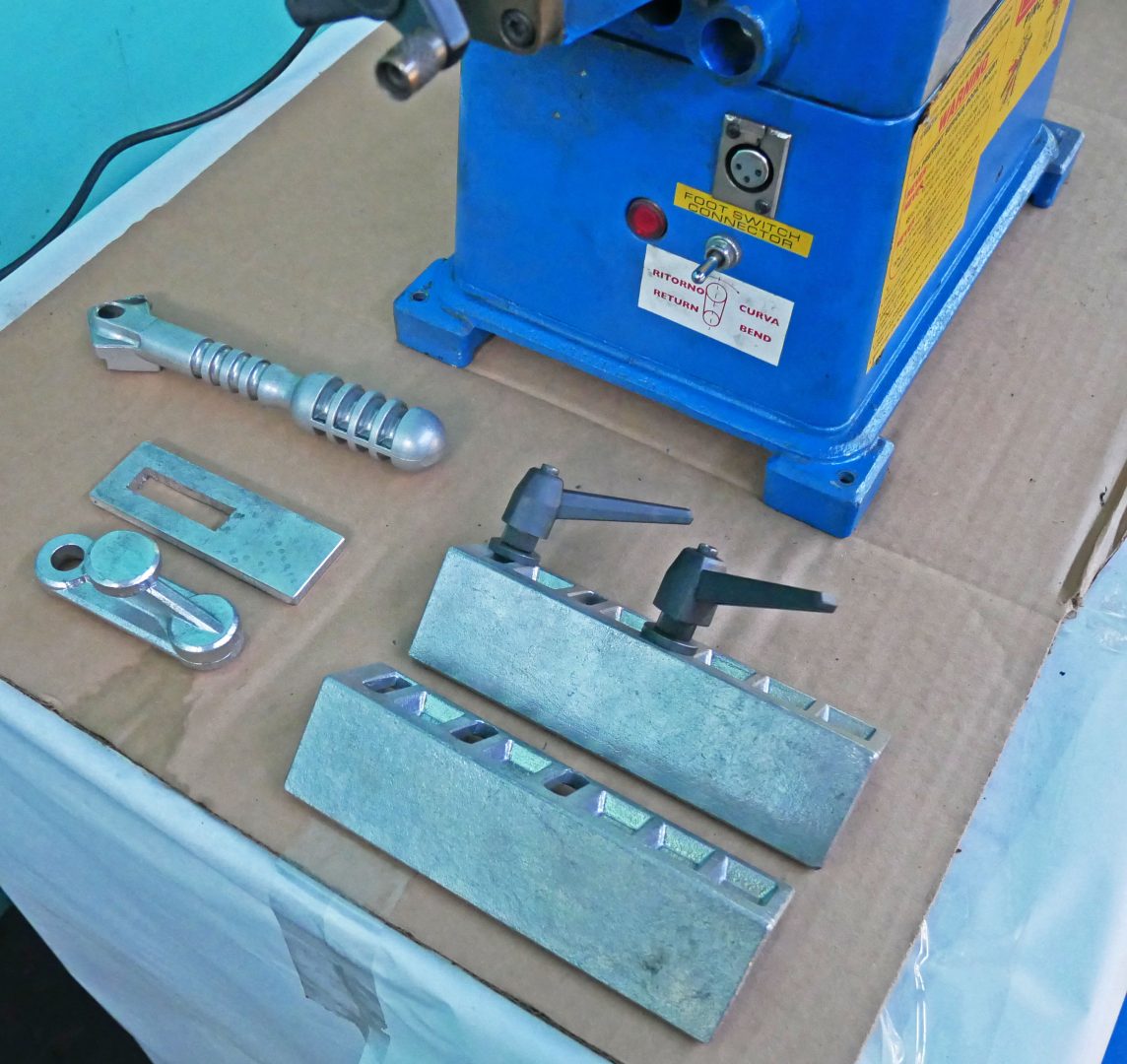

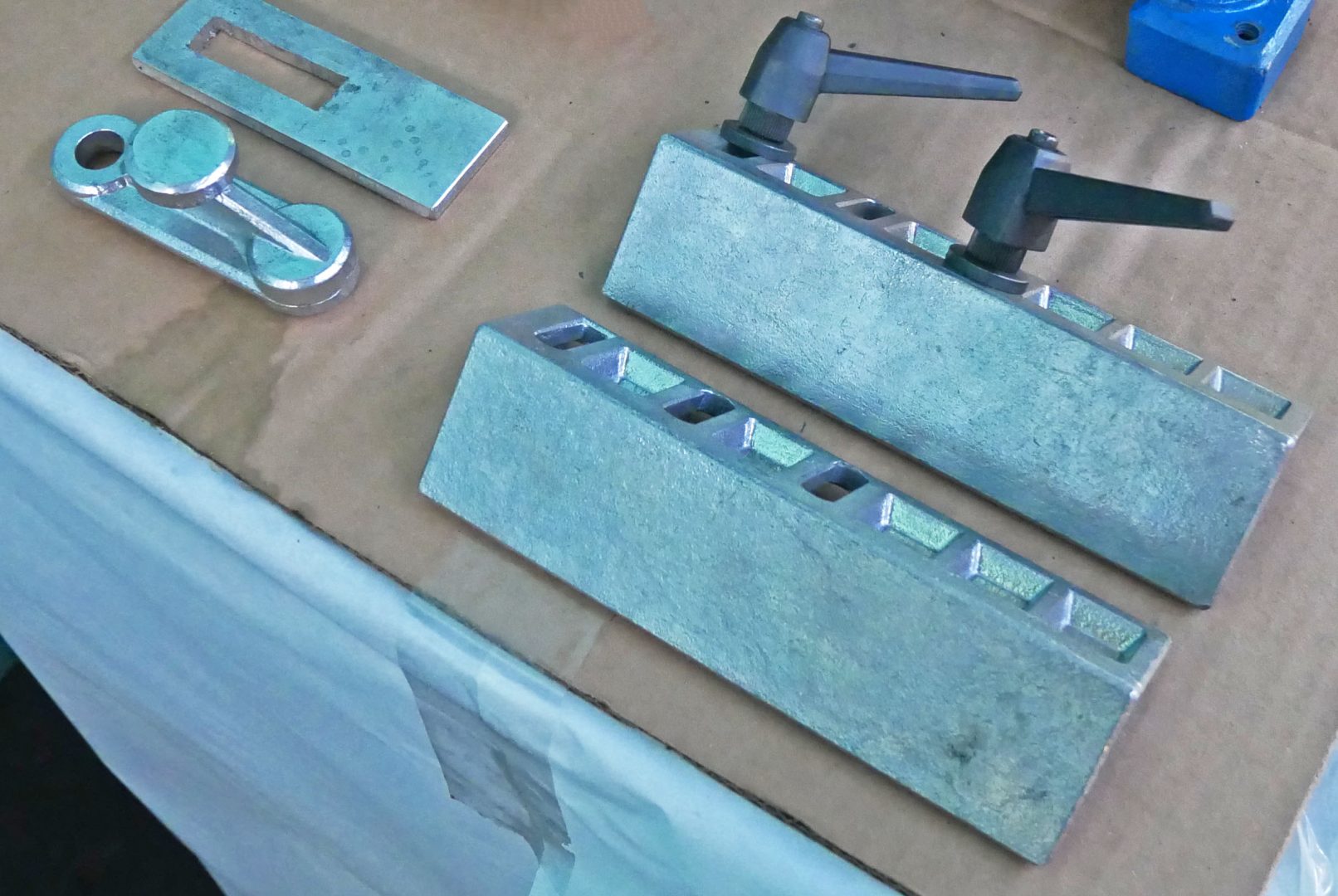

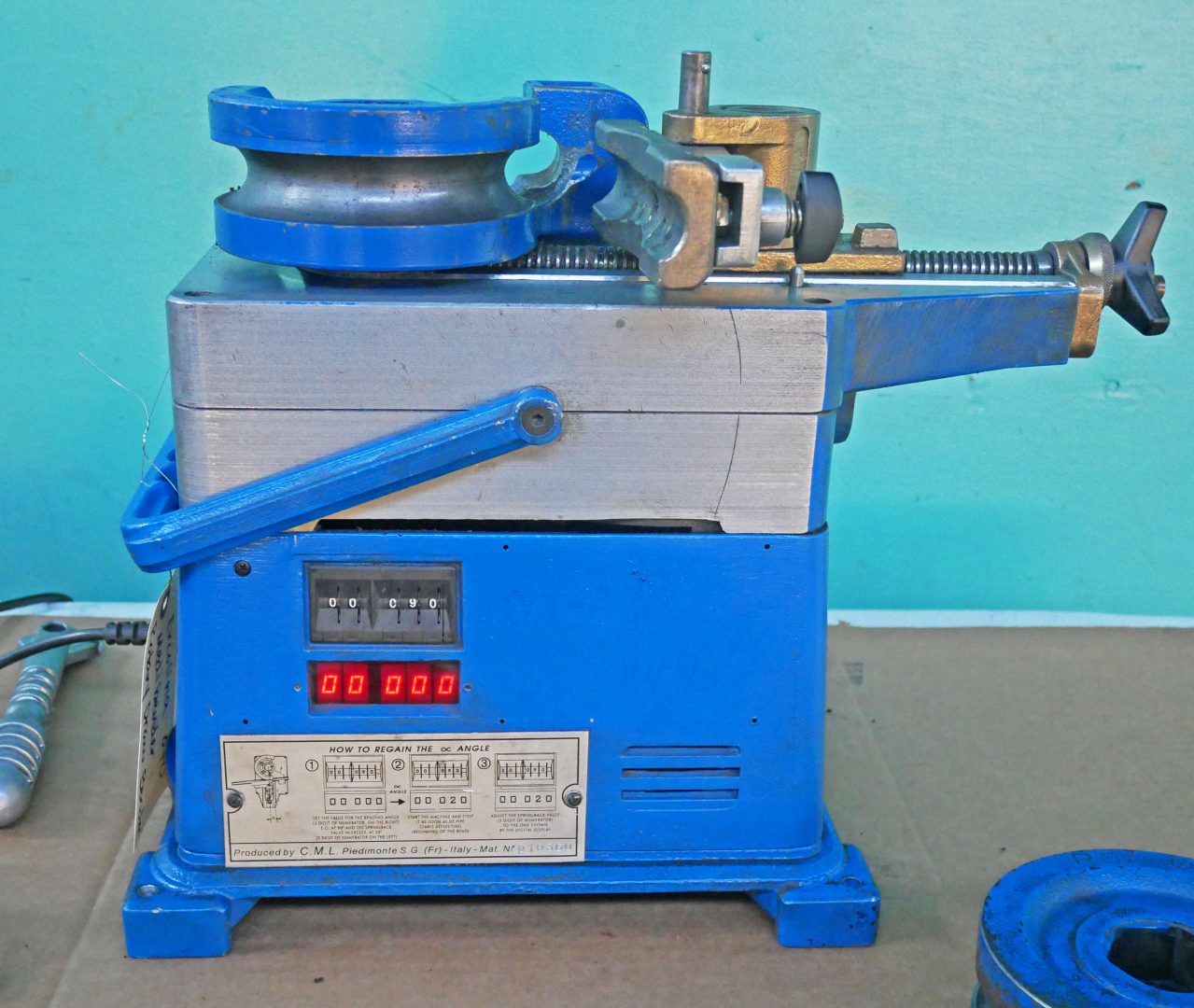

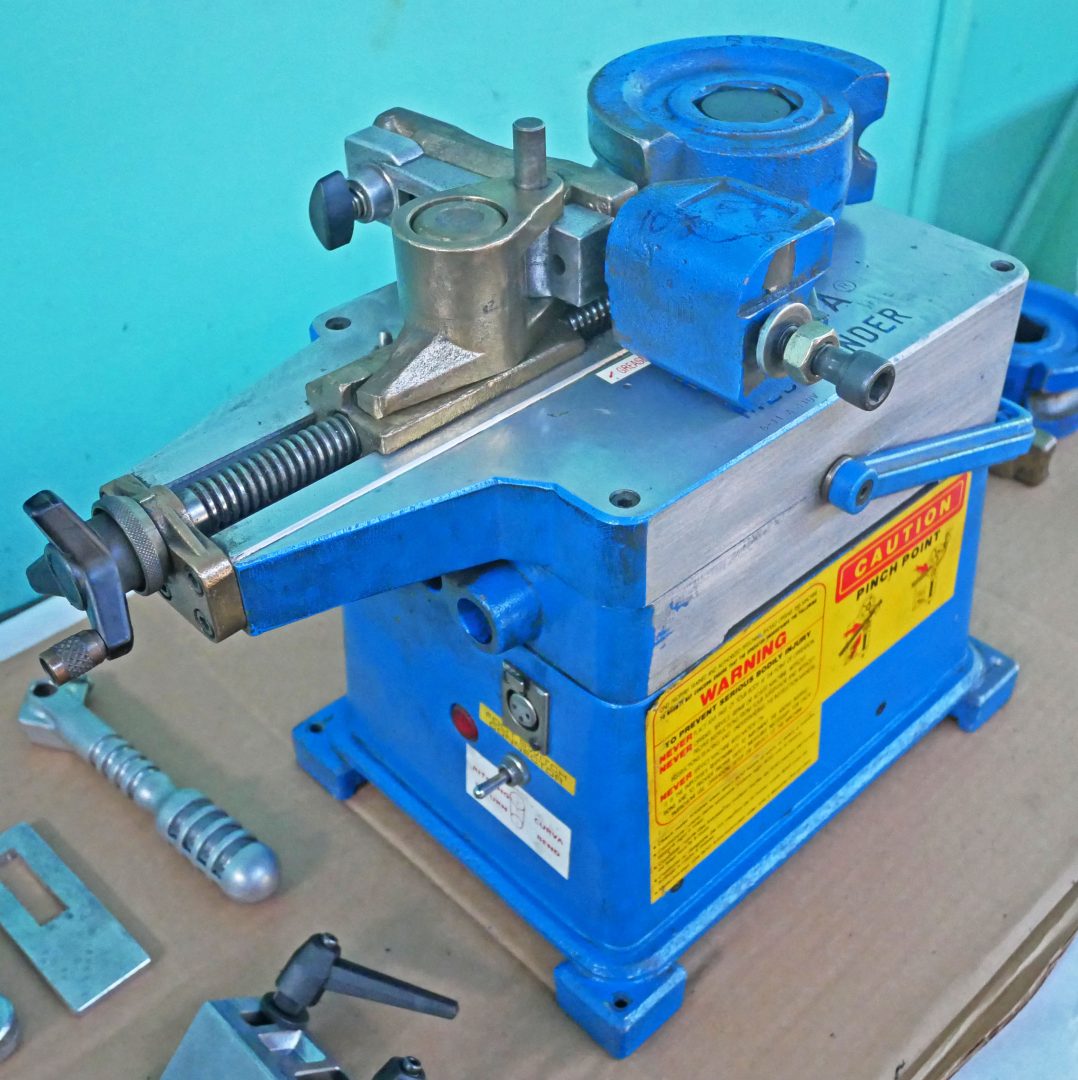

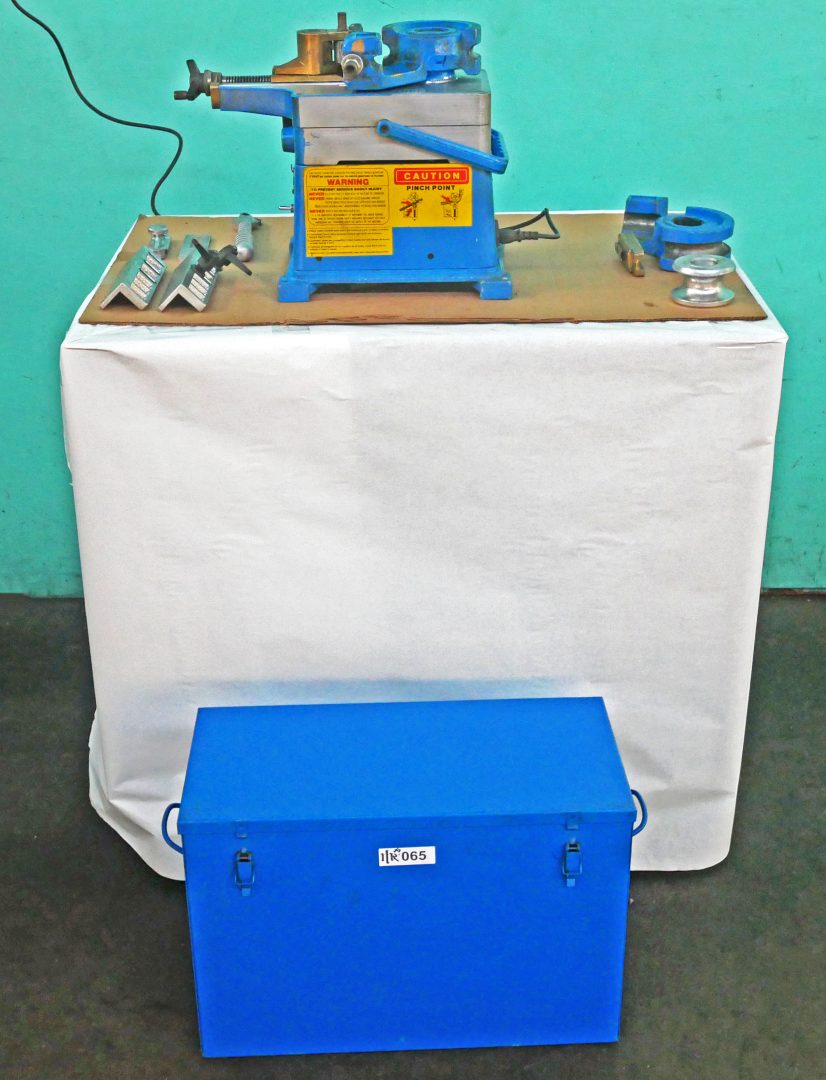

Ercolina Medi Bender 070 Rotary Draw Bender
Inventory # 10185-P
Model: Medi Bender 070
S/N: 7010360
Specifications:
Capacity:
Mild Steel Tube: Up to 1 1/4″ – 0.65″ Wall
Pipe: Up to 1″ Schedule 10
Square Tube: Up to 3/4″ x .120″ Wall
Centerline Radius: As Small as 2D – Max. 6 7/8″
Drive: Electromechanical; no hydraulic components
Motor: 120v / 1ph
Standard Features & Equipment Included:
(1) Center Former 67MM (2.6″) CLR 3/4″ Tube
(1) Counterbend Die, Bronze, 3/4″ Tube
(1) Center Former 67MM (2.6″) CLR 1″ Tube
(1) Counterbend Die, Bronze, 1″ Tube
Rotary dial setting for bend angle and spring back
Patented quick-change tooling system with multiple radii available
Patented swing-away counter bending die vise
No hydraulic components

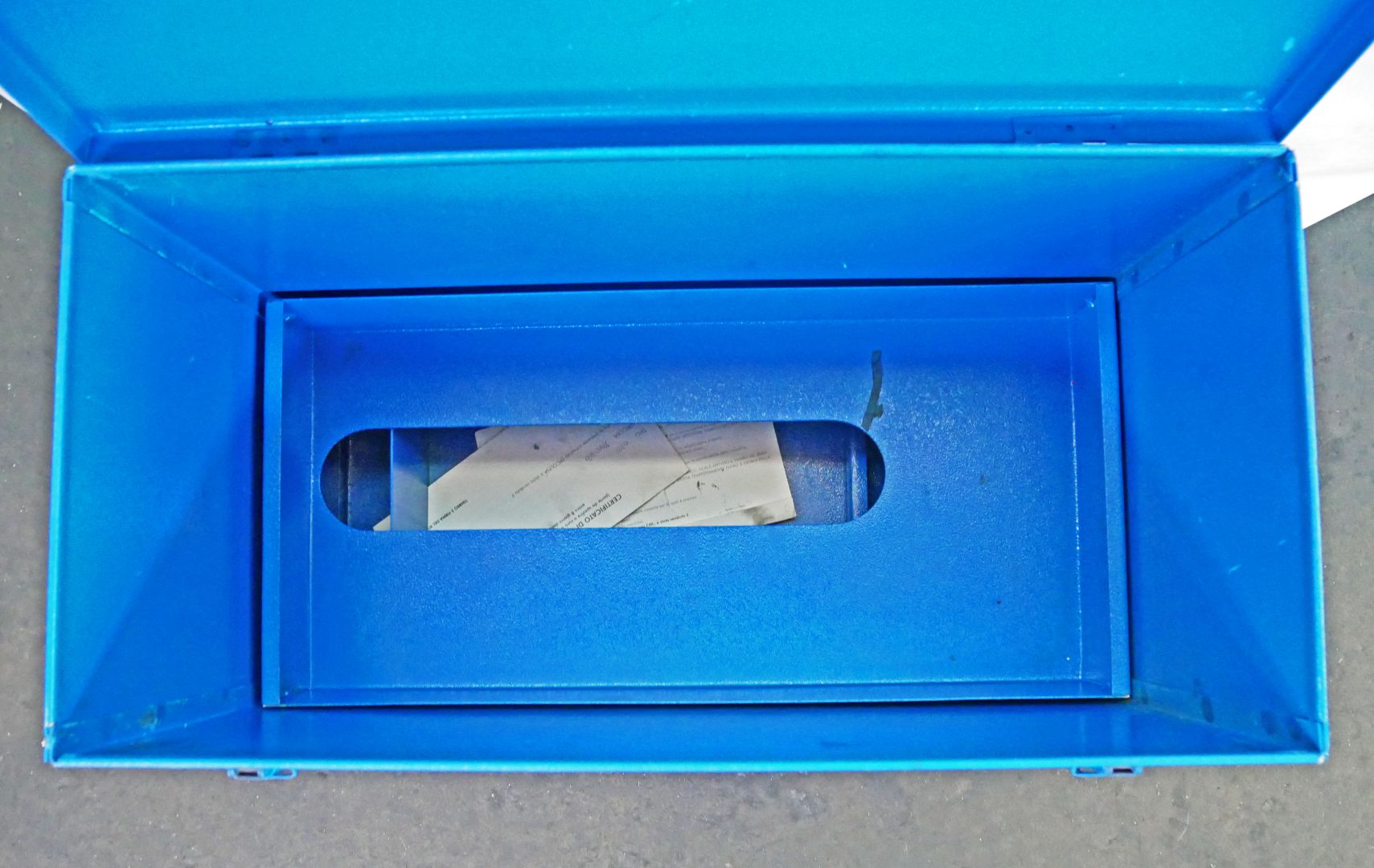

Carrying Case – approx. 25″ x 11″ x 17″ H
Remote Foot Pedal Compatible – Foot Pedal NOT INCLUDED
Mechanical Specifications:
Dimensions: 18″ x 10″ x 15″ H – Machine Only
Overall Weight: approx. 105 lbs.
New Replacement Cost: $7,360.00 including Tooling
FOB Our Baltimore, MD Warehouse
