Eckold ‘Kraftformer’ 7 Gauge Sheet Metal Forming Machine, KF 675

Shipping: Add to Cart to Calculate

SKU: KF 675

Inventory #: 8883

Categories: ,

Condition:

Type:

Brand:

Description

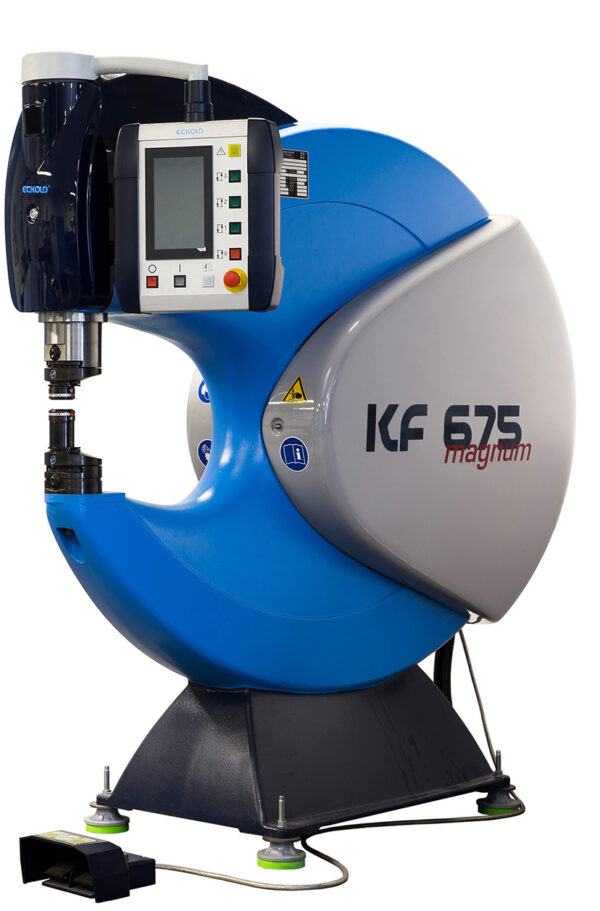

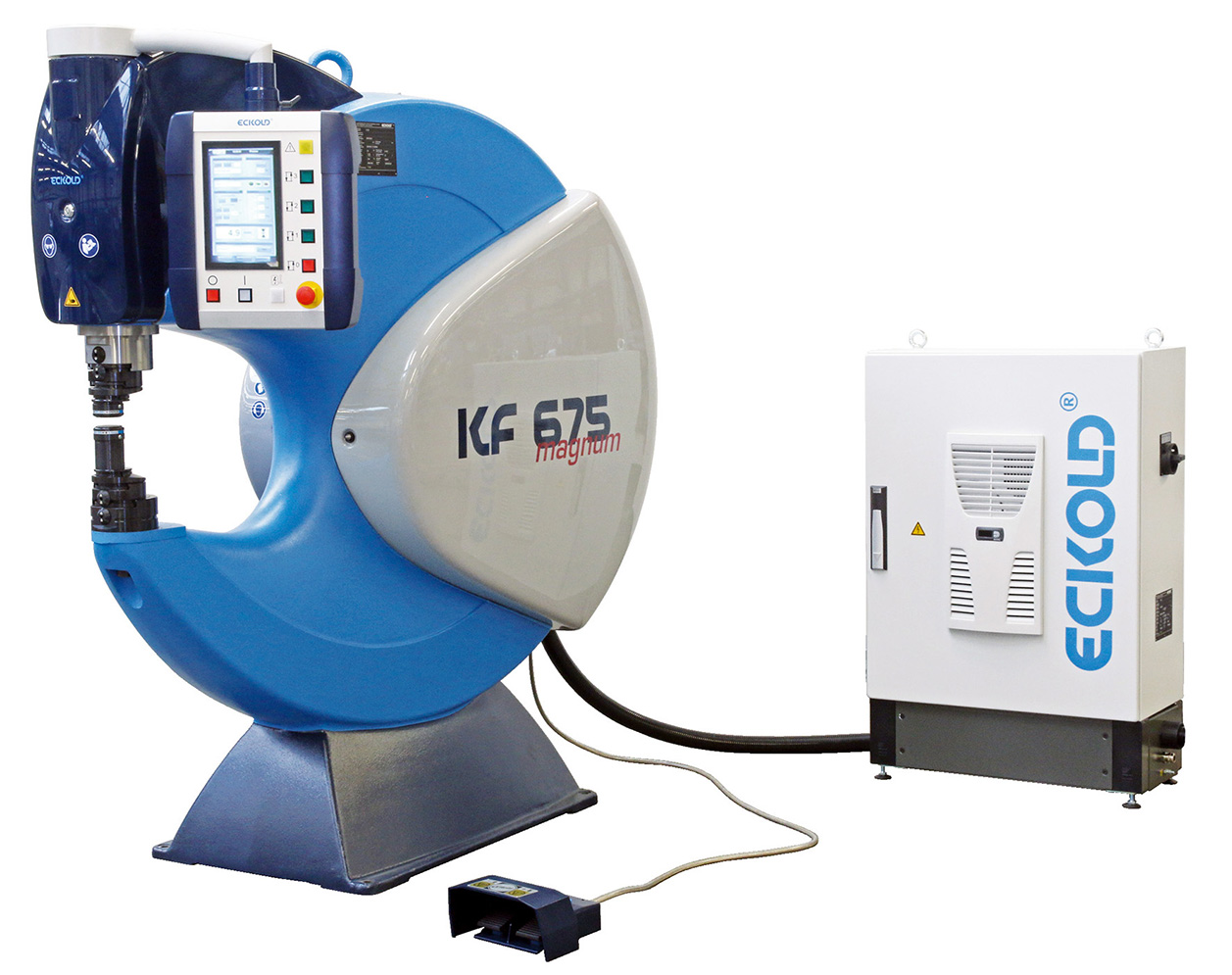

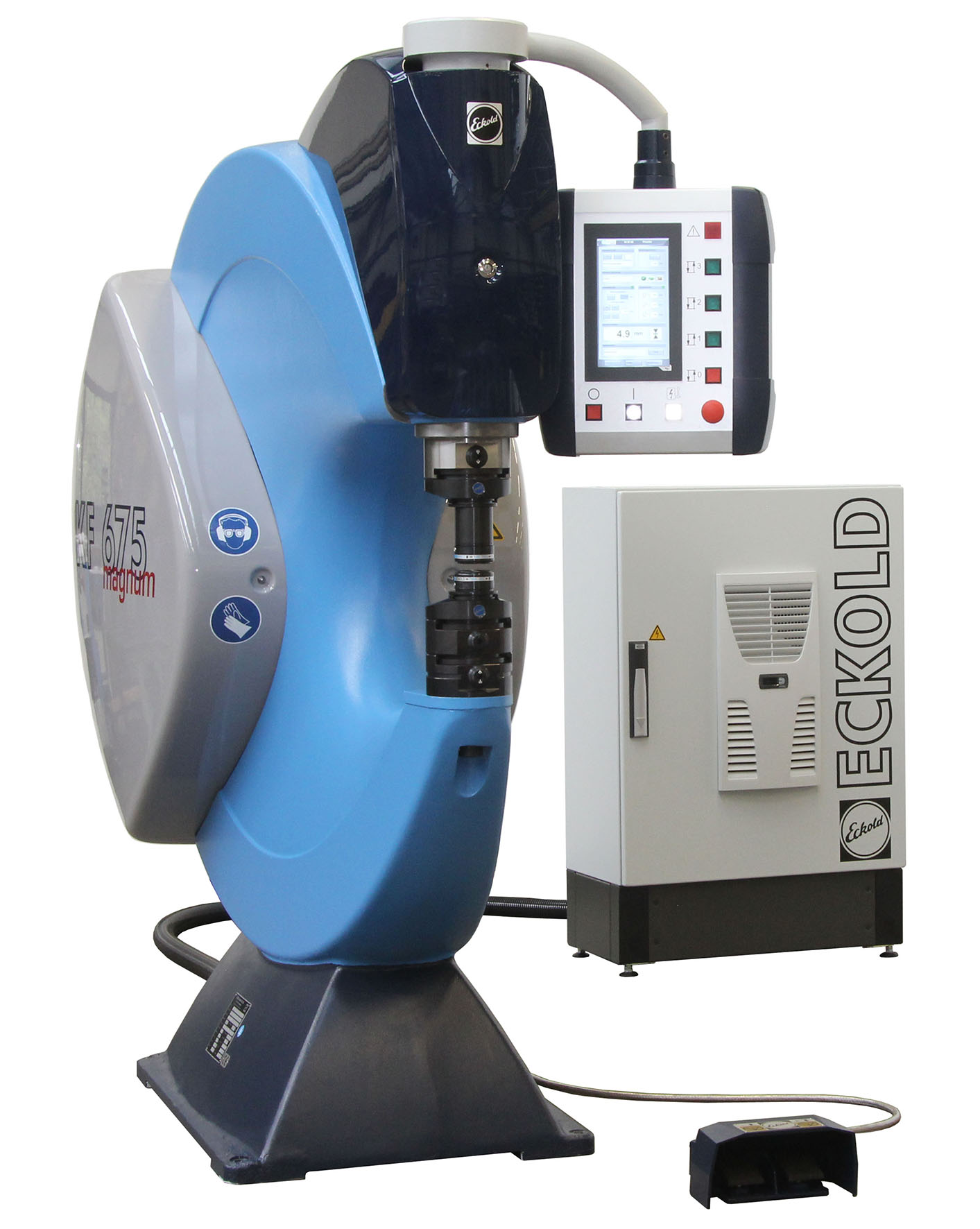

Eckold ‘Kraftformer’ 7 Gauge Sheet Metal Forming Machine, KF 675

Inventory # 8883

Model: KF 675

Description:

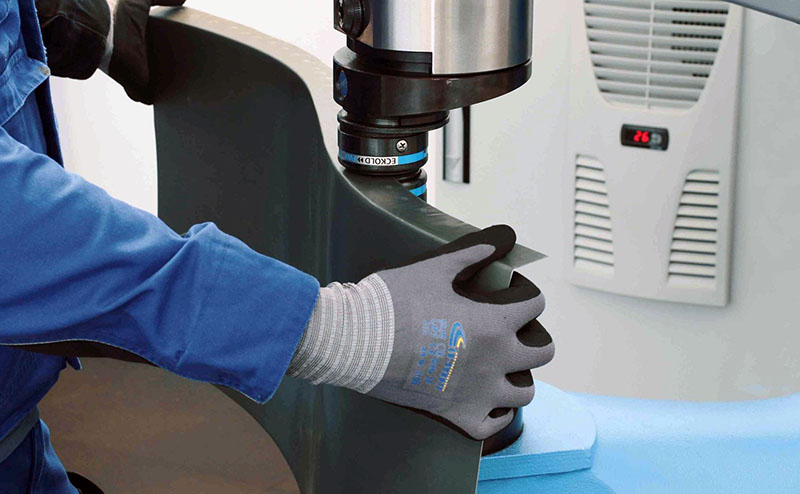

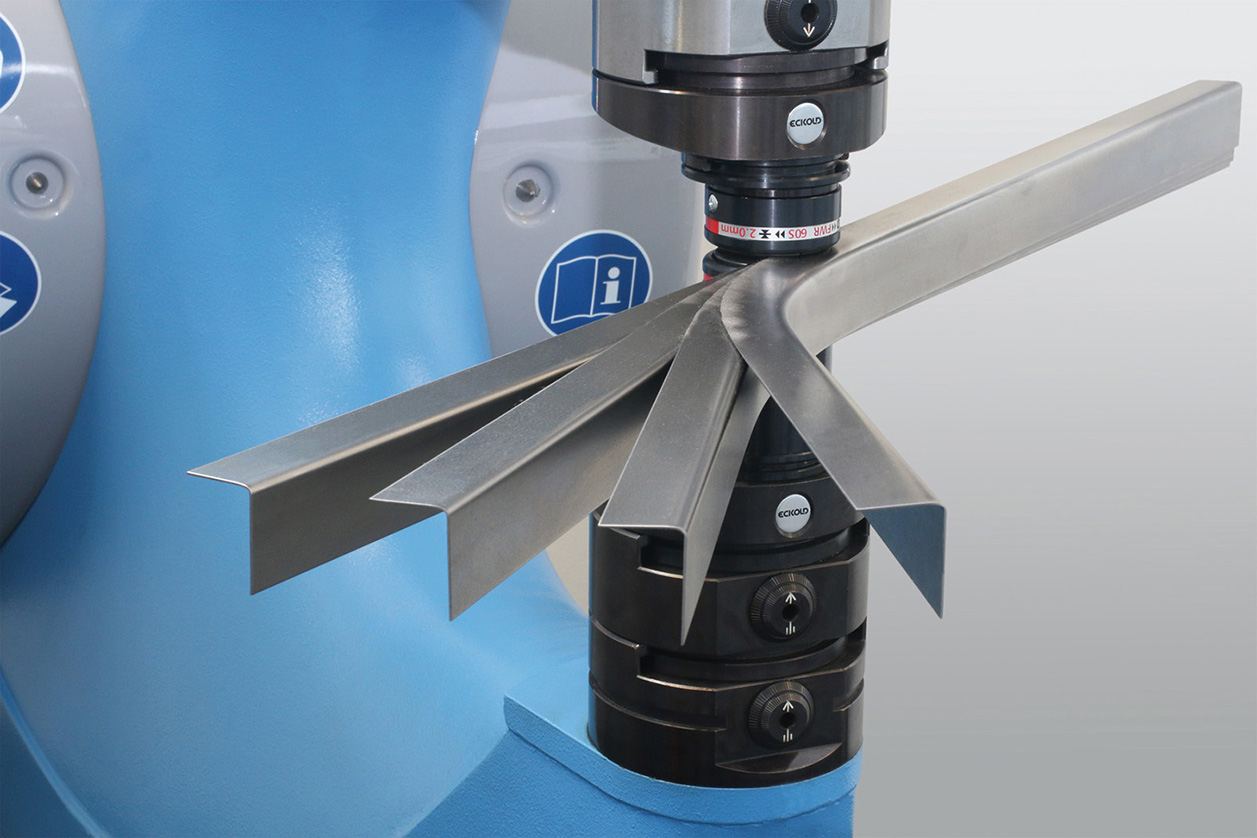

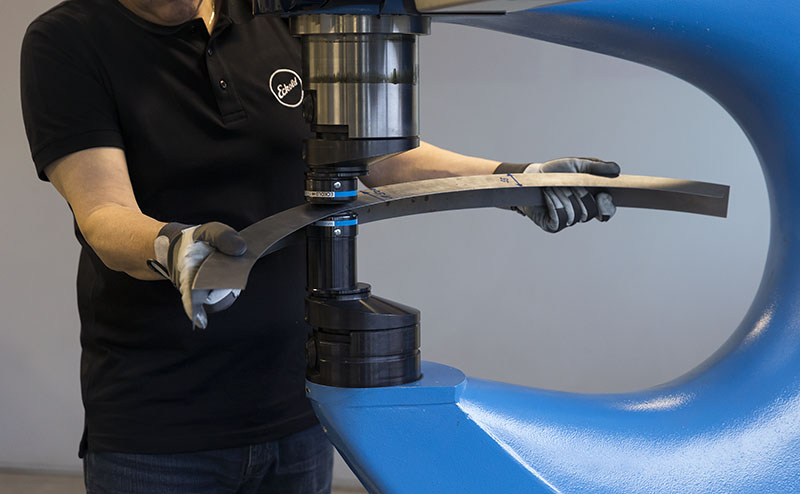

Eckold Kraftformers are multi-functional sheet metal forming machines. Tooling options for shrinking, stretching, doming, planishing, flattening, and more. Kraftformers can be used in a variety of functions because of their refined design and vast tooling options. The combination of different forming operations in one device saves space and increases efficiency. The smart design allows for upgrading the machine anytime. They are modular, efficient, and high quality thus the choice for industry professionals

The Eckold Kraftformer KF 675 is the biggest of the KF series machines. Features include the precise control and adjustable stroke speed, repeat accuracy, up to 25 stored programmable processes and more. With a horizontal throat depth of 26 1/2″, the KF 675 can easily handle very large and thick materials, up to 7 gauge material thickness

Specifications:

Forming Capacity:

Aluminum: 7 Gauge

Steel: 7 Gauge

Stainless Steel: 9 Gauge

Horizontal Throat Depth: 26.57″

Vertical Throat Height: 17.72″

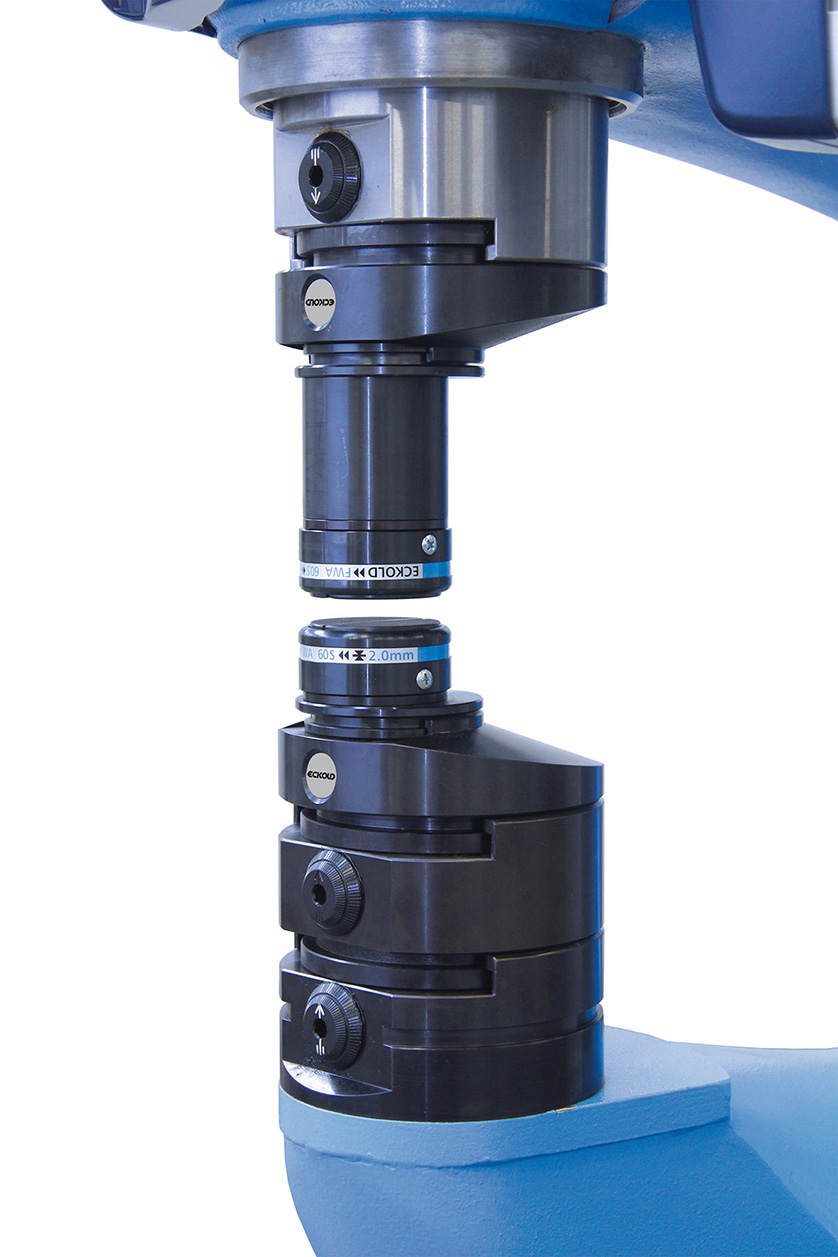

Upper Ram Adjustment: 3.15″

Drive: Electric

Stroke Frequency: Continuous Stroke

Strokes per Minute: 150 – 600

Mechanical Specifications:

Dimensions: 79″ x 32 1/2″ x 80 1/2″ H

Weight: approx. 4,828 lbs.

Contact us for pricing and availability

FOB Factory

Additional information

Weight 5000 lbs
