Eckold ‘Kraftformer’ 9 Gauge Sheet Metal Forming Machine, KF 340
Inventory # 8881
Model: KF 340
Description:

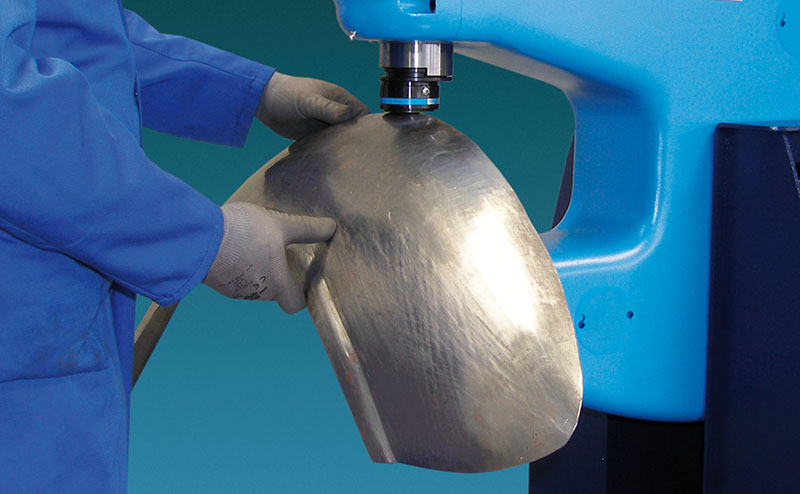

Eckold Kraftformers are multi-functional sheet metal forming machines. Tooling options for shrinking, stretching, doming, planishing, flattening, and more. Kraftformers can be used in a variety of functions because of their refined design and vast tooling options. The combination of different forming operations in one device saves space and increases efficiency. The smart design allows for upgrading the machine anytime. They are modular, efficient, and high quality thus the choice for industry professionals

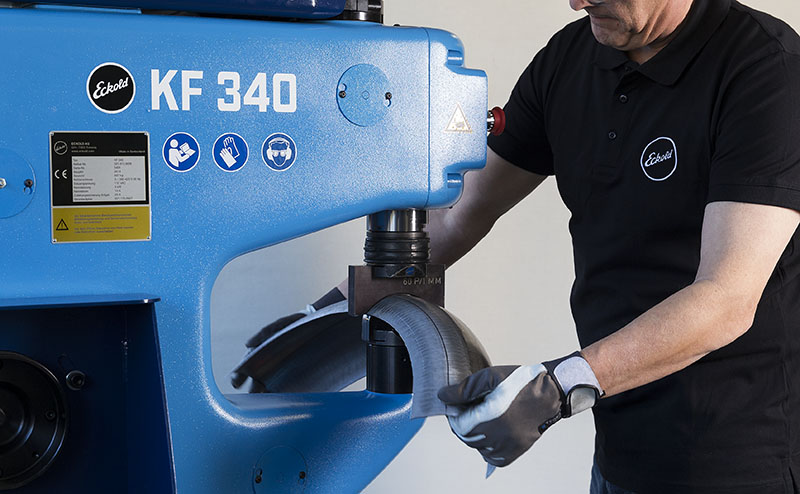

The KF 340 is one of the medium-sized machines from Eckold. Because of the smaller size and wide range of tools, the KF 340 is the perfect all-rounder for any shop. With a horizontal throat of 13.39″, the KF 340 is capable of working large components up to 9 gauge material thickness
Specifications:
Forming Capacity:
Aluminum: 9 Gauge
Steel: 12 Gauge
Stainless Steel: 14 Gauge

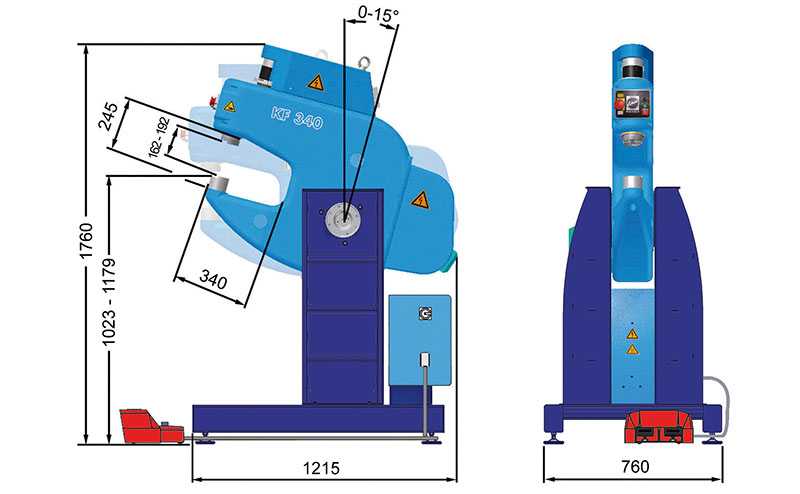

Horizontal Throat Depth: 13.39″
Vertical Throat Height: 9.47″
Upper Ram Adjustment: 1.18″
Drive: Electric

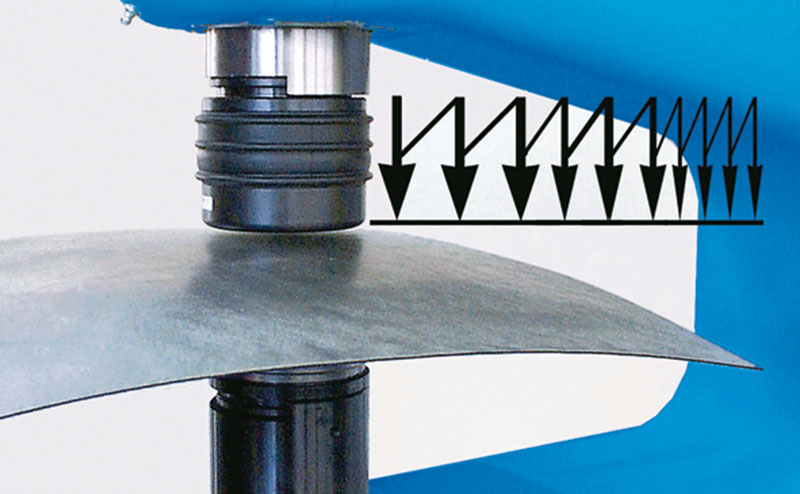

Stroke Frequency: Continuous Stroke
Strokes per Minute: 250 – 550
Mechanical Specifications:
Dimensions: 49″ x 30″ x 69″ H
Weight: approx. 1,335 lbs.
Contact us for pricing and availability
FOB Factory
