Eckold 'Kraftformer' 7 Gauge Sheet Metal Forming Machine, KF 470
Eckold 'Kraftformer' 7 Gauge Sheet Metal Forming Machine, KF 470Eckold 'Kraftformer' 7 Gauge Sheet Metal Forming Machine, KF 470Eckold 'Kraftformer' 7 Gauge Sheet Metal Forming Machine, KF 470Eckold 'Kraftformer' 7 Gauge Sheet Metal Forming Machine, KF 470Eckold 'Kraftformer' 7 Gauge Sheet Metal Forming Machine, KF 470

Eckold ‘Kraftformer’ 7 Gauge Sheet Metal Forming Machine, KF 470

Shipping: Add to Cart to Calculate

Make Offer

SKU: KF 470

Inventory #: 8882

Categories: ,

Condition:

Type:

Brand:

Product Description

Eckold ‘Kraftformer’ 7 Gauge Sheet Metal Forming Machine, KF 470

Inventory # 8882

Model: KF 470

Description:

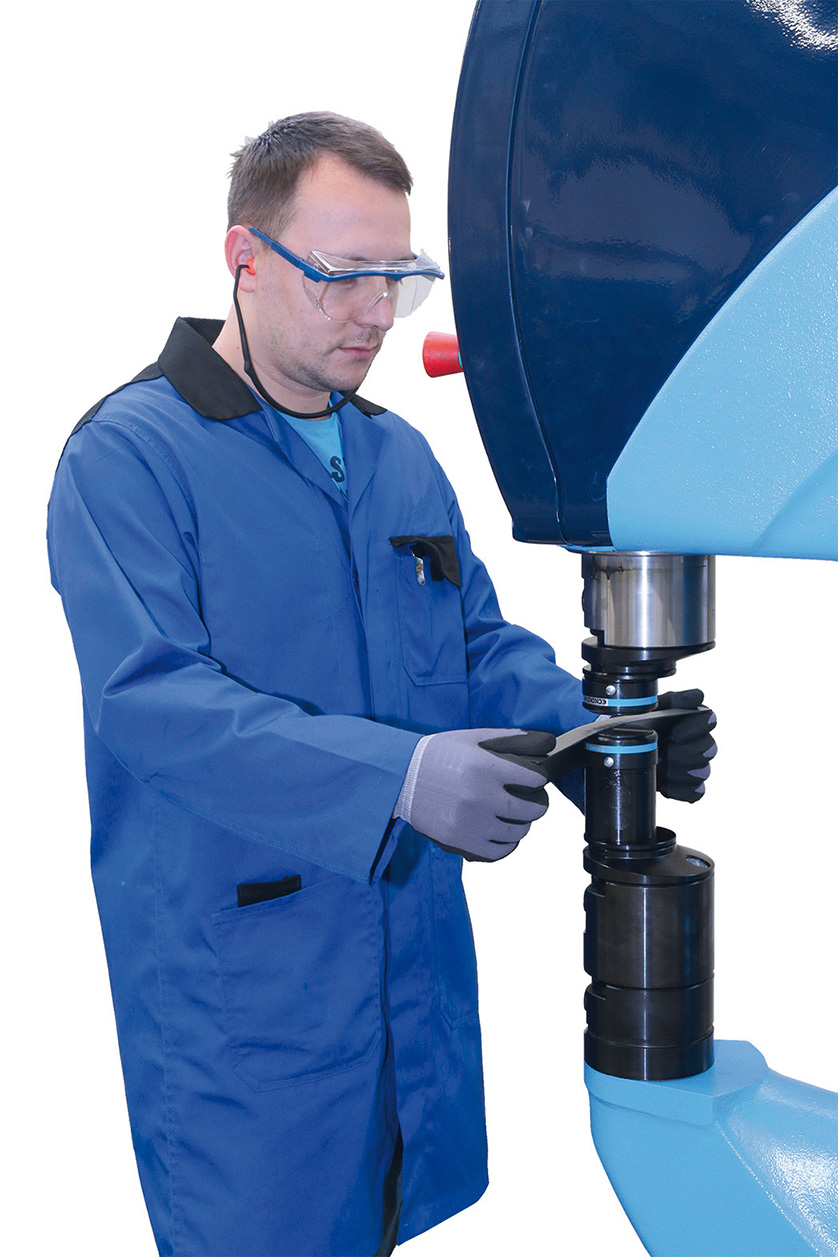

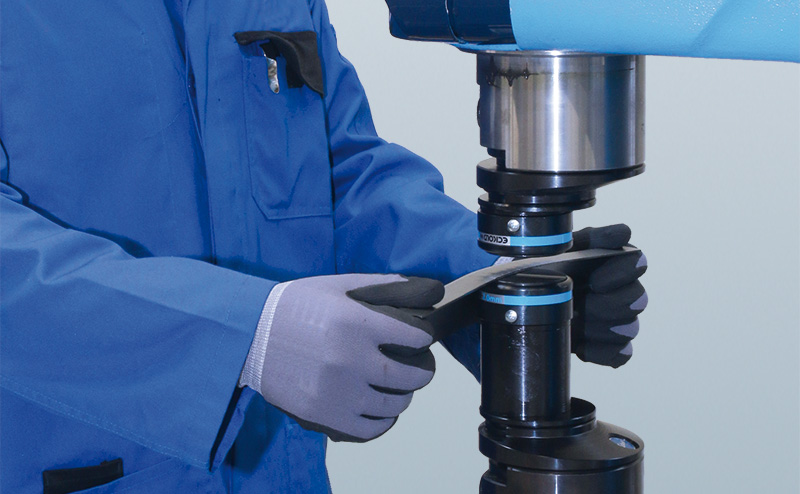

Eckold Kraftformers are multi-functional sheet metal forming machines. Tooling options for shrinking, stretching, doming, planishing, flattening, and more. Kraftformers can be used in a variety of functions because of their refined design and vast tooling options. The combination of different forming operations in one device saves space and increases efficiency. The smart design allows for upgrading the machine anytime. They are modular, efficient, and high quality thus the choice for industry professionals

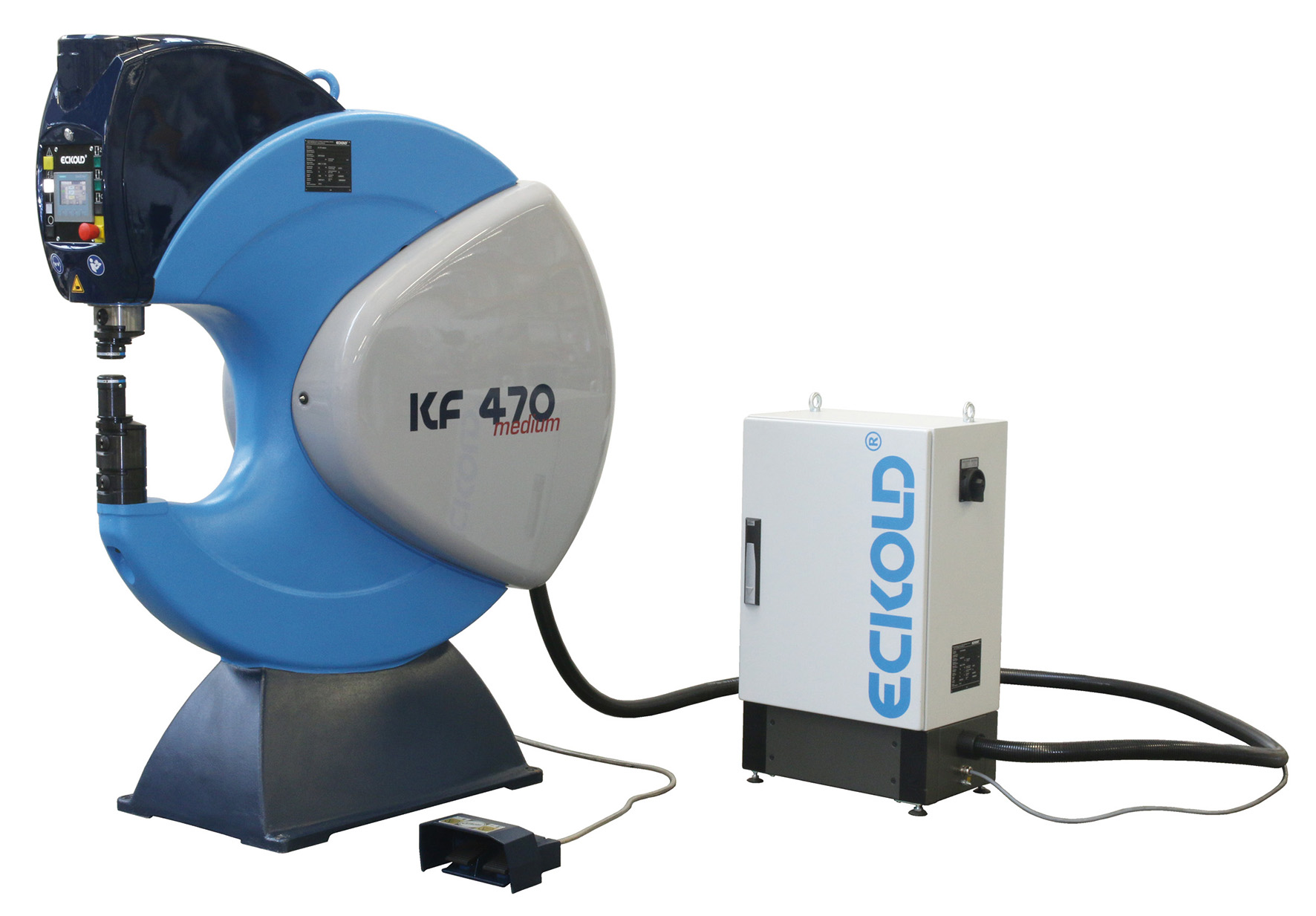

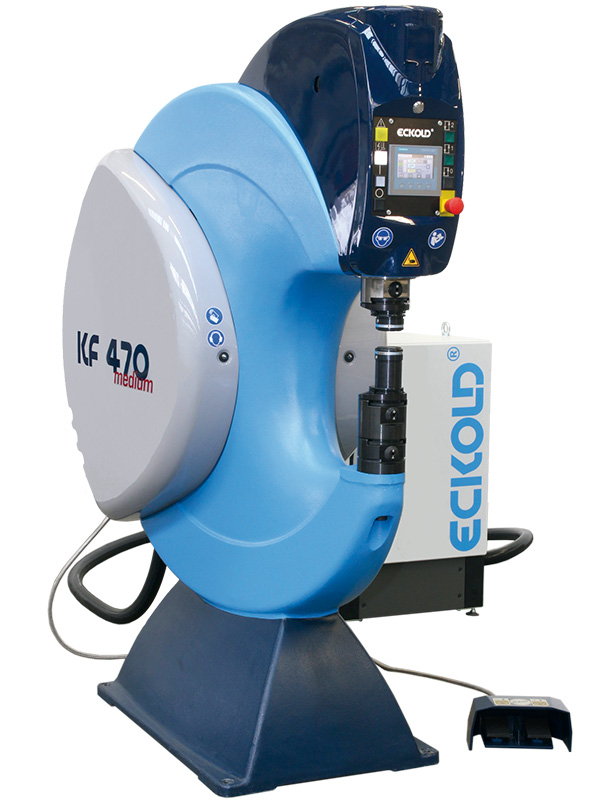

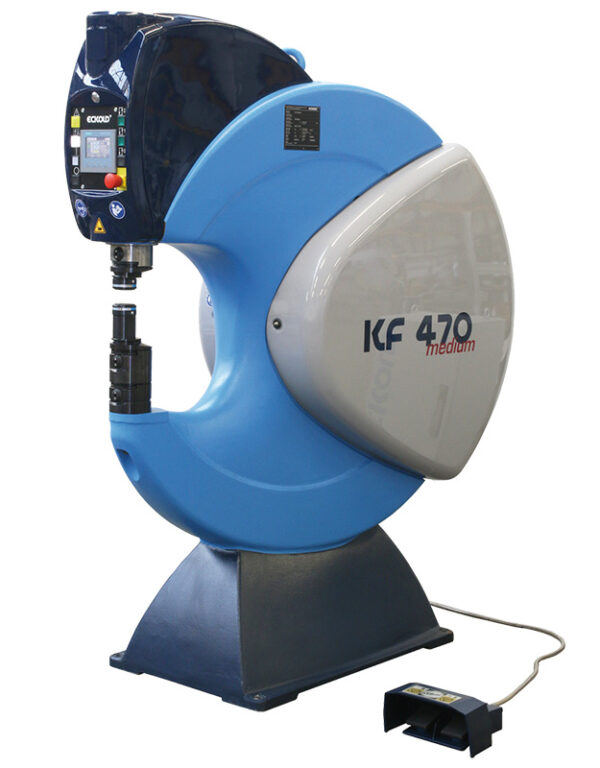

The Eckold Kraftformer KF 470 is the second largest machine in the Kraftformer range. It combines strength and durability with high press forces, precision control and is characterized by a modern design. With a horizontal throat of 18″, the KF 470 is capable of working large components up to 7 gauge material thickness

Specifications:

Forming Capacity:

Aluminum: 7 Gauge

Steel: 12 Gauge

Stainless Steel: 14 Gauge

Horizontal Throat Depth: 18 1/2″

Vertical Throat Height: 18.7″

Upper Ram Adjustment: 2.36″

Drive: Electric

Stroke Frequency: Continuous Stroke

Strokes per Minute: 300 – 600

Mechanical Specifications:

Dimensions: 67″ x 28″ x 78″ H

Weight: approx. 3,003 lbs.

Contact us for special pricing and availability

FOB Factory

Additional Information

Weight3200 lbs
