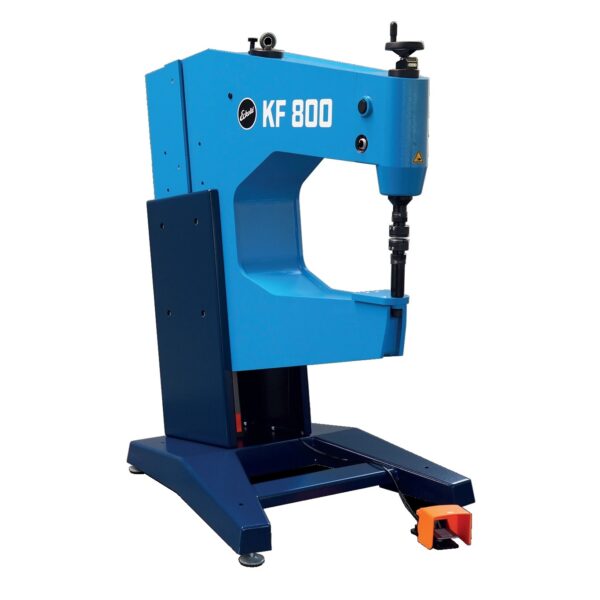

Eckold ‘Kraftformer’ 14 Gauge Sheet Metal Forming Machine, KF 800
Inventory # 8884
Model: KF 800
Description:
The Kf 800 is air powered and controlled by a foot pedal, and you can easily switch between single stroke and continuous stroke operation. The single stroke mode combined with the machines massive reach is extremely beneficial for correction jobs. The machine has 2 different stroke settings depending on your forming force requirements

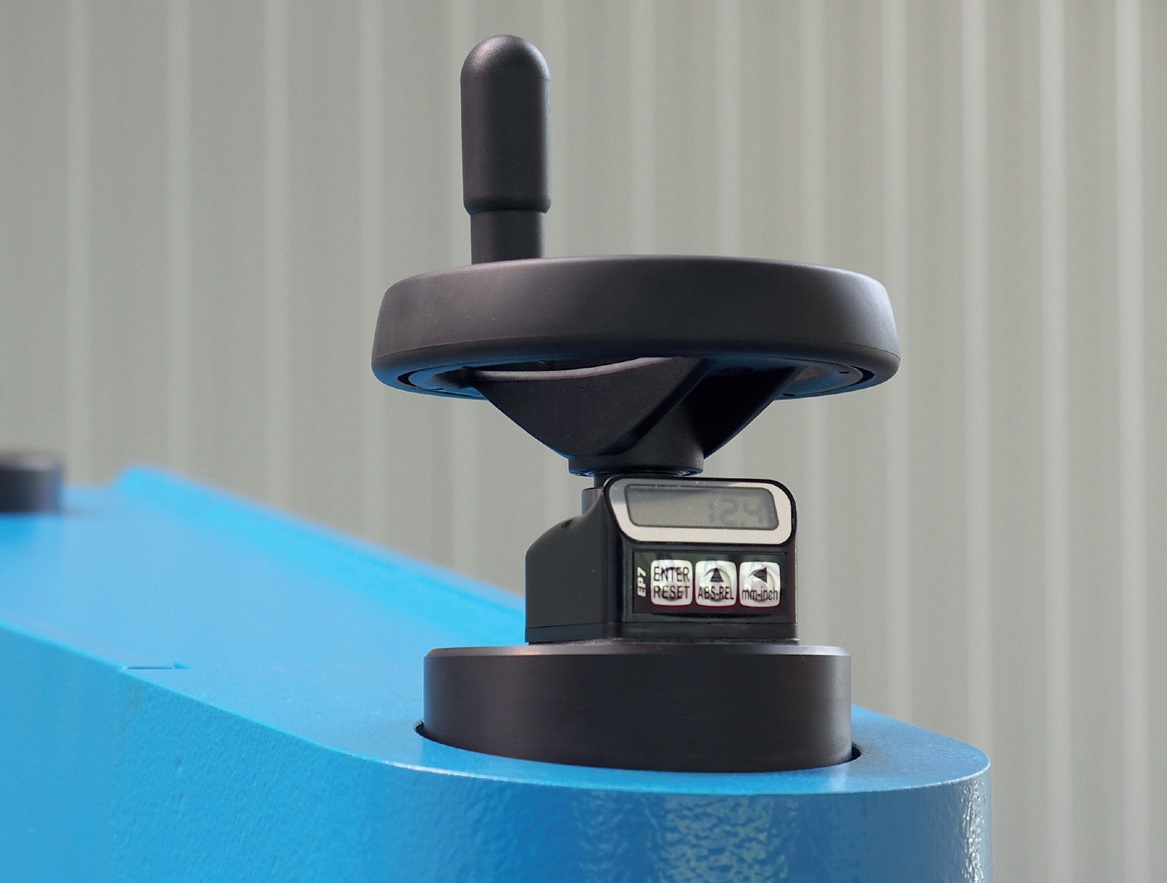

A digital display shows the machines ram position with 0.1mm precision which results in accurate repeatability of the forming force. The KF 800’s adjustable height allows for an ergonomic working position for the operator. The KF 800 uses the same tooling as Eckolds popular KF 170 PD allowed for easy tool changes within seconds. The range of tools covers shrinking, stretching (both steel and non-marring synthetic inserts), doming, and planishing operations
Like the other Kraftformer models, the all-new KF 800 is durable, versatile, and precisely engineering with every detail in mind
Specifications:
Forming Capacity:
Aluminum: 14 Gauge
Steel: 14 Gauge
Stainless Steel: 18 Gauge
Horizontal Throat Depth: 31 1/2″
Vertical Throat Height: 17 1/2″
Upper Ram Adjustment: 1″
Drive: Pneumatic
Stroke Frequency: Single and Continuous Stroke
Strokes per Minute: 150
Standard Features:
Massive throat depth of 31 1/2″
Easy accessibility on larger work pieces
Single and continuous stroke
Precision settings for accurate repeatability
Height adjustment
Vast range of tooling options

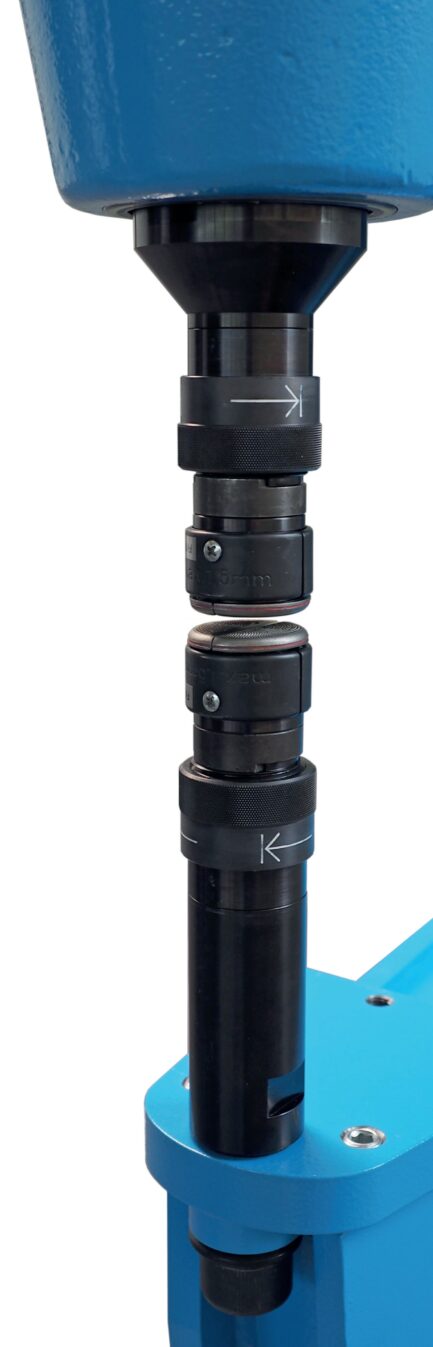

Quick-change tooling
Mechanical Specifications:

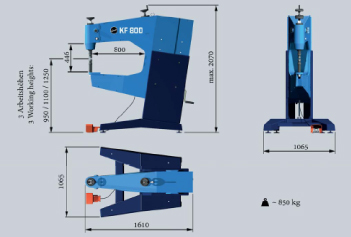

Dimensions: 63 1/2″ x 42″ x 81 1/2″ H
Weight: approx. 1,874 lbs.
Contact us for pricing and availability
FOB Factory
