Eckold ‘Kraftformer’ 14 Gauge Sheet Metal Forming Machine, KF 170 PD
Inventory # 8879
Model: KF 170 PD
Description:

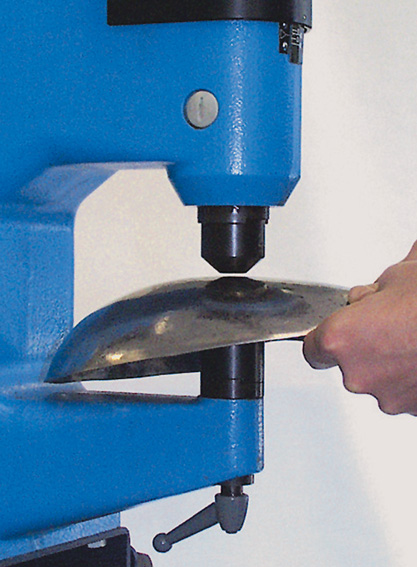

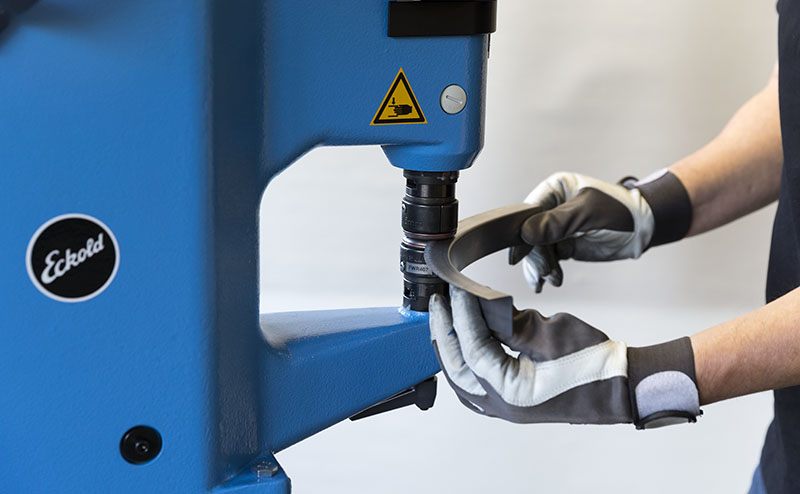

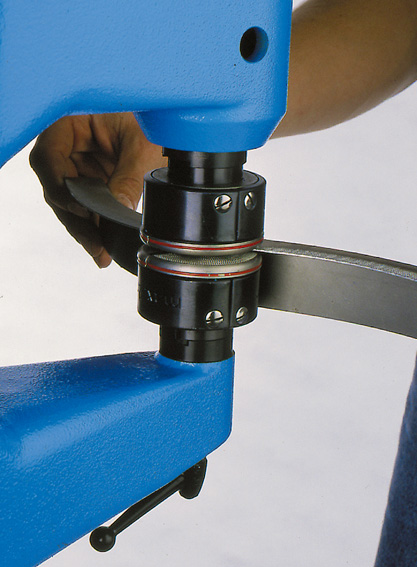

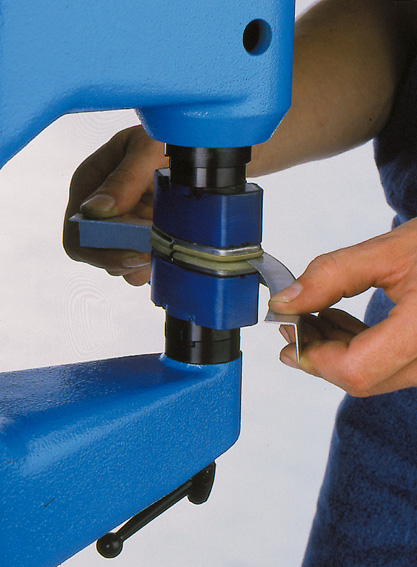

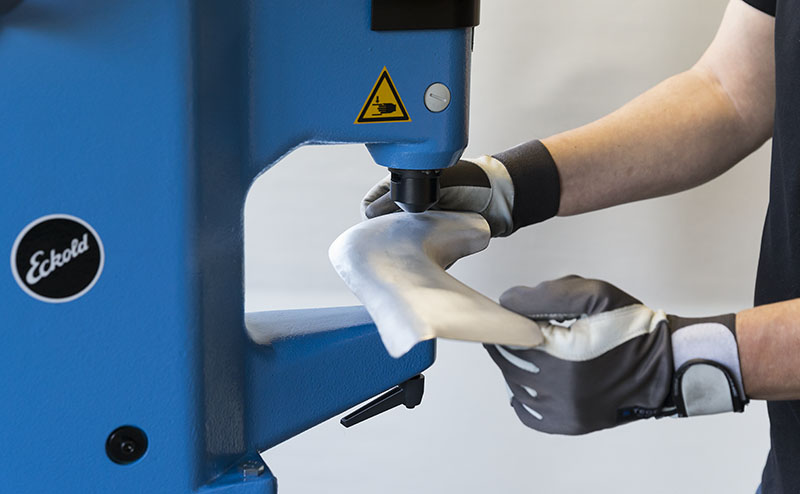

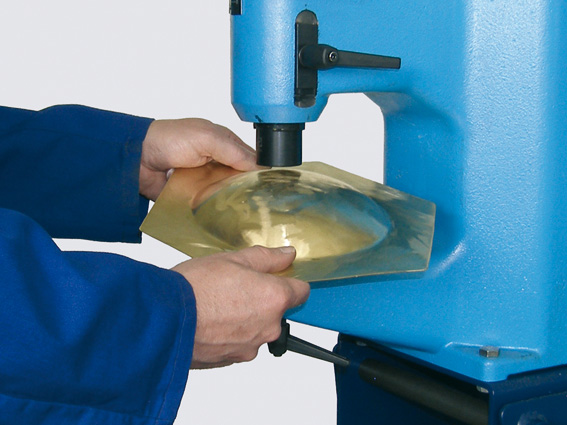

Eckold Kraftformers are multi-functional sheet metal forming machines. Tooling options for shrinking, stretching, doming, planishing, flattening, and more. Kraftformers can be used in a variety of functions because of their refined design and vast tooling options. The combination of different forming operations in one device saves space and increases efficiency. The smart design allows for upgrading the machine anytime. They are modular, efficient, and high quality thus the choice for industry professionals

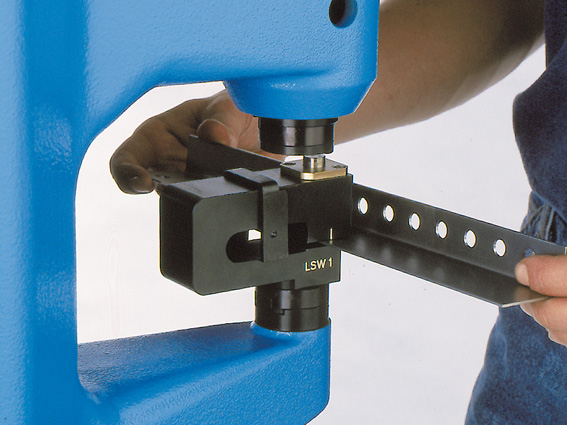

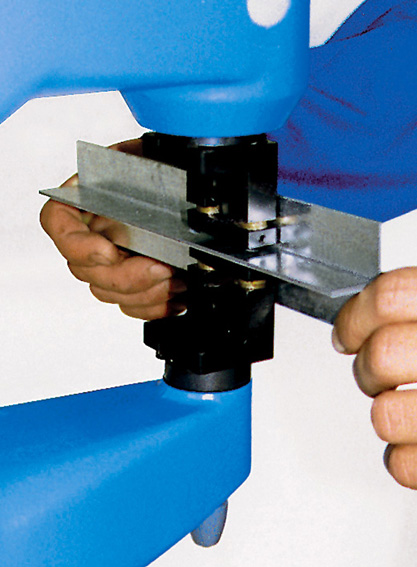

The air powered KF 170 PD is the smallest of the Kraftformer machines. It can be switched between single and continuous stroke thus is ideal for correcting and adjusting jobs, and can also be used for punching, notching, and clinching. With a horizontal throat of 6.7″, the KF 170 PD is capable of working large components up to 14 gauge material thickness
Specifications:
Forming Capacity:
Aluminum: 14 Gauge
Steel: 14 Gauge
Stainless Steel: 18 Gauge
Horizontal Throat Depth: 6.67″
Vertical Throat Height: 5 3/4″

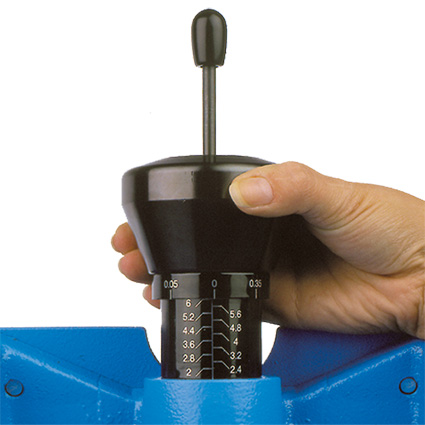

Upper Ram Adjustment: .32″
Drive: Pneumatic
Stroke Frequency: Single and Continuous Stroke
Strokes per Minute: 150 – 250
Mechanical Specifications:

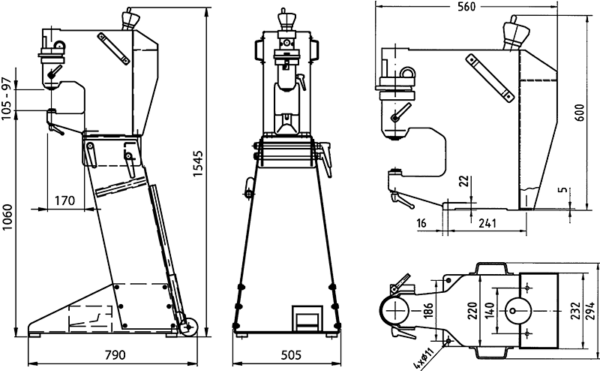

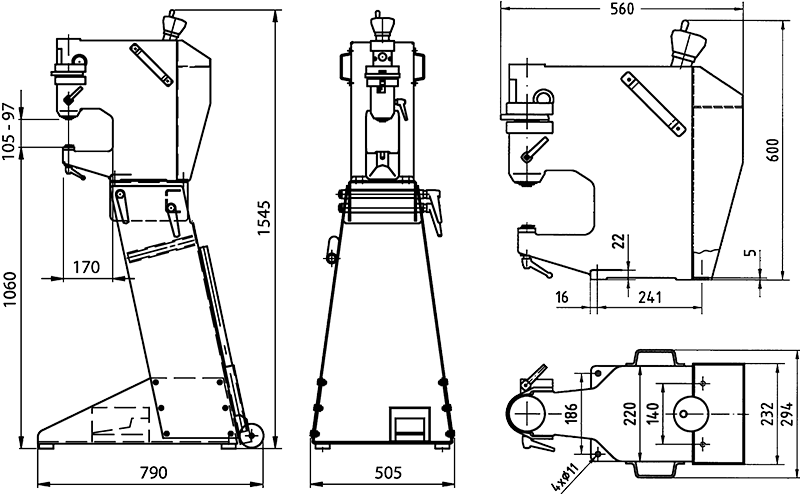

Dimensions: 31″ x 20″ x 60″ H
Weight: approx. 335 lbs.
