Eckold 'Kraftformer' 11 Gauge Sheet Metal Forming Machine, KF 324
Eckold 'Kraftformer' 11 Gauge Sheet Metal Forming Machine, KF 324Eckold 'Kraftformer' 11 Gauge Sheet Metal Forming Machine, KF 324

Eckold ‘Kraftformer’ 11 Gauge Sheet Metal Forming Machine, KF 324

Shipping: Add to Cart to Calculate

Make Offer

SKU: KF 324

Inventory #: 8880

Categories: ,

Condition:

Type:

Brand:

Product Description

Eckold ‘Kraftformer’ 11 Gauge Sheet Metal Forming Machine, KF 324

Inventory # 8880

Model: KF 324

Description:

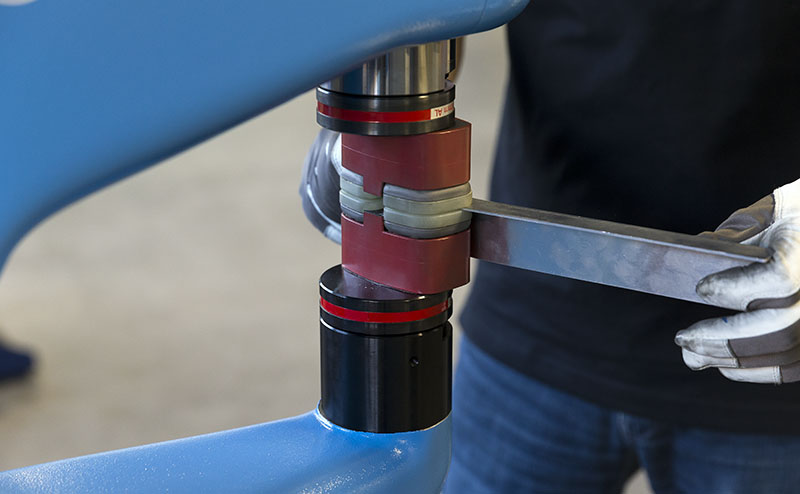

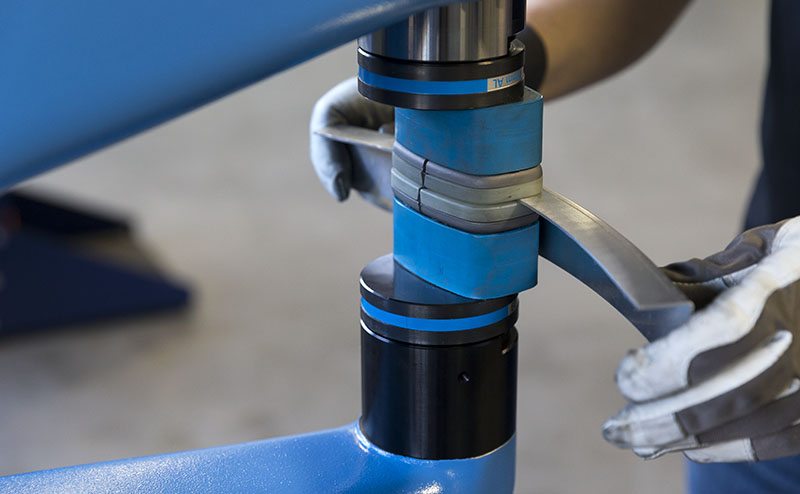

Eckold Kraftformers are multi-functional sheet metal forming machines. Tooling options for shrinking, stretching, doming, planishing, flattening and more. Kraftformers can be used in a variety of functions because of their refined design and vast tooling options. The combination of different forming operations in one device saves space and increases efficiency. The smart design allows for upgrading the machine anytime. They are modular, efficient and high quality thus the choice for industry professionals

The KF 324 is one of the medium-sized machines from Eckold. Because of the smaller size and wide range of tools, the KF 324 is the perfect all-rounder for any shop. With a horizontal throat of 13.4″, the KF 324 is capable of working large components up to 11 gauge material thickness

Specifications:

Forming Capacity:

Aluminum: 11 Gauge

Steel: 14 Gauge

Stainless Steel: 18 Gauge

Horizontal Throat Depth: 13.39″

Vertical Throat Height: 9.47″

Upper Ram Adjustment: 1.26″

Drive: Electric

Stroke Frequency: Continuous Stroke

Strokes per Minute: 400

Mechanical Specifications:

Dimensions: 48″ x 30″ x 68″ H

Weight: approx. 1,036 lbs.

Contact us for special pricing and availability

FOB Factory

Additional Information

Weight1200 lbs
