Description

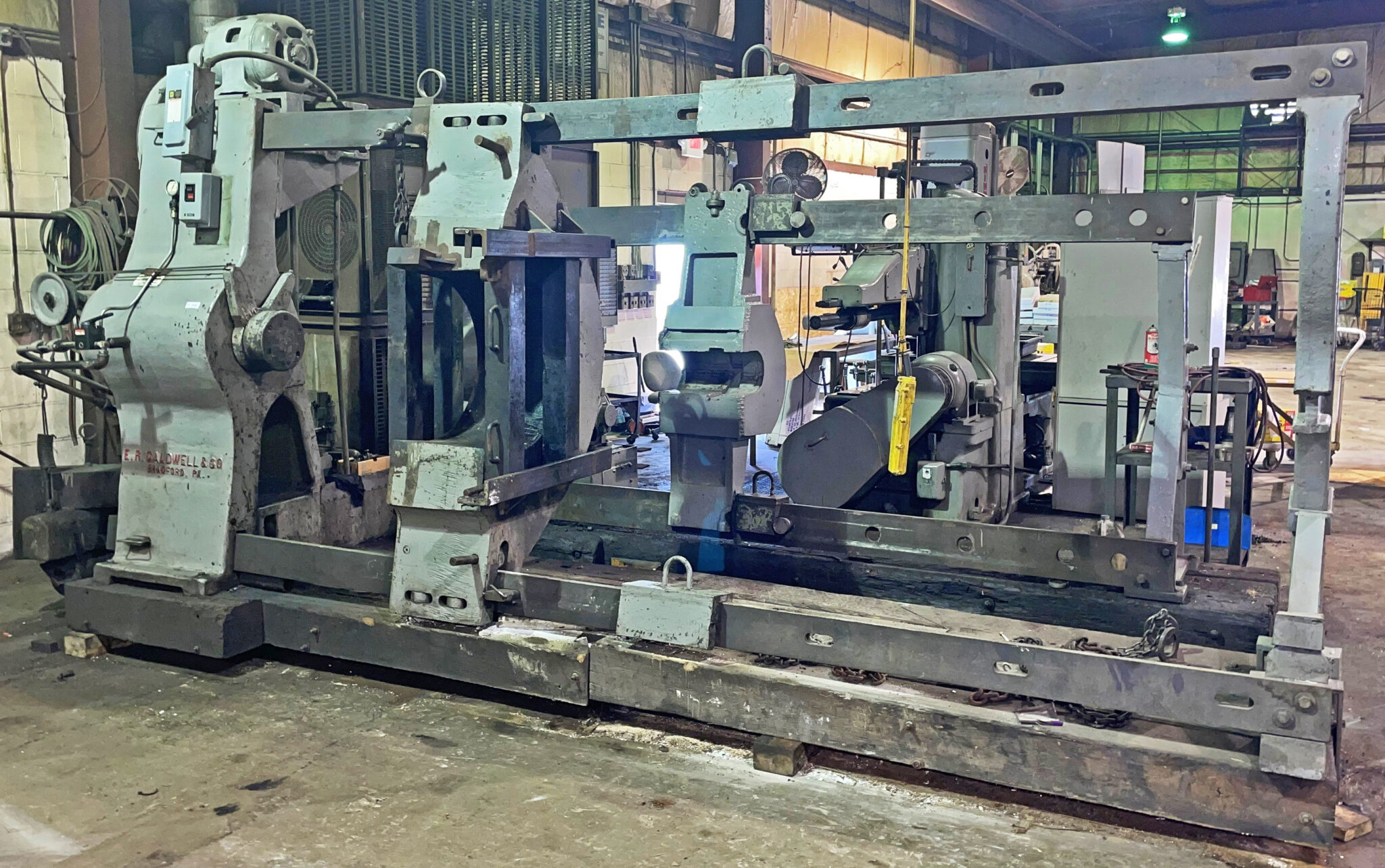

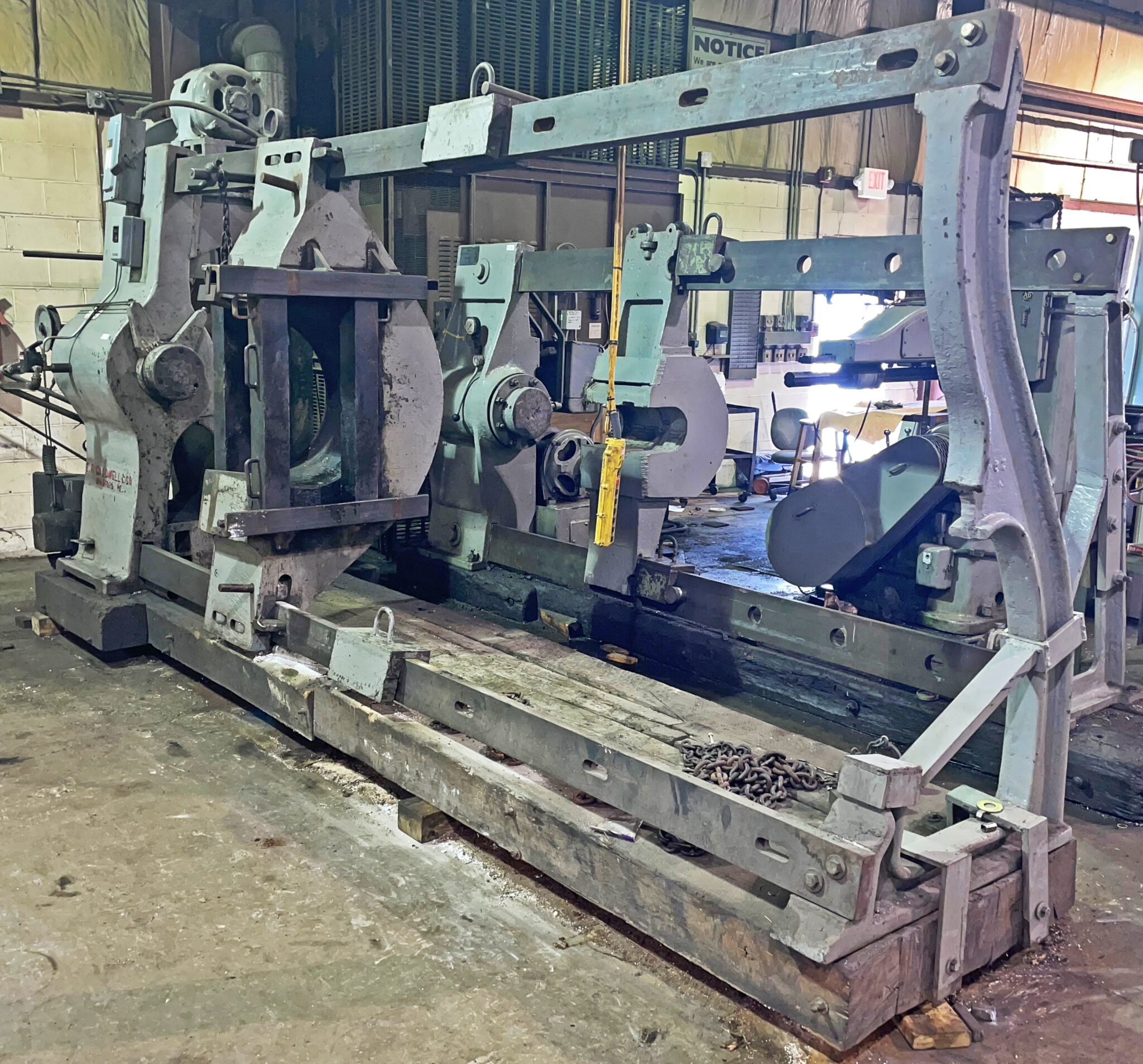

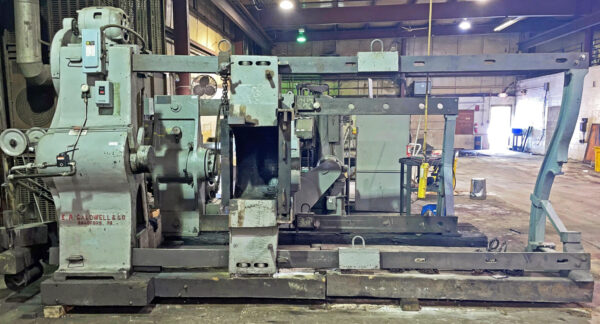

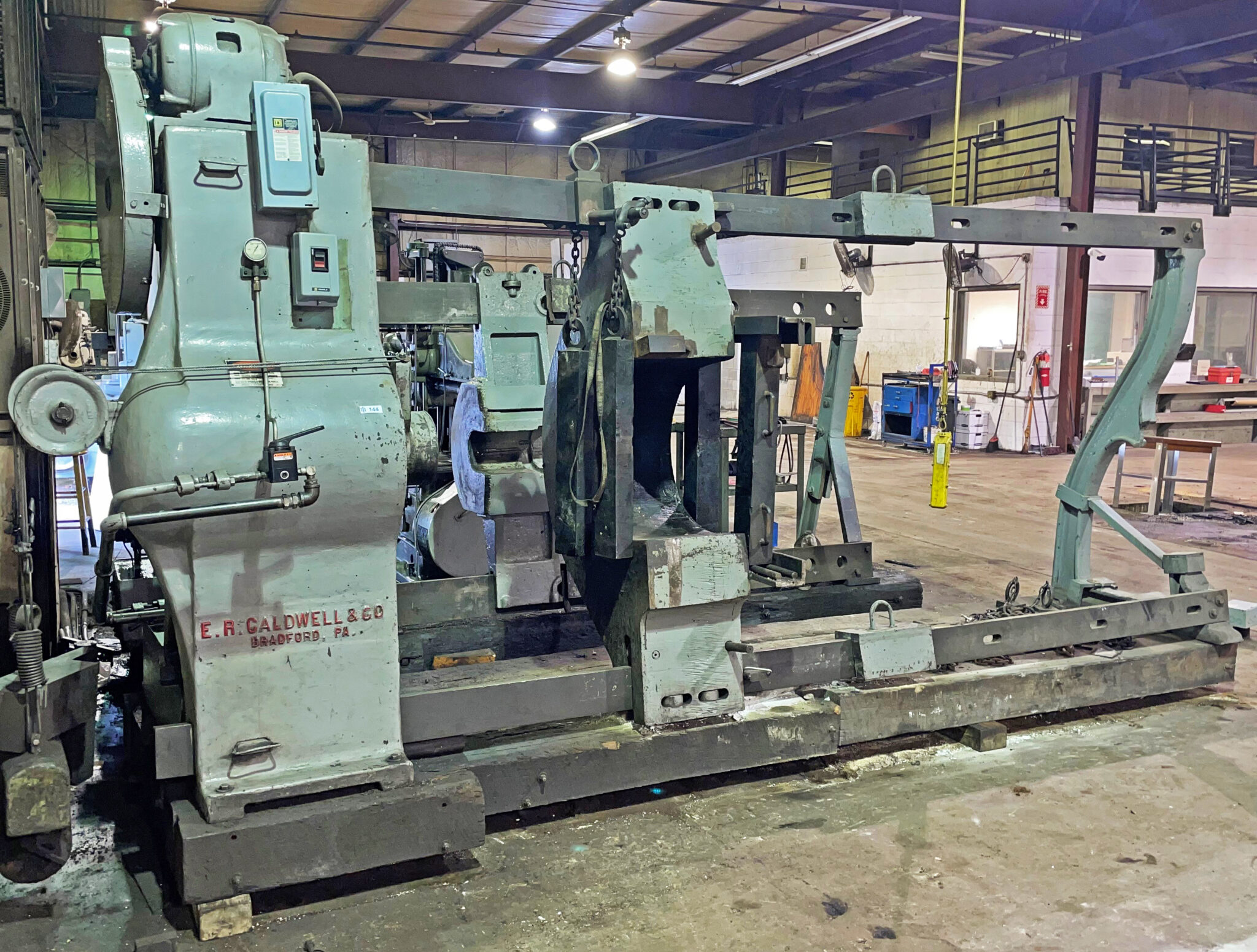

E.R. Caldwell & Co. 175″ x 300 Ton Hydraulic Inclined Wheel Press
Inventory # 9896-P
Model: 300 Ton
Specifications:
Tonnage: 300 Tons
Ram Stroke: 0″ – 18″
Ram Piston Diameter: 13 1/2″
Strain Bars: 8″
Distance Between Strain Bars: 70″
Adjustment Pins (Center Distance): 27 1/2″
Max. Ram to Resistance Member: 175″
Hole Through Resistance Member: 20″
Motor: 10 HP
Mechanical Specifications:
Dimensions: 267″ x 84″ x 101″ H
Weight: approx. 16,500 lbs.
FOB Our Baltimore, MD Warehouse
Please Note: Specifications Need to be Verified
