DoALL 11 3/4″ Dual-Miter Semi-Automatic Band Saw, DS-320SA

Shipping: Add to Cart to Calculate

SKU: DS-320SA

Inventory #: 7704

Categories: ,

Condition:

Type:

Brand:

Description

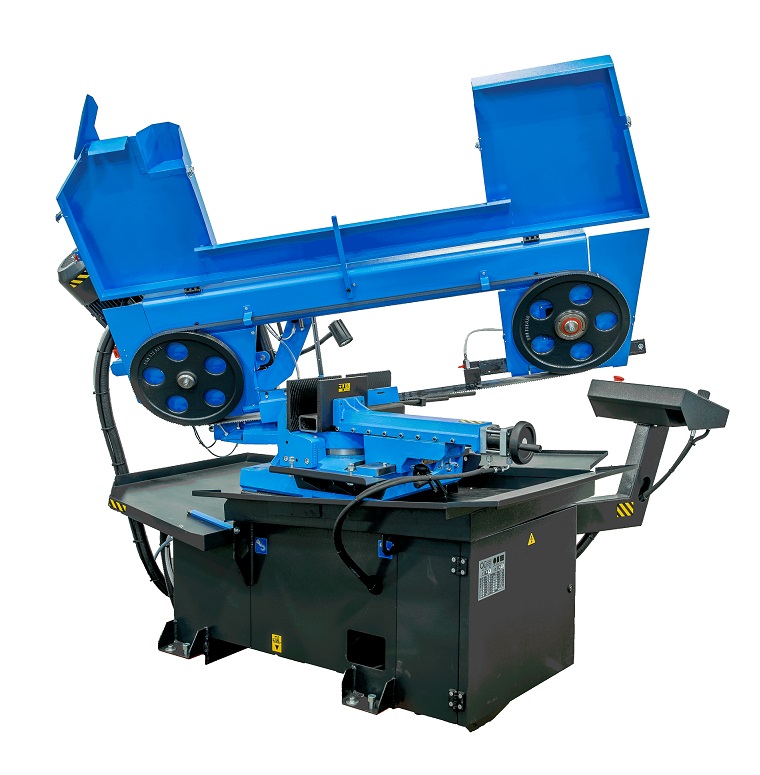

DoALL 11 3/4″ Dual-Miter Semi-Automatic Band Saw, DS-320SA

Inventory # 7704

Model: DS-320SA

Description:

The DoALL DS-320SA StructurALL semi-automatic, dual-miter band saw is designed for cutting vertical and angular material for low volume piece production.The DS-320SA dual-swivel ability allows miter-cutting from 60° right and 45° left

The semi-automatic DS-320SA features a variable frequency drive with programmable feed rates. A large variety of optional accessories are available to customize the machine for specific sawing requirements

Specifications:

Cutting Capacity:

Round Tube: 11 3/4″

Rectangle: 11 3/4″ x 12 1/2″

Solid Round: 7″

Miter Cutting: 0° – 60° Right and 0° – 45° Left

Miter Cutting Tube @ 45°, Round: Right 11 3/4″, Left 11″

Miter Cutting Solid @ 45°, Round: Right 4 1/4″, Left 4 1/4″

Miter Cutting Tube @ 60°, Round: 7 3/4″

Miter Cutting Solid @ 60°, Round: 3 1/8″

Miter Cutting Tube @ 45°, Rectangle: Right 11 3/4″ x 9 3/4″, Left 10.4″ x 7.9″

Miter Cutting Tube @ 60°, Rectangle: 7 3/4″ x 7 3/4″

Nesting Capacity at 90°: .12″ – 12 1/2″ x 6 1/4″

Remnant Length Drop: 1.2″ Width

Material Pass Line Height: 31 1/2″

Blade Size: 144″ x 1″ x 0.035″

Blade Speed: 10 – 240 FPM

Band Drive Motor: 2 – 2.5 HP / 230v / 3ph

Standard Features:

Tool kit

Flood Coolant

Mitsubishi saw control

Overfeed protection

Blade-driven band brush

Work height sensor

Variable frequency drive

One DoALL bi-metal saw blade

3.3 feet work stop directly mounted

Complimentary DoALL cutting fluids package

Instruction and parts manuals on CD or USB data stick

Mechanical Specifications:

Dimensions: 46″ x 90″ x 56″ H

Weight: approx. 1,533 lbs.

Contact us for special pricing and availability

FOB Factory

Additional information

Weight 1533 lbs
