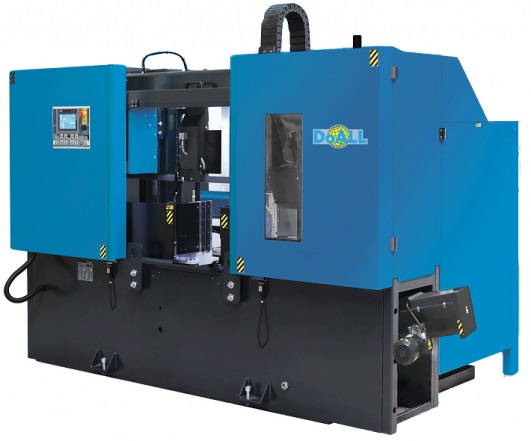

DoALL 16″ Dual Column Enclosed CNC Band Saw, DC-400CNC

Shipping: Add to Cart to Calculate


Inventory #: 7720

Categories: ,





DoALL 16″ Dual Column Enclosed CNC Band Saw, DC-400CNC

Inventory # 7720

Model: DC-400CNC


The DC-400CNC Hercules high production, horizontal CNC band saws from DoALL are highly efficient, automatic, hydraulically controlled machines with multiple material feeds. Designed for vertical cuts, the DC-400CNC is ideal for serial production in industrial settings

Thanks to the robust construction of the DC-400CNC, it is possible to cut a wide range of full and profile materials including stainless and tool steel. In addition, the “box” or enclosed design provides very safe operation


Cutting Capacity:

Round (Tube and Solid): 15 3/4″

Rectangle: 15 3/4″ x 15 3/4″

Max. Bundle Capacity: 15 3/4″ x 9.8″

Index Single Stroke: 0.12″ – 21.7″

Auto Index Multiple Stroke: 394″

Material Pass Line Height: 31 1/2″

Blade Size: 220″ x 1 1/2″ x 0.05″

Blade Speed: 65 – 328 FPM

Blade Drive Motor: 7.5 HP

Standard Equipment:

Tool kit

Work light

Flood coolant

Work height sensor

Power-driven band brush

Hydraulic band tension

Worm chip conveyor

Automatic guide arm setting

One DoALL bi-metal saw blade

Variable vise pressure control – Set of 2

Siemens control with touch screen display

Automatic feed control with programmable feed rates

Automatic retraction of material in cycle for protection of carbide blades

Dual acting index vice jaws for crooked stock

Complimentary DoALL cutting fluids package

Instruction and parts manuals on CD or USB data stick

Mechanical Specifications:

Dimensions: 82″ x 117″ x 87″ H

Weight: approx. 7,850 lbs.

Contact us for special pricing and availability

FOB Factory

Additional information

Weight 7850 lbs
