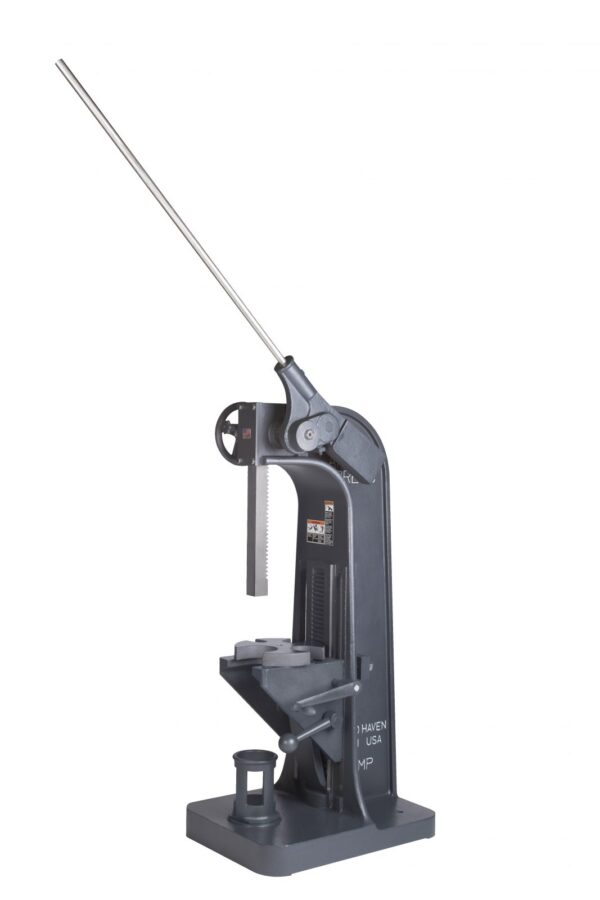

Dake 15 Ton Compound Leverage Arbor Press, Model 5

Shipping: Add to Cart to Calculate

SKU: Model 5

Inventory #: 8433

Categories: ,





Dake 15 Ton Compound Leverage Arbor Press, Model 5

Inventory # 8433

Model: 5

P/N: 903008


This 15 ton compound leverage arbor press features a sliding pin, rack and pinion table adjustment. Dual swinging tables
for height adjustments come standard


Capacity: 15 Tons

Leverage Ratio: 150:1

Ram Size: 2″ x 2″ x 24″

Max. Diameter Work: 24 1/2″

Throat: 12 1/4″

Largest Arbor: 5 1/2″

Max. Ram to Table: 46″

Min. Ram to Table: 16″

Standard Features:

Compound leverage mechanism allows greater presure application with minimum effort

Dual swinging tables for height adjustment on model 5

Sliding pin easily converts press from compound to single leverage

Standard Equipment:

Cast Iron Frame


Slotted Table

Mechanical Specifications:

Dimensions: 32 1/2″ x 27″ x 64 1/2″ H

Weight: approx. 1,800 lbs.

Contact us for special pricing and availability

FOB Factory

Additional information

Weight 1900 lbs
