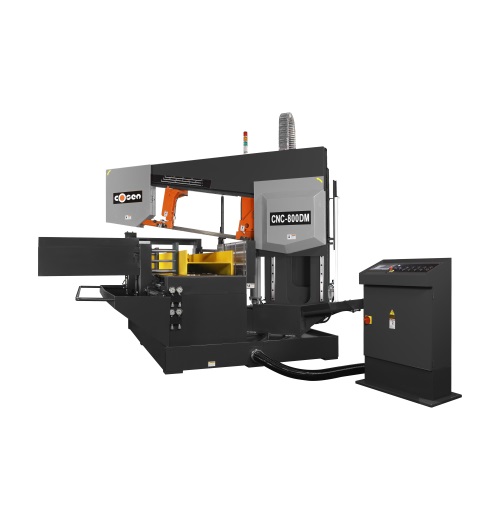

Cosen 20" CNC Programmable Dual-Mitering Automatic Horizontal Column Band Saw, CNC-800DM
Cosen 20" CNC Programmable Dual-Mitering Automatic Horizontal Column Band Saw, CNC-800DM

Cosen 20″ CNC Programmable Dual-Mitering Automatic Horizontal Column Band Saw, CNC-800DM

Shipping: $4500.00

Make Offer

SKU: CNC-800DM

Inventory #: 7568

Categories: ,

Condition:

Type:

Brand:

Product Description

Cosen 20″ CNC Programmable Dual-Mitering Automatic Horizontal Column Band Saw, CNC-800DM

Inventory # 7568

Model: CNC-800DM

Description:

Programmable up to 100 individual jobs including cut-off lengths, quantities and miter angles. Automatic saw frame mitering, single or double-sided to your preset angle. Automatic guide arm and front vise repositioning. Programmable cutting rates and blade speeds. Automatic multiple feeding with mitering direction taken into calculation. Automatic machine shutoff after cutting jobs complete or when out of stock. 10″ HMI touch screen with access to blade speed, blade life, optional motor amp draw and blade deviation detector

Specifications:

Capacities:

Round:

@ 0°: 20″

@ ±45°: 17.7″

@ -60°: 16″

Rectangle:

@ 0°: 16″ x 31″

@ ±45°: 16″ x 21″

@ -60°: 16″ x 16″

Saw Blade:

Speed: 66 – 330 FPM

Size: 260″ x 2″ x 0.050″

Blade Motor: 7.5 HP

Workbed Height: 42.7″

Standard Features:

Planetary gearbox

CNC control technology

Miter-angle display

Two-swiveling/feeding speeds

Instant linear downfeed rate feedback

Hydraulic shuttle vise

Double reacting vise jaws

Hydraulic guide arm and blade guide

Vibration damper

Optional top clamp

Optional blade deviation detector

Mechanical Specifications:

Dimensions: 204.7″ x 139″ x 107″ H

Weight: approx. 17,600 lbs.

Contact us for special pricing and availability

FOB Factory

Additional Information

Weight17600 lbs
