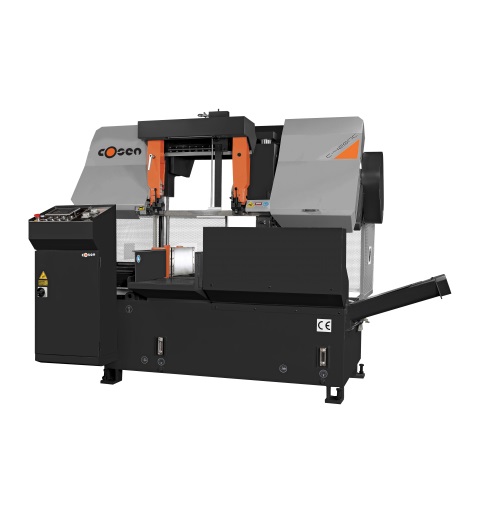

Cosen 16 1/2" Dual Column Fully Programmable Automatic Horizontal Band Saw, C-420NC
Cosen 16 1/2" Dual Column Fully Programmable Automatic Horizontal Band Saw, C-420NC

Cosen 16 1/2″ Dual Column Fully Programmable Automatic Horizontal Band Saw, C-420NC

$42,895.00 $42,000.00

Shipping: $750.00

Make Offer

SKU: C-420NC

Inventory #: 7565

Categories: ,

Condition:

Type:

Brand:

Product Description

Cosen 16 1/2″ Dual Column Fully Programmable Automatic Horizontal Band Saw, C-420NC

Inventory # 7565

Model: C-420NC

Description:

Smart NC-100 (SNC100) technology provides most of the benefits of NC controlled saws at a mere fraction of the cost. SNC100 controls are programmable up to 100 different jobs including quantity and length of cut. The control automatically compensates for Kerf loss after data input and requires no manual calculation of number of times to index. Rugged, dependable, and advance technology, are all words that describe every Cosen SNC-100 Series Sawing Machine

Specifications:

Capacities:

Round: 16 1/2″

Square: 16 1/2″

Rectangle: 16 1/2″ x 16 1/2″

Saw Blade:

Speed: 66 – 328 FPM

Size: 187.8″ x 1 1/2″ x 0.05″

Blade Motor: 10 HP

Workbed Height: 29 1/2″

Standard Features:

Back-tilt design puts less stress on the blade, ensuring longer blade life

Hydraulic shuttle vise assembly

Gearbox designed to accept high lateral pressure (no thermal distortion)

Infinitely variable blade speeds

Carbide blade guides

Automatic hydraulic blade tensioning device

Integral coolant system

5.7″ touch screen

Precision feed pressure and feed rate dual valve system for optimal cutting performance

Split vise jaws for burr-free cut

Ductile cast iron vise

Computer controlled multiple indexing up to 999″ max. length

Vertical alignment rollers

Mechanical Specifications:

Dimensions: 98″ x 93″ x 68″ H

Weight: approx. 4,900 lbs.

Contact us for special pricing and availability

FOB Factory

Additional Information

Weight4900 lbs
